The JCE604LMWM4 is an advanced 7-in-1 combination antenna designed for high-performance wireless systems that demand exceptional speed, accuracy, and connectivity. This antenna integrates GNSS (GPS & GLONASS) for precise positioning, dual-port LTE MIMO for fast and stable cellular data, and 4× WiFi MIMO antennas (supporting both 2.4GHz and 5GHz) for high-throughput wireless networking.

Ideal for public safety vehicles, fleet telematics, connected transportation, and enterprise-grade IoT applications, the JCE604LMWM4 delivers strong, reliable performance across multiple frequency bands. Housed in a rugged IP67-rated enclosure, this antenna is built for harsh outdoor environments, and features flexible mounting options including magnetic, adhesive, and screw-mount designs.

Key Features:

7-in-1 configuration: GNSS (GPS/GLONASS) + 2× LTE MIMO + 4× WiFi MIMO
Optimized for multi-channel, high-bandwidth applications
LTE bands: 698–960MHz and 1710–2700MHz
Dual-band WiFi: 2.4GHz + 5GHz (4-port MIMO)
GNSS precision for vehicle and asset tracking
IP67 waterproof housing for outdoor durability
Compatible with 4G/5G routers, M2M/IoT gateways, and mobile DVR/NVR systems

Unlock peak wireless performance with the JCE604LMWM4 — a versatile antenna engineered for next-gen connectivity and smart mobility systems.

Specifications:

Item		Specifications
GPS&GLONASS Antenna	Frequency Range	1575.42~1610MHz
	Polarization	RHCP
	Impedance	50Ω
	Dimension	25256mm
	Gain	28±2dB
	Noise Figure	≤1.5dB
	Supply Voltage	3~5V DC
	Current Consumption	＜15mA
	V.S.W.R	＜2.0
LTE Antenna MIMO	Frequency Range	698~960MHz/1710~2690MHz
	V.S.W.R	＜3.0
	Polarization	Linear
	Gain	3dBi
	Impedance	50Ω
WIFI Antenna MIMO×4	Frequency Range	2400~2483.5MHz/4900~5825MHz
	V.S.W.R	＜2.5
	Polarization	Linear
	Gain	2dBi
	Impedance	50Ω

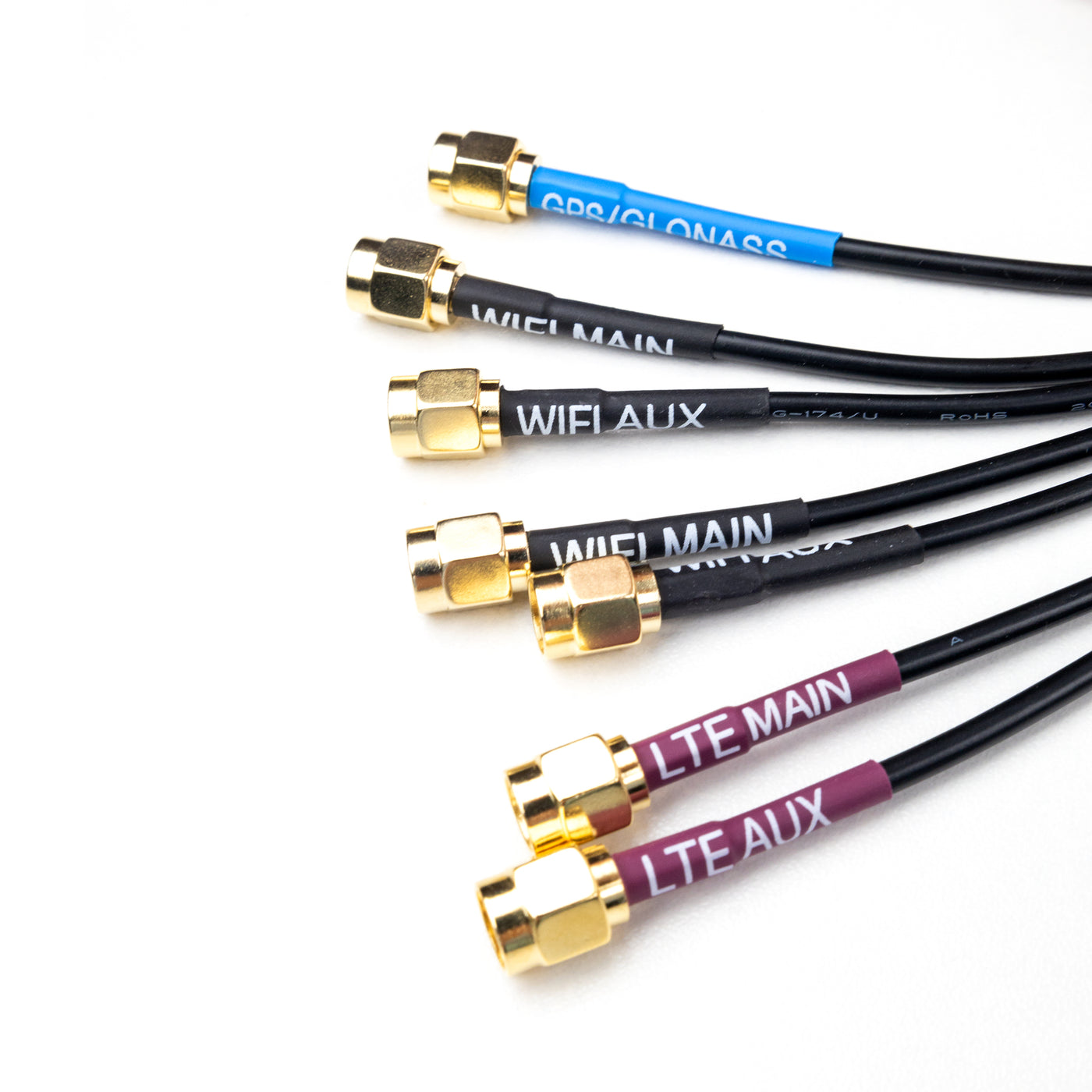

Mechanical	Cable	RG174
	Connector	SMA or others
	Radome Material	ABS
	Mounting Method	Screw
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 95%
	Ingress Protection	IP67 (exclude cable outlet)
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant

What signals are combined in this 7 in 1 antenna and what bands are supported?

The antenna combines GNSS for GPS and GLONASS, 2x LTE MIMO for cellular data, and 4x WiFi MIMO for 2.4 and 5 GHz wireless. The LTE bands cover 698 to 960 MHz and 1710 to 2690 MHz, and the WiFi supports 2.4 GHz and 5 GHz.

How can this antenna be mounted on a vehicle or outdoor installation?

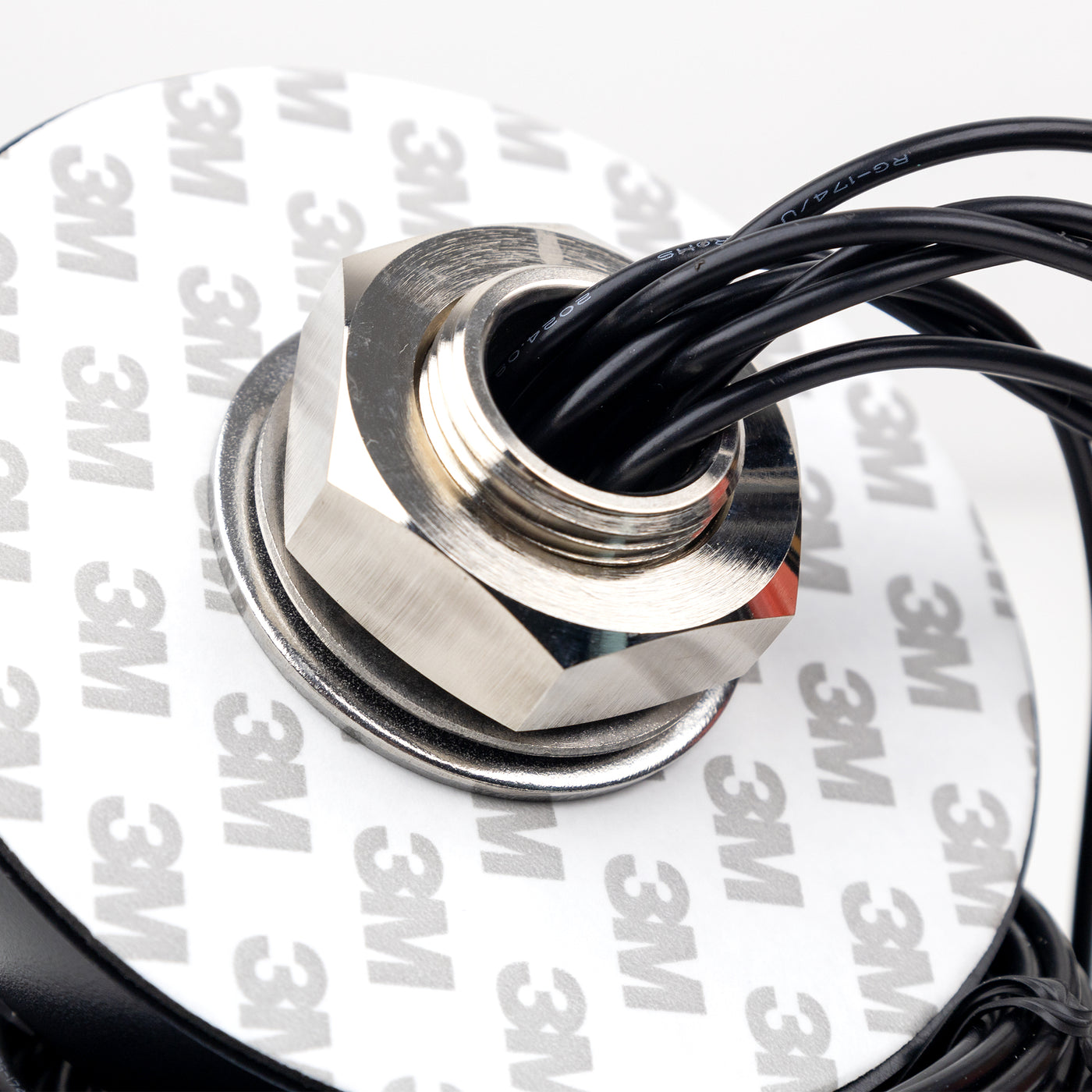

It supports screw mounting, magnetic mounting, and adhesive mounting options, and is housed in an IP67 rated enclosure for harsh outdoor environments.

What devices or systems is this antenna compatible with?

It is designed to work with 4G and 5G routers, M2M IoT gateways, and mobile DVR and NVR systems.

What are the environmental and durability specifications?

The unit operates from minus 40 to plus 85 degrees Celsius, is humidity tolerant up to 95 percent, and carries an IP67 waterproof rating for outdoor durability.

What are the electrical requirements and connector options?

Supply voltage is 3 to 5 V DC with current consumption under 15 mA. The antenna uses RG174 cable with SMA or other compatible connectors and 50 ohm impedance.
