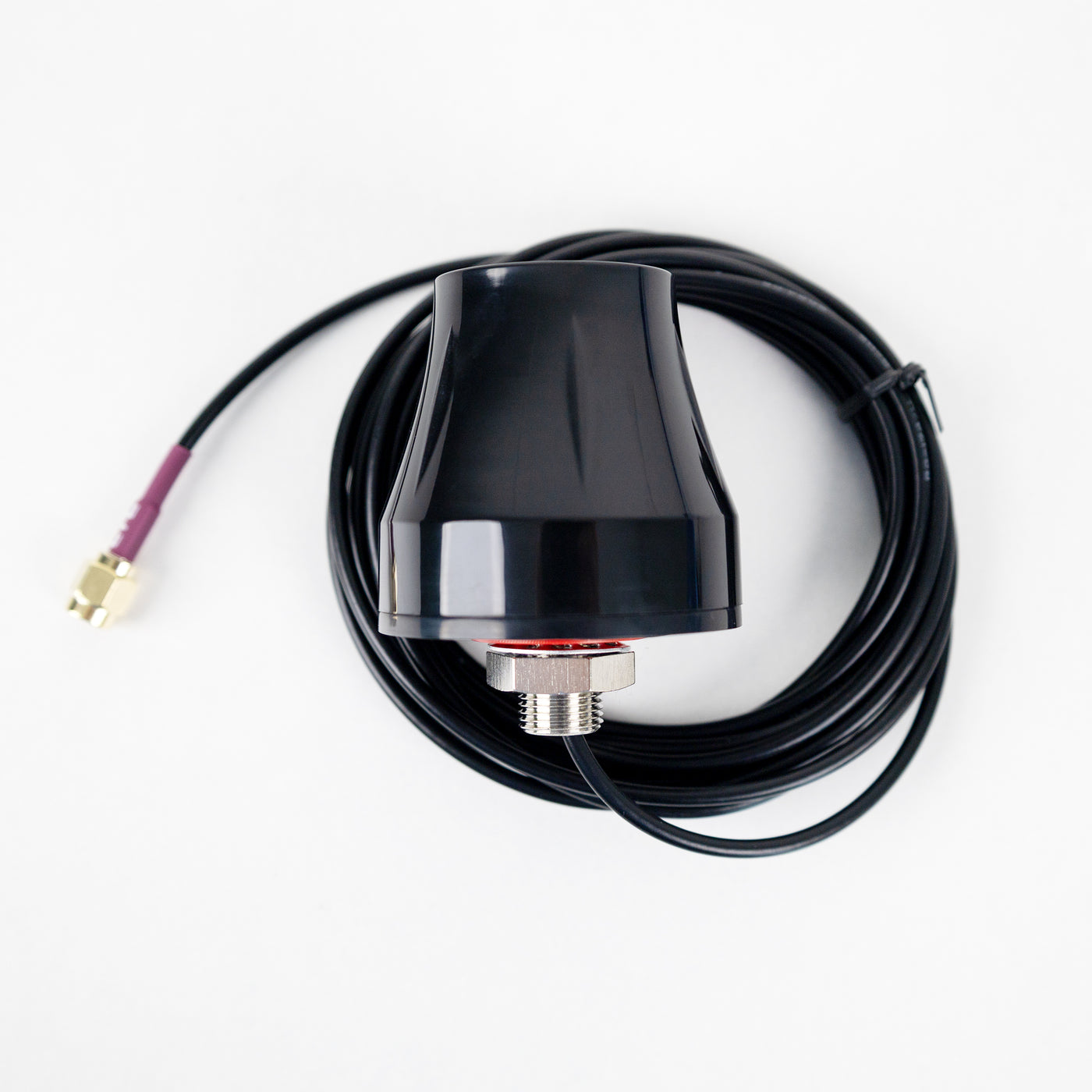

JCG058 LTE Antenna

SKU: ELC8909

ā‚¹ 1,299.99

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
JCG058 LTE Antennaā‚¹ 1,299.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

JCG058LĀ is aĀ multi-band antenna, which covers 824~2655MHz. It is specially designed for 2G, 3G and 4G applications with high sensitivity requirements.Ā

Features

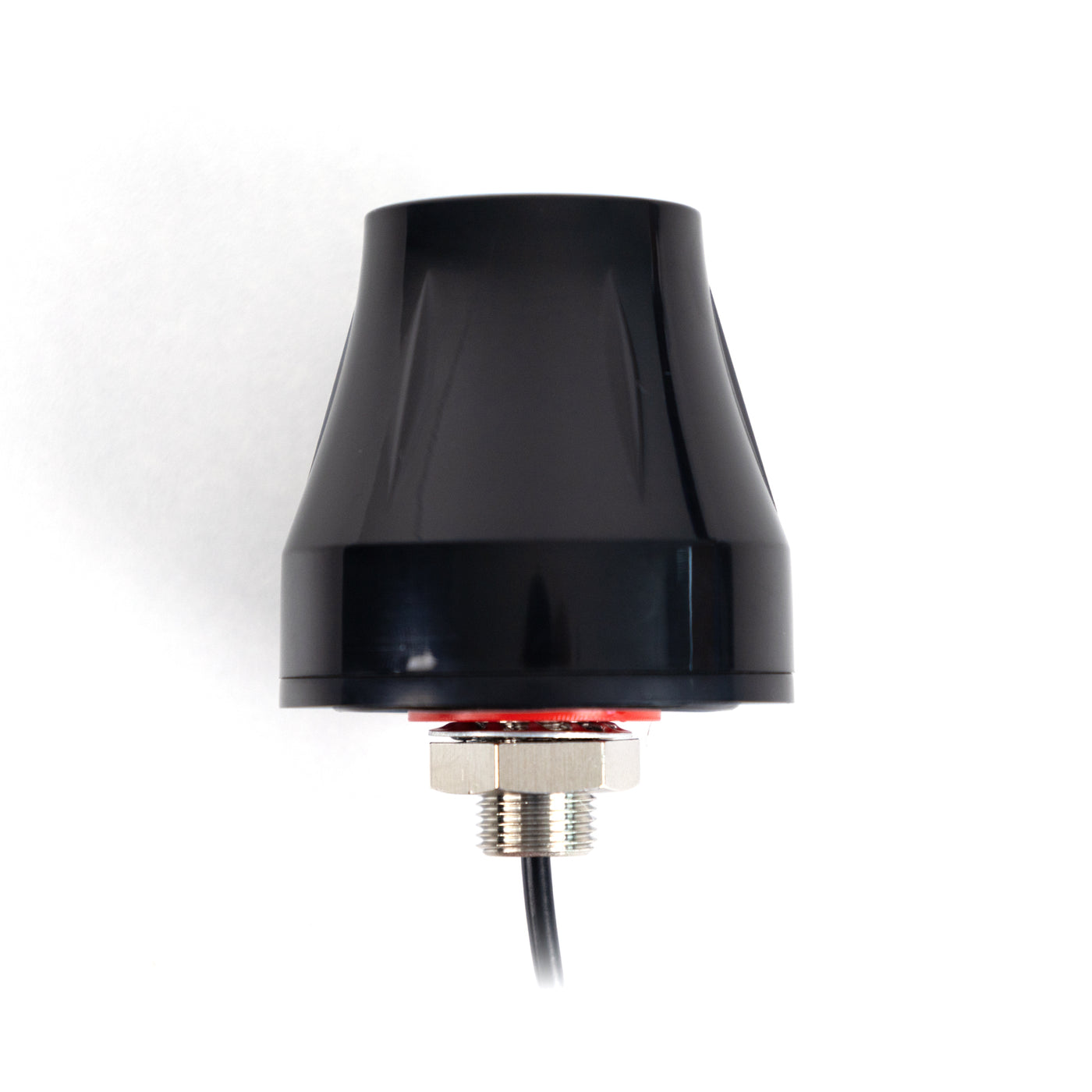

  • Low profile structure
  • Permanent screw mountingĀ
  • Covers all the mobile communication network
  • Fully waterproof

Applications

  • Vehicle Tracking
  • Asset Tracking
  • Telemetry Application
  • 4G ApplicationĀ
Ā

Specifications

Item

Specifications

Antenna

Frequency Range

824~960/1710~2170MHz

Polarization

Linear

Gain

2dBiļ¼ˆZenithļ¼‰

V.S.W.R

ļ¼œ2.0

Impedance

50Ī©

Mechanical

Cable

RG174 or others

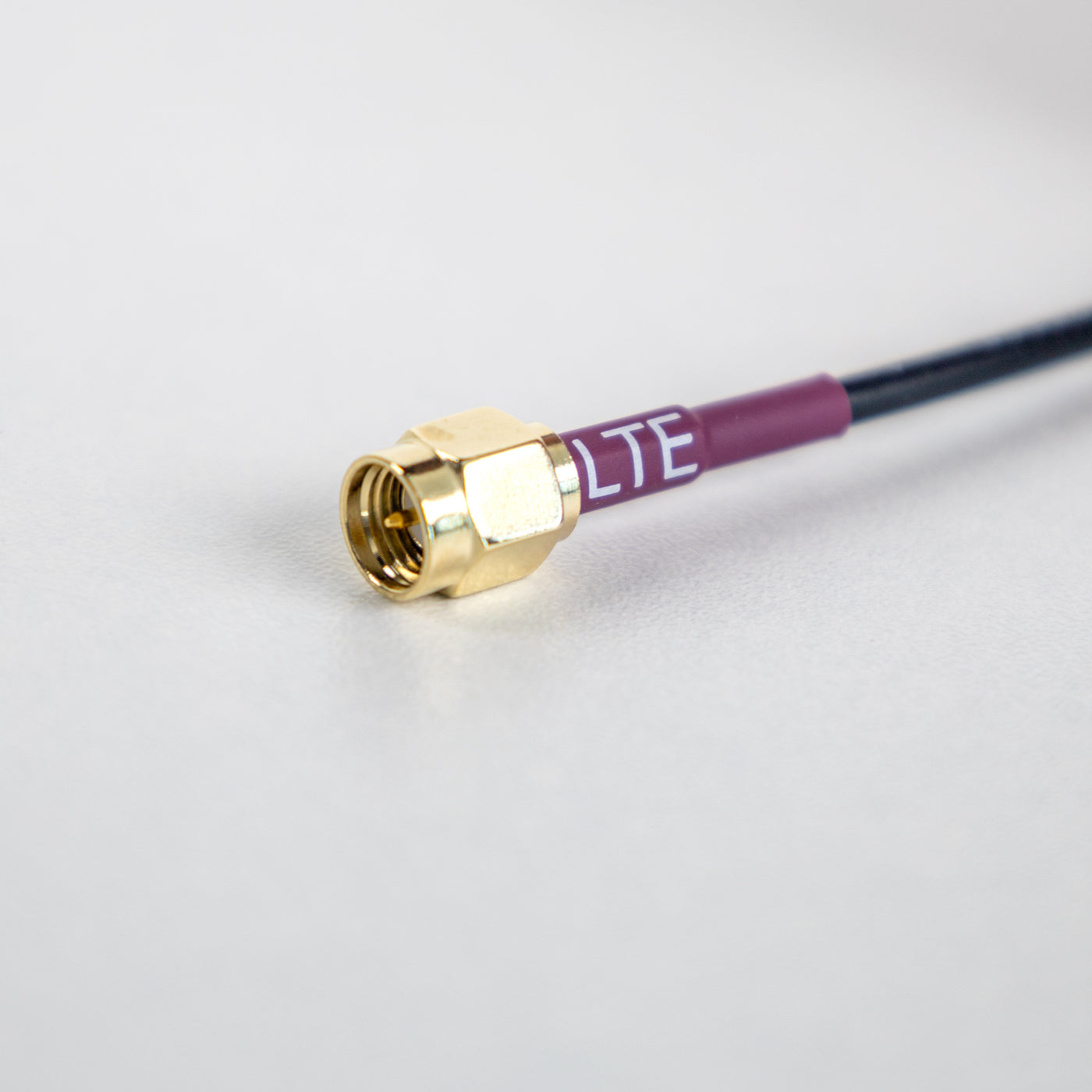

Connector

SMA or others

Radome Material

ABS

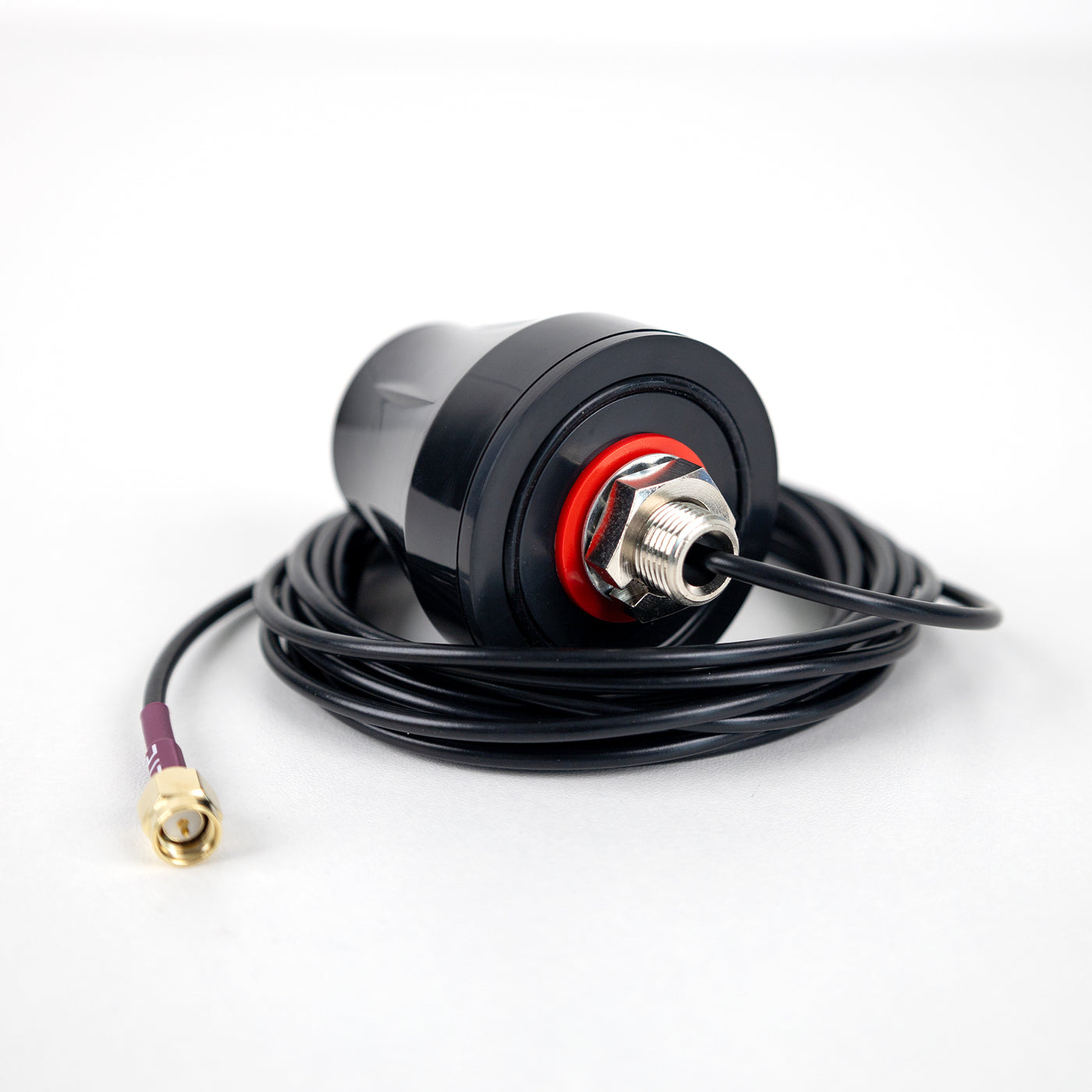

Mounting Method

Screw

Environmental

Operating Temperature

-40ā„ƒ~+85ā„ƒ

Relative Humidity

Up to 95%

Ingress Protection

IP67Ā (exclude cable outlet)

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
What frequency bands does the JCG058 LTE Antenna support?
It supports two bands listed as 824 to 960 MHz and 1710 to 2170 MHz, for a multi band application.
Is the antenna suitable for outdoor use?
Yes. It is IP67 rated (excluding cable outlet), operates from -40 C to 85 C, and handles up to 95 percent humidity.
How do I mount and connect the antenna?
Mounting is by permanent screw mounting. It supports cables such as RG174 and SMA connectors, or other variants as offered.
What is the electrical specification of the antenna?
The antenna has a 50 ohm impedance, a linear polarization, and a gain of 2 dBi at zenith with VSWR less than 2.0.
What are typical applications for this antenna?
Designed for vehicle tracking, asset tracking, telemetry, and 4G applications.
