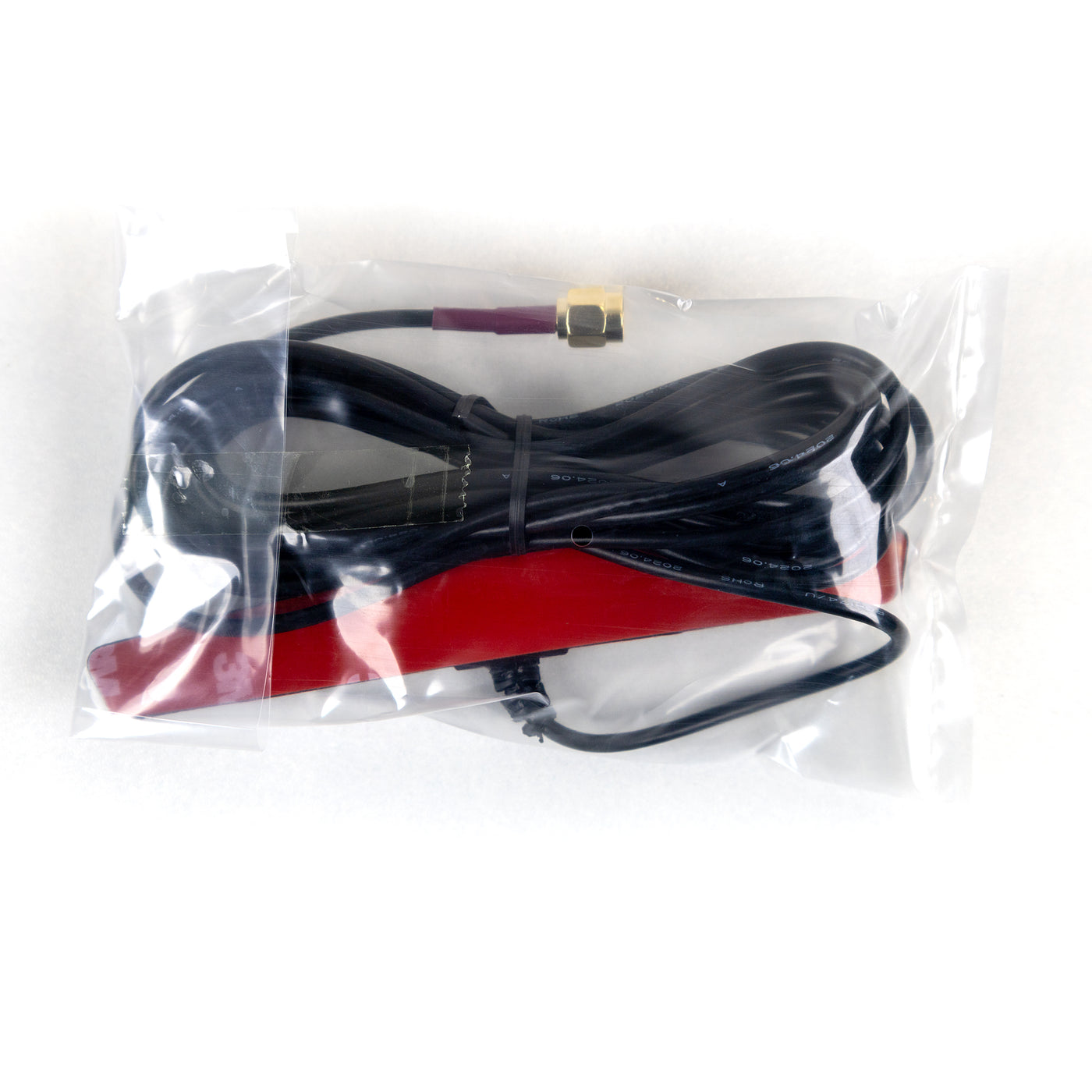

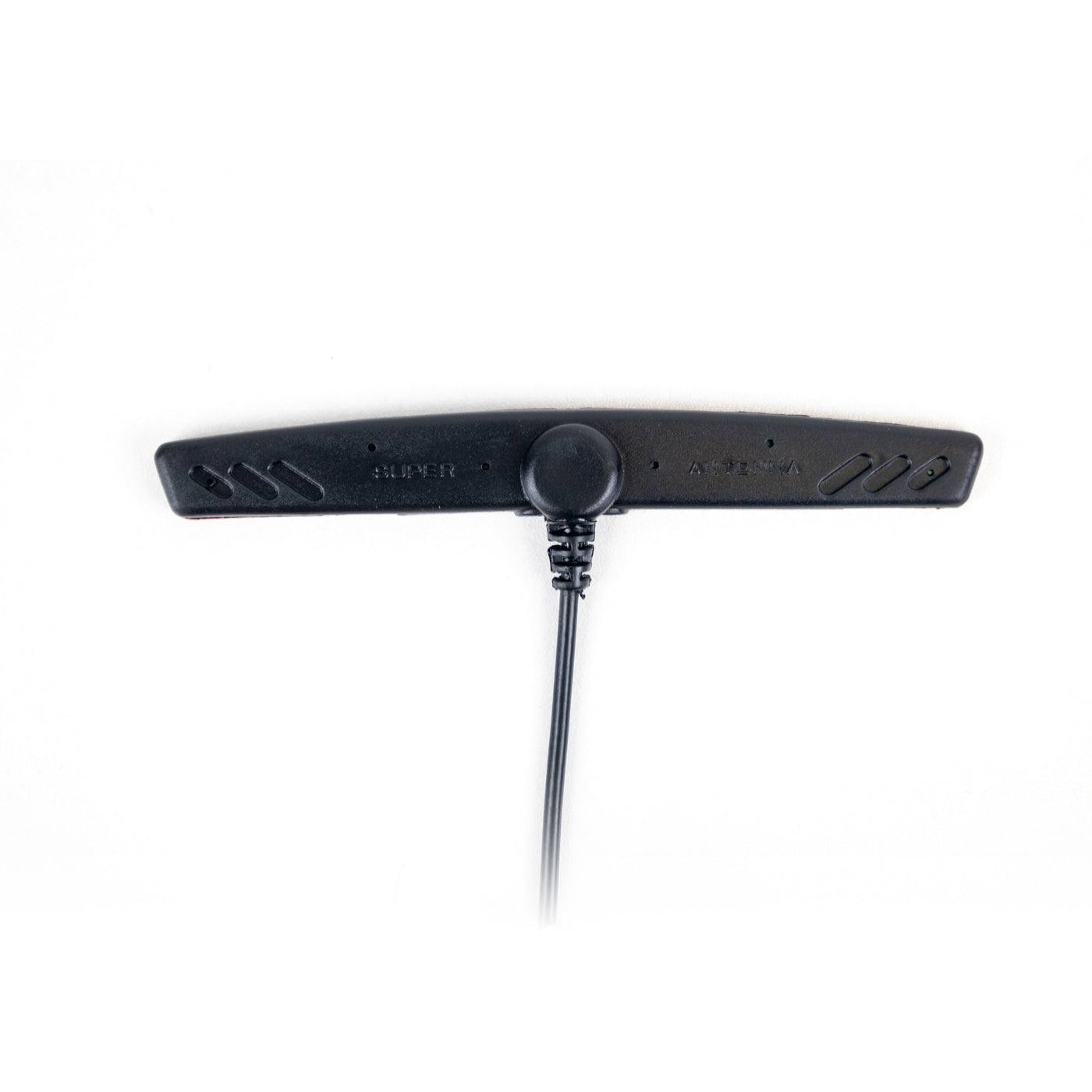

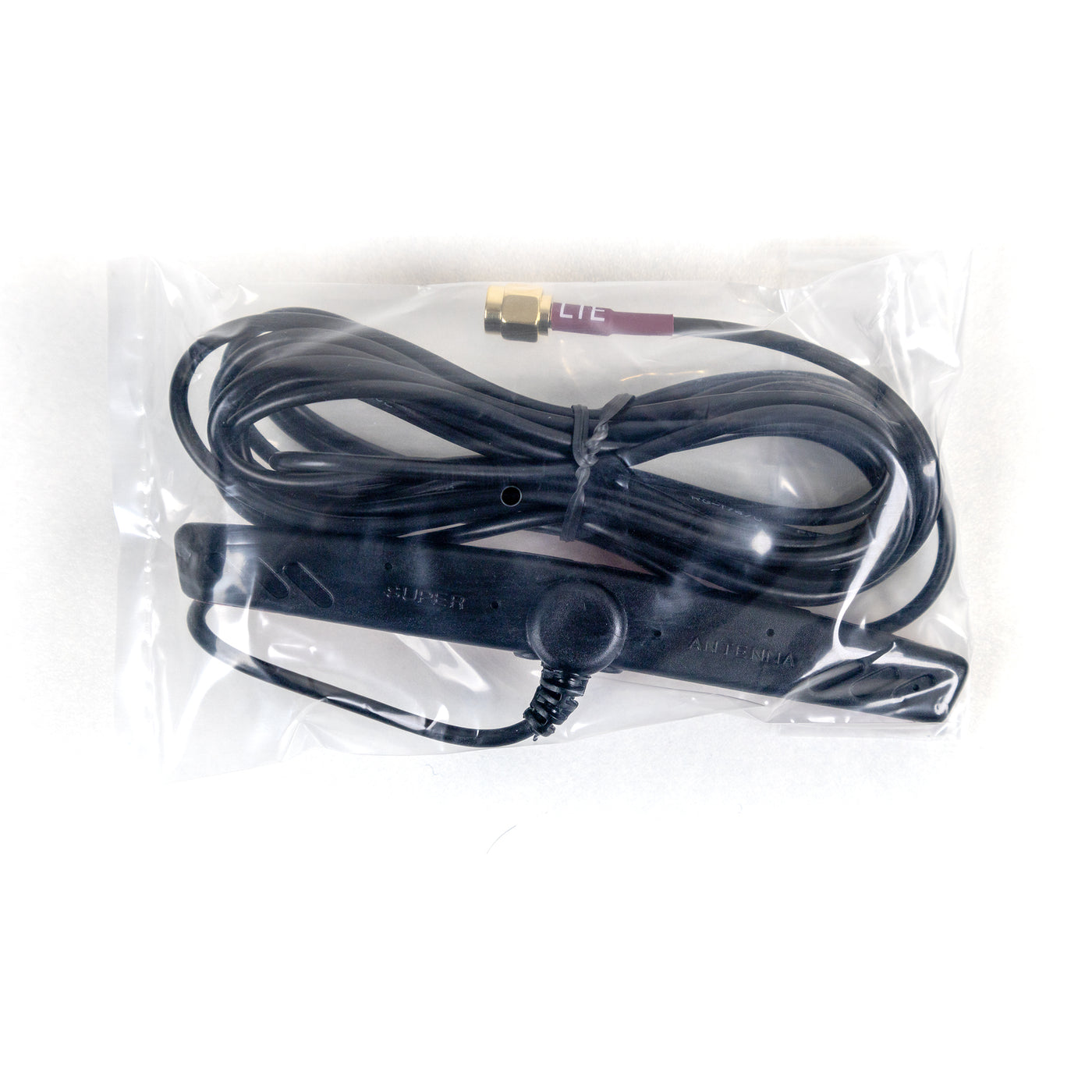

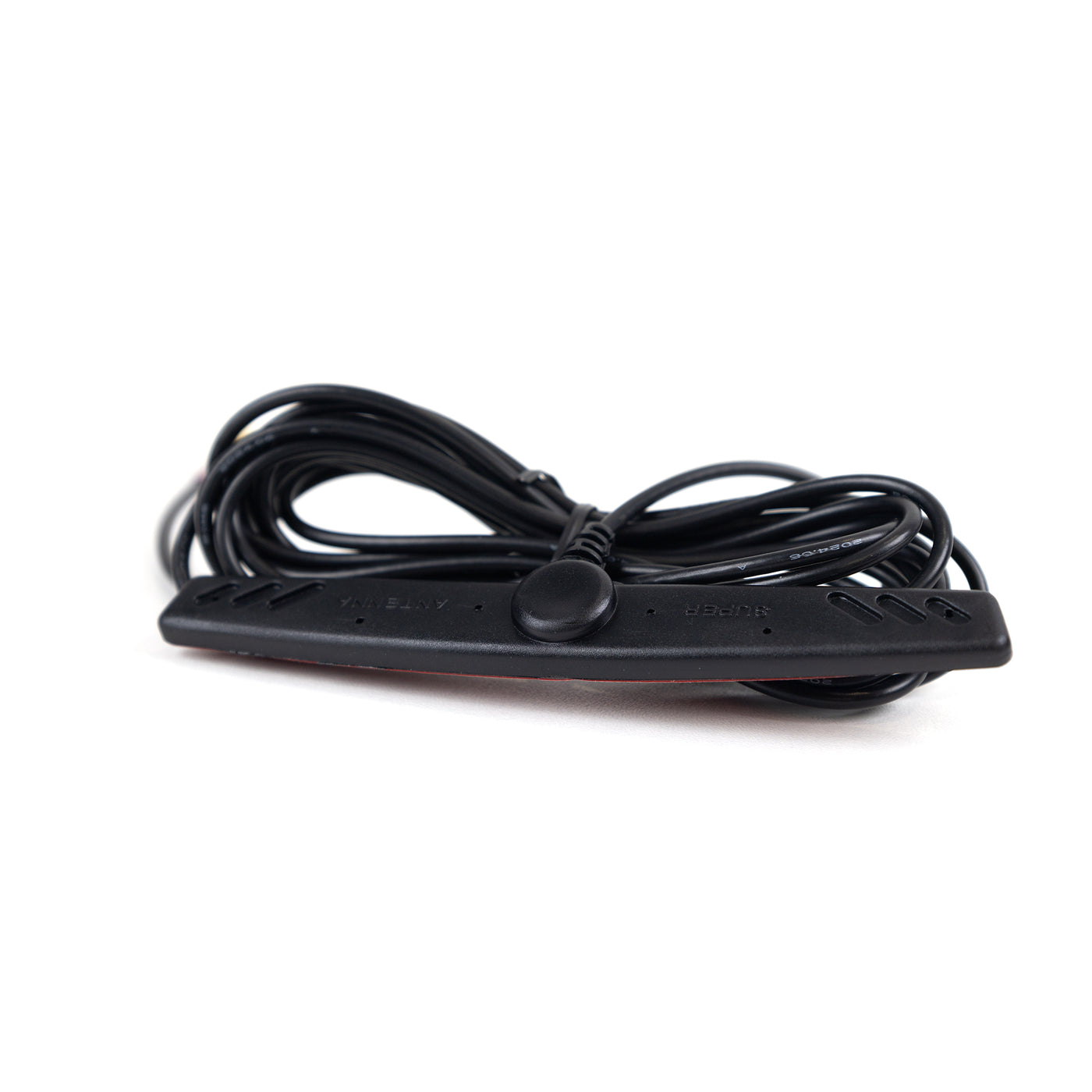

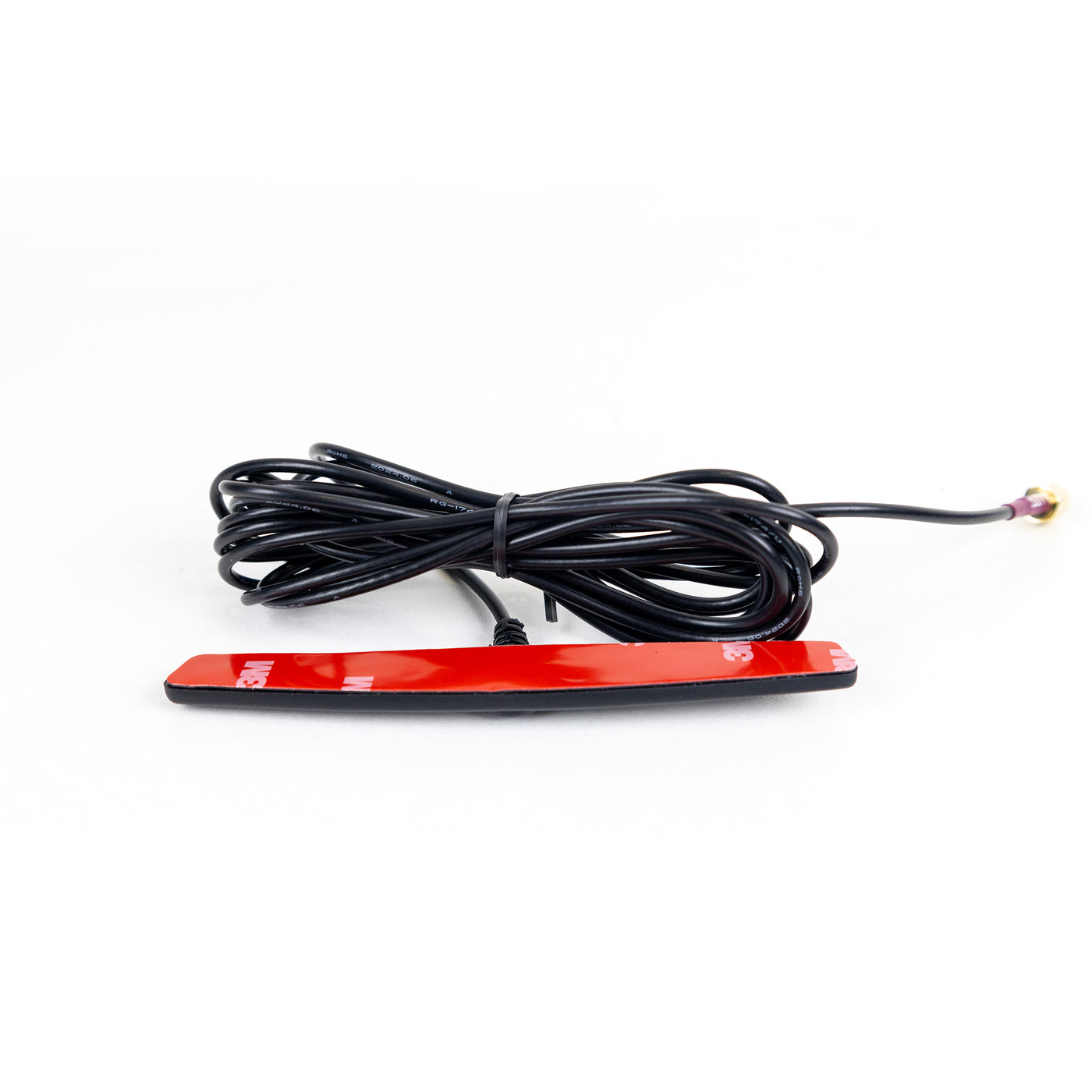

JCG108L LTE Antenna

SKU: ELC8910

₹ 1,299.99

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

JCG108L LTE Antenna₹ 1,299.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

JCG108L is a multi-band antenna, which covers 700~2170MHz. It is specially designed for 2G, 3G and 4G applications with high sensitivity requirements.

Features

Low profile structure
Permanent screw mounting
Covers all the mobile communication network
Fully waterproof

Applications

Vehicle Tracking
Asset Tracking
Telemetry Application
4G Application

Specifications

Item		Specifications
Antenna	Frequency Range	824~960/1710~2170MHz
	Polarization	Linear
	Gain	2.5dBi（Zenith）
	V.S.W.R	＜2.0
	Impedance	50Ω
	PCB Dimension	11590.8mm
Mechanical	Cable	RG174
	Connector	SMA or others
	Radome Material	PVC
	Mounting Method	Adhesive
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 95%
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant

What frequency bands does this antenna support?

It covers 824-960 MHz and 1710-2170 MHz, suitable for 2G 3G and 4G networks.

What connector and cable does it use?

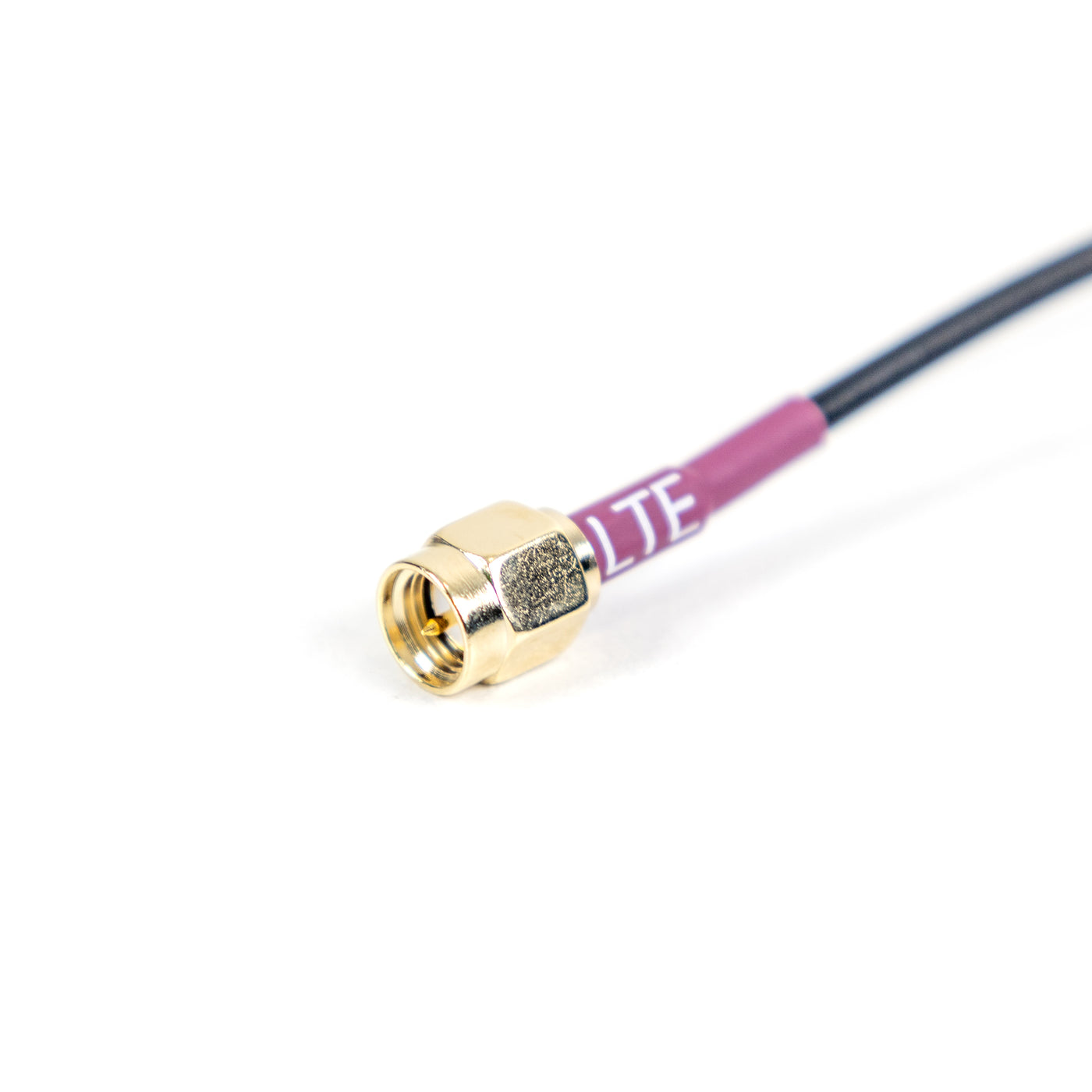

The antenna uses an RG174 cable and a SMA connector or other connectors as specified.

How is the antenna mounted?

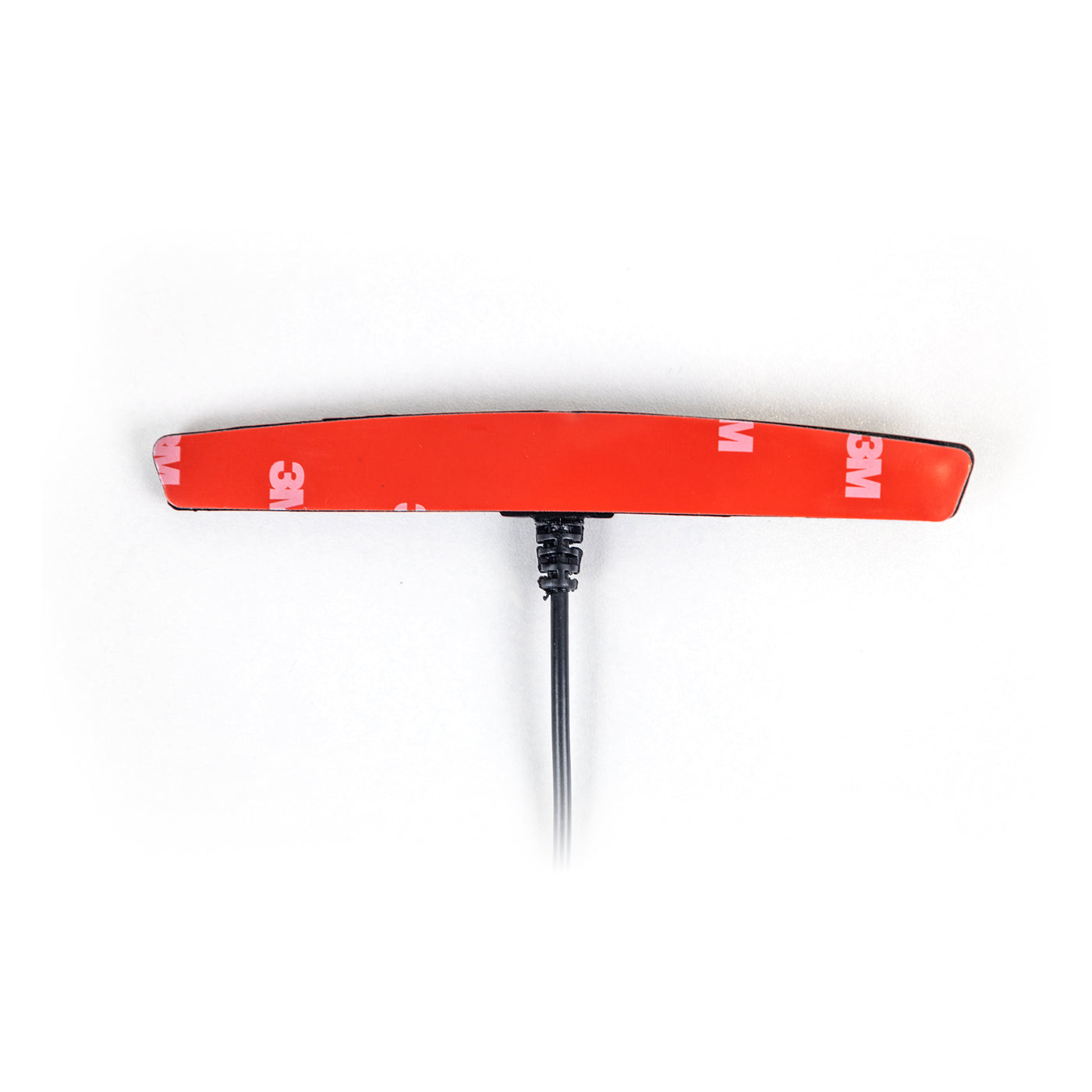

Mounting is adhesive based. The design is low profile for permanent installation.

What are the environmental and durability specs?

It operates from -40 C to 85 C, supports up to 95 percent humidity, is fully waterproof and ROHS compliant.

Is it suitable for 2G/3G/4G and what is the gain?

Yes, designed for 2G 3G and 4G with a gain of 2.5 dBi, 50 ohm impedance and VSWR under 2.0.
