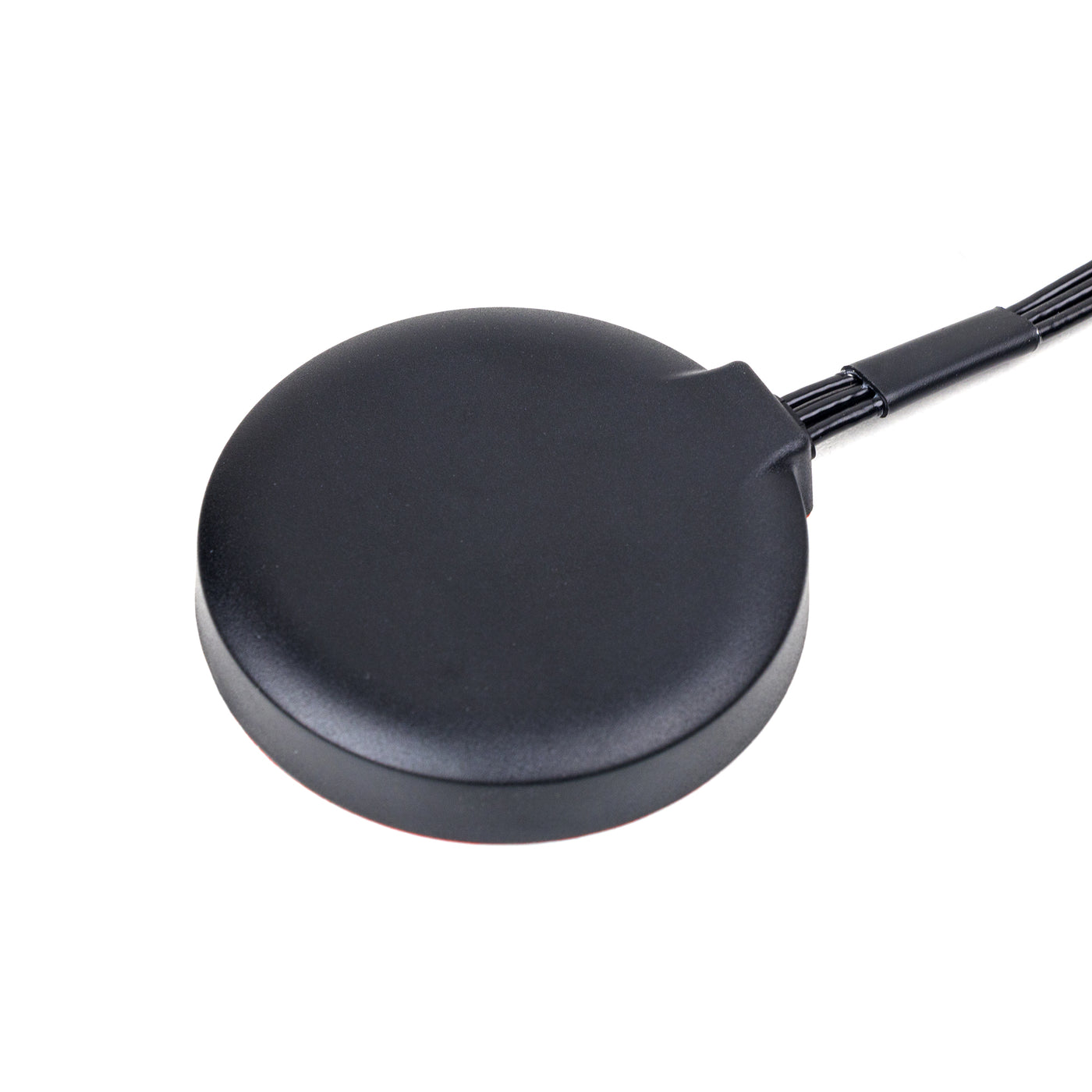

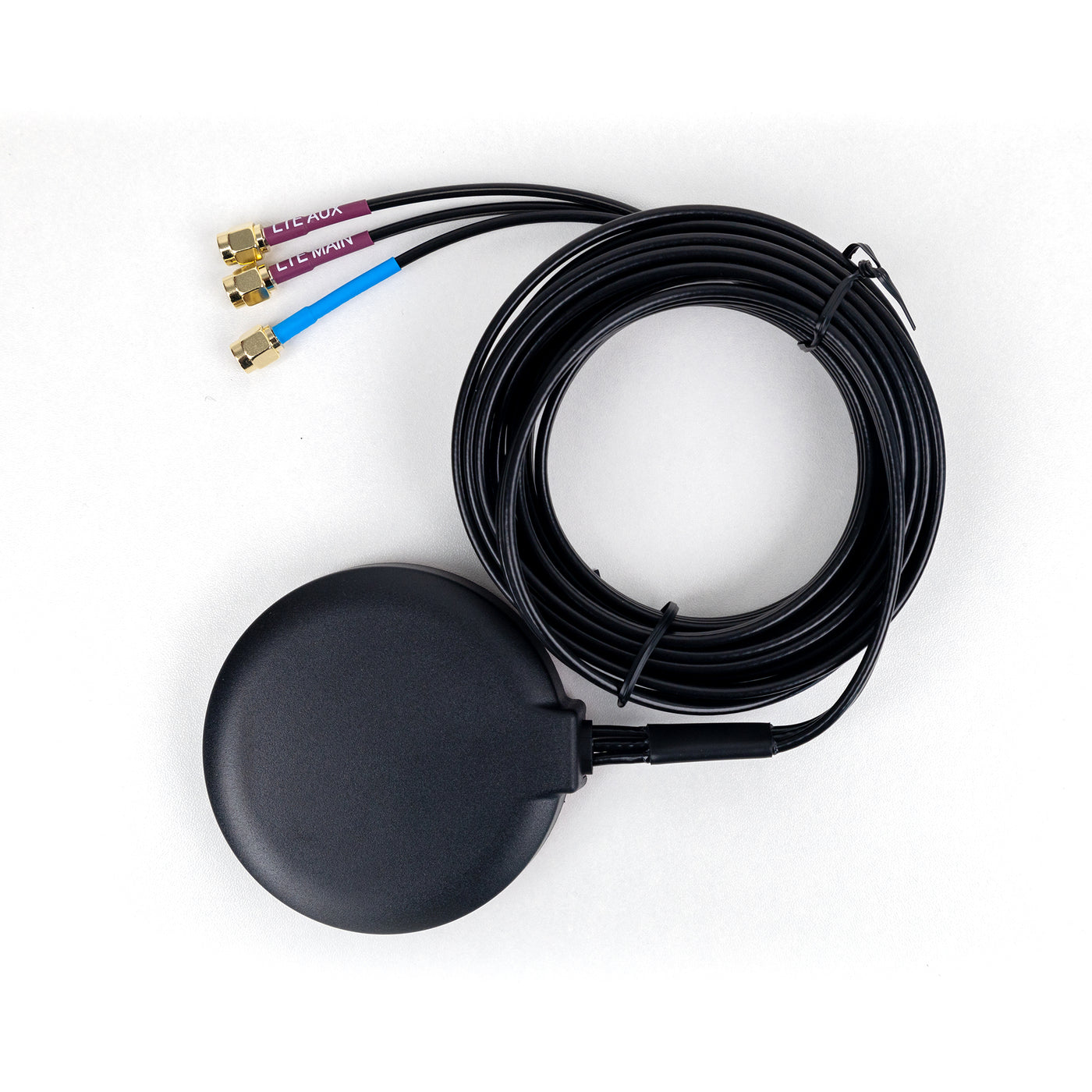

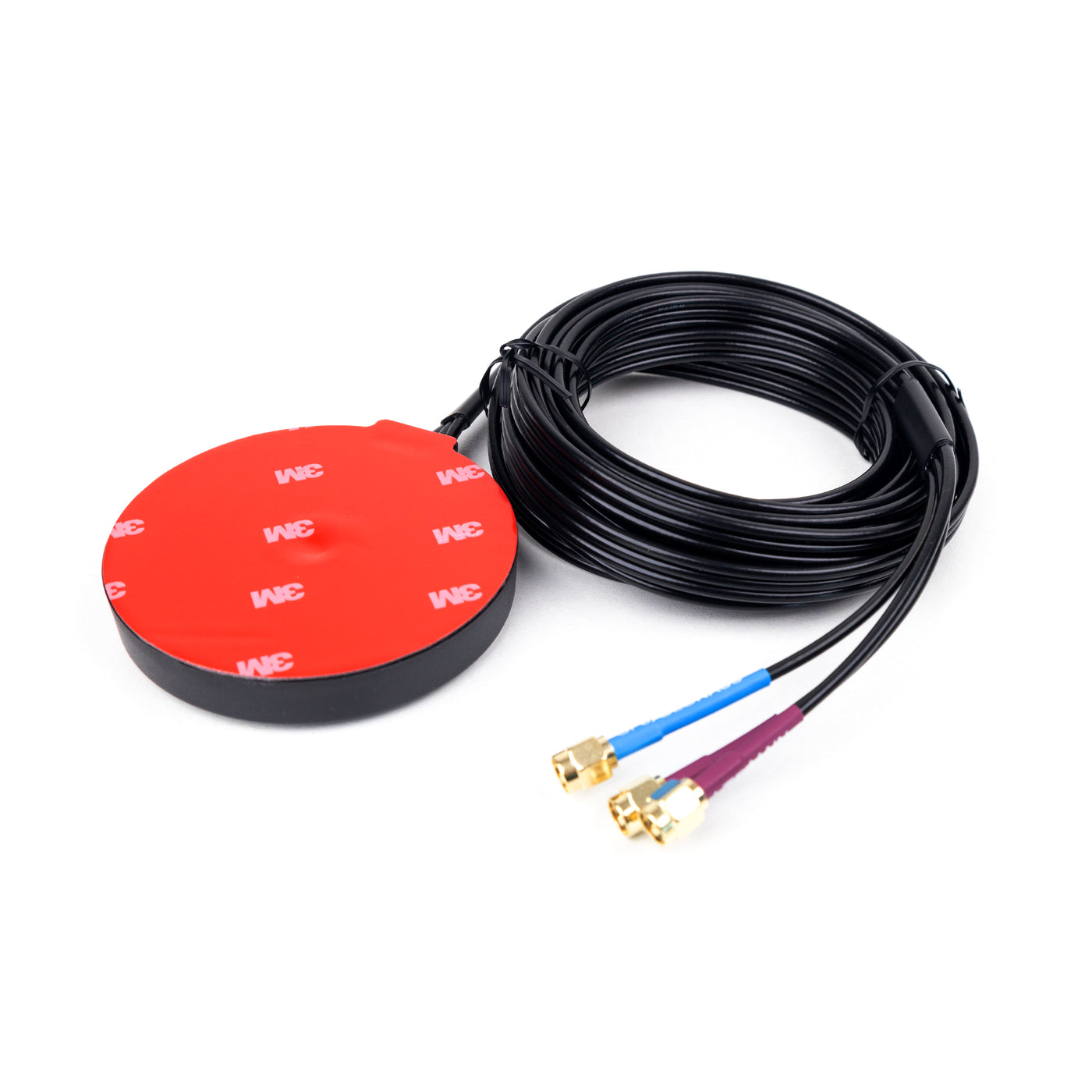

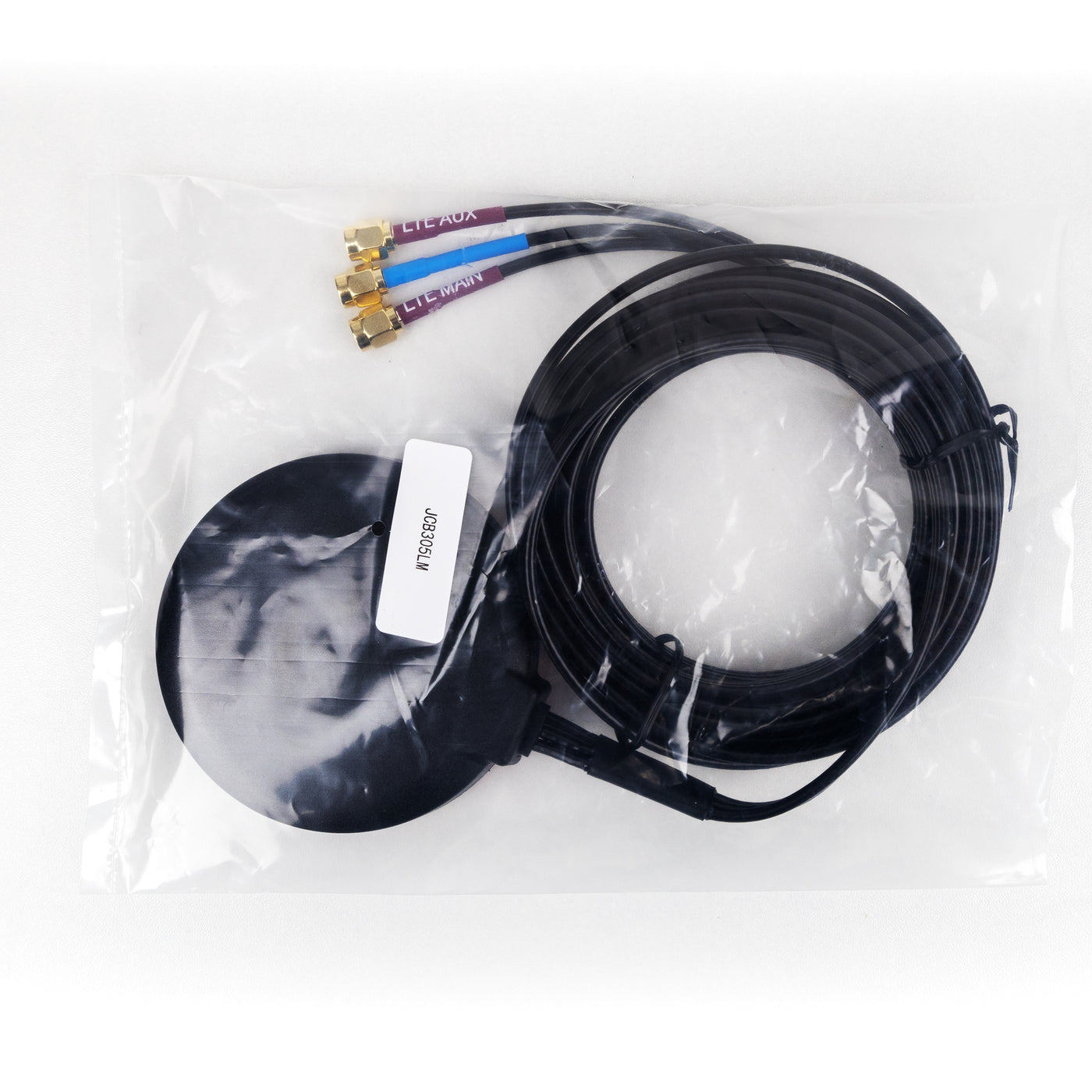

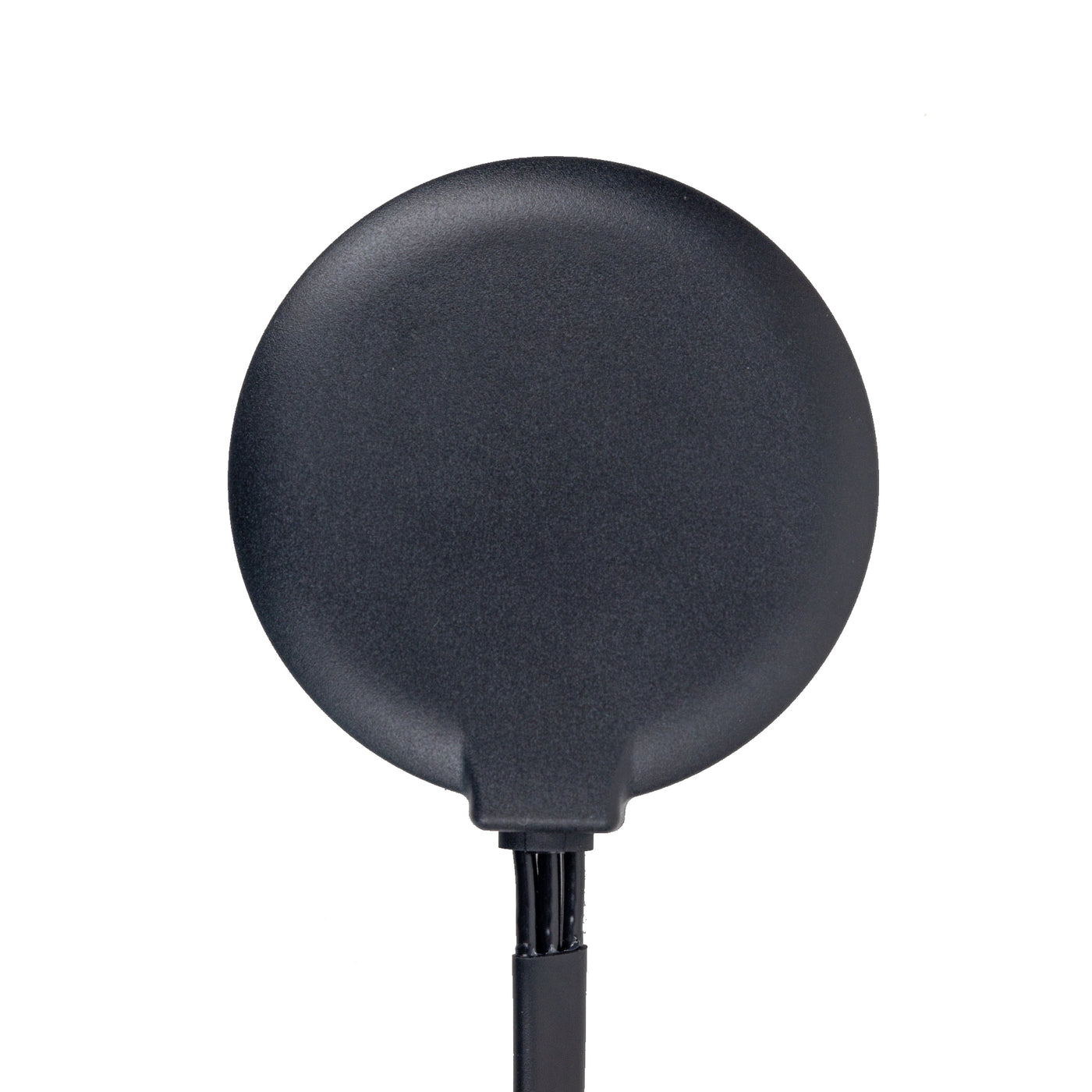

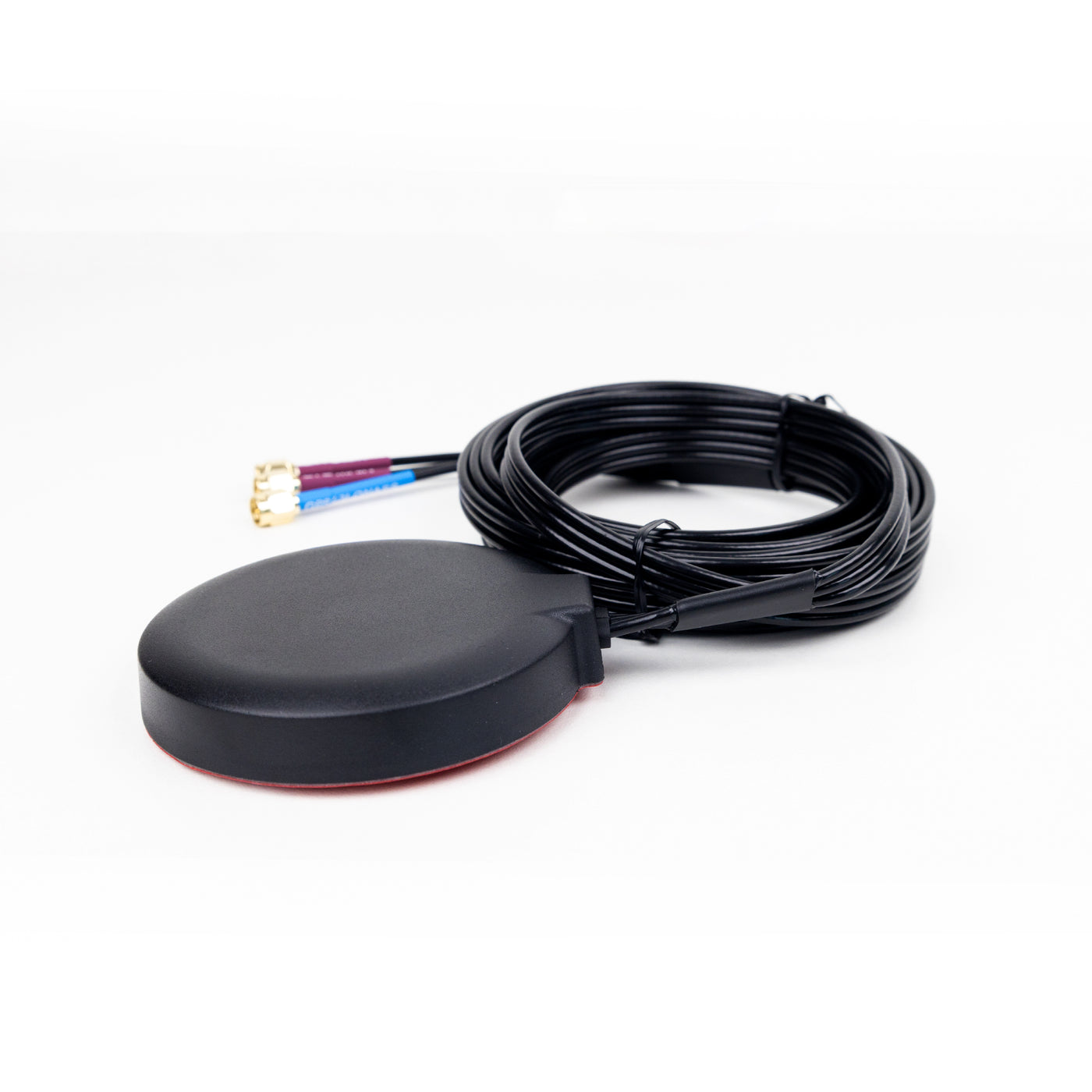

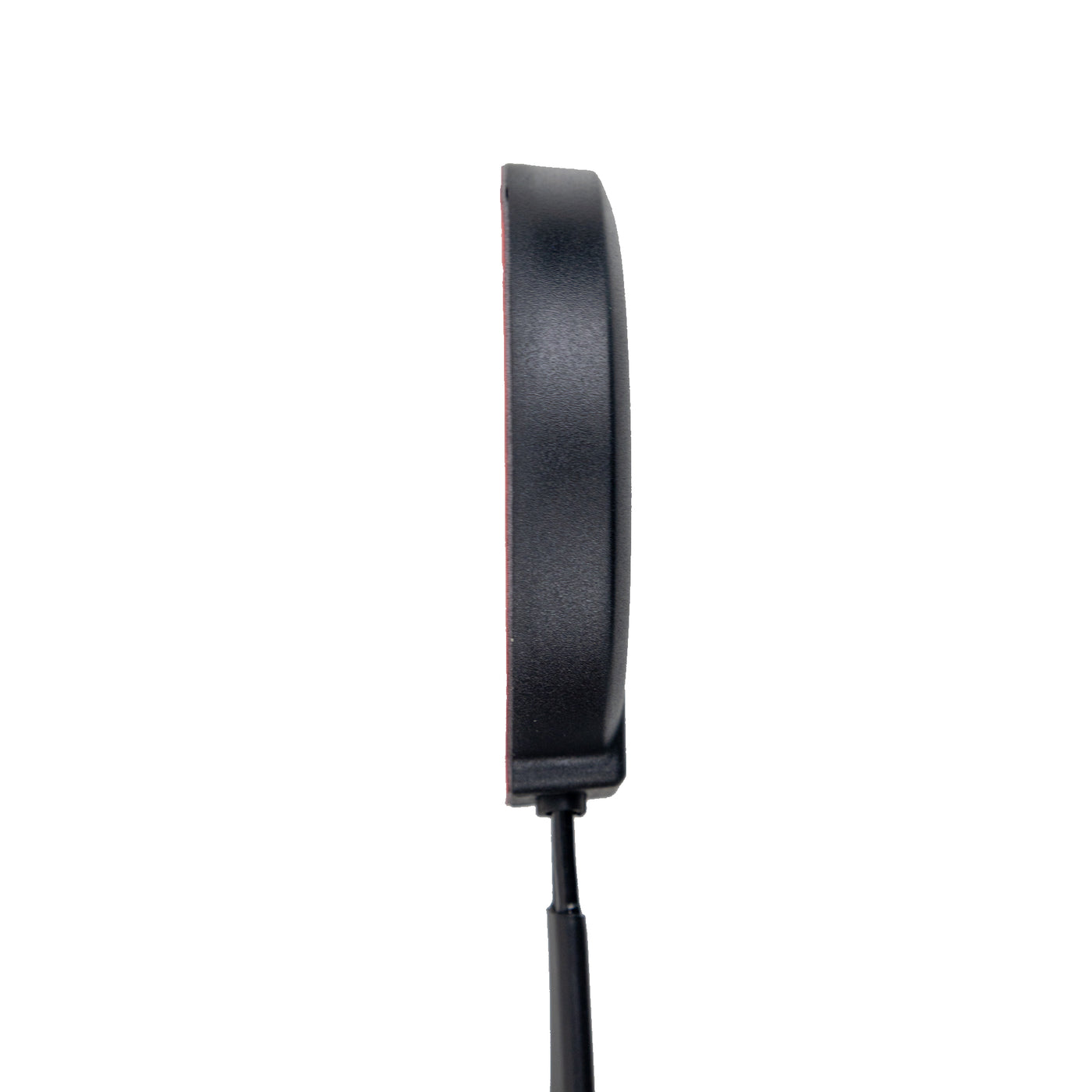

LTE MIMO Outdoor Antenna IP67 3m JCG305LM
JCB305L Active GPS and LTE combined antenna simplifies your AVL application with a work voltage from 2.2 to 5.0 V, max current 15mA, cable length up to 5m. Different connector types and cable length are available according to users' specifications.
Features
Low profile structure without a whip
Screw through hole mount
Support 2G, 3G, 4G application bands
Two LTE antennas to improve the communication performance
Applications
Data Collector
LTE Gateway
Telemetry Application
Fleet management
Specifications:
Item
Specifications
LTE Antenna MAIN
Frequency Range
698~960MHz/1710~2690MHz
V.S.W.R
＜ 3.0
Polarization
Linear
Gain
2.5dBi （ Zenith ）
Impendance
50Ω
LTE Antenna AUX
Frequency Range
698~960MHz/1710~2690MHz
V.S.W.R
＜ 3.0
Polarization
Linear
Gain
2.0dBi （ Zenith ）
Impendance
50Ω
Mechanical
Cable
RG174

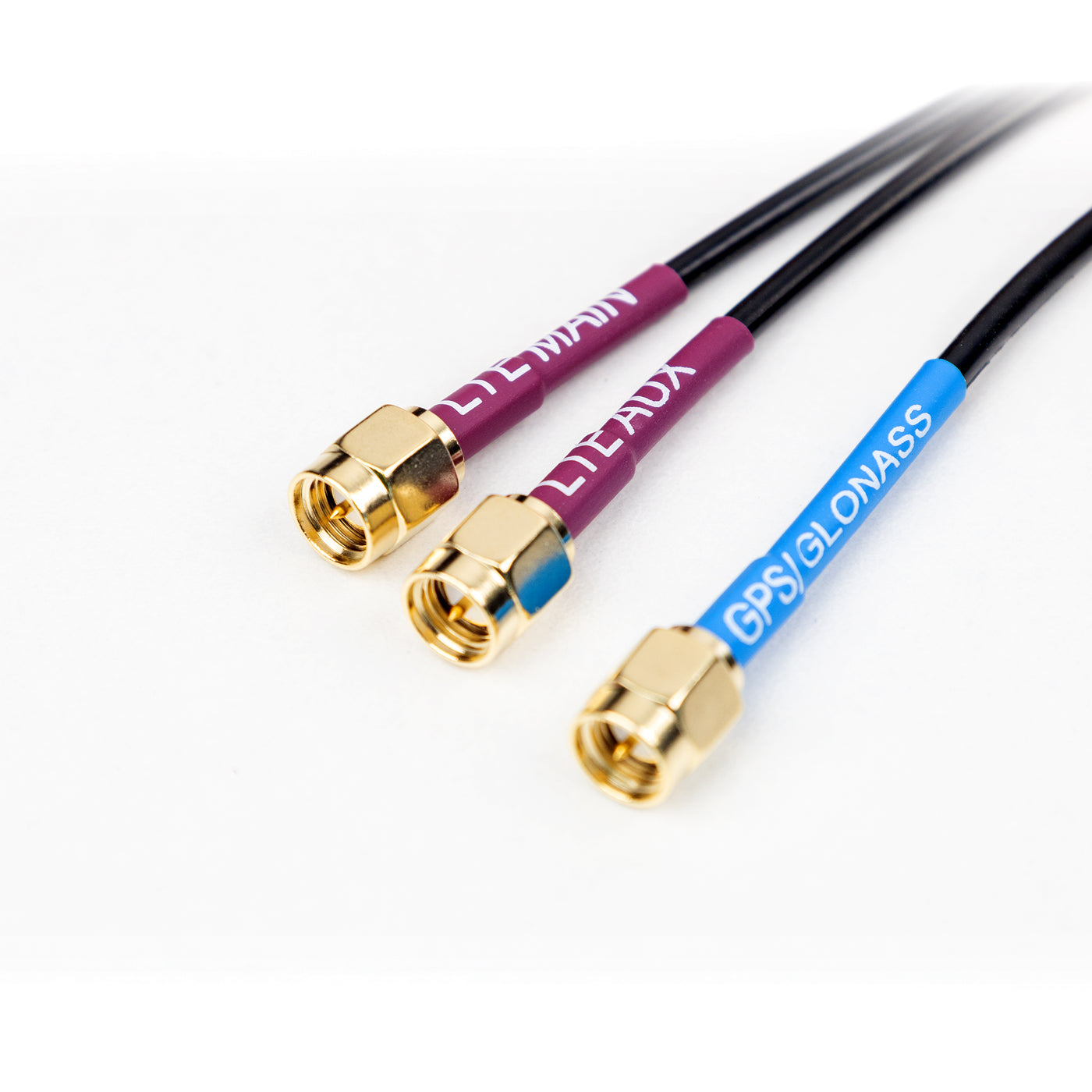

Connector
SMA/FAKRA or others
Material
ABS

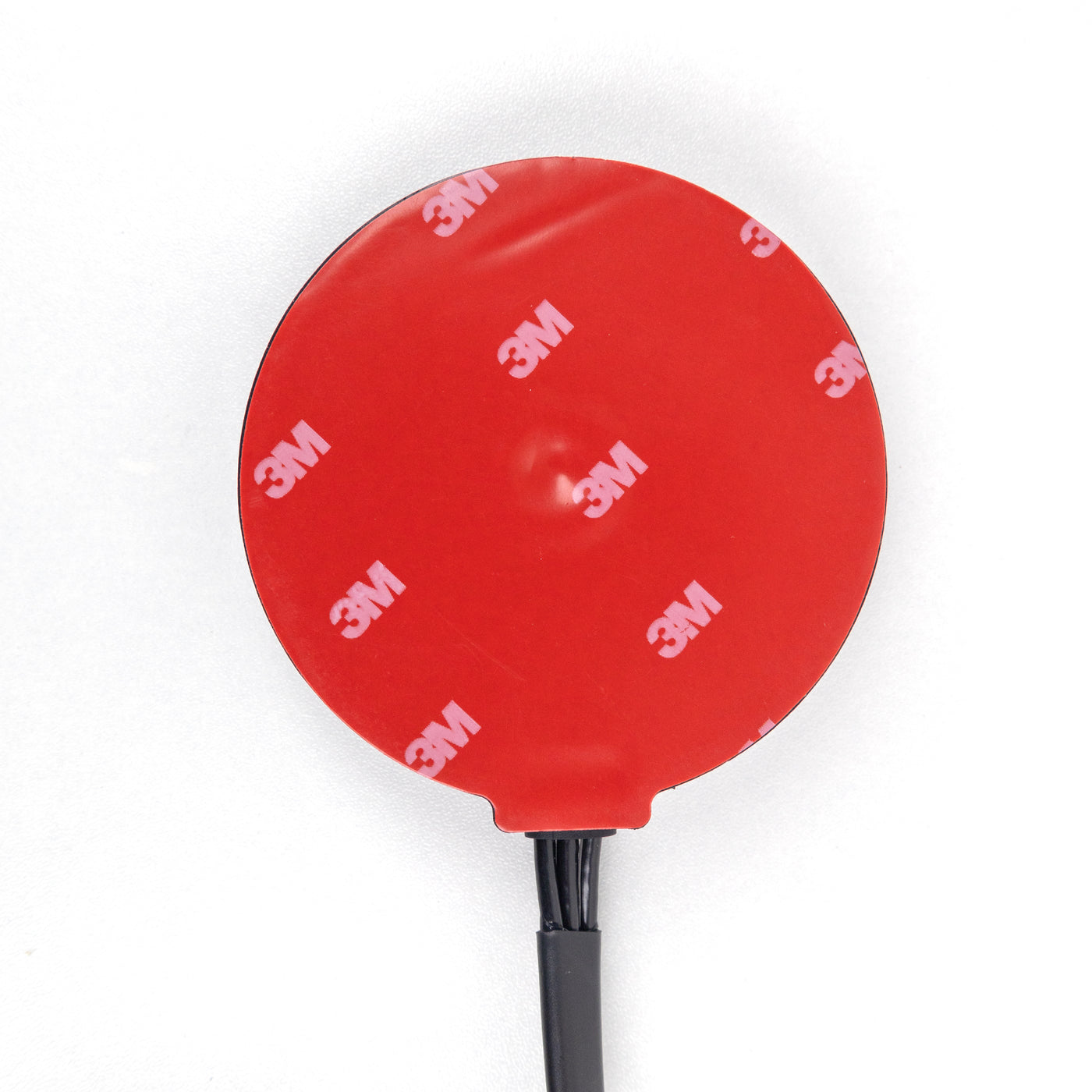

Mounting Method
Adhesive/Magnet
Environmental
Operating Temperature
-40 ℃ ~+85 ℃
Relative Humidity
Up to 95%
Ingress Protection
IP67
Vibration
10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly
ROHS Compliant
