Supports Multi-GNSS systems: GPS, BeiDou (BDS), GLONASS and QZSS
The L76K GPS HAT is a Multi-GNSS (Global Navigation Satellite System) module, supports GPS, BeiDou (BDS), GLONASS and QZSS systems, allows multi-system combined or single-system independent positioning. Supports AGNSS function, built-in low-noise amplifier and sound surface filter, provides a good positioning experience of fast, accurate, high-performance.
| Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi / Jetson / RDK series boards |
| Supports Multi-GNSS systems: GPS, BeiDou (BDS), GLONASS and QZSS |
| Built-in Low-Noise Amplifier (LNA) for improved reception sensitivity |
| Built-in SAW Filter for enhanced noise reduction performance |
| Supports AGNSS |
| UART communication baudrate: 4800~115200bps (9600bps by default) |
| Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts |
| 4x LEDs for indicating the module operating status |
| Comes with online development resources and manual (examples for Raspberry / Jetson / Arduino / STM32) |
| Parameter | Value |
|---|---|
| GNSS | GPS/GLONASS/BDS/QZSS |
| Chip Platform | AT6558R |
| L1 Band Receiver (Channels) | 32 tracking ch / 72 acquisition ch |
| L1 Band Receiver SBAS | N/A |
| A-GNSS | Support |
| Sensitivity (Acquisition) | -148 dBm |
| Sensitivity (Re-acquisition) | -160 dBm |
| Sensitivity (Tracking) | -162 dBm |
| TTFF (Cold Start) | 30s Autonomous / 5.5s with AGNSS |
| TTFF (Hot Start) | 2s |
| Position Accuracy | 2.0 m CEP |
| Speed Accuracy | 0.1 m/s |
| Acceleration Accuracy (Max) | 0.1 m/s² |
| Timing Accuracy | 30 ns |
| Communication Interface | UART |
| Baudrate | 4800~115200 bps (9600 bps default) |
| Update Rate | 1 Hz (default), 5 Hz (max) |
| Power Supply Voltage | 5V |
| Overall Current Consumption | < 55 mA @ 5V (Continuous mode) |
| Protocols | NMEA 0183, CASIC Proprietary Communication Protocol |
| Operating Temperature | -40℃ ~ 85℃ |
| Dimensions | 65.00 × 30.50 mm |
Compatible with Raspberry Pi / Jetson / RDK series boards
* for reference only, please refer to the part list for detailed package content.
Supports GPS, Beidou(BDS), Glonass, QZSS
Augment system is aimed at improving the accuracy, integrity, reliability, and availability of positioning and navigation
Supports A-GNSS augment system
Vehicle tracking, asset tracking, security systems, industrial PDAs, GIS applications, etc.

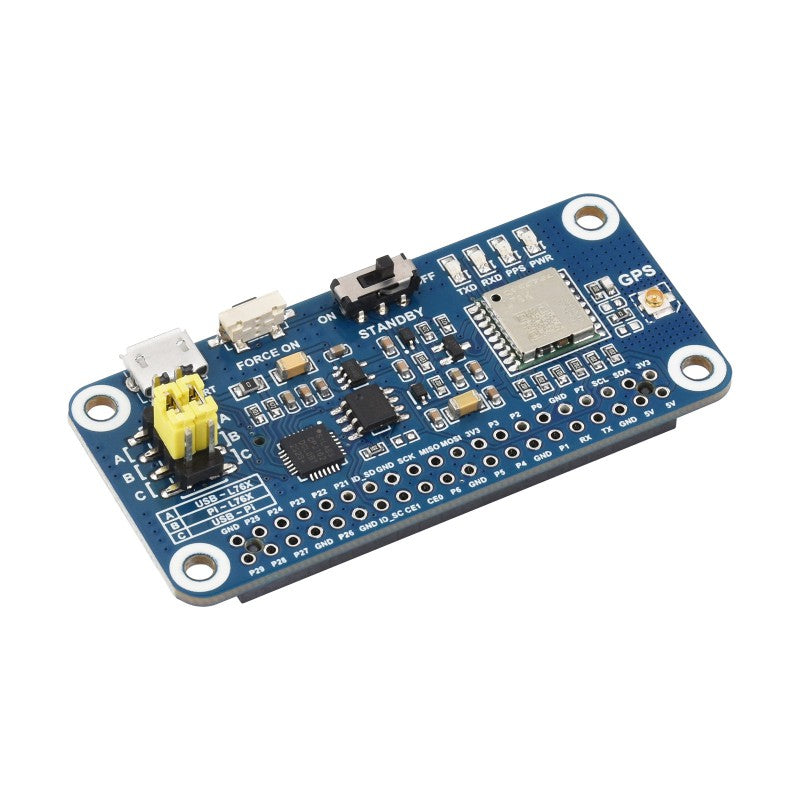

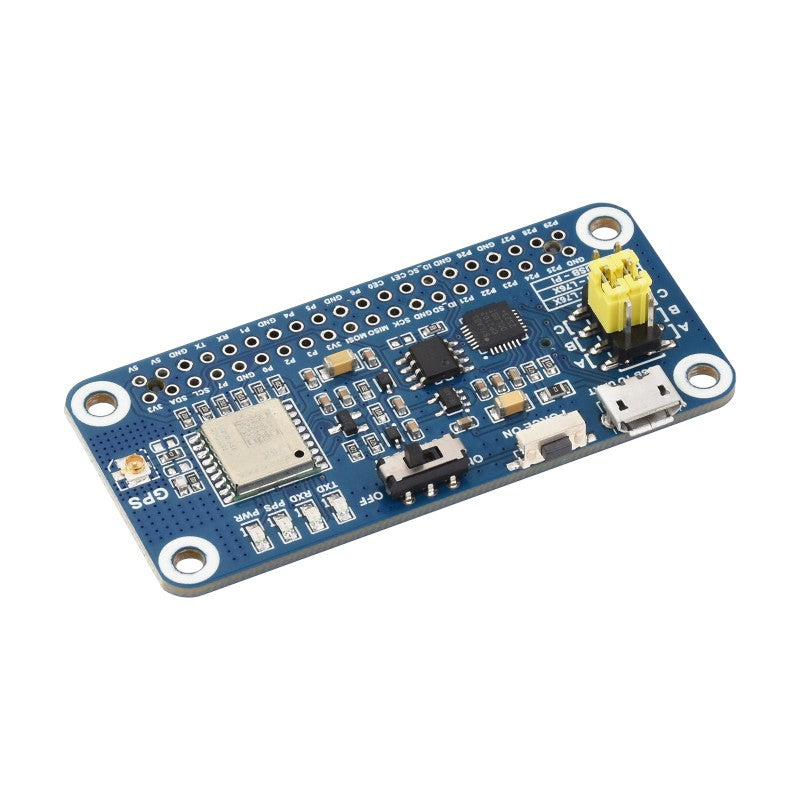

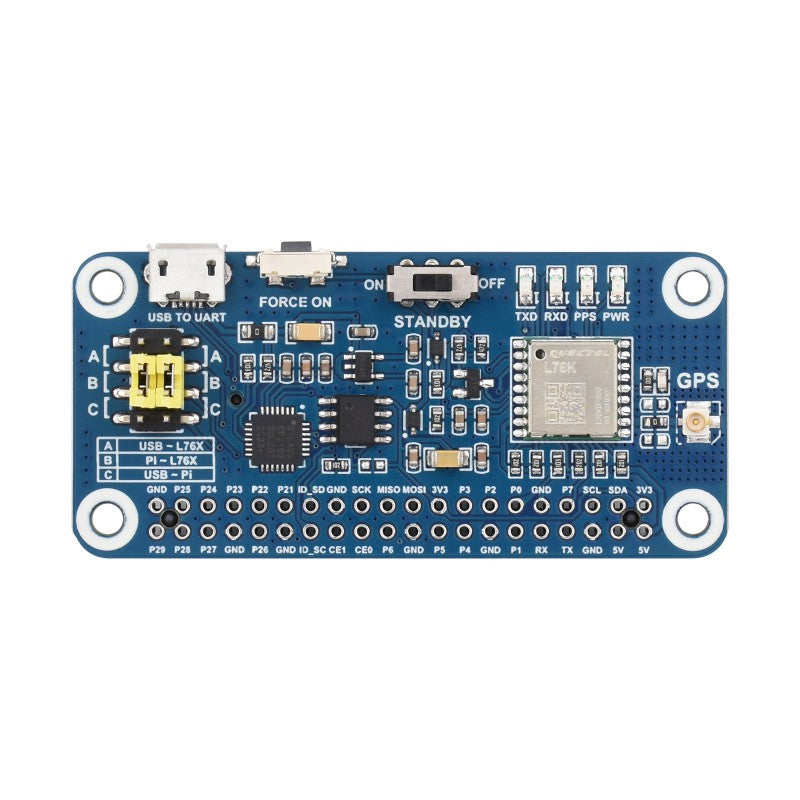

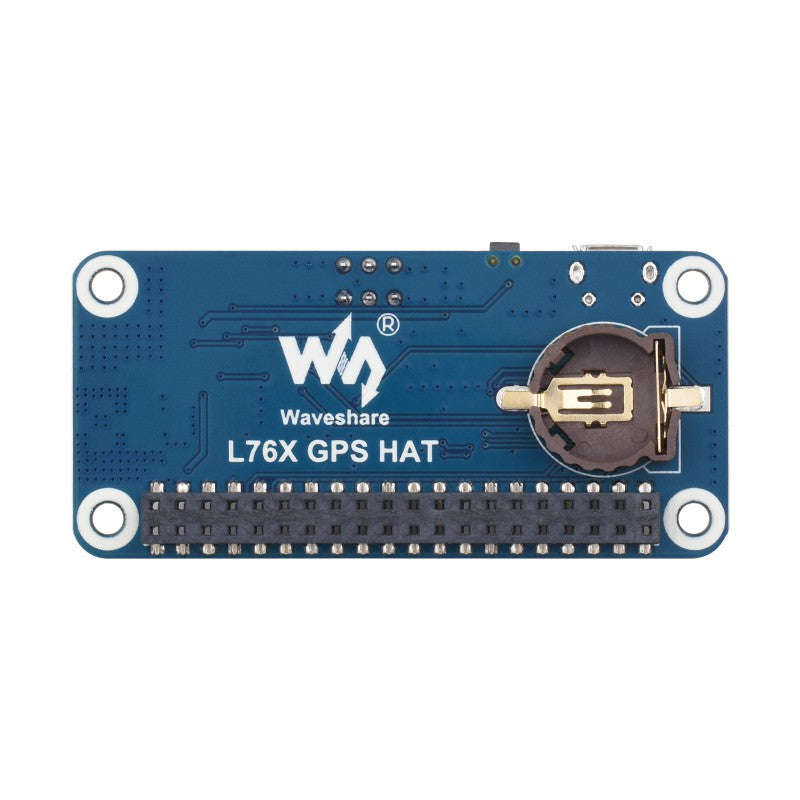

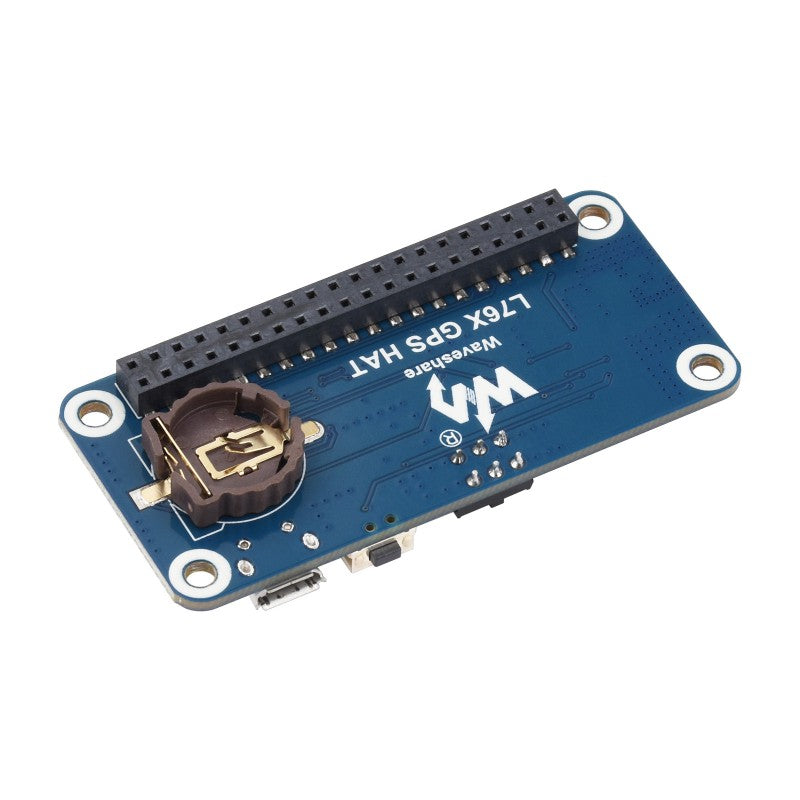

| 1. L76K module 2. CP2102 3. CAT24C32 4. RT9193-33 power chip 5. GNSS configuration button 6. Standby mode switch 7. Status indicators 8. Raspberry Pi 40PIN GPIO header for connecting with Raspberry Pi |
9. USB TO UART port 10. GNSS antenna connector 11. Battery holder supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts 12. UART selection jumper A: control the L76K via USB to UART B: control the L76K via Raspberry Pi C: access Raspberry Pi via USB to UART |
Wiki: www.waveshare.com/wiki/L76K_GPS_HAT
Weight: 0.165 kg
L76K-GPS-HAT x1
GPS Antenna x1
2x20PIN header x1
USB Type-A to Micro-B cable x1
Screws pack x1
