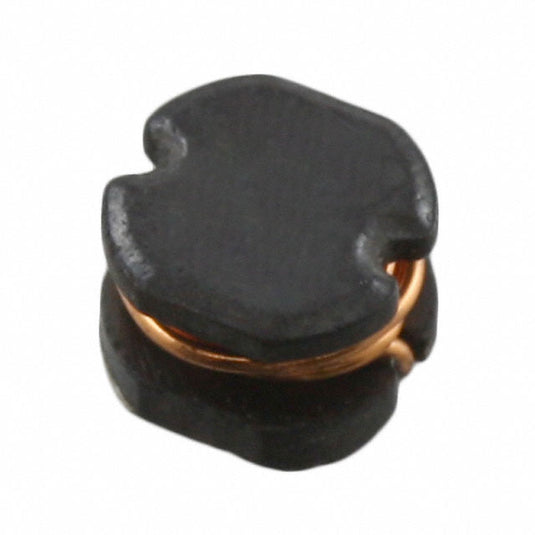

The Eaton Electronics LD1-100-R is a high-quality metalized drum core power inductor designed for a variety of electronic applications. Manufactured in China, this component features a ferrite core material optimized for efficient energy storage and noise filtering in power supply circuits.
Key Features:
Metalized drum core design to optimize board space utilization
Rated inductance of 10 µH with a tolerance of ±10%
Current handling capacity up to 1.28A (Irms) and 1.28A (Isat)
Low DCR max. of 0.1820 Ω for efficient power transfer
Suitable for buck or boost inductors, noise filtering, output filter chokes, and power supplies
Operating temperature range from -40°C to +125°C
Solder reflow compliant per J-STD-020 standards
Package Type: Tape & Reel (T&R), 2000 parts per reel
For more detailed specifications and technical data, please refer to the datasheet or contact Eaton Electronics. Please note that this product's RoHS compliance status is not specified.
Note: The datasheet was not processed; please search the internet for the part number LD1-100-R for additional details.
