Long-wave IR Thermal Imaging Camera Module, 80×62 Pixels, 40Pin GPIO Header
Long-Wave IR Thermal Imaging
80×62 Pixels IR Array
Small Size | Non-contact | Motion Detection
Features
This is a long-wave IR thermal imaging camera that adopts the hybrid technology of microbolometer and thermopile pixel, features 80x62 array pixels. It will detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications.
Provides two version options: Thermal Camera HAT with Raspberry Pi 40PIN GPIO header and Thermal USB Camera with Type-C port.
Key features include:
Adopts the hybrid technology of microbolometer and thermopile, 80x62 array pixels
Continuous operation and thermal imaging video stream due to shutterless design
Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate
Up to 25FPS (Max) thermal imaging video stream output
Comes with online resources and manuals (Python demo for Raspberry Pi, Android/Windows host computer and user manual, etc.)
Main applications:
High precision long-term non-contact temperature online monitoring
IR thermal imaging devices, IR thermometers
Smart home, intelligent building, intelligent lighting
Industrial temperature control, security & safety, intrude/motion detection
Small Target Thermal Analysis, Heat Trend Analysis and Solutions
Specifications
POWER SUPPLY
5V
OPERATING CURRENT
61mA@5V
WAVELENGTH RANGE
8~14μm
OPERATING TEMPERATURE
-20~85℃
TARGET TEMPERATURE
-20~400℃
REFRESH RATE
25 FPS (Max)
FOV
45°(H)×45°(V)
NOISE EQUIVALENT
150mK
MEASURING ACCTRACY
±2℃ (ambient temp. 10~70℃)
DIMENSIONS
Thermal Camera HAT: 65.0×30.5mm

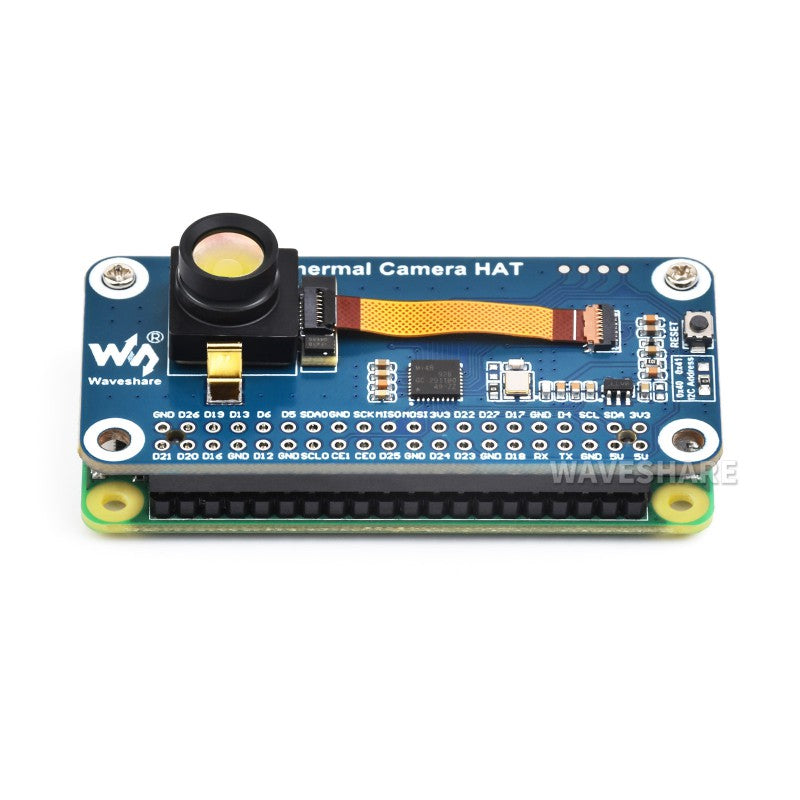

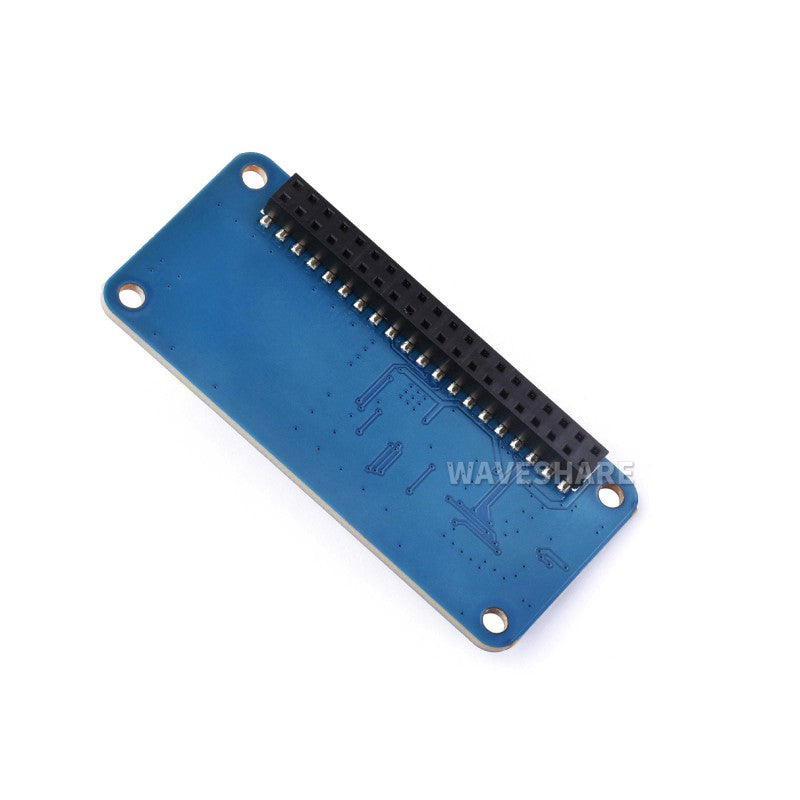

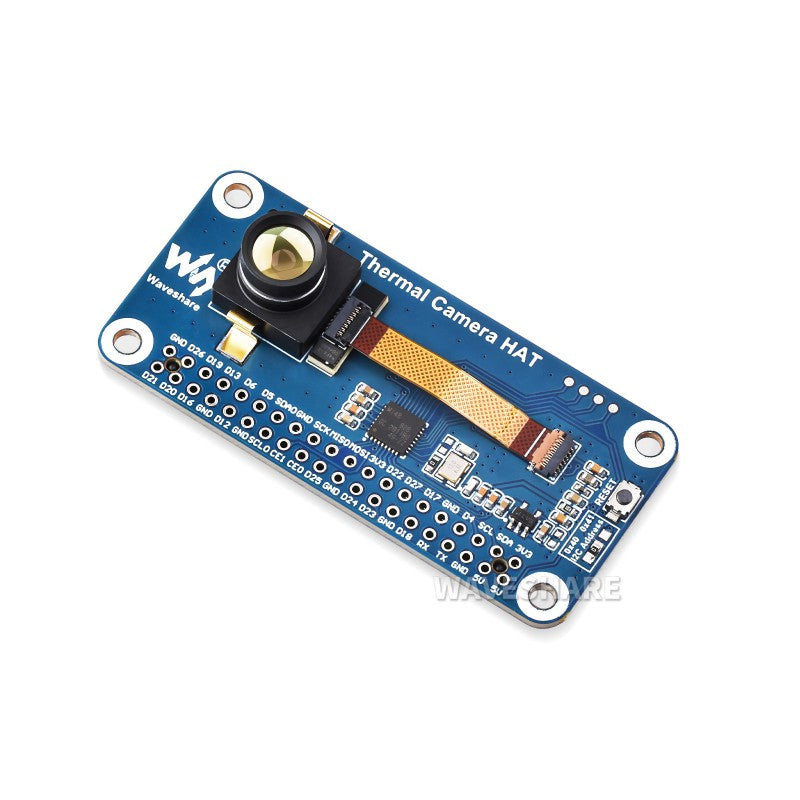

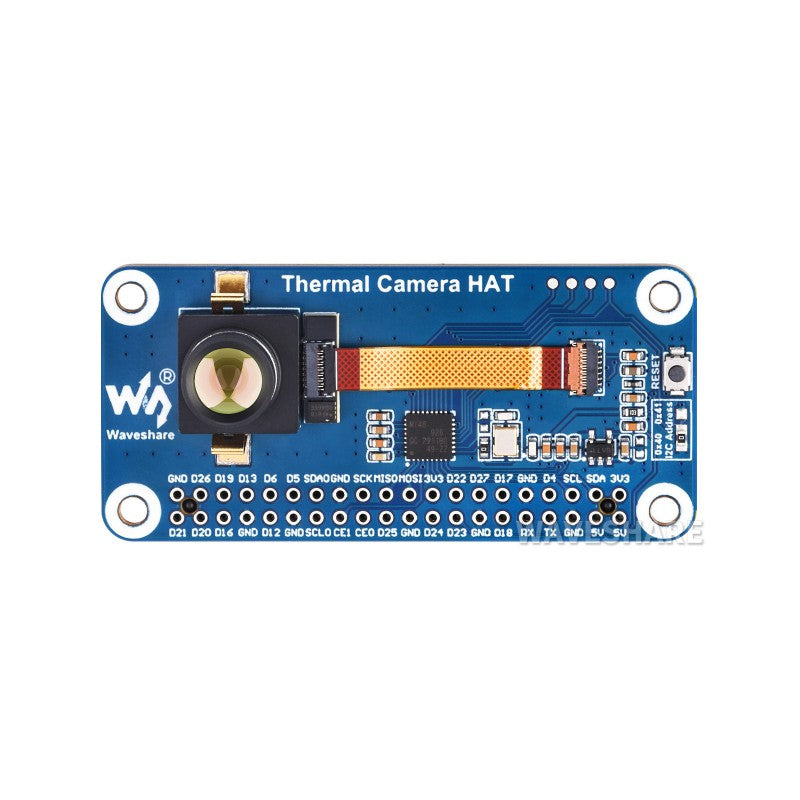

Thermal Camera HAT
Compatible With Raspberry Pi Boards
Connect to Raspberry Pi 4B, extending the camera with the FPC cable
Directly connect to Raspberry Pi ZERO

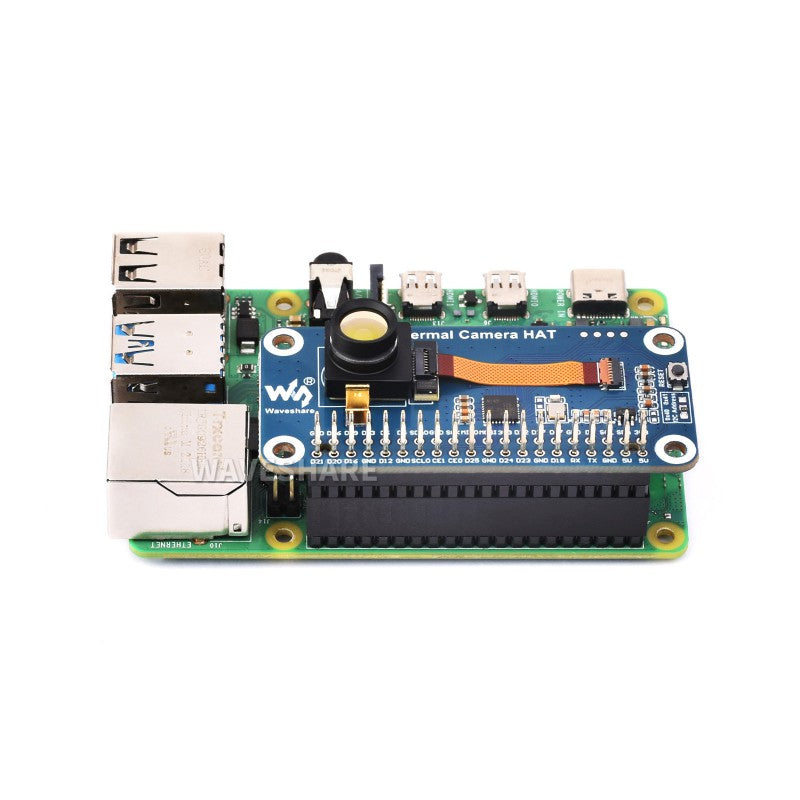

Directly connect to Raspberry Pi 4B
Thermal USB Camera
Compatible With Windows PC, Android Phone, Etc
Connect to PC
Connect to Android phone
* for reference only, the Raspberry Pi boards and hosts above are NOT included
Application Scenarios
Outline Dimensions
Package Contents:
Weight: 0.033 kg
Thermal Camera HAT
Thermal Camera HAT x1
40PIN female header x1
FPC 15 PIN cable 0.3mm pitch ~100mm x1
Screws pack x1
