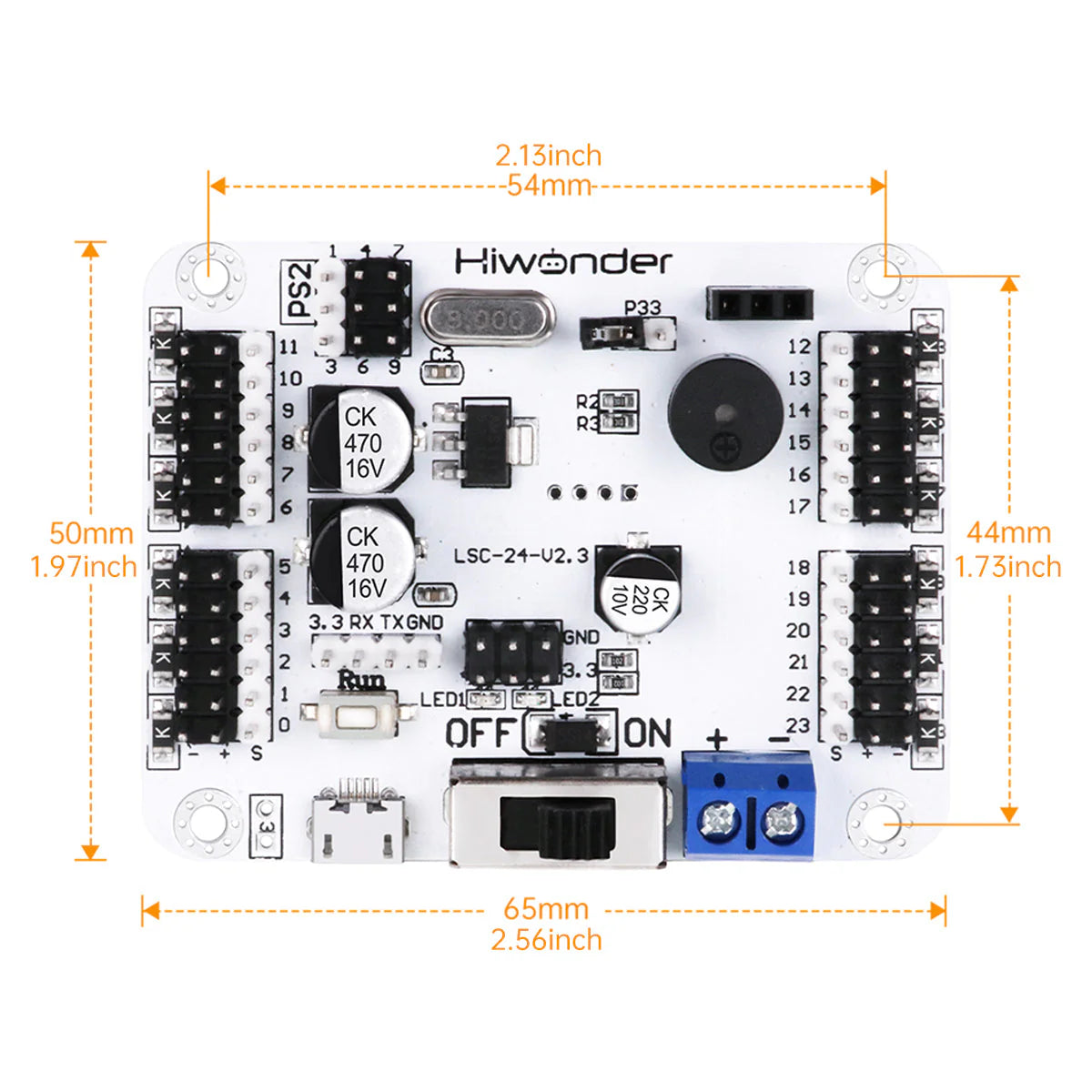

LSC-24: Hiwonder 24 Channel Digital Servo Controller with 16M Memory/Arduino Compatible

LSC-24: Hiwonder 24 Channel Digital Servo Controller with 16M Memory/Arduino Compatible

> The CPU of 24-channel servo controller uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer, which can not only control servo's movement, but adjust speed. It has 16M high-capacity memory to hold 230 action groups!

> The 24-channel servo controller has over-current protection, greatly prevents the servo from burning out because of the locked-rotor. Provide PC software which supports online graphical debugging.

> You can control 24-channel servo at the same time.

1. High-performance Chip - The CPU adopts a high-performance STM32 microcontroller with ARM Cortex-M3 core, which controls motion with high precision and adjustable speed.

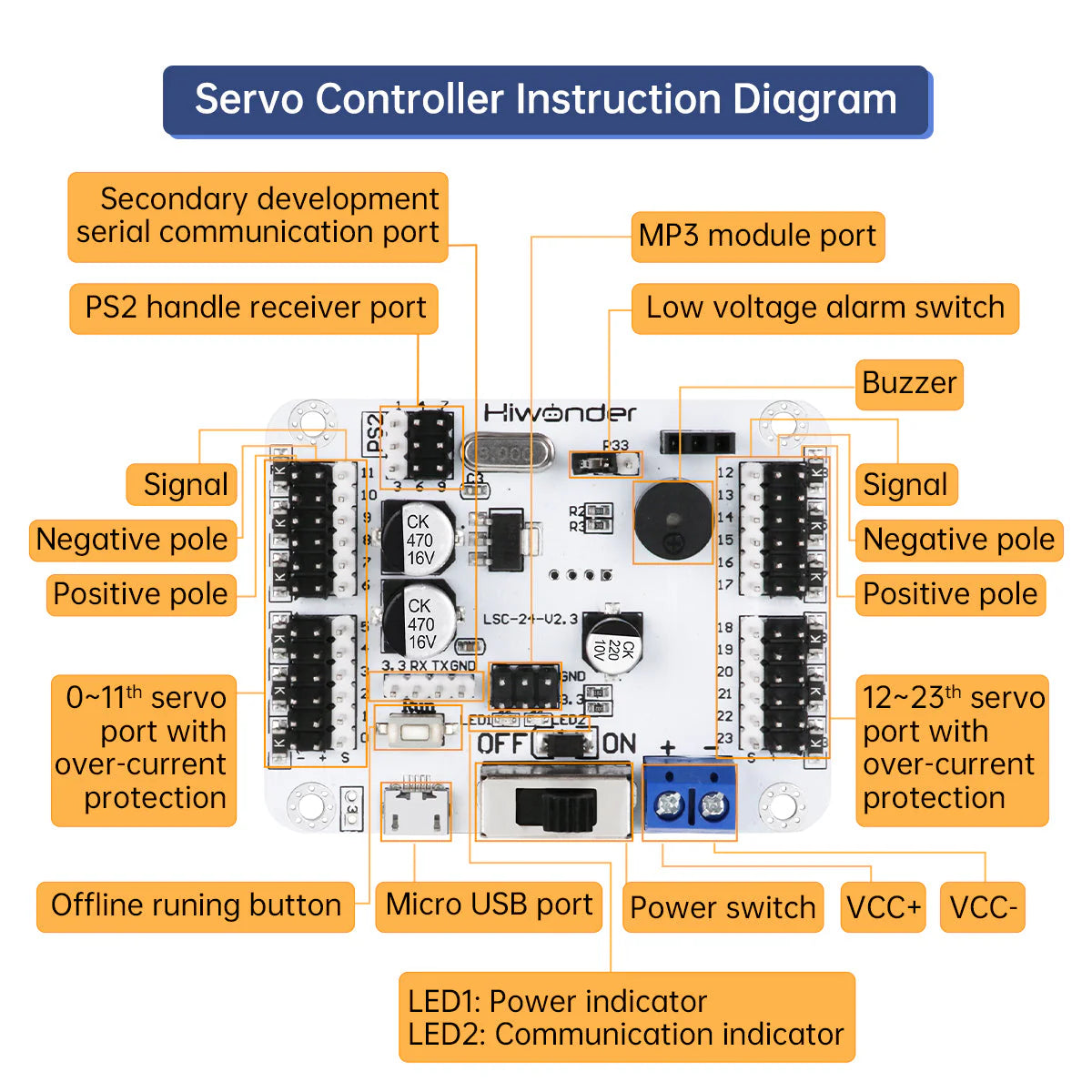

2. Simple Wiring - The controller has built-in positive and negative power interfaces, which is simple to wire and easy to operate.

3. Built-in Switch - The controller has a built-in switch, which is easy to use and reduces your wiring worries.

4. Computer Driver-free - The controller supports online debugging without installing any driver.

5. Large Capacity Memory - 16M large capacity memory, which can include 230 action groups, and each action group contains 510 actions!

6. Low-voltage Alarm - When the positive voltage is lower than 5.6v, the buzzer will make a beep sound to remind users to charge the battery.

7. PS2 Handle Interface - The controller supports PS2 handle control, which is simple and convenient to operate. The remote-control distance is about 10 meters.

8. Support External MP3 or Bluetooth Module - If you plug in the MP3 module, you can make the robot make sounds; if you plug in the Bluetooth module, you can control the robot through Bluetooth.

9. Two Offline Operating Modes - The controller can be run offline once or cycled offline numerous times.

10. Support Serial Port Communication - It can connect to other microcontroller and other microcontroller can send command to it. Communication protocols of 51, STM32 and Arduino microcontroller are provided.

11. 24 Channels Overload Protection - The controller is equipped with 24-channel overload protection, which greatly reduces the risk of servo stalling and burning out.

12. Signal Isolation Protection - The output end of the servo is isolated from the CPU to prevent it from servo power surge.

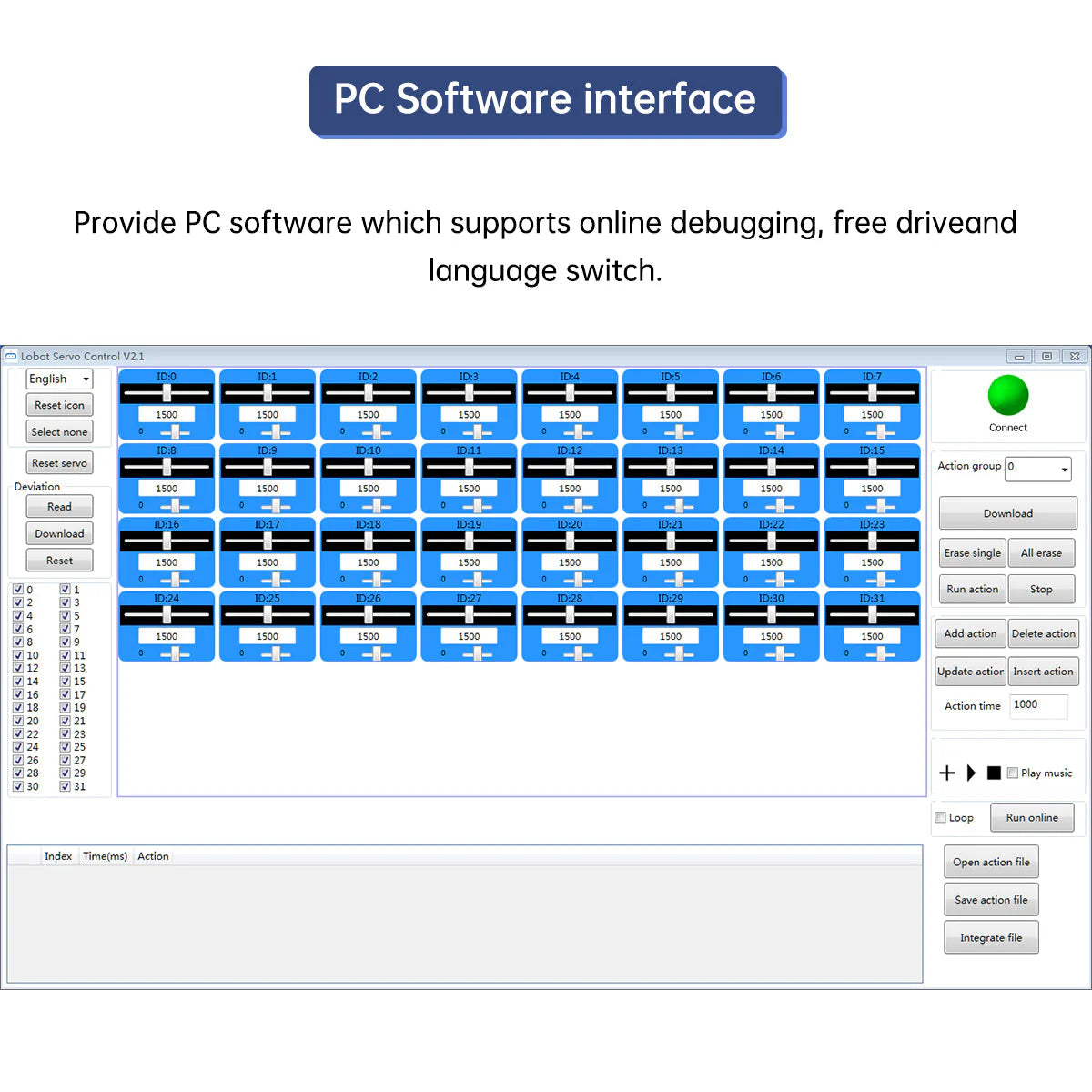

PC Software Interface

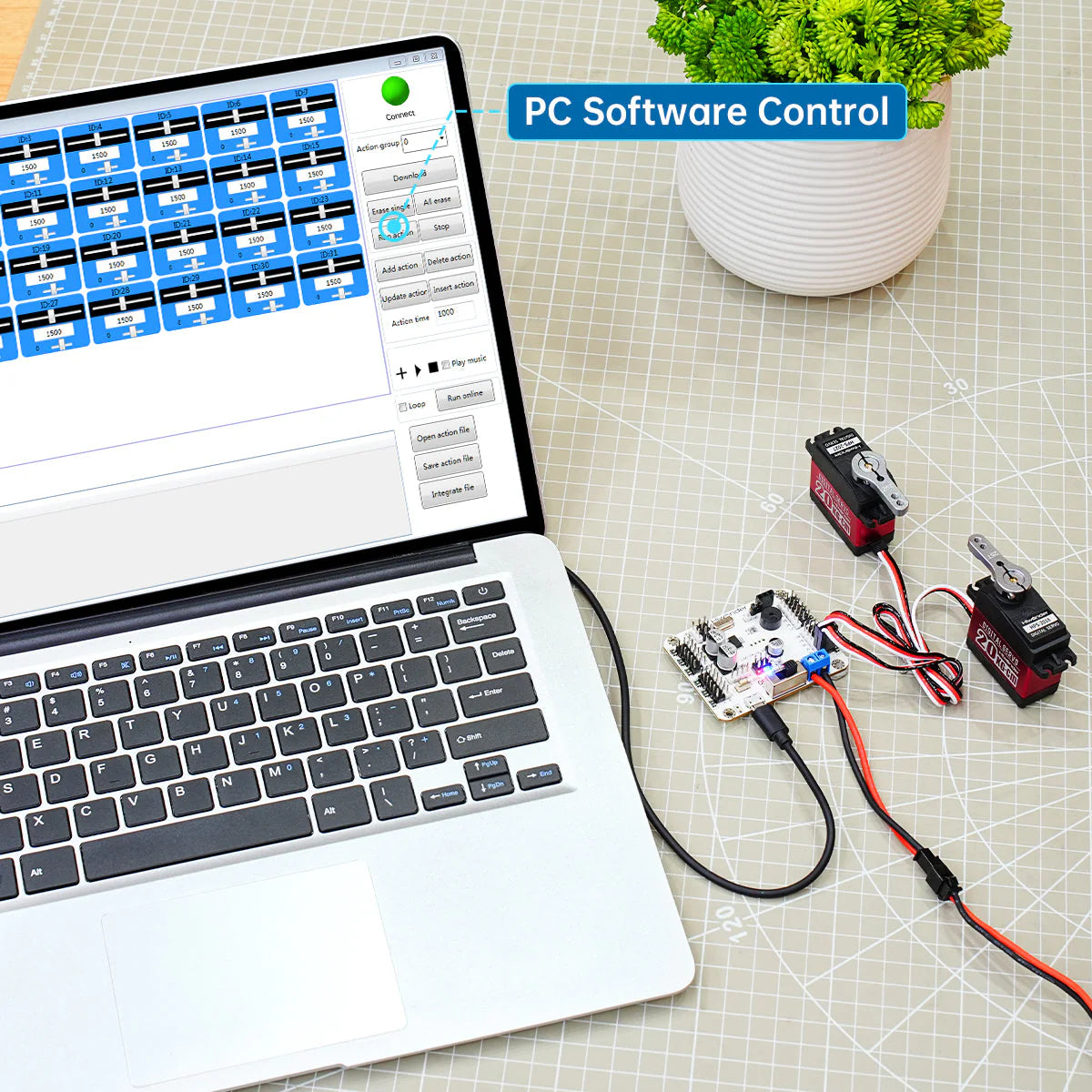

> We provide PC software that supports online debugging, driver-free, automatic connection, and language switching.

> You can debug it through PC software without coding. Drag the slider to control the rotation of the servo. Quick debugging will make your project run successfully.

How to use debugging

> The 24-channel servos can be controlled individually.

> We need to provide the 24-channel servo debugging board with 5-8.4V voltage.

> Connect the servo to the S0-S23 interface. The development board can send commands through the serial port or lCI to control the corresponding servo.

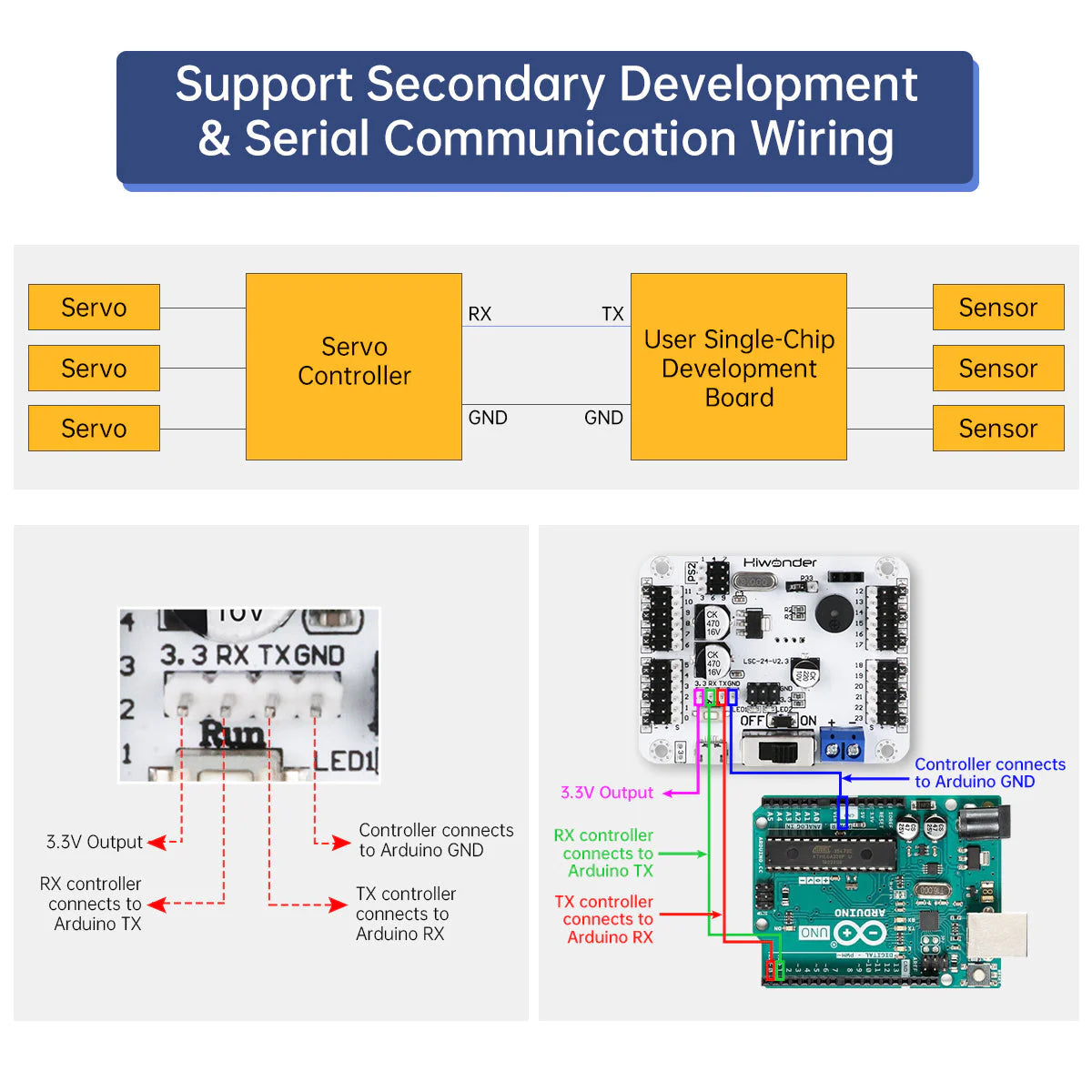

Support Development Board Expansion

The servo controller has a reserved serial communication interface, which can conduct TTL serial communication with other development boards. The development board can send instructions to the controller to enable your robot to achieve intelligent control.
We provide three communication routines for Arduino, Raspberry Pi and Jetson Nano for your reference to facilitate your learning.

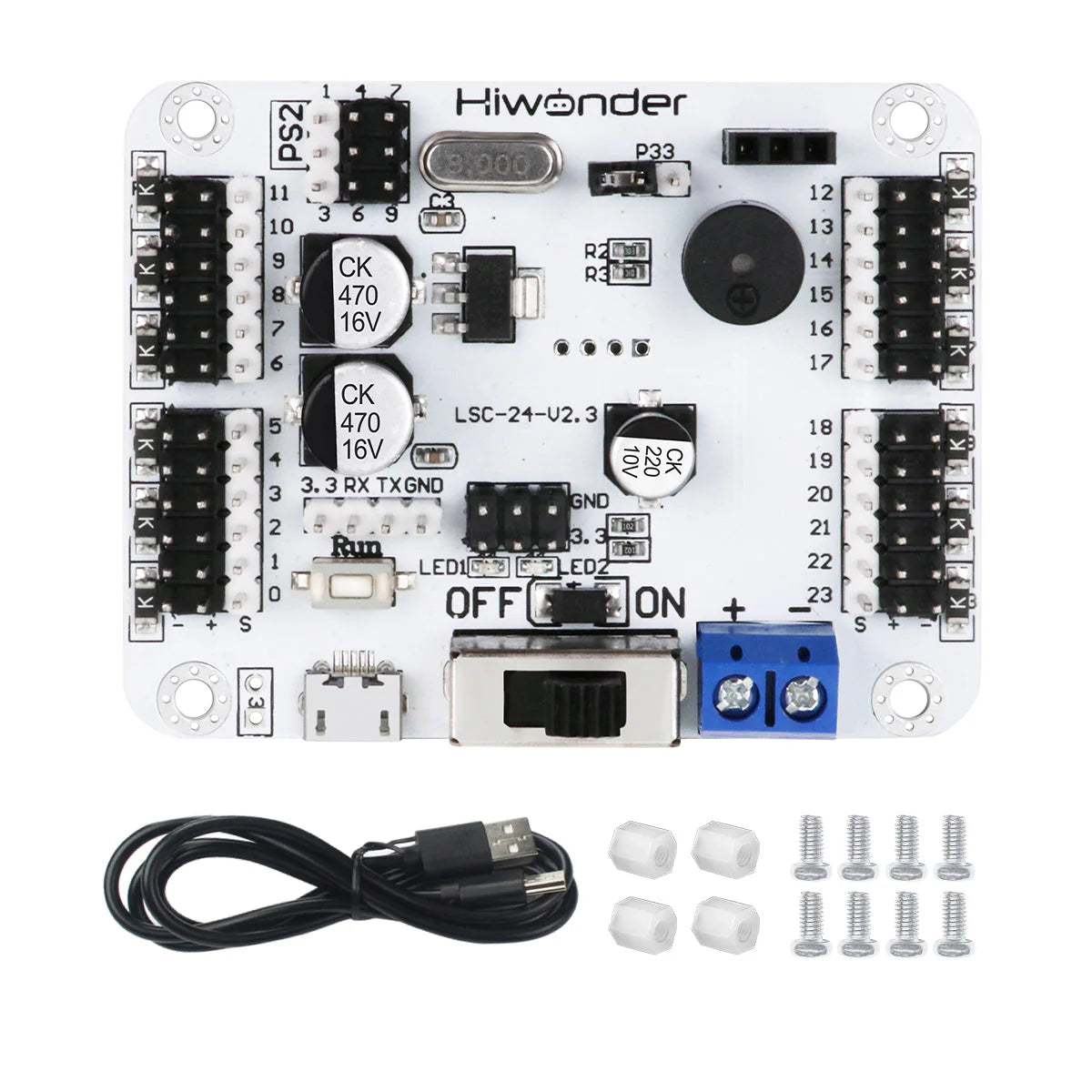

Package Includes
