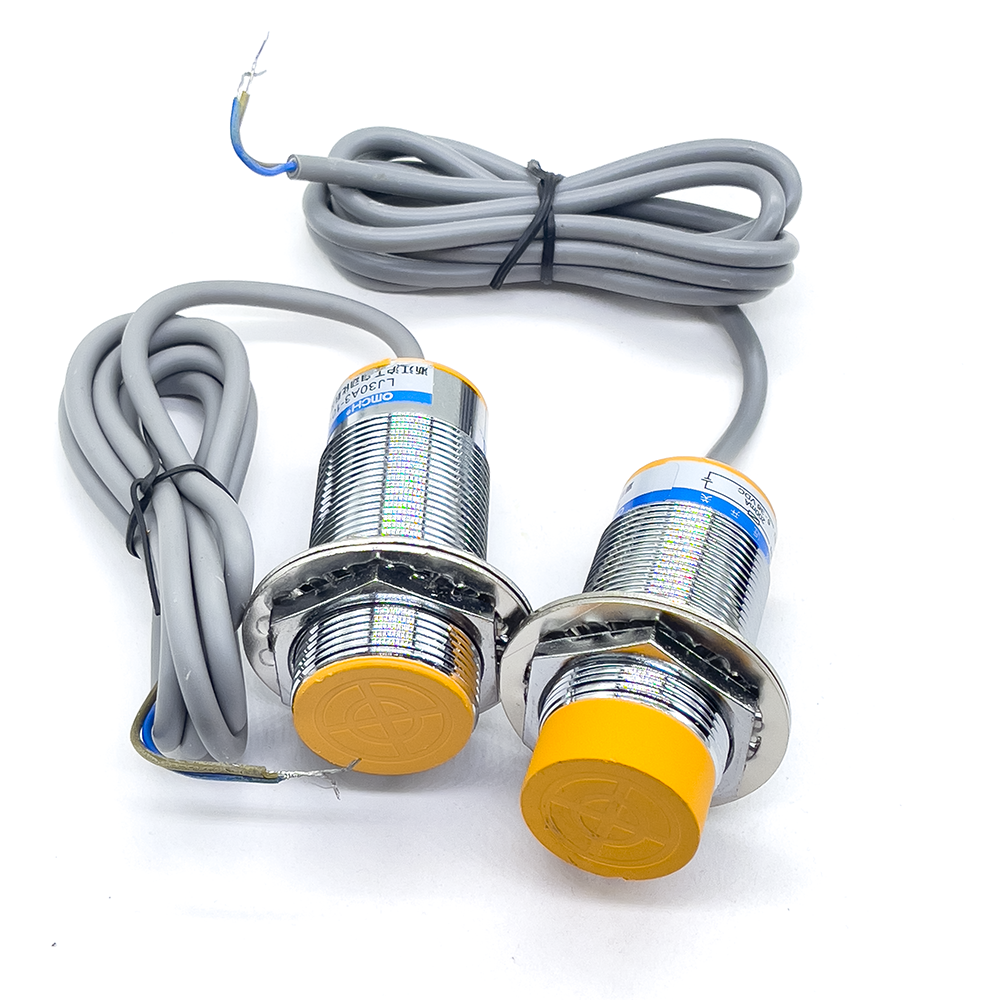

M30 Precision Inductive Proximity Sensor Switch
Model number

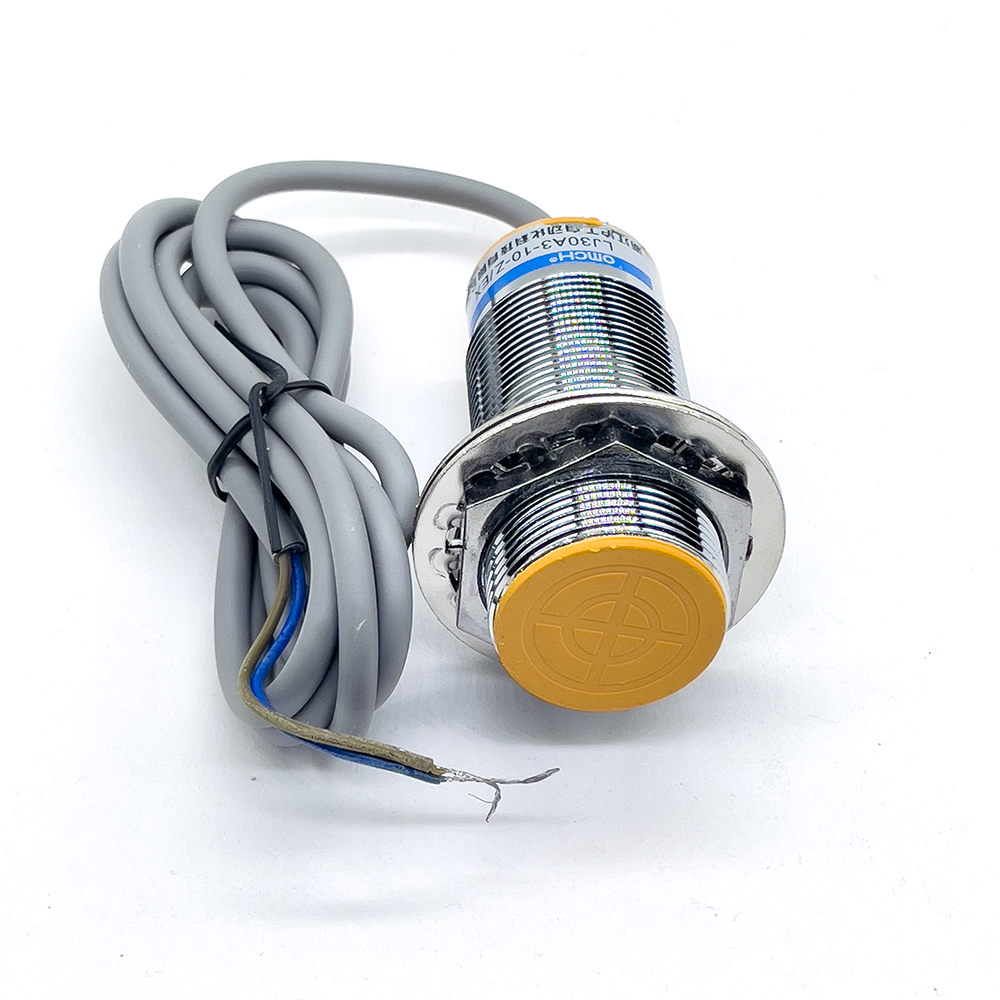

LJ30A3-10-Z/EX (NO - Normally Open)
External dimensions
M30x75
Installation type
Shielded
Detection distance
10mm
Setting distance
0-8 mm
Supply voltage
6-36Vdc; 90-250Vac, 50/60Hz
Output current
DC type: 300mA max; AC Type: 400mA
Standard detected object
Mild steel (18x18x1mm)
Sensing object
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency
500Hz
Output indication
Red LED
Short-circuit protection
Yes
Reverse connection protection
Yes
Insulation resistance
50MΩ min (between charging part and housing)
Dielectric strength
1000Vac, 1min (between charging part and housing)
IP Rating
IP67
Operating temperature
-25 to 70 ℃ (13 to 158 ℉)
Cable length
1.2m, PVC cable
Material
Case: Brass-nickel plated; Sensing surface: ABS
Model number

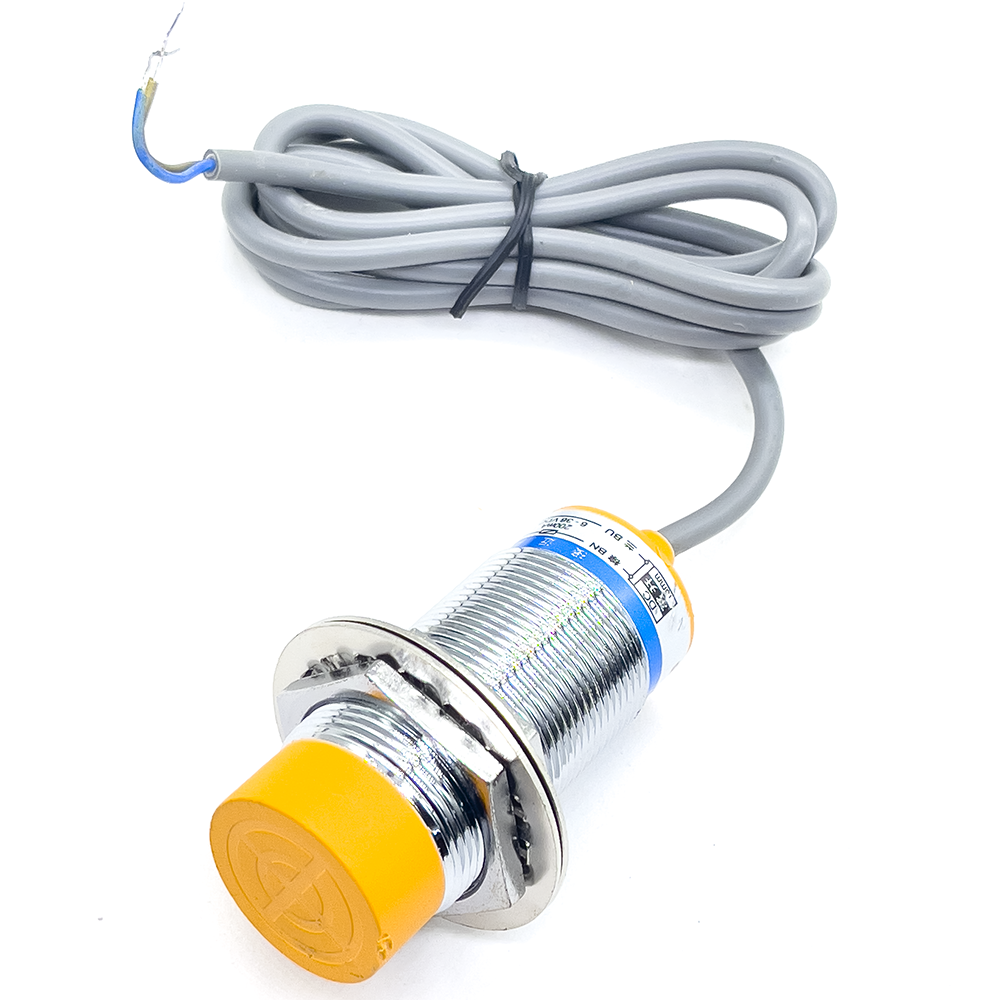

LJ30A3-15-Z/EX (NO - Normally Open)
External dimensions
M30x75
Installation type
Non-shielded
Detection distance
15mm
Setting distance
0-12 mm
Supply voltage
6-36Vdc; 5Vdc; 90-250Vac, 50/60Hz
Output current
DC type: 300mA max; AC Type: 400mA
Standard detected object
Mild steel (18x18x1mm)
Sensing object
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency
500Hz
Output indication
Red LED
Short-circuit protection
Yes
Reverse connection protection
Yes
Insulation resistance
50MΩ min (between charging part and housing)
Dielectric strength
1000Vac, 1min (between charging part and housing)
IP Rating
IP67
Operating temperature
-25 to 70 ℃ (13 to 158 ℉)
Cable length
1.2m, PVC cable
Material
Case: Brass-nickel plated; Sensing surface: ABS
Packaging Details
Package weight: 0.21kg
Package size: 13 x 8 x 9 cm
Product quantity: 1pcs
