ThinkRobotics

Metal Detector Kit

SKU: ELC1059

ā‚¹ 159.99 ā‚¹ 410.00

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Metal Detector Kitā‚¹ 159.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Metal Detector is a high performance metal detector designed for security.

Ā

Specifications

NO.

Parameter

Value

1

Name

Metal Detector

2

Operating Voltage

DC 3-5V

3

Operating Current

40mA

4

Standby Current

5mA

5

Detection Distance

60mm

6

Alarm mode

Sound/Light

7

Difficulty

Easy

8

PCB Size

86*61mm

Ā

4

Ā

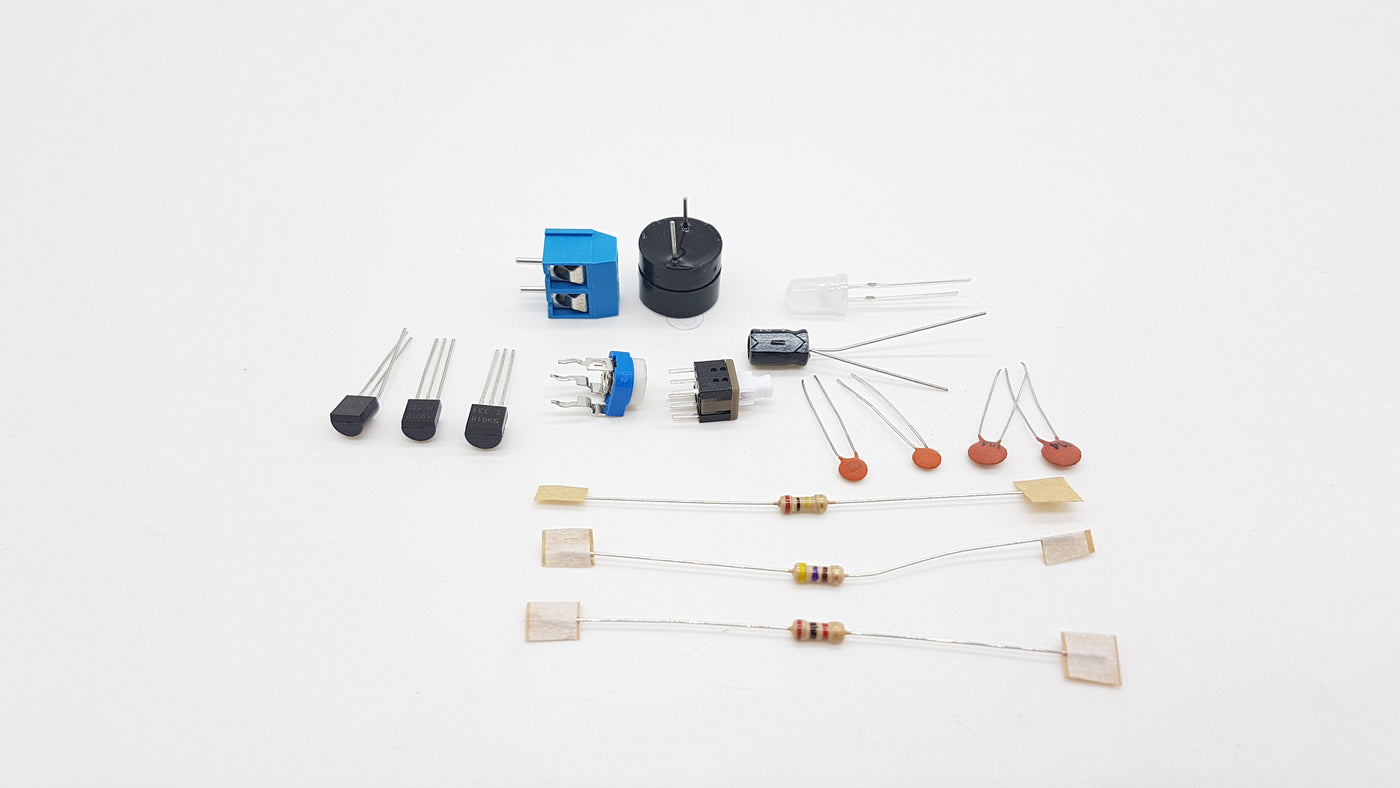

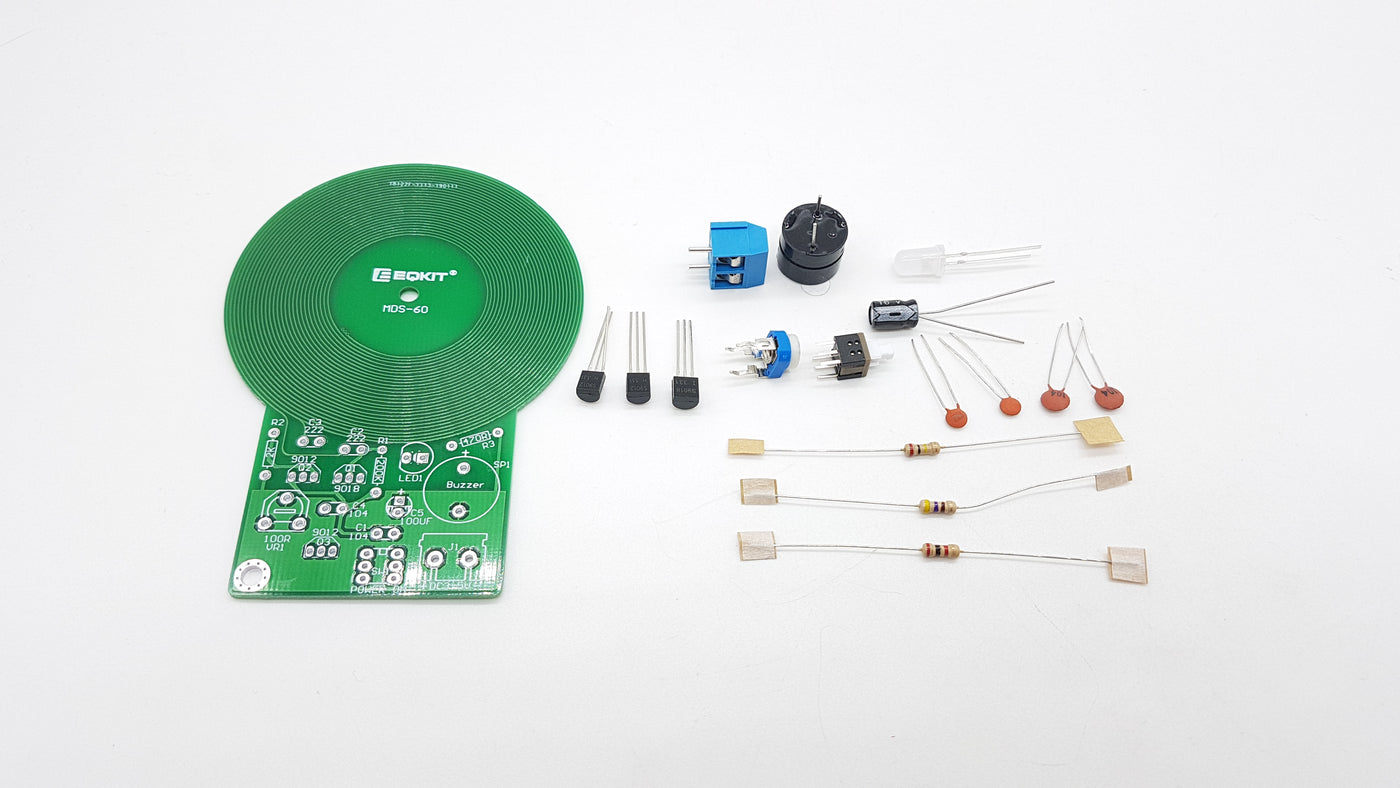

NO.

Component Name

PCB Marker

Parameter

QTY

1

Metal Film Resistor

R3

470ohm

1

2

Metal Film Resistor

R2

2K

1

3

Metal Film Resistor

R1

200K

1

4

Potentiometer

VR1

100R

1

5

Ceramic Capacitor

C2,C3

0.022uf

2

6

Ceramic Capacitor

C1,C4

0.1uf

2

7

Electrolytic Capacitor

C5

100uf

1

8

Red LED

LED1

5mm

1

9

S9012

Q2.Q3

TO-92

2

10

S9018

Q1

TO-92

1

11

Power Switch

SW1

6*5mm

1

12

Buzzer

SP1

9*12mm

1

13

Power Socket

J1

KF301-2P

1

14

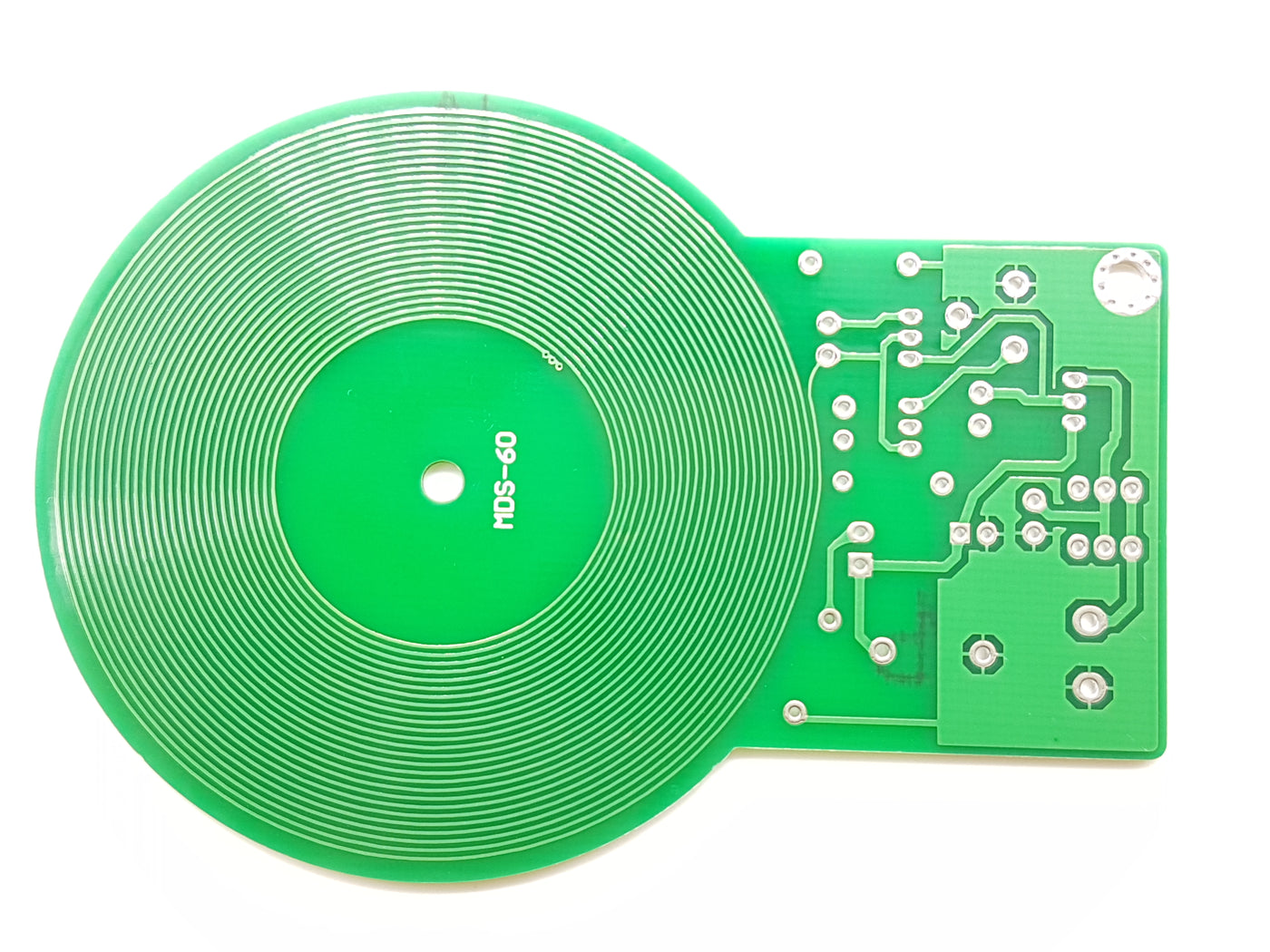

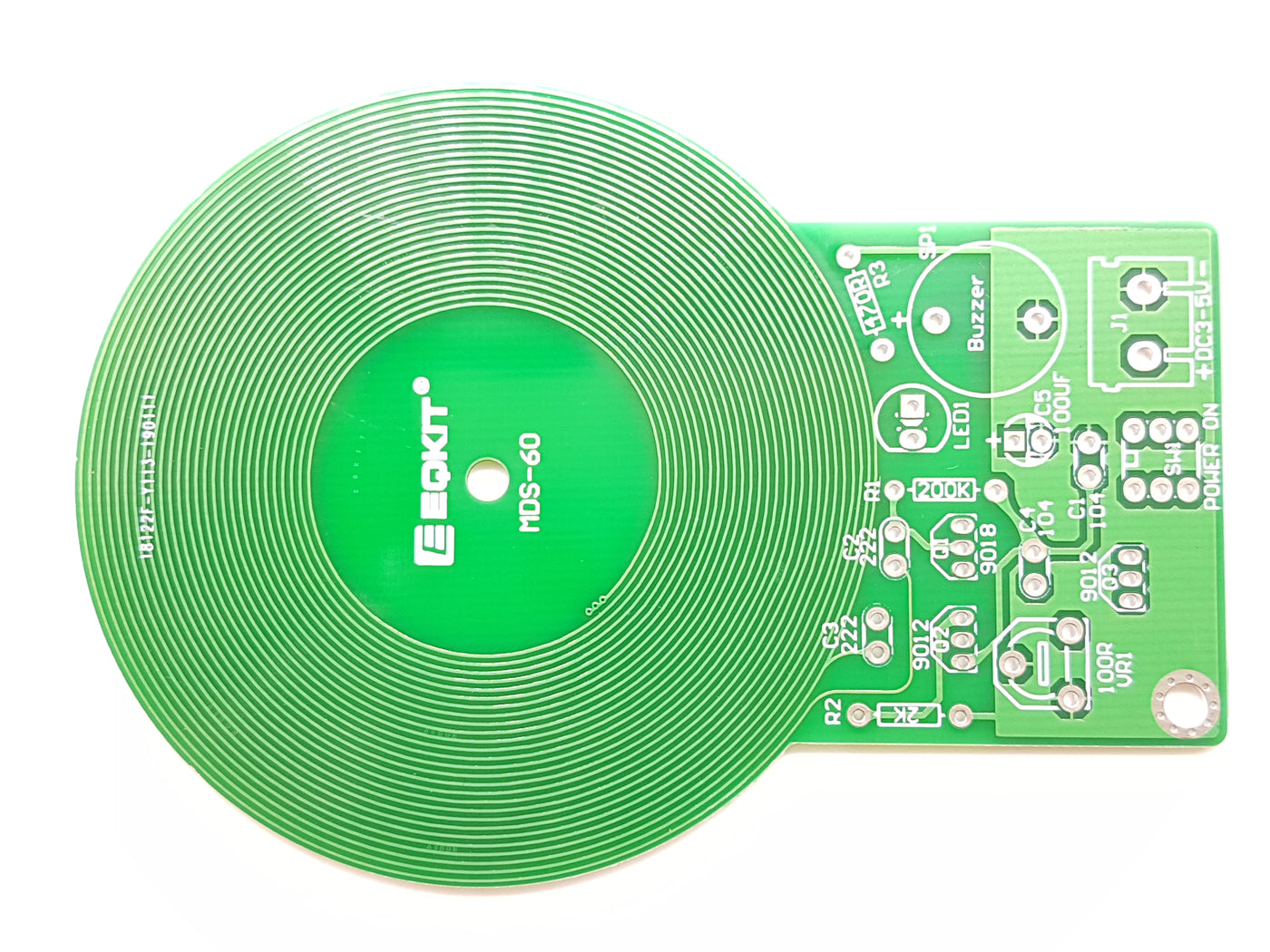

PCB

Ā

MDS-60

1

Ā

Resources

Datasheet

Sample Code

Tutorials

What are the power and voltage requirements for the kit?
The kit operates from a DC supply of 3 to 5 volts and draws about 40 mA, with a standby current of 5 mA.
What is the detection distance and alarm method?
The detection distance is 60 mm and the alarm mode uses both sound and light.
Is this kit suitable for beginners?
Yes, it is rated Easy and designed for simple use.
What is included in the kit in terms of hardware?
The kit includes the PCB MDS-60 and components such as resistors R3 470 ohm, R2 2K, R1 200K, potentiometer VR1 100R, capacitors C1 C2 C3 C4 C5, red LED, transistors Q1 Q2, power switch SW1, buzzer SP1, power socket J1, and related parts.
Are there documentation and support resources available?
Yes, resources include a datasheet, sample code and tutorials.
