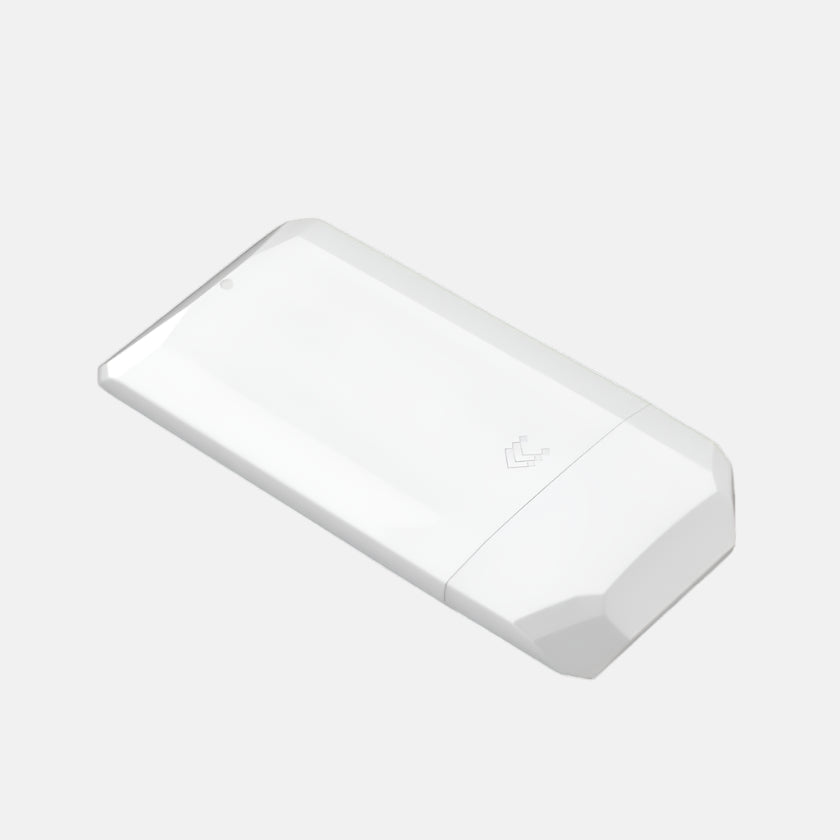

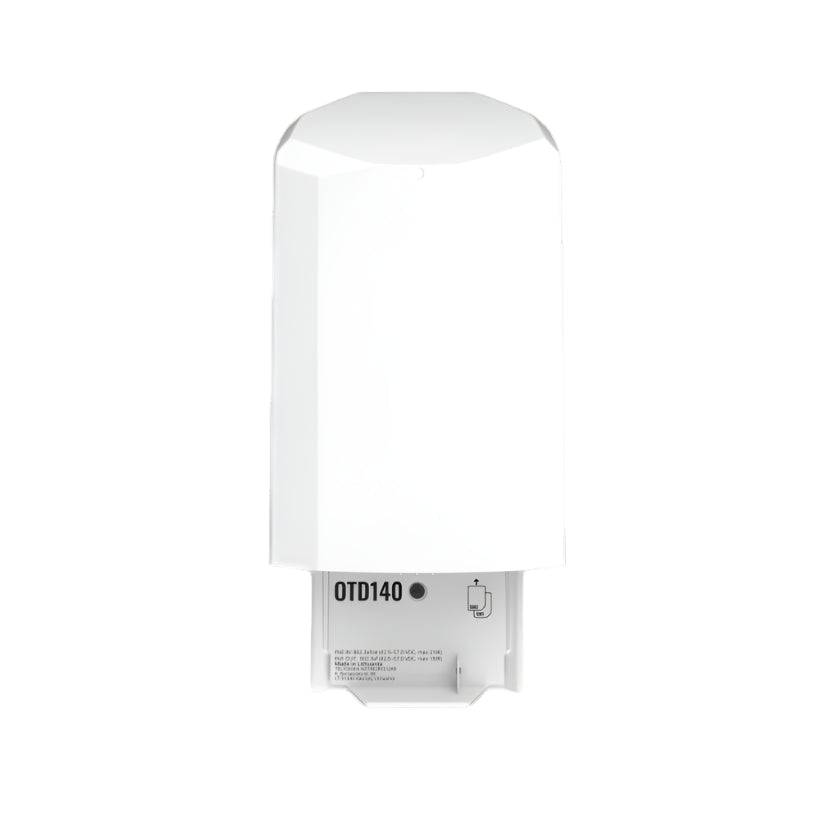

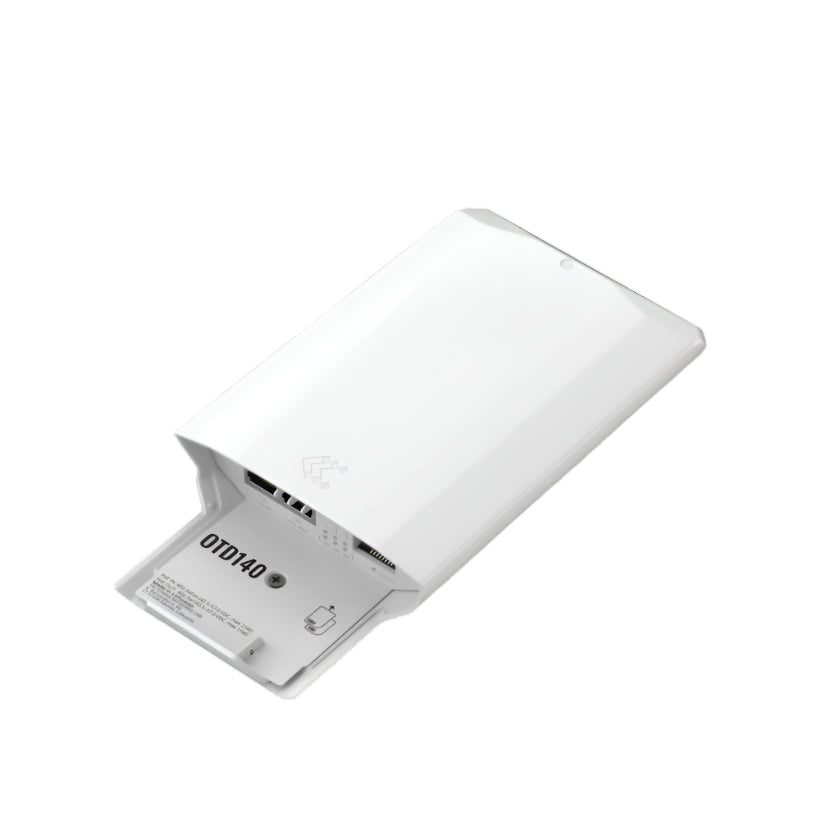

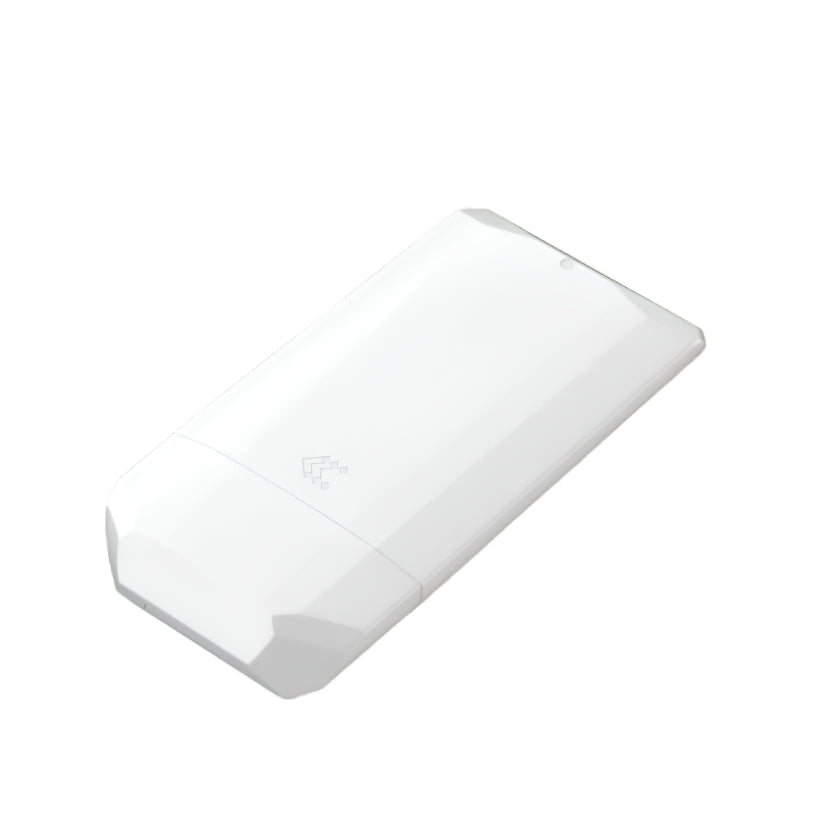

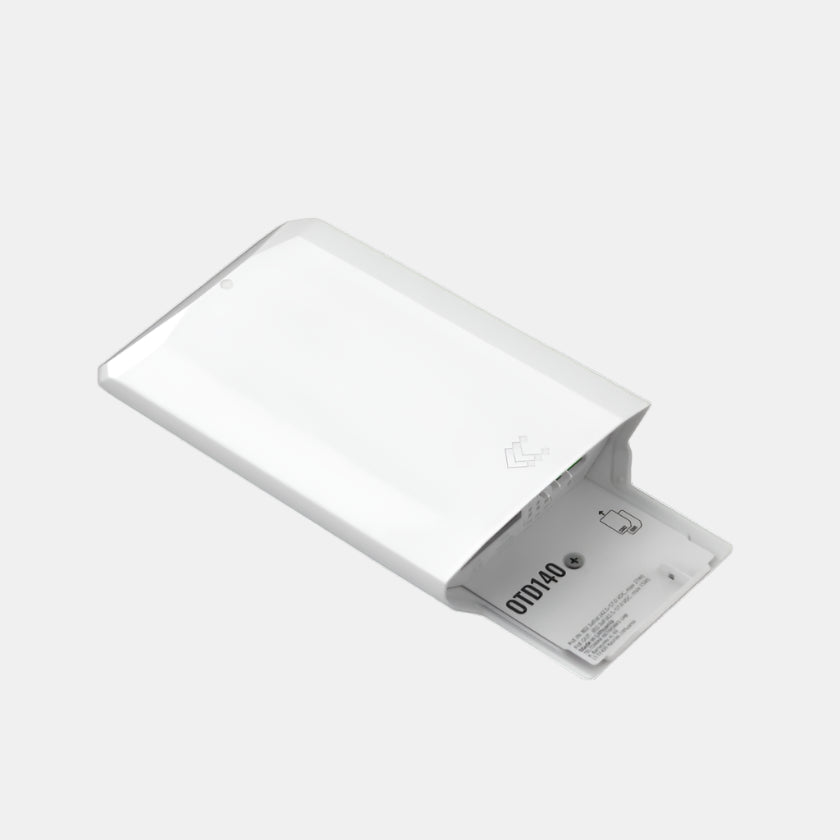

OTD140 OUTDOOR 4G ROUTER

The OTD140 outdoor router features a dedicated and durable IP55 plastic housing and an integrated mounting bracket, making this outdoor 4G router easy to deploy and capable of withstanding outdoor environmental conditions. Beyond that, this outdoor router is equipped with LTE Cat 4 connectivity, compatibility with RMS for remote management capabilities, and two PoE-in/out Ethernet ports.

POE IN

PoE Ports	1 x PoE In
PoE Standards	802.3af / 802.3at



POE OUT

PoE Ports	1 x PoE Out
PoE Standards	802.3af Alternative B
PoE Max Power per Port (at PSE)	15 W Max (power supply unit dependent)



Network

Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support	H.323 and SIP-alg protocol NAT helpers for proper routing of VoIP packets
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forward, traffic rules, custom rules, TTL target customization
Firewall Status Page	View all Firewall statistics, rules, and rule counters
Ports Management	View device ports, enable/disable ports, turn auto-configuration on/off, change transmission speed, etc.
Network Topology	Visual representation of network, showing device connections
DHCP	Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases (MAC with wildcards)
QoS / Smart Queue Management (SQM)	Traffic priority queuing by source/destination, service, protocol, or port; WMM, 802.11e
DDNS	Supported >25 service providers, others can be manually configured
DNS over HTTPS	Secure DNS resolution by routing DNS queries over HTTPS
Network Backup	VRRP, Wired options for automatic Failover
Hotspot	Captive portal, internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user/group limitations, user management, 9 default customizable themes and option to upload/download custom themes
SSHFS	Mount remote file system via SSH protocol
Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history



Security

Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, RADIUS (internal & external), IP/login attempts block, time-based login blocking, random password generator
Firewall	Preconfigured rules via WebUI, unlimited rules via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention	DDOS protection (SYN flood, SSH, HTTP/HTTPS), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags)
VLAN	Port and tag-based VLAN separation
Mobile Quota Control	Data limit, customizable period, start time, warning limit, phone number
Web Filter	Blacklist/Whitelist for website access
Access Control	Flexible control for SSH, Web interface, CLI, Telnet
SSL Certificate Generation	Let's Encrypt and SCEP methods
802.1x	Port-based network access control



VPN

OpenVPN	Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption	DES-CBC 64, AES-256-GCM 256, and more
IPsec	XFRM, IKEv1, IKEv2, 14 encryption methods (AES128, AES256, etc.)
GRE	GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP	Client/Server instances, L2TPv3, L2TP over IPsec support
Stunnel	TLS encryption proxy for existing clients/servers
DMVPN	Scalable IPsec VPNs, Phase 2/3 and Dual Hub support
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN client support
WireGuard	WireGuard VPN client/server support
Tinc	Encryption, authentication, and compression in tunnels



OPC UA

Supported Modes	Client, Server
Supported Connection Types	TCP



MODBUS

Modes	Server, Client
Connection Types	TCP
Custom Registers	- MODBUS TCP custom register block requests for file operations inside the router (extend client functionality)
Data Formats	- 8-bit: INT, UINT
	- 16-bit: INT, UINT (MSB or LSB first)
	- 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC formats)
	- Other Formats: HEX, ASCII



DATA TO SERVER

Protocols	- HTTP(S)
	- MQTT
	- Azure MQTT
Data to Server	- Extract parameters from multiple sources and protocols, and send them to a single server.
	- Custom LUA scripting to utilize the router’s Data to Server feature.



MQTT Gateway

Modbus MQTT Gateway

- Allows sending commands and receiving data from a MODBUS Server through an MQTT broker.



DNP3

Supported Modes	Station, Outstation
Supported Connection	TCP



DLMS

DLMS Support	DLMS - standard protocol for utility meter data exchange
Supported Modes	Client
Supported Connection Types	TCP
COSEM	Allows scanning of meter COSEM objects for automatic detection and configuration



API

Teltonika Networks Web API	Web API (beta) support - Expand device capabilities with configurable API endpoints to retrieve or change data.
Additional Info	For more information, refer to the documentation.



Monitoring & Management

WEB UI	- HTTP/HTTPS access
	- Status and configuration
	- Firmware update
	- Command Line Interface (CLI)
	- Troubleshoot features
	- Multiple event log servers
	- Firmware update availability notifications
	- Event log, system log, kernel log
	- Internet status
FOTA	- Firmware update from server
	- Automatic notification for updates
SSH	- SSH (v1, v2)
Email	- Receive email message status alerts for various services
SMS	- SMS status
	- SMS configuration
	- Send/read SMS via HTTP POST/GET
Call	- Reboot, status check
	- Mobile data on/off
	- Output on/off
	- Answer/hang-up with a timer
TR-069	- OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, AVSystem
MQTT	- MQTT Broker
	- MQTT Publisher
SNMP	- SNMP (v1, v2, v3)
	- SNMP Trap
	- Brute force protection
JSON-RPC	- Management API over HTTP/HTTPS
RMS	- Teltonika Remote Management System (RMS)



LOT Platforms

ThingWorx	- Allows monitoring of:
	- WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things	- Allows monitoring of:
	- Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
	- Includes reboot and firmware upgrade actions
Azure IoT Hub	- Can be configured with Data to Server to send all available parameters to the cloud
	- Supports Direct Method, which allows executing RutOS API calls on the IoT Hub
	- Plug and Play integration with Device Provisioning Service for zero-touch device provisioning to IoT Hubs
AWS IoT Core	- Utility to interact with the AWS cloud platform
	- Jobs Support: Call the device's API using AWS Jobs functionality



System Characteristics

CPU	Mediatek, 580 MHz, MIPS 24KEc
RAM	128 MB
FLASH Storage	16 MB



Firmware / Configuration

WEB UI	- Update FW from file
	- Check FW on server
	- Configuration profiles
	- Configuration backup
FOTA	- Update FW
RMS	- Update FW/configuration for multiple devices at once
	- Keep settings: Update FW without losing current configuration
Factory Settings Reset	- A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration



FIRMWARE CUSTOMISATION

Operating System	RutOS (OpenWrt based Linux OS)
Supported Languages	- Busybox shell
	- Lua
	- C, C++
	- Python, Java (in Package manager)
Development Tools	- SDK package with build environment provided
GPL Customization	- Create custom, branded firmware and web page applications by changing colors, logos, and other elements to fit your needs
Package Manager	- The Package Manager is a service used to install additional software on the device



Power

Connector	RJ45 Socket
Input Voltage Range	42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection
Input Voltage Range for PoE	42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection
Power Consumption	- Idle: < 2.5 W
	- Max: < 6 W
	- PoE Max: < 21 W

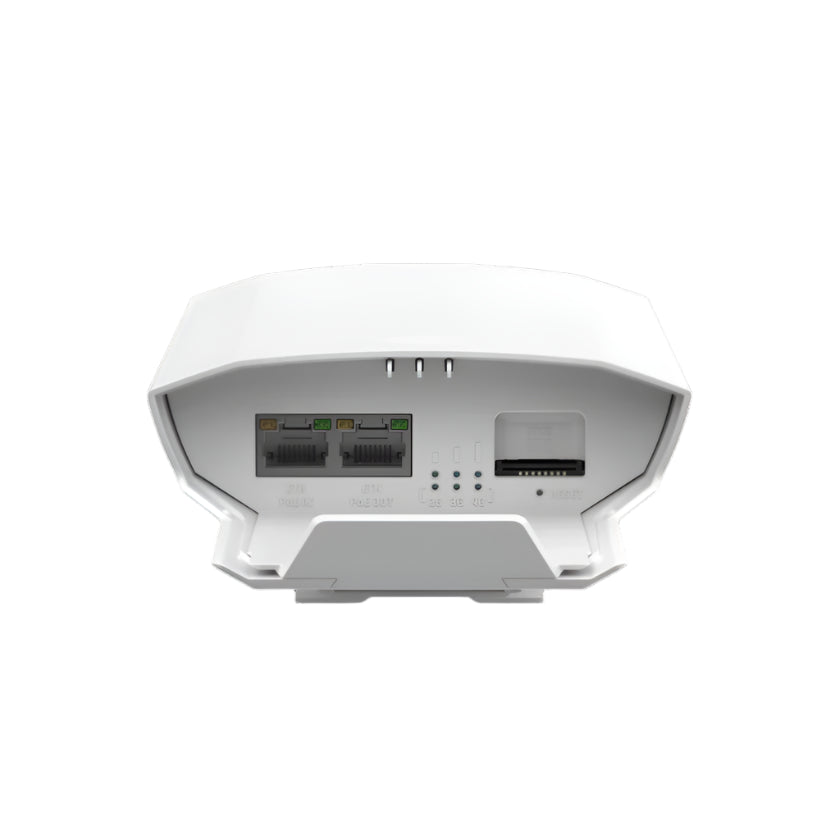

Physical Interfaces

Ethernet	2 x RJ45 ports, 10/100 Mbps
Status LEDs	- 3 x Mobile connection type LEDs
	- 3 x Mobile connection strength LEDs
	- 4 x Ethernet (ETH) status LEDs
SIM	- 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Power	- RJ45, PoE In, 42.5 – 57.0 VDC
Antennas	- 2 x Internal antennas
Antennas Specifications	- 2 x 698 - 960 / 1710 - 2690 MHz, 50 Ω, VSWR < 3, gain < 4.5 dBi, omnidirectional
Reset	- Reboot/User default reset/Factory reset button



Physical Specification

Casing Material	Plastic (PC+ASA)
Dimensions (W x H x D)	110 x 49.30 x 235 mm
Weight	855 g
Mounting Options	Mounting bracket (for vertical flat surface or pole mounting)



Operating Environment

Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non-condensing
Ingress Protection Rating	IP55



Regulatory & Type Approvals

Regulatory

CE, UKCA, RCM, EAC, UCRF, FCC, IC, CB, WEEE, RoHS, REACH



EMC Emissions & Immunity

Standards	EN 55032:2015 + A11:2020 + A1:2020
	EN 55035:2017 + A11:2020
	EN 61000-3-3:2013 + A1:2019 + A2:2021
	EN IEC 61000-3-2:2019 + A1:2021
	EN 301 489-1 V2.2.3
	EN 301 489-52 V1.2.1
ESD	EN 61000-4-2:2009
Radiated Immunity	EN IEC 61000-4-3:2020
EFT	EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)	EN 61000-4-5:2014 + A1:2017
CS	EN 61000-4-6:2014
DIP	EN IEC 61000-4-11:2020



RF

Standards	EN 301 511 V12.5.1
	EN 301 908-1 V15.2.1
	EN 301 908-2 V13.1.1
	EN 301 908-13 V13.2.1



Safety

Standards	CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020
	CB: IEC 62368-1:2018
	RCM: AS/NZS 62368.1:2022



Environmental

Ingress Protection

IP55 (IEC 60529:1989 + A1:1999 + A2:2013, EN 60529:1991 + A1:2000 + A2:2013)
