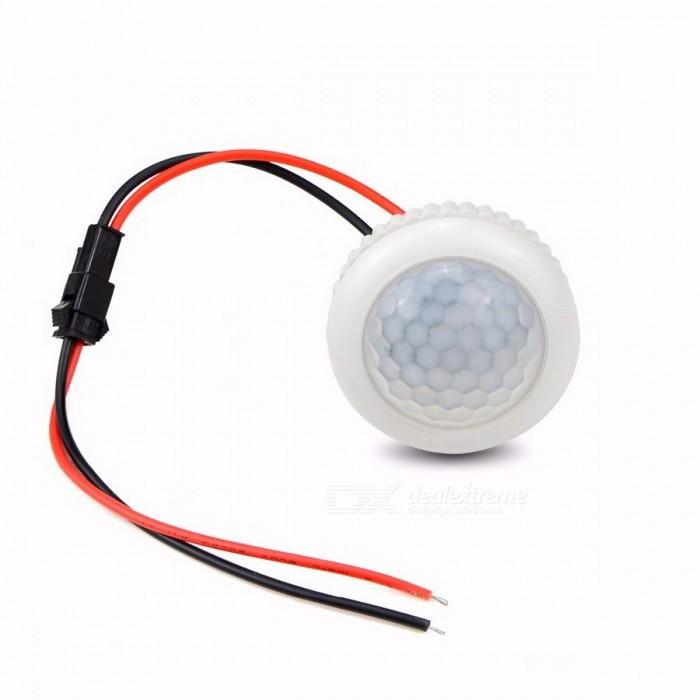

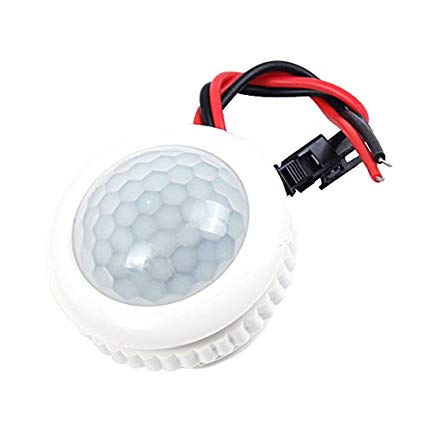

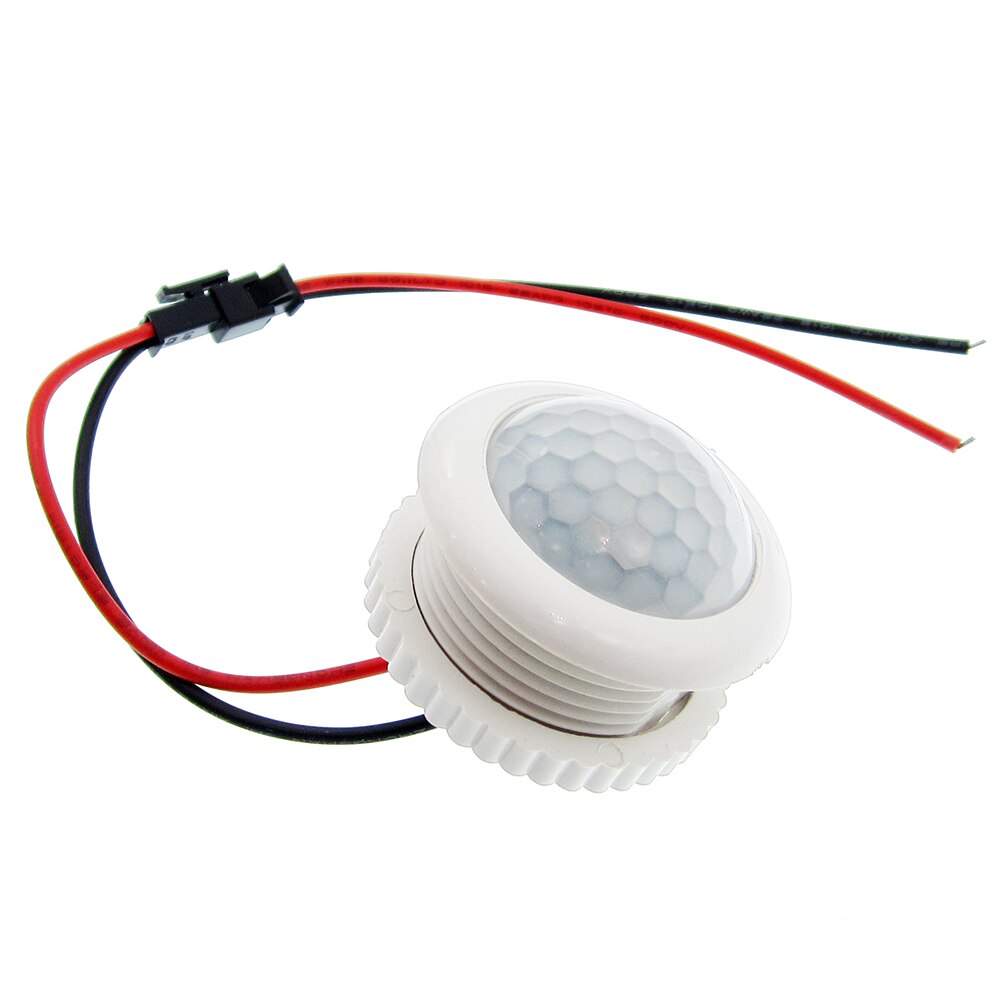

PIR Infrared Human Induction Lamp 220V 50HZ

SKU: ELC1075

₹ 465.99 ₹ 535.00

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
PIR Infrared Human Induction Lamp 220V 50HZ₹ 465.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini
  • Detection mode: PIR detection + light control
  • Rated Voltage: 220 V 50 HZ
  • Output mode: controllable silicon
  • Load power: 100 W
  • Electricity saving lamp: 30 W
  • LED: 18 W
  • Of delay: 20 s
  • Sensing distance: 3-6 m
  • Detection angle: 110deg

Features:

  • Adaptive to filament, electricity saving lamp
  • This lamp is internal equipped with auto body sensor. if you can come. the lam lights up; if people go, the lamp goes out
  • Internal body of auto sensor adopts infrared heat release device, and is able to accurately capture moving low frequency signal and automatically power on
  • When people leave, the lamp self delay power off, convenient and energy saving
  • Inner side of the ride is set up with the brightness of the car circuit detection environment. only when the ambient brightness is lower than the setting value, the sensor will receive sense and let the lamp power off. and is energy-saving
Specifications

Resources

Datasheet

Tutorial



How does the lamp activate and deactivate with motion?
It uses PIR detection plus light control. It detects movement within 3-6 m and a 110 degree angle; the lamp turns on and remains on for about 20 seconds after movement ends, with operation gated by ambient light.
What are the electrical requirements and load capacity?
The unit is designed for 220 V 50 Hz mains and supports a load up to 100 W. The description also mentions a 30 W electricity saving lamp and an 18 W LED.
What is the purpose of the 20 second delay and the energy saving features?
The 20 second delay keeps the light on briefly after motion stops, and an ambient brightness sensor ensures operation mainly in low light to save energy.
What are the sensing distance and detection angle?
Sensing distance is 3 to 6 meters and the detection angle is 110 degrees.
Are installation, warranty or return details available?
The provided information does not include installation steps, warranty, or return details. Please consult the datasheet or contact the seller for this information.
A
Admin
Welcome to the discussion thread for PIR Infrared Human Induction Lamp 220V 50HZ
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Discover More In:

Browse All Products → Motion, Vibration & Proximity → Sensors →

Category: View all Sensor

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini
  • Detection mode: PIR detection + light control
  • Rated Voltage: 220 V 50 HZ
  • Output mode: controllable silicon
  • Load power: 100 W
  • Electricity saving lamp: 30 W
  • LED: 18 W
  • Of delay: 20 s
  • Sensing distance: 3-6 m
  • Detection angle: 110deg

Features:

  • Adaptive to filament, electricity saving lamp
  • This lamp is internal equipped with auto body sensor. if you can come. the lam lights up; if people go, the lamp goes out
  • Internal body of auto sensor adopts infrared heat release device, and is able to accurately capture moving low frequency signal and automatically power on
  • When people leave, the lamp self delay power off, convenient and energy saving
  • Inner side of the ride is set up with the brightness of the car circuit detection environment. only when the ambient brightness is lower than the setting value, the sensor will receive sense and let the lamp power off. and is energy-saving
Specifications

Resources

Datasheet

Tutorial



FAQ
How does the lamp activate and deactivate with motion?
It uses PIR detection plus light control. It detects movement within 3-6 m and a 110 degree angle; the lamp turns on and remains on for about 20 seconds after movement ends, with operation gated by ambient light.
What are the electrical requirements and load capacity?
The unit is designed for 220 V 50 Hz mains and supports a load up to 100 W. The description also mentions a 30 W electricity saving lamp and an 18 W LED.
What is the purpose of the 20 second delay and the energy saving features?
The 20 second delay keeps the light on briefly after motion stops, and an ambient brightness sensor ensures operation mainly in low light to save energy.
What are the sensing distance and detection angle?
Sensing distance is 3 to 6 meters and the detection angle is 110 degrees.
Are installation, warranty or return details available?
The provided information does not include installation steps, warranty, or return details. Please consult the datasheet or contact the seller for this information.
