Raspberry Pi Active Cooler for Raspberry Pi 5

SKU: WVSH0446

₹ 999.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Raspberry Pi Active Cooler for Raspberry Pi 5₹ 999.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Raspberry Pi Official Active Cooler

Suitable for Raspberry Pi 5



Specifications

Input voltage 5V DC (supplied via four-pin fan header on Raspberry Pi 5)
Fan speed control Pulse width modulation control with tachometer
Maximum airflow   1.09 CFM
Fan speed 8000 RPM ±15%
Material Anodised aluminium



Based On Raspberry Pi 5

Matching the size and mounting holes of the Raspberry Pi 5, combines an
aluminium heatsink with a temperature-controlled blower fan
to accelerate heat dissipation

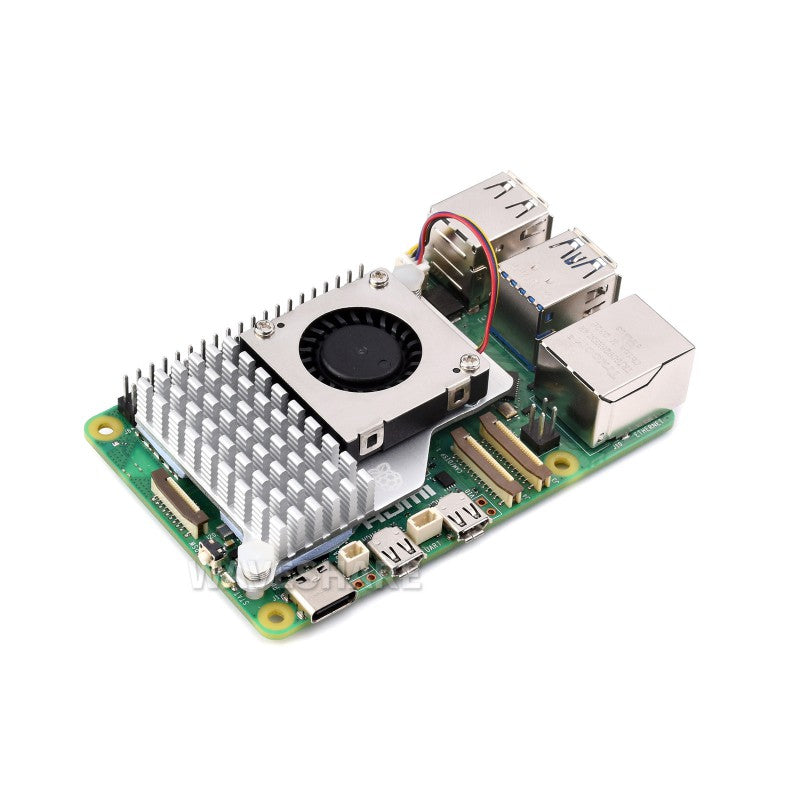

How to Install

Connect the 4pin cable to the fan header on Raspberry Pi 5, and fix the Active Cooler via spring-loaded push pins

* for reference only, Raspberry Pi 5 is NOT included.

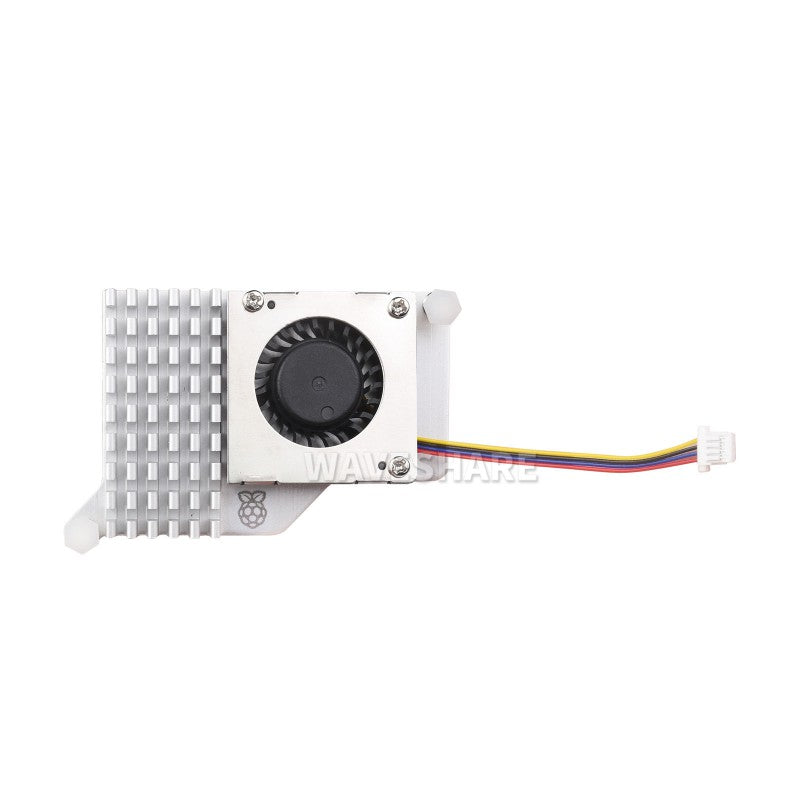

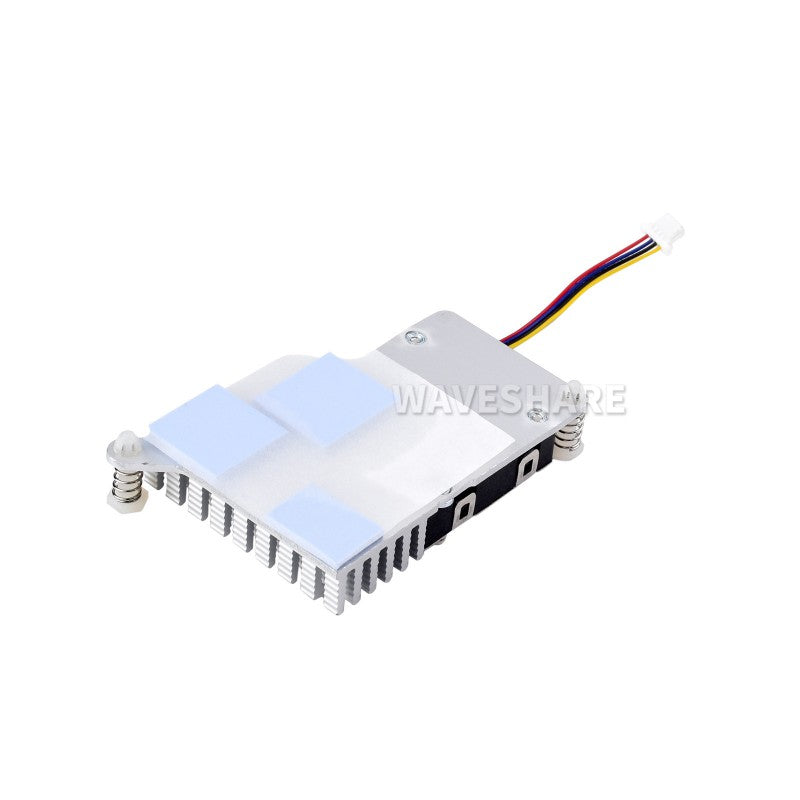

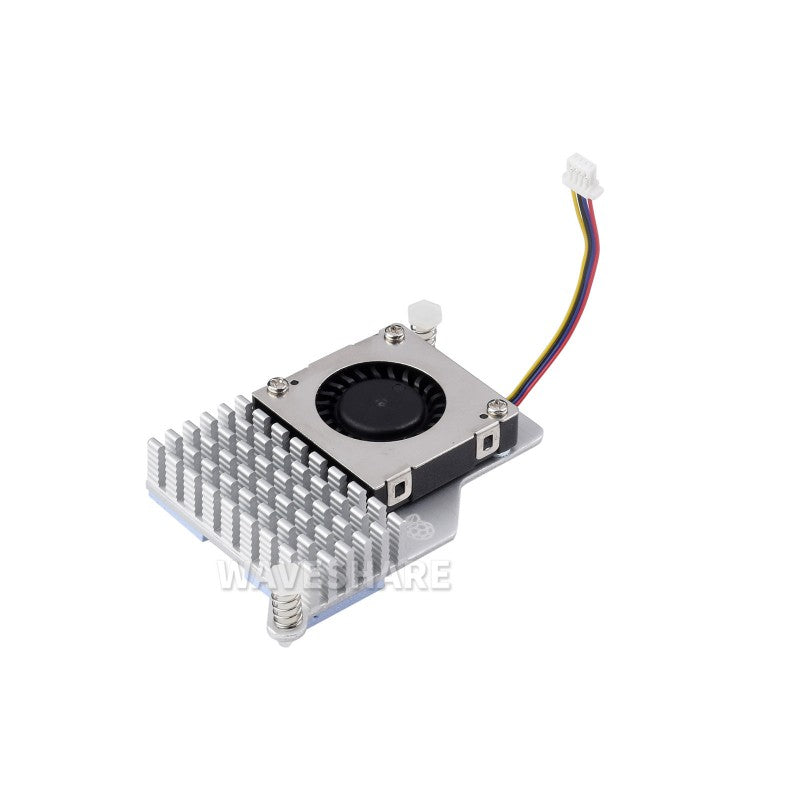

Product Show



Outline Dimensions

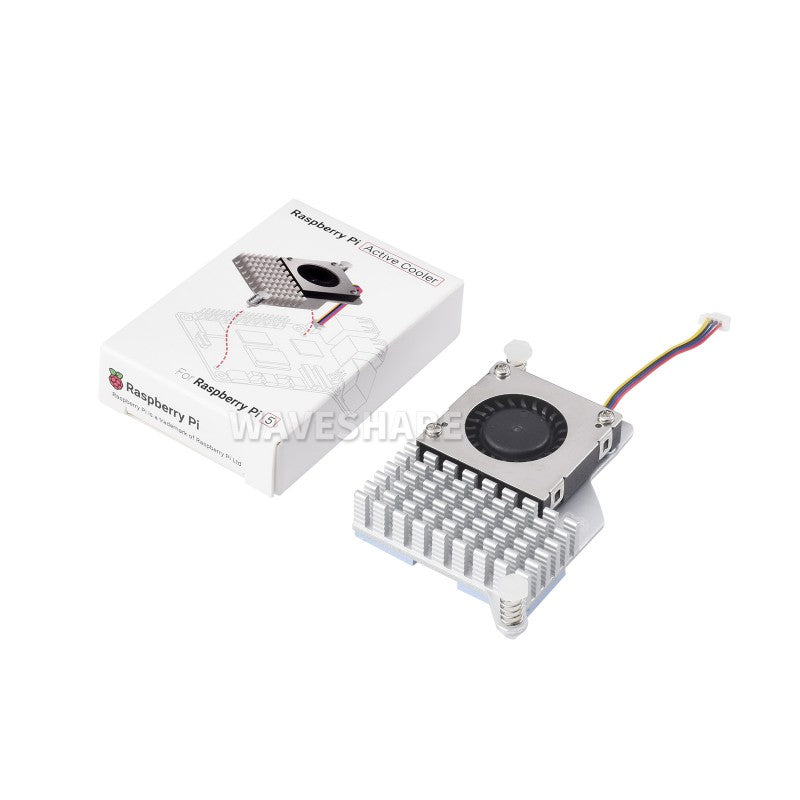

Package Content

 Weight: 0.029 kg

Raspberry Pi 5 Official Active Cooler x1

Is this cooler compatible with the Raspberry Pi 5?
Yes. It is designed to fit the Raspberry Pi 5 with the correct mounting holes and 4 pin fan header for power and PWM control.
How do I install the cooler?
Connect the 4 pin cable to the Pi 5 fan header and fix the cooler using the spring loaded push pins. Note that the Raspberry Pi 5 is not included.
What are the key cooling features?
The unit blends an aluminium heatsink with a temperature controlled fan to accelerate heat dissipation. The fan runs up to 8000 RPM with about 1.09 CFM airflow.
Is the cooler powered by the Pi 5 and do I need any extra power supply?
Yes. It is powered from 5V DC supplied through the Raspberry Pi 5 4 pin header.
What is included in the package?
One official Raspberry Pi 5 active cooler is included.
