Raspberry Pi

Raspberry Pi Official 10.1inch Capacitive Touch Display 2 (IPS, 1200x1920)

SKU: WVSH0642

₹ 87,949.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Raspberry Pi Official 10.1inch Capacitive Touch Display 2 (IPS, 1200x1920)₹ 87,949.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Details

Prohibited by the manufacturer Raspberry Pi, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Cuba, Iran, North Korea, Syria, Crimea, Donetsk, Luhansk, Russia, Belarus.
Official Raspberry Pi 10.1inch Capacitive Touch Display 2, 1200 × 1920 resolution, 10-Point Touch, IPS display panel
Raspberry Pi 10.1" Touch Display 2

designed by Raspberry Pi

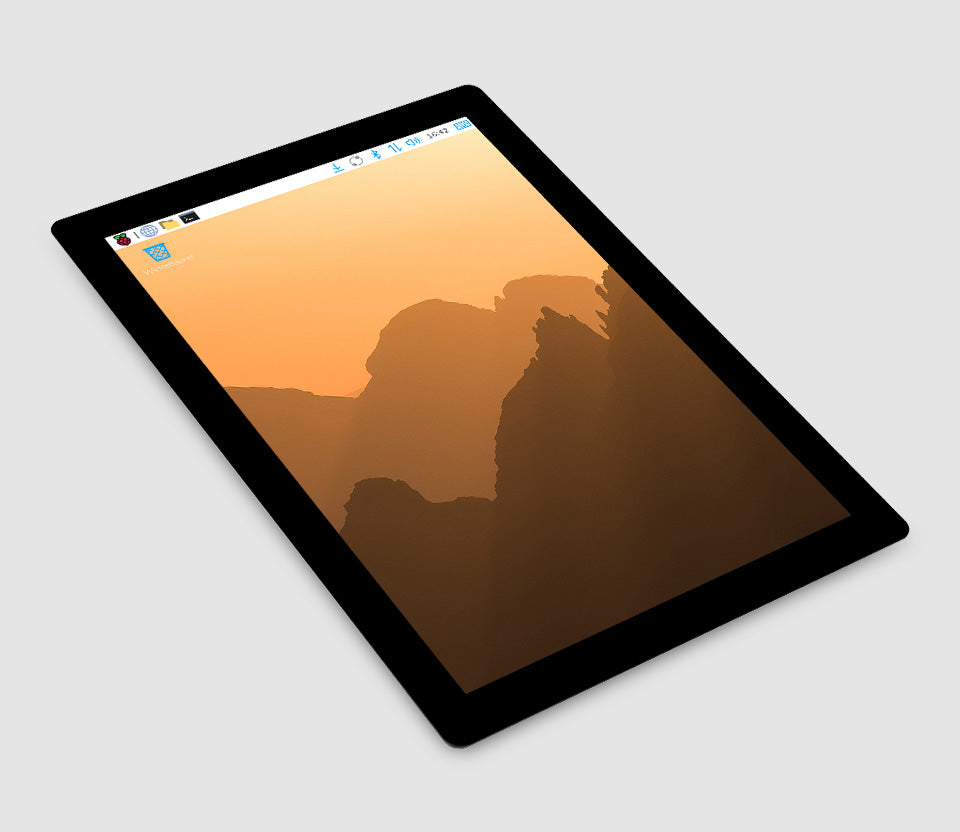

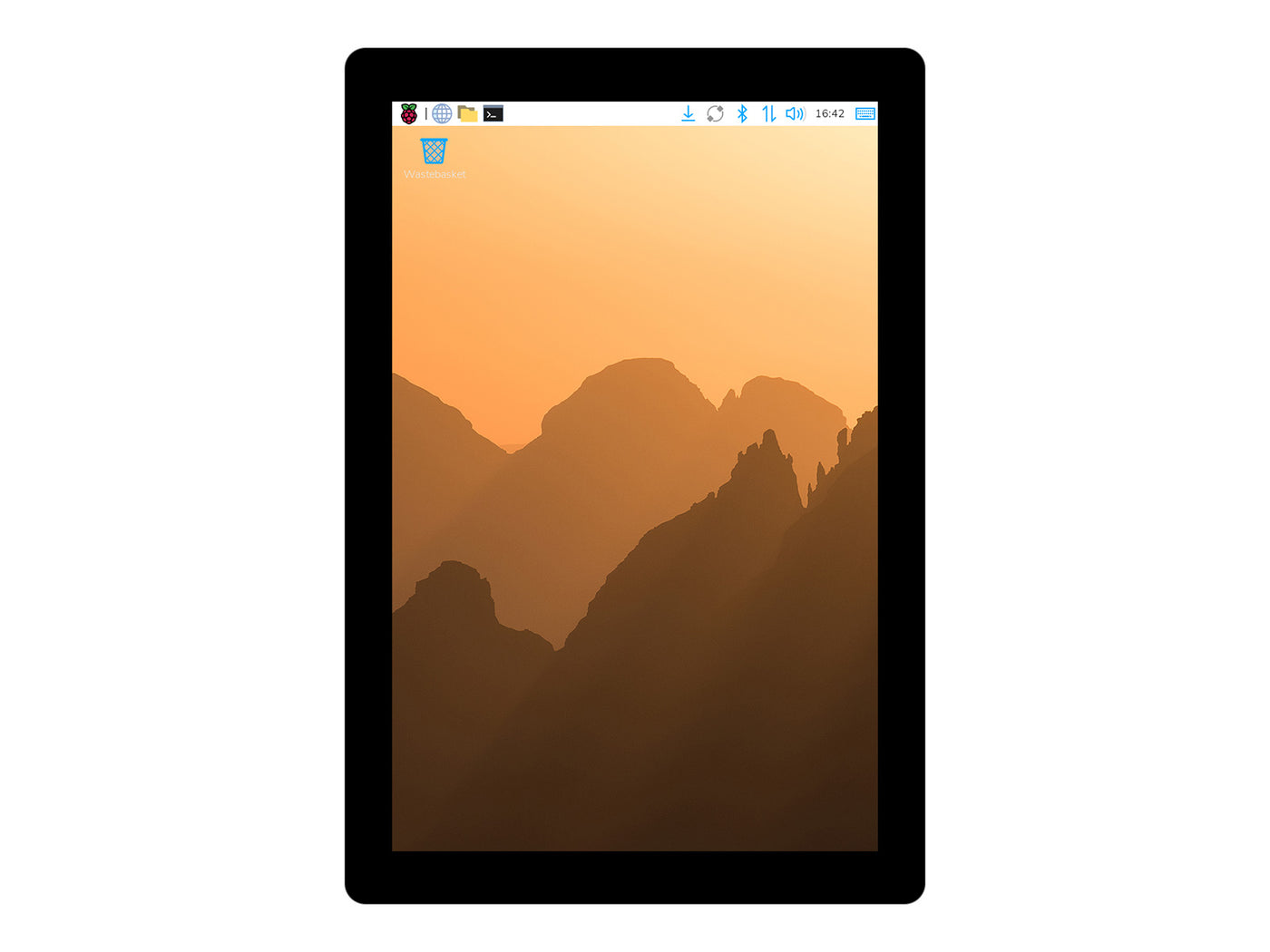

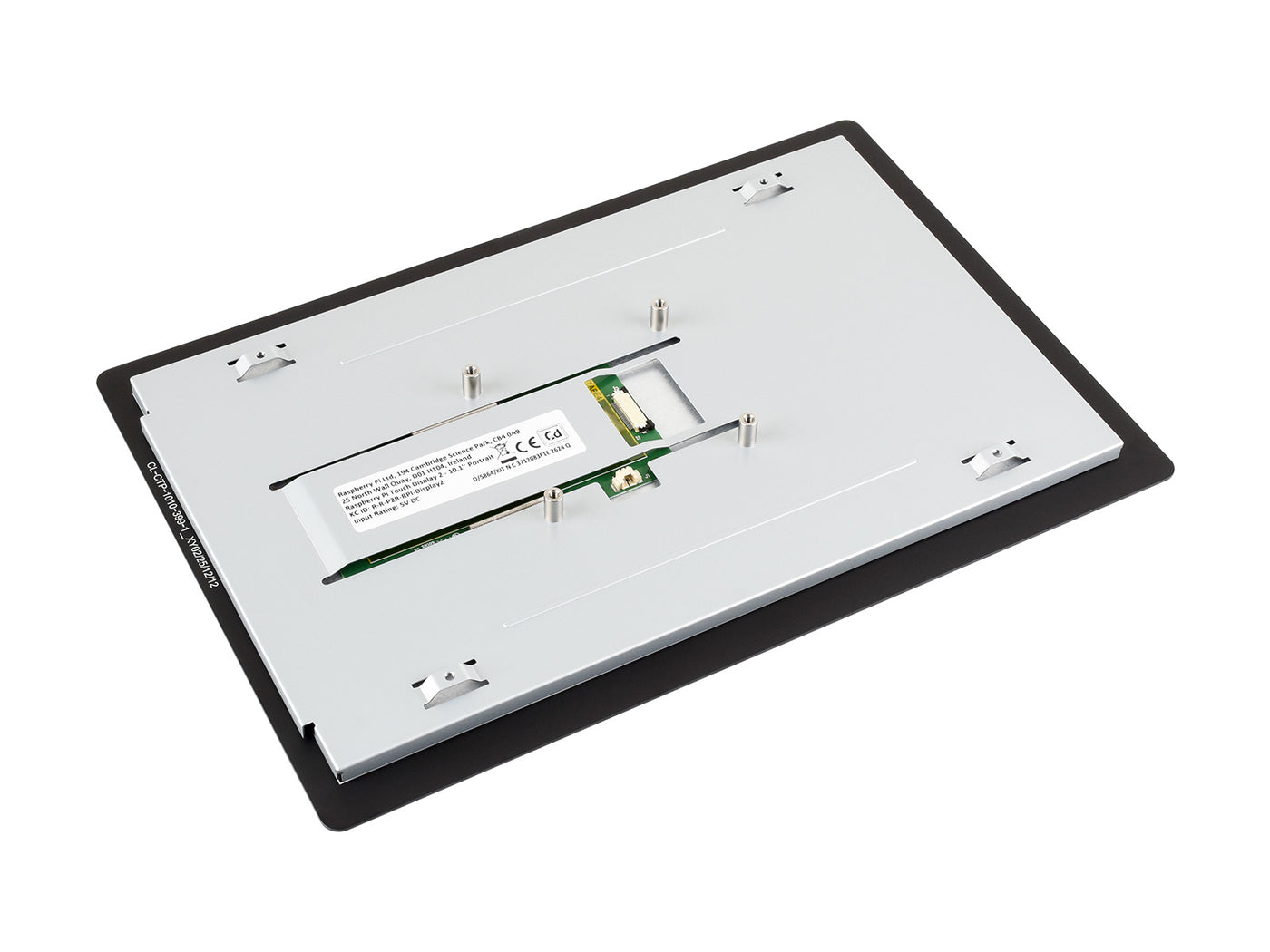

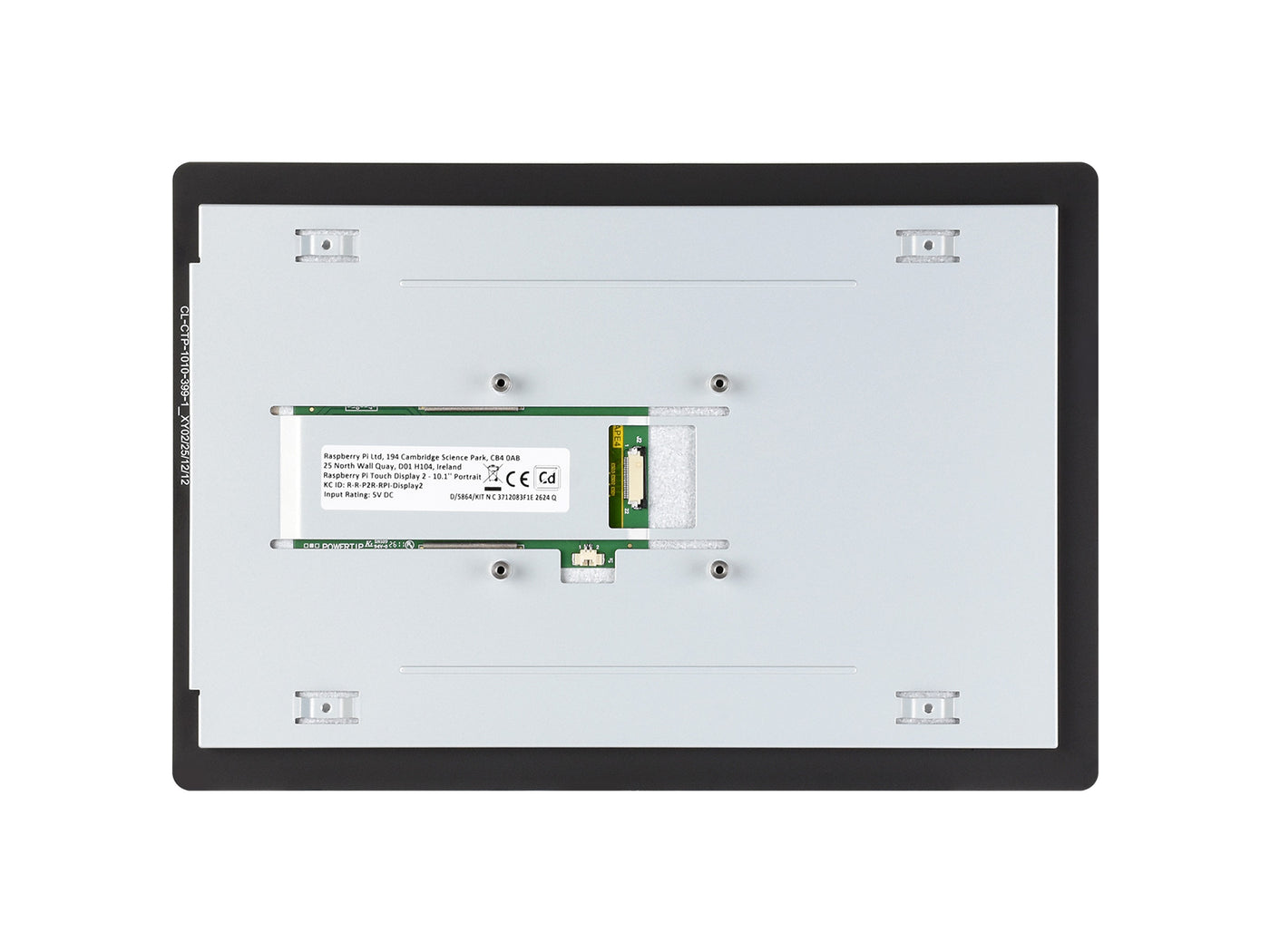

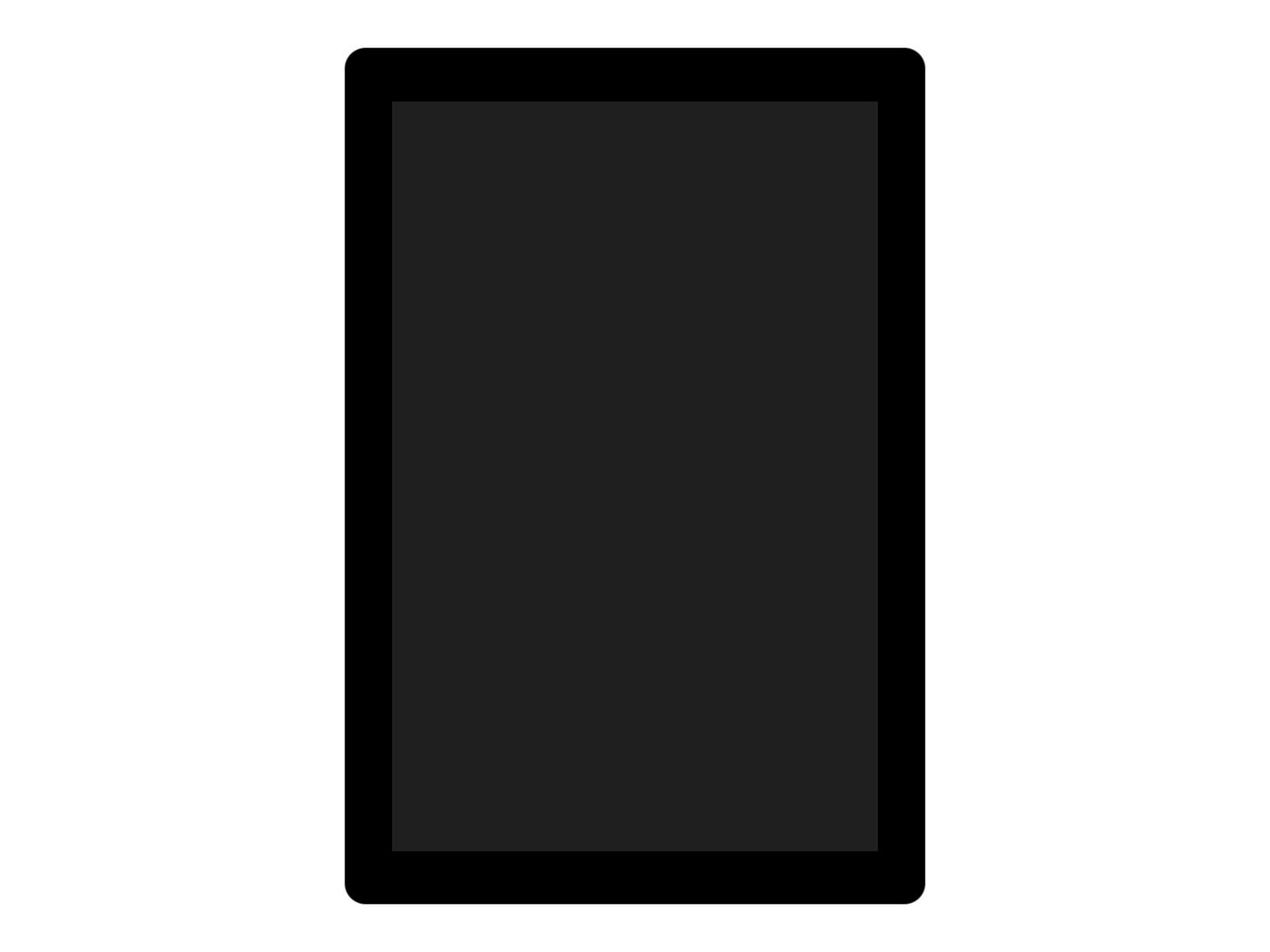

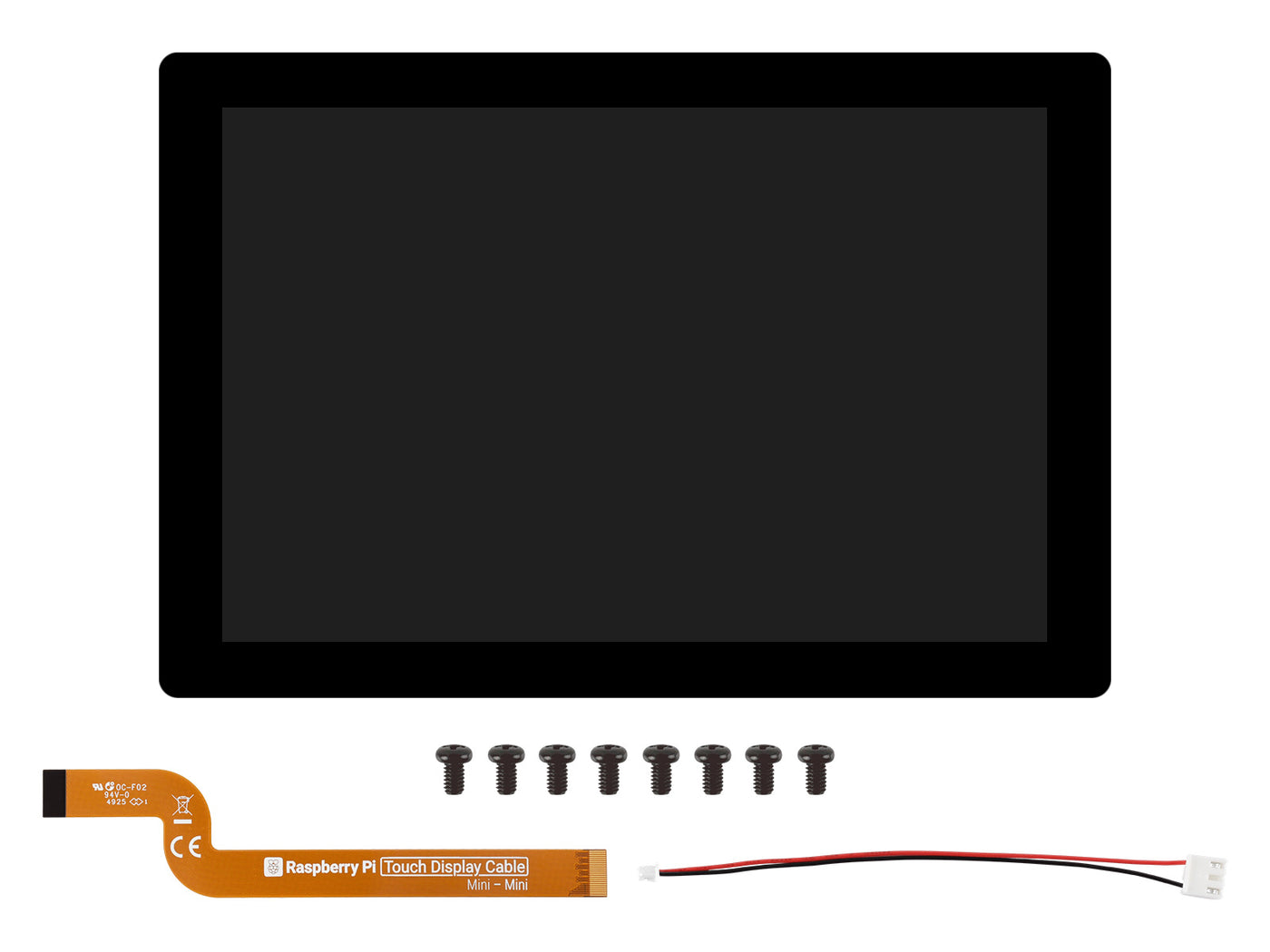

Official Raspberry Pi 10.1inch Capacitive Touch Display, front and back view

  • Sizesize: 10.1inch10.1"
  • Resolutionresolution: 1200 × 19201200 × 1920
  • Display Interfacedisplay interface: DSIDSI
  • Display PanelDisplay Panel: IPSIPS
  • Viewing AngleViewing_angle: 170°170°
  • Touch TypeTouch_type: CapacitiveCapacitive
  • Touch PointsTouch Points: 10-Point10-Point
  • Touch Interfacetouch_interface: I2CI2C
  • Brightness400cd/㎡


Product Introduction

10.1inch Raspberry Pi Touch Display 2 is a 10.1inch touchscreen display for Raspberry Pi. Featuring an IPS display panel with a 1200 × 1920 resolution and 10-point capacitive touch support, it provides a smooth and convenient human-machine interaction experience for Raspberry Pi projects.

The display connects to the Raspberry Pi via the MIPI DSI interface and is powered through the GPIO header, offering a simple and reliable connection. When used with Raspberry Pi OS, the display supports touch functionality and an on‑screen keyboard, without requiring additional drivers or complex configuration.

With a large display area and flexible touch interaction, it is suitable for various applications such as smart home control panels, information display terminals, self-service kiosks, and robot interaction interfaces.

Official Raspberry Pi 10.1inch Capacitive Touch Display, connecting with Pi5

* for reference only, the above controller boards or hosts are NOT included.

Device & System Support

Supports Raspberry Pi 5 / CM5 / CM4
Raspberry Pi 5 / CM5 / CM4

Supports Raspberry Pi OS, 10-point touch

Note: CM4 only supports 4-lane DSI on DSI1. When using this display, a CM4 baseboard that supports 4-lane DSI is also required for proper operation. Some baseboards with a 15pin DSI connector may not be compatible.


Connection Examples

Working with Raspberry Pi 5

Official Raspberry Pi 10.1inch Capacitive Touch Display, working with Raspberry Pi 5

Working with Compute Module 5

Official Raspberry Pi 10.1inch Capacitive Touch Display, working with Compute Module 5

How to install
Official Raspberry Pi 10.1inch Capacitive Touch Display, how to install

Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

* for reference only, the Raspberry Pi boards above are NOT included.


IPS Display Panel

Excellent Display Performance With 170° Wide Viewing Angle

Official Raspberry Pi 10.1inch Capacitive Touch Display, adopts IPS display panel
10-Point Capacitive Touch

up to 10-point touch, depending on the operating system

Official Raspberry Pi 10.1inch Capacitive Touch Display, supports 10-point capacitive touch

Interface Introduction
Official Raspberry Pi 10.1inch Capacitive Touch Display, interface introduction
Dimensions
Official Raspberry Pi 10.1inch Capacitive Touch Display, outline dimensions
PartNumber Display Touch Audio Device Support
Resolu-tion Display Port Display Panel View Angle Touch Type Touch Port Toughened Glass Panel Optical Bonding Spe-
aker		 Signal Output Pi JETSON NANO PC
2.8inch RPi LCD (A) 320×240 SPI TFT – Resistive SPI × × × × √ × ×
3.2inch RPi LCD (B) 320×240 SPI TFT – Resistive SPI × × × × √ × ×
3.5inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × √ × ×
3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × √ × ×
3.5inch RPi LCD (F) 320×480 SPI IPS 170° Capacitive I2C √ × × × √ × ×
3.5inch RPi LCD (G) 320×480 SPI IPS 170° Resistive SPI × × × × √ × ×
4inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × ×
2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C √ √ × × √ × ×
3.5inch DPI LCD 640×480 DPI IPS 170° Capacitive I2C √ × × × √ × ×
4inch DPI LCD (C) 720×720 DPI IPS 170° Capacitive I2C √ √ × × √ × ×
5inch DPI LCD 800×480 DPI IPS 160° – – × × × × √ × ×
7inch DPI LCD 1024×600 DPI IPS 170° – – × × × × √ × ×
2.8inch DSI LCD 480×640 DSI IPS 160° Capacitive I2C √ √ × × √ × ×
3.4inch DSI LCD (C) 800×800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
3.4-DSI-TOUCH-C 800×800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
3.5inch DSI LCD (E) 640×480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
3.5inch DSI LCD (H) 480×800 DSI IPS 170° Capacitive I2C √ × × × √ × ×
4inch DSI LCD 480×800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
4inch DSI LCD (C) 720×720 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
4-DSI-TOUCH-A 480 × 800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
4-DSI-TOUCH-C 720×720 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
4.3inch DSI QLED 800×480 DSI IPS(QLED) 160° Capacitive I2C √ × × × √ × ×
4.3-DSI-TOUCH-A 480 × 800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
5inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
5inch DSI LCD (B) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
5inch DSI LCD (C) 1024×600 DSI IPS 178° Capacitive I2C √ × × × √ × ×
5inch DSI LCD (D) 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
5-DSI-TOUCH-A 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
5-DSI-TOUCH-B 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
5inch Raspberry Pi Touch Display 2 720×1280 DSI IPS 160° Capacitive I2C × × × × √ × ×
6.25inch DSI LCD 720×1560 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
6.25inch DSI LCD (B) 720×1560 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
7inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (with case A) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (with cam and case) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (B) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (B) (with case A) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (C) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (C) (with case A) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (E) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
7-DSI-TOUCH-A 720×1280 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
7-DSI-TOUCH-C 1024×600 DSI IPS 170° Capacitive I2C × × × × √ × ×
7inch DSI LCD (H) 1280×720 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
7.9inch DSI LCD 400×1280 DSI IPS 170° Capacitive I2C √ × × × √ × ×
8-DSI-TOUCH-A 800×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
8inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
8inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
8inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
8.8inch DSI LCD 480×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
8.8-DSI-TOUCH-A 480×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
9-DSI-TOUCH-B 720×1280 DSI IPS 160° Capacitive I2C √ × × × √ × ×
10.1-DSI-TOUCH-A 800×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
10.1-DSI-TOUCH-B 720×1280 DSI IPS 170° Capacitive I2C √ × × × √ × ×
10.1inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
10.1inch Raspberry Pi Touch Display 2 1200×1920 DSI IPS 170° Capacitive I2C × × × × √ × ×
11.9inch DSI LCD 320×1480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
12.3-DSI-TOUCH-A 720×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
13.3inch DSI LCD 1920×1080 DSI IPS 178° Capacitive I2C √ × × × √ × ×
2.8inch HDMI LCD (H) 480×640 HDMI IPS 160° Capacitive USB-C / I2C √ √ × × √ √ √
3.2inch HDMI LCD (H) 480×800 HDMI IPS 160° × × × × × × √ √ Display ONLY
3.4inch 800x800 LCD 800x800 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × √ √ × Display ONLY
3.5inch 480x800 LCD 480×800 HDMI IPS 170° Capacitive USB-C × × × × √ √ √
4inch 720x720 LCD 720x720 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
4inch HDMI LCD (C) 720×720 HDMI IPS 170° Capacitive USB-C / I2C √ √ × √ √ √ √
4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × √ √ × Display ONLY
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × × √ √ √ √
5DP-CAPLCD-H 1024×600 HDMI IPS 178° Capacitive Type-C √ × × √ √ √ √
5DP-CAPLCD-B 1024×600 HDMI IPS 178° Capacitive Type-C √ √ × √ √ √ √
5DP-CAPLCD-G 1024×600 HDMI IPS 178° Resistive Type-C √ × × √ √ √ √
5inch HDMI LCD 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
5inch HDMI LCD (with bicolor case) 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
5inch HDMI LCD (B) 800×480 HDMI TFT – Resistive USB × × × × √ × √
5inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Resistive USB × × × × √ × √
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT – Resistive USB × × × √ √ × √
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT – Capacitive USB √ × × √ √ √ √
5inch HDMI LCD (H) V4 800×480 HDMI TFT – Capacitive USB √ × × × √ × √
5inch HDMI AMOLED 960×544 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √
5inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C √ √ √ √ √ √ √
5inch 720x1280 LCD 720×1280 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √
5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ × ×
5.5inch 1440x2560 LCD 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × √
5.5inch 1440x2560 LCD (with case A) 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × ×
6.25inch 720x1560 LCD 720×1560 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √
PI5-HMI-7A 720×1280 HDMI IPS 170° Capacitive Type-C √ √ × × √ × ×
7EP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √
7EP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √
7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
7inch HDMI LCD (B) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
7inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C √ √ × √ √ √ √
7inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
7inch HDMI LCD (C) (with bicolor case) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × × √ √ √ √
7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × × √ √ √ √
7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB √ × × √ √ √ √
7.9inch Side Monitor 400×1280 HDMI IPS 170° × × √ × √ × √ √ √
7.9inch Touch Monitor 400×1280 HDMI IPS 170° Capacitive USB √ × √ × √ √ √
PI5-HMI-080D 1280×800 HDMI IPS 178° Capacitive Type-C √ √ × × √ × ×
8DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
8HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
8inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √
8inch 1536x2048 LCD 1536×2048 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
8.8inch Side Monitor 480×1920 HDMI IPS 170° × × × × √ × √ √ Display ONLY
9HP-CAPQLED-B 1280×720 HDMI IPS (QLED) 178° Capacitive USB √ × × √ √ √ √
9.3inch 1600x600 LCD 1600×600 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
9.7inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √
PI5-HMI-101D 1280×800 HDMI IPS 178° Capacitive Type-C √ √ × × √ × ×
10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB √ × × × √ × √
10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB √ √ × √ √ √ √
10.1inch HDMI LCD (G) (with case) 1920×1200 HDMI IPS 160° Capacitive USB √ √ √ √ √ √ √
10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT – Capacitive USB × × × × √ √ √
10.1inch HDMI LCD (F) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × √ × √ √ √
10.1EP-CAPLCD 1920×1200 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
10.1DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
10.1HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
10.1HP-CAPQLED-B 1280×720 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
10.1HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
10.4HP-CAPQLED 1600×720 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √
10.5inch HDMI AMOLED 2560×1600 HDMI AMOLED 160° Capacitive USB √ √ √ √ √ √ √
11EP-CAPLCD 1920×1200 HDMI IPS 170° Capacitive Type-C √ (&In-Cell) √ √ √ √ √ √
11.6inch 1768x828 LCD 1768×828 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √
11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ √ √ √ √ √ √
11.9inch HDMI LCD 320×1480 HDMI IPS 170° Capacitive USB √ × × √ √ √ √
11.9inch Side Monitor 320×1480 HDMI IPS 170° × × √ × √ × √ √ √
11.9inch Touch Monitor 320×1480 HDMI IPS 170° Capacitive USB √ × √ × √ √ √
12.3inch 1920x720 LCD 1920×720 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √
12.3inch HDMI LCD 1920×720 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √
13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
13.3inch QHD AMOLED 2560×1440 HDMI/Type-C AMOLED 178° Capacitive Type-C √ √ √ √ √ √ √
13.3inch FHD AMOLED 1920×1080 HDMI/Type-C AMOLED 178° Capacitive Type-C √ √ √ √ √ √ √
13.3inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C √ × × √ √ √ √
14inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
15.6inch FHD Monitor (C) 1920×1080 mini HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √
15.6inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB √ × √ √ √ √ √
15.6HP-CAPQLED 1920×1080 HDMI IPS(QLED) 178° Capacitive USB √ √ × √ √ √ √
15.6inch QLED Monitor 1920×1080 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √
18.5inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
18.5inch FHD LCD 1080×1920 HDMI/Type-C IPS 178° Capacitive Type-C √ √ × √ √ √ √
21.5inch FHD LCD 1920×1080 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
21.5inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ √ × √ √ √
23.8inch FHD Monitor 1080×1920 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
27inch FHD Monitor 1080×1920 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √

Have a look :
RPi LCD Comparing

Weight: 0.603 kg

Quick Overview

  1. 10.1inch Raspberry Pi Touch Display 2 x1
  2. 22PIN to 22PIN FPC cable x1
  3. GPIO cable x1
  4. Screws pack x1
10.1inch Raspberry Pi Touch Display 2
What is the screen size and resolution of the display?
The display is 10.1 inch with 1200 x 1920 resolution and uses an IPS panel.
What type of touch does it support and how many points can it track?
It features capacitive touch with 10 points.
What interface does the display use to connect to Raspberry Pi?
It uses a DSI display interface.
Is this an official Raspberry Pi product?
Yes, it is the Official Raspberry Pi 10.1 inch Capacitive Touch Display 2 designed by Raspberry Pi.
Are there any shipping restrictions for this product?
Yes, the manufacturer prohibits shipping to Cuba, Iran, North Korea, Syria, Crimea, Donetsk, Luhansk, Russia, and Belarus.
A
Admin
Welcome to the discussion thread for Raspberry Pi Official 10.1inch Capacitive Touch Display 2 (IPS, 1200x1920)
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Discover More In:

Browse All Products → NVIDIA Jetson | Official Page → Semiconductors →

Category: View all Display

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Details

Prohibited by the manufacturer Raspberry Pi, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Cuba, Iran, North Korea, Syria, Crimea, Donetsk, Luhansk, Russia, Belarus.
Official Raspberry Pi 10.1inch Capacitive Touch Display 2, 1200 × 1920 resolution, 10-Point Touch, IPS display panel
Raspberry Pi 10.1" Touch Display 2

designed by Raspberry Pi

Official Raspberry Pi 10.1inch Capacitive Touch Display, front and back view

  • Sizesize: 10.1inch10.1"
  • Resolutionresolution: 1200 × 19201200 × 1920
  • Display Interfacedisplay interface: DSIDSI
  • Display PanelDisplay Panel: IPSIPS
  • Viewing AngleViewing_angle: 170°170°
  • Touch TypeTouch_type: CapacitiveCapacitive
  • Touch PointsTouch Points: 10-Point10-Point
  • Touch Interfacetouch_interface: I2CI2C
  • Brightness400cd/㎡


Product Introduction

10.1inch Raspberry Pi Touch Display 2 is a 10.1inch touchscreen display for Raspberry Pi. Featuring an IPS display panel with a 1200 × 1920 resolution and 10-point capacitive touch support, it provides a smooth and convenient human-machine interaction experience for Raspberry Pi projects.

The display connects to the Raspberry Pi via the MIPI DSI interface and is powered through the GPIO header, offering a simple and reliable connection. When used with Raspberry Pi OS, the display supports touch functionality and an on‑screen keyboard, without requiring additional drivers or complex configuration.

With a large display area and flexible touch interaction, it is suitable for various applications such as smart home control panels, information display terminals, self-service kiosks, and robot interaction interfaces.

Official Raspberry Pi 10.1inch Capacitive Touch Display, connecting with Pi5

* for reference only, the above controller boards or hosts are NOT included.

Device & System Support

Supports Raspberry Pi 5 / CM5 / CM4
Raspberry Pi 5 / CM5 / CM4

Supports Raspberry Pi OS, 10-point touch

Note: CM4 only supports 4-lane DSI on DSI1. When using this display, a CM4 baseboard that supports 4-lane DSI is also required for proper operation. Some baseboards with a 15pin DSI connector may not be compatible.


Connection Examples

Working with Raspberry Pi 5

Official Raspberry Pi 10.1inch Capacitive Touch Display, working with Raspberry Pi 5

Working with Compute Module 5

Official Raspberry Pi 10.1inch Capacitive Touch Display, working with Compute Module 5

How to install
Official Raspberry Pi 10.1inch Capacitive Touch Display, how to install

Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

* for reference only, the Raspberry Pi boards above are NOT included.


IPS Display Panel

Excellent Display Performance With 170° Wide Viewing Angle

Official Raspberry Pi 10.1inch Capacitive Touch Display, adopts IPS display panel
10-Point Capacitive Touch

up to 10-point touch, depending on the operating system

Official Raspberry Pi 10.1inch Capacitive Touch Display, supports 10-point capacitive touch

Interface Introduction
Official Raspberry Pi 10.1inch Capacitive Touch Display, interface introduction
Dimensions
Official Raspberry Pi 10.1inch Capacitive Touch Display, outline dimensions
PartNumber Display Touch Audio Device Support
Resolu-tion Display Port Display Panel View Angle Touch Type Touch Port Toughened Glass Panel Optical Bonding Spe-
aker		 Signal Output Pi JETSON NANO PC
2.8inch RPi LCD (A) 320×240 SPI TFT – Resistive SPI × × × × √ × ×
3.2inch RPi LCD (B) 320×240 SPI TFT – Resistive SPI × × × × √ × ×
3.5inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × √ × ×
3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × √ × ×
3.5inch RPi LCD (F) 320×480 SPI IPS 170° Capacitive I2C √ × × × √ × ×
3.5inch RPi LCD (G) 320×480 SPI IPS 170° Resistive SPI × × × × √ × ×
4inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × ×
2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C √ √ × × √ × ×
3.5inch DPI LCD 640×480 DPI IPS 170° Capacitive I2C √ × × × √ × ×
4inch DPI LCD (C) 720×720 DPI IPS 170° Capacitive I2C √ √ × × √ × ×
5inch DPI LCD 800×480 DPI IPS 160° – – × × × × √ × ×
7inch DPI LCD 1024×600 DPI IPS 170° – – × × × × √ × ×
2.8inch DSI LCD 480×640 DSI IPS 160° Capacitive I2C √ √ × × √ × ×
3.4inch DSI LCD (C) 800×800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
3.4-DSI-TOUCH-C 800×800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
3.5inch DSI LCD (E) 640×480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
3.5inch DSI LCD (H) 480×800 DSI IPS 170° Capacitive I2C √ × × × √ × ×
4inch DSI LCD 480×800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
4inch DSI LCD (C) 720×720 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
4-DSI-TOUCH-A 480 × 800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
4-DSI-TOUCH-C 720×720 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
4.3inch DSI QLED 800×480 DSI IPS(QLED) 160° Capacitive I2C √ × × × √ × ×
4.3-DSI-TOUCH-A 480 × 800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
5inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
5inch DSI LCD (B) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
5inch DSI LCD (C) 1024×600 DSI IPS 178° Capacitive I2C √ × × × √ × ×
5inch DSI LCD (D) 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
5-DSI-TOUCH-A 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
5-DSI-TOUCH-B 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
5inch Raspberry Pi Touch Display 2 720×1280 DSI IPS 160° Capacitive I2C × × × × √ × ×
6.25inch DSI LCD 720×1560 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
6.25inch DSI LCD (B) 720×1560 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
7inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (with case A) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (with cam and case) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
7inch DSI LCD (B) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (B) (with case A) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (C) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (C) (with case A) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × ×
7inch DSI LCD (E) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
7-DSI-TOUCH-A 720×1280 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
7-DSI-TOUCH-C 1024×600 DSI IPS 170° Capacitive I2C × × × × √ × ×
7inch DSI LCD (H) 1280×720 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
7.9inch DSI LCD 400×1280 DSI IPS 170° Capacitive I2C √ × × × √ × ×
8-DSI-TOUCH-A 800×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
8inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
8inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
8inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
8.8inch DSI LCD 480×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
8.8-DSI-TOUCH-A 480×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
9-DSI-TOUCH-B 720×1280 DSI IPS 160° Capacitive I2C √ × × × √ × ×
10.1-DSI-TOUCH-A 800×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
10.1-DSI-TOUCH-B 720×1280 DSI IPS 170° Capacitive I2C √ × × × √ × ×
10.1inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
10.1inch Raspberry Pi Touch Display 2 1200×1920 DSI IPS 170° Capacitive I2C × × × × √ × ×
11.9inch DSI LCD 320×1480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
12.3-DSI-TOUCH-A 720×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
13.3inch DSI LCD 1920×1080 DSI IPS 178° Capacitive I2C √ × × × √ × ×
2.8inch HDMI LCD (H) 480×640 HDMI IPS 160° Capacitive USB-C / I2C √ √ × × √ √ √
3.2inch HDMI LCD (H) 480×800 HDMI IPS 160° × × × × × × √ √ Display ONLY
3.4inch 800x800 LCD 800x800 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × √ √ × Display ONLY
3.5inch 480x800 LCD 480×800 HDMI IPS 170° Capacitive USB-C × × × × √ √ √
4inch 720x720 LCD 720x720 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
4inch HDMI LCD (C) 720×720 HDMI IPS 170° Capacitive USB-C / I2C √ √ × √ √ √ √
4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × √ √ × Display ONLY
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × × √ √ √ √
5DP-CAPLCD-H 1024×600 HDMI IPS 178° Capacitive Type-C √ × × √ √ √ √
5DP-CAPLCD-B 1024×600 HDMI IPS 178° Capacitive Type-C √ √ × √ √ √ √
5DP-CAPLCD-G 1024×600 HDMI IPS 178° Resistive Type-C √ × × √ √ √ √
5inch HDMI LCD 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
5inch HDMI LCD (with bicolor case) 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
5inch HDMI LCD (B) 800×480 HDMI TFT – Resistive USB × × × × √ × √
5inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Resistive USB × × × × √ × √
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT – Resistive USB × × × √ √ × √
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT – Capacitive USB √ × × √ √ √ √
5inch HDMI LCD (H) V4 800×480 HDMI TFT – Capacitive USB √ × × × √ × √
5inch HDMI AMOLED 960×544 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √
5inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C √ √ √ √ √ √ √
5inch 720x1280 LCD 720×1280 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √
5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ × ×
5.5inch 1440x2560 LCD 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × √
5.5inch 1440x2560 LCD (with case A) 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × ×
6.25inch 720x1560 LCD 720×1560 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √
PI5-HMI-7A 720×1280 HDMI IPS 170° Capacitive Type-C √ √ × × √ × ×
7EP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √
7EP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √
7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
7inch HDMI LCD (B) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
7inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C √ √ × √ √ √ √
7inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
7inch HDMI LCD (C) (with bicolor case) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × × √ √ √ √
7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × × √ √ √ √
7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB √ × × √ √ √ √
7.9inch Side Monitor 400×1280 HDMI IPS 170° × × √ × √ × √ √ √
7.9inch Touch Monitor 400×1280 HDMI IPS 170° Capacitive USB √ × √ × √ √ √
PI5-HMI-080D 1280×800 HDMI IPS 178° Capacitive Type-C √ √ × × √ × ×
8DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
8HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
8inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √
8inch 1536x2048 LCD 1536×2048 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
8.8inch Side Monitor 480×1920 HDMI IPS 170° × × × × √ × √ √ Display ONLY
9HP-CAPQLED-B 1280×720 HDMI IPS (QLED) 178° Capacitive USB √ × × √ √ √ √
9.3inch 1600x600 LCD 1600×600 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
9.7inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √
PI5-HMI-101D 1280×800 HDMI IPS 178° Capacitive Type-C √ √ × × √ × ×
10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB √ × × × √ × √
10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB √ √ × √ √ √ √
10.1inch HDMI LCD (G) (with case) 1920×1200 HDMI IPS 160° Capacitive USB √ √ √ √ √ √ √
10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT – Capacitive USB × × × × √ √ √
10.1inch HDMI LCD (F) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × √ × √ √ √
10.1EP-CAPLCD 1920×1200 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
10.1DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
10.1HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
10.1HP-CAPQLED-B 1280×720 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
10.1HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
10.4HP-CAPQLED 1600×720 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √
10.5inch HDMI AMOLED 2560×1600 HDMI AMOLED 160° Capacitive USB √ √ √ √ √ √ √
11EP-CAPLCD 1920×1200 HDMI IPS 170° Capacitive Type-C √ (&In-Cell) √ √ √ √ √ √
11.6inch 1768x828 LCD 1768×828 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √
11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ √ √ √ √ √ √
11.9inch HDMI LCD 320×1480 HDMI IPS 170° Capacitive USB √ × × √ √ √ √
11.9inch Side Monitor 320×1480 HDMI IPS 170° × × √ × √ × √ √ √
11.9inch Touch Monitor 320×1480 HDMI IPS 170° Capacitive USB √ × √ × √ √ √
12.3inch 1920x720 LCD 1920×720 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √
12.3inch HDMI LCD 1920×720 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √
13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
13.3inch QHD AMOLED 2560×1440 HDMI/Type-C AMOLED 178° Capacitive Type-C √ √ √ √ √ √ √
13.3inch FHD AMOLED 1920×1080 HDMI/Type-C AMOLED 178° Capacitive Type-C √ √ √ √ √ √ √
13.3inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C √ × × √ √ √ √
14inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
15.6inch FHD Monitor (C) 1920×1080 mini HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √
15.6inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB √ × √ √ √ √ √
15.6HP-CAPQLED 1920×1080 HDMI IPS(QLED) 178° Capacitive USB √ √ × √ √ √ √
15.6inch QLED Monitor 1920×1080 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √
18.5inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
18.5inch FHD LCD 1080×1920 HDMI/Type-C IPS 178° Capacitive Type-C √ √ × √ √ √ √
21.5inch FHD LCD 1920×1080 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
21.5inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ √ × √ √ √
23.8inch FHD Monitor 1080×1920 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
27inch FHD Monitor 1080×1920 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √

Have a look :
RPi LCD Comparing

Weight: 0.603 kg

Quick Overview

  1. 10.1inch Raspberry Pi Touch Display 2 x1
  2. 22PIN to 22PIN FPC cable x1
  3. GPIO cable x1
  4. Screws pack x1
10.1inch Raspberry Pi Touch Display 2
FAQ
What is the screen size and resolution of the display?
The display is 10.1 inch with 1200 x 1920 resolution and uses an IPS panel.
What type of touch does it support and how many points can it track?
It features capacitive touch with 10 points.
What interface does the display use to connect to Raspberry Pi?
It uses a DSI display interface.
Is this an official Raspberry Pi product?
Yes, it is the Official Raspberry Pi 10.1 inch Capacitive Touch Display 2 designed by Raspberry Pi.
Are there any shipping restrictions for this product?
Yes, the manufacturer prohibits shipping to Cuba, Iran, North Korea, Syria, Crimea, Donetsk, Luhansk, Russia, and Belarus.
Reviews
Forum
A
Admin
Welcome to the discussion thread for Raspberry Pi Official 10.1inch Capacitive Touch Display 2 (IPS, 1200x1920)
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Similar Products

Discover More In:

Browse All Products → NVIDIA Jetson | Official Page → Semiconductors →

Category: View all Display

Bulk Order

Fill out the form below and our team will get back to you with bulk pricing.

Custom Requirements?

Meet with our team

Scheduling widget

Related products

Related products

0106-14

Waldom Electonics

0106-14

₹ 2,623.53
