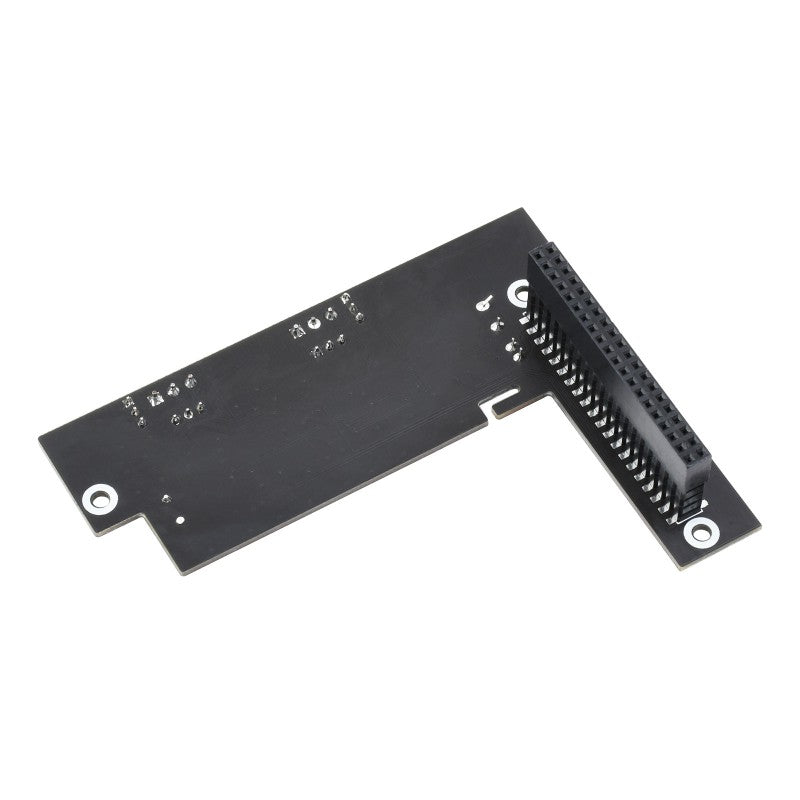

RS485 CAN Expansion Board for Jetson Nano, Digital Isolation, Built-In Protection Circuit

Features

  • Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano
  • Onboard CAN controller MCP2515 via SPI interface, matching with SIT65HVD230DR transceiver
  • Features RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostaticĀ
  • Onboard digital isolation chip, safer signal isolation communication and better stability and anti-interferenceĀ
  • Reserved control pins, allows to work with other control boards
  • Comes with development resources and manual (examples in python)

Specifications

CAN CONTROLLER MCP2515
CAN TRANSCEIVER SIT65HVD230DR
RS485 TRANSCEIVER SP3485
OPERATING VOLTAGE 3.3V
MOUNTING HOLE SIZE 3.0mm
DIMENSION 100 Ɨ 79mm

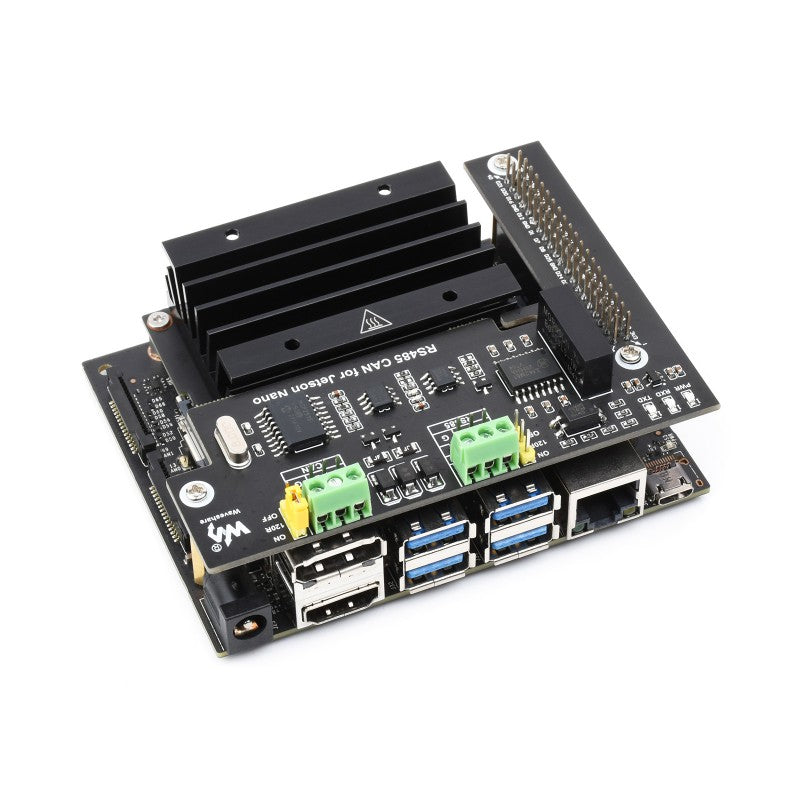

Connect To Jetson Nano

B01 4GB Version

2GB Version

Features RS485 And CAN Function

Isolation Circuit Design, Safer Communication

Onboard SM24CANB Transient Voltage Suppressor(TVS), Prevent The Damage Of Static Electricity, Surge Voltage And Transient Peak Voltage, Making RS485 Communication More Stable And Safer

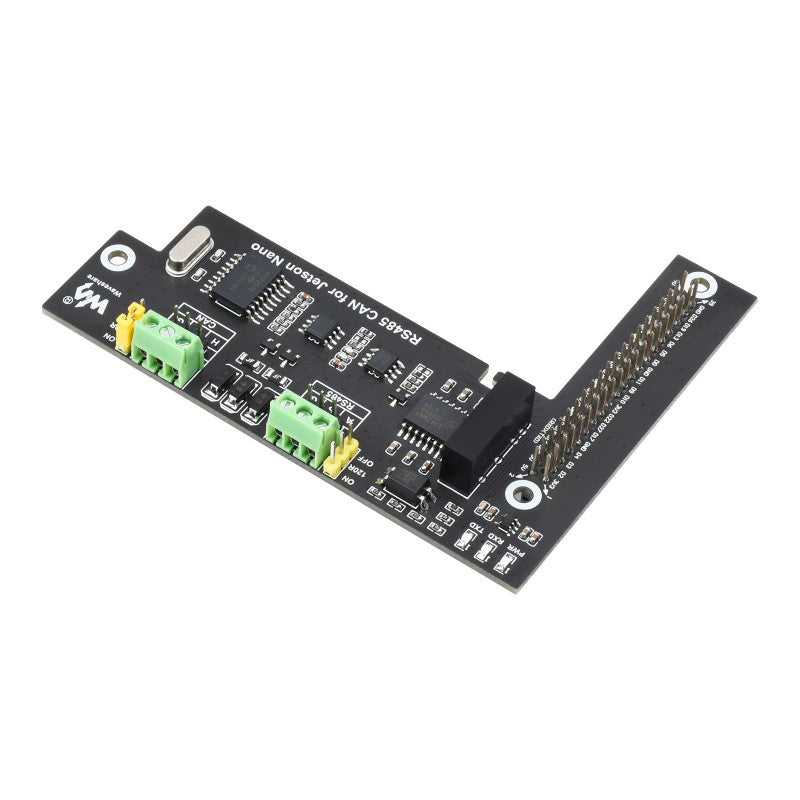

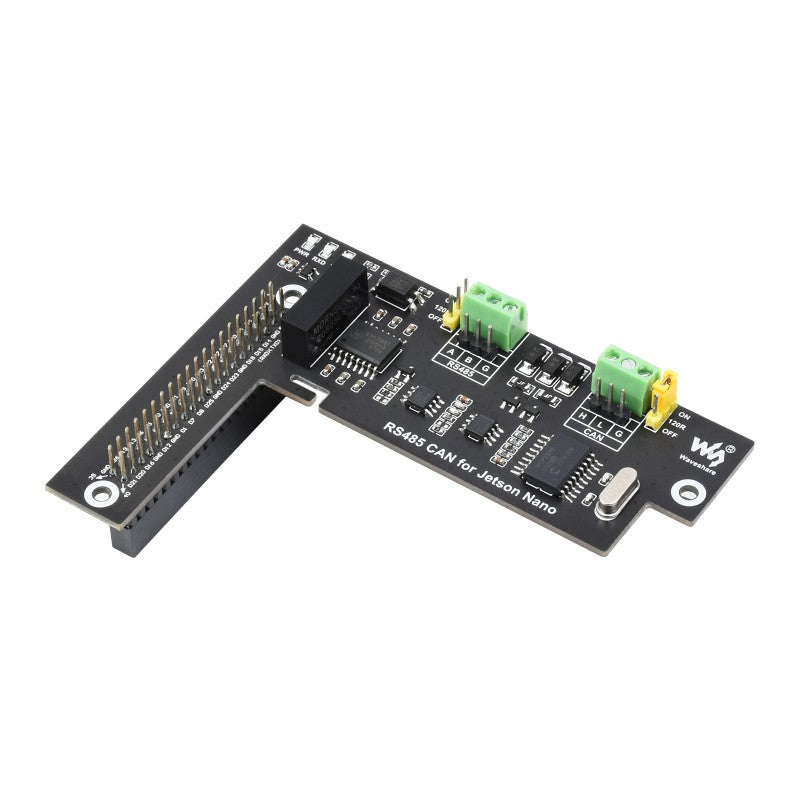

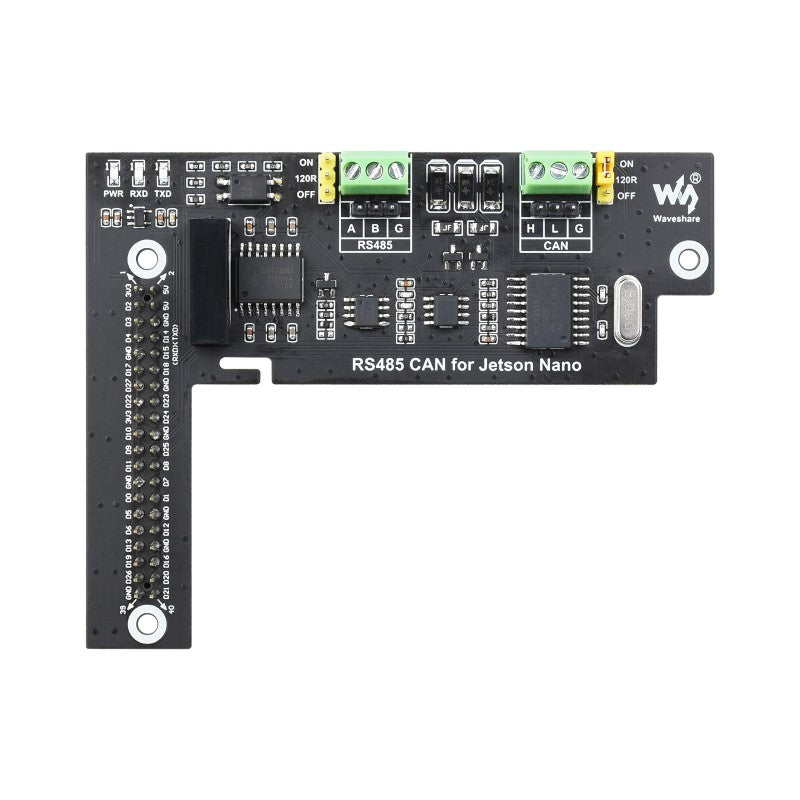

What's On Board

  1. CAN Controller
    MCP2515
  2. CAN Transceiver
    SIT65HVD230DR
  3. RS485 Transceiver
    SP3485
  4. Power Isolator
    B0505LS
  5. Digital Isolator Chip
    ADUM1412
  6. Optocoupler Isolation Chip
    PC817X3CSP9F
  7. TVS (Transient Voltage Suppressor)
  8. RXD & TXD Indicator
  9. Power Indicator
  10. Power Chip
    RT9193-33

Pin Definition

Dimensions

Resources


Package Contains:

  1. RS485 CAN for Jetson Nano x1
  2. Screws pack x1
Is this expansion board compatible with Jetson Nano?
Yes, it is designed to connect to Jetson Nano B01 4GB and 2GB versions via the 40 pin GPIO header and SPI interface, enabling CAN and RS485 functionality.
How is the CAN and RS485 functionality implemented on this board?
The CAN controller MCP2515 is accessed over SPI and the SIT65HVD230DR transceiver handles CAN signaling. The RS485 transceiver SP3485 provides RS485, and the RS485 function is controlled via UART with half duplex and automatic TX RX control without programming.
What protections and isolation are included?
The board includes a SP3485 RS485 transceiver, a SM24CANB TVS for surge protection, and a digital isolation design for safer signal isolation and improved stability.
What physical and power specifications should I know?
It uses a standard 40 pin GPIO header, dimensions are 100 x 79 mm, mounting holes are 3.0 mm, and it operates at 3.3 V.
What is included in the package and where can I find documentation?
Package contents include the RS485 CAN for Jetson Nano board and a screws pack. Development resources and a Python example manual are provided, with the WIKI RS485_CAN_for_Jetson_Nano serving as reference.
