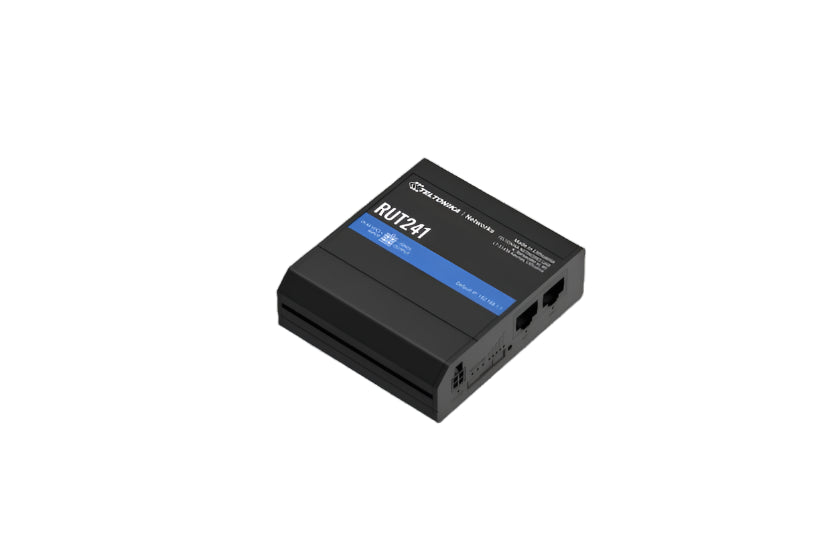

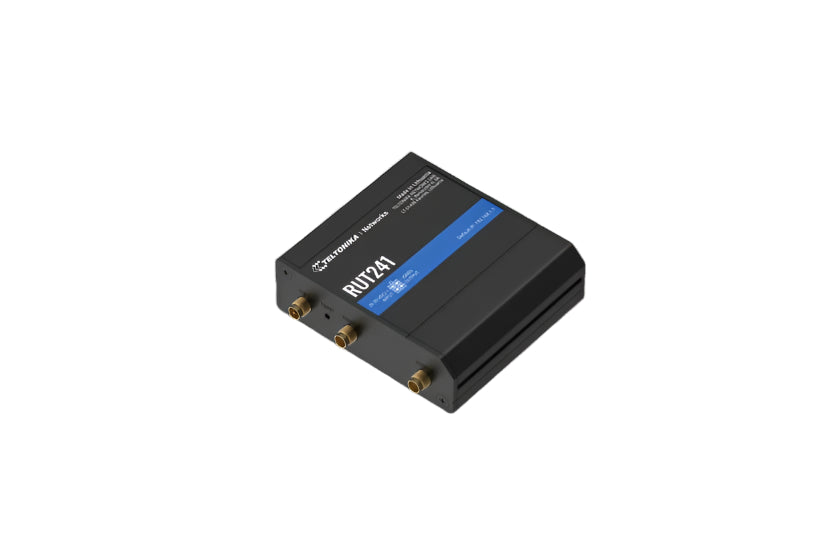

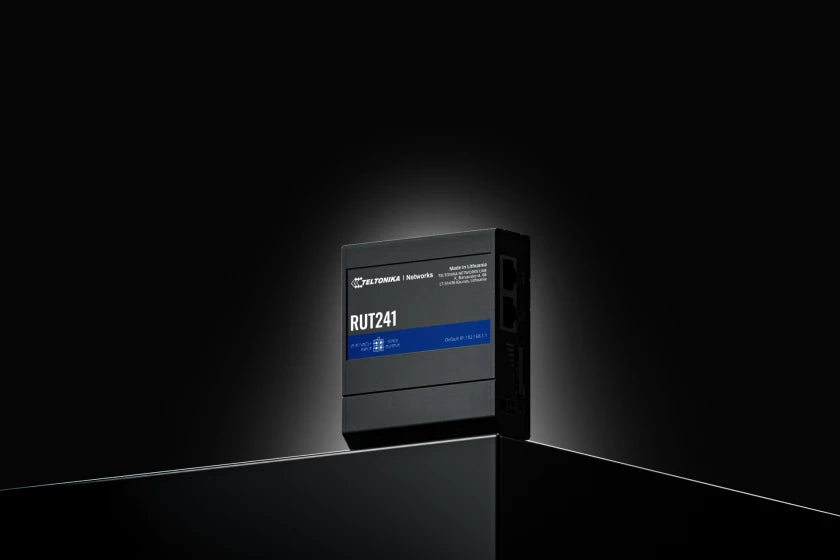

RUT241 - Industrial Cellular Router

SKU: ELC8713

₹ 23,999.99 ₹ 35,199.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
⏱ This is a pre-order item. We'll ship it as soon as it's back in stock.
RUT241 - Industrial Cellular Router₹ 23,999.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, RUT241 offers unstoppable connection continuity with automatic WAN failover. Industrial design, compact size, multiple connection interfaces, and compatibility with RMS make this device an excellent fit in numerous IoT and M2M solutions.

Standard package*

*Standard package contents may differ based on standard order codes.

Feature

Mobile

Specification Details
Mobile Module 4G LTE Cat 4 (up to 150 DL/50 UL Mbps), 3G (up to 21 DL/5.76 UL Mbps), 2G (up to 236.8 DL/236.8 UL kbps)
3GPP Release Release 10/11 (depending on hardware version)
Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band Management Band lock, Used band status display
SIM PIN Code Management SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN


Wireless

Feature Details
Wireless Mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi Security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID SSID stealth mode and access control based on MAC address
Wi-Fi Users Up to 50 simultaneous connections
Wireless Connectivity Features Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter Allowlist, blocklist
Wireless QR Code Generator Once scanned, a user will automatically enter your network without needing to input login information
TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device


Ethernet

Feature Details
WAN Port 1 x WAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN Port 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX



Network

Feature Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customization
Firewall Status Page View all your Firewall statistics, rules, and rule counters
Ports Management View device ports, enable/disable ports, configure auto-configuration, change transmission speed
Network Topology Visual representation of your network, showing connections between devices
Hotspot Captive portal (hotspot), internal/external Radius server, SMS authorization, SSO authentication, user management, custom themes
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, static leases with MAC wildcards
QoS / Smart Queue Management Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported by >25 service providers, manual configuration available
DNS over HTTPS Secure DNS resolution by routing DNS queries over HTTPS
Network Backup Wi-Fi WAN, Mobile, VRRP, Wired options for automatic failover
Load Balancing Balance Internet traffic over multiple WAN connections
SSHFS Mount remote file systems via SSH protocol
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history


Security

Feature Details
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, RADIUS, IP & login attempts block
Firewall Preconfigured firewall rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention DDOS prevention, SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention, port scan prevention
VLAN Port and tag-based VLAN separation
Mobile Quota Control Mobile data limit, customizable period, start time, warning limit, phone number
Web Filter Block unwanted websites via blacklist, specify allowed sites via whitelist
Access Control Control access for SSH, Web UI, CLI, and Telnet
SSL Certificate Generation Lets Encrypt and SCEP certificate generation methods
802.1x Port-based network access control server



VPN

VPN Type Details
OpenVPN Supports multiple clients and a server running simultaneously with 27 encryption methods.
OpenVPN Encryption Supports 27 encryption methods: DES-CBC 64, RC2-CBC 128, AES-256-GCM 256, AES-192-CFB 192, etc.
IPsec Supports XFRM, IKEv1, IKEv2 with 14 encryption methods for IPsec (AES128, AES256, 3DES, etc.).
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy to add TLS encryption to existing clients and servers without changing program’s code
DMVPN Scalable IPsec VPNs, Phase 2 and Phase 3, Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication, and compression in its tunnels. Client and server support


OPC UA

Mode Details
Supported Modes Client, Server
Supported Connection Types TCP



MODBUS

Mode Details
Supported Modes Server, Client
Supported Connection Types TCP
Custom Registers MODBUS TCP custom register block requests to read/write to a file inside the router, extending MODBUS TCP Client functionality
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII


Data to Server

Protocol Details
Supported Protocols HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server Extracts parameters from multiple sources and protocols, sends them to a single server; Custom LUA scripting to utilize this feature


MQTT Gateway

Gateway Type Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker


DNP3

Mode Details
Supported Modes Station, Outstation
Supported Connection TCP


DLMS

Details Information
Support DLMS - Standard protocol for utility meter data exchange
Supported Modes Client
Supported Connection Types TCP


COSEM

Details Information
COSEM Objects Allows scanning meter COSEM objects for automatic detection and configuration


API

API Support Details
Teltonika Networks Web API (beta) Expand device possibilities by using configurable API endpoints to retrieve or change data. API Documentation



Monitoring & Management

Feature Details
WEB UI HTTP/HTTPS for status, configuration, FW update, CLI, troubleshooting, multiple event log servers, firmware update notifications, event log, system log, kernel log, internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2) support
SMS SMS status, configuration, send/read SMS via HTTP POST/GET
Call Reboot, status, mobile data on/off, output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)


IoT Platforms

Platform Details
ThingWorx Allows monitoring of WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Allows monitoring of device model, revision, serial number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Includes reboot and firmware upgrade actions
Azure IoT Hub Configured with Data to Server to send all available parameters to the cloud, Direct method support for RutOS API calls, Plug and Play integration for zero-touch provisioning
AWS IoT Core Utility to interact with the AWS cloud platform, supports Jobs functionality for calling device APIs


System Characteristics

Component Details
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH Storage 16 MB, SPI Flash


Firmware / Configuration

Feature Details
WEB UI Update firmware from file, check firmware on server, configuration profiles, configuration backup
FOTA Update firmware via FOTA
RMS Update firmware/configuration for multiple devices at once
Keep Settings Update firmware without losing current configuration
Factory Settings Reset Full factory reset restores all system settings to default manufacturer's configuration


Firmware Customization

Feature Details
Operating System RutOS (OpenWrt based Linux OS)
Supported Languages Busybox shell, Lua, C, C++
Development Tools SDK package with build environment provided
GPL Customization Ability to create custom branded firmware and web page applications
Package Manager Service to install additional software on the device



Input / Output

Feature Details
Input 1 x Digital Input (0 - 6 V detected as logic low, 8 - 30 V detected as logic high)
Output 1 x Digital Output (Open collector output, max output 30 V, 300 mA)
Events Email, RMS, SMS
I/O Juggler Allows setting specific I/O conditions to initiate an event


Power

Feature Details
Connector 4-pin industrial DC power socket
Input Voltage Range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (Passive) Passive PoE over spare pairs (9 - 30 VDC, Mode B); not compatible with IEEE802.3af, 802.3at, and 802.3bt standards
Power Consumption < 6.5 W Max


Physical Interfaces

Feature Details

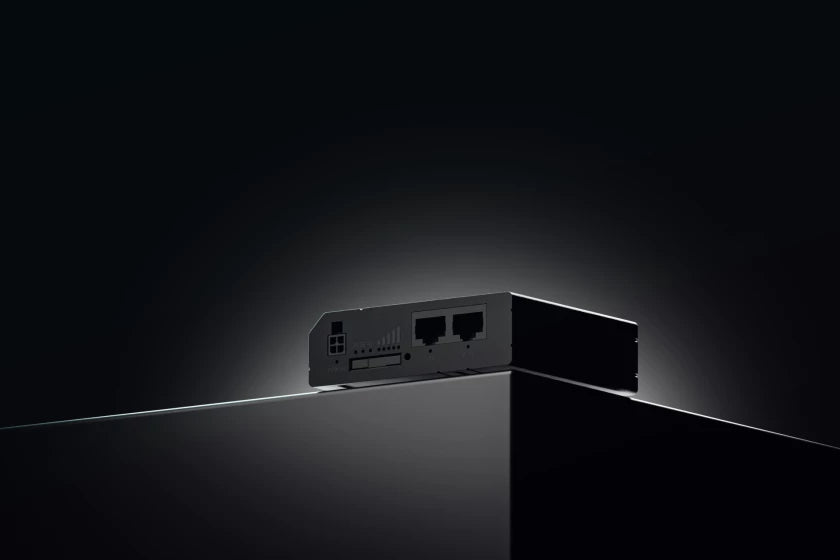

Ethernet 2 x RJ45 ports, 10/100 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
Power 1 x 4-pin power connector

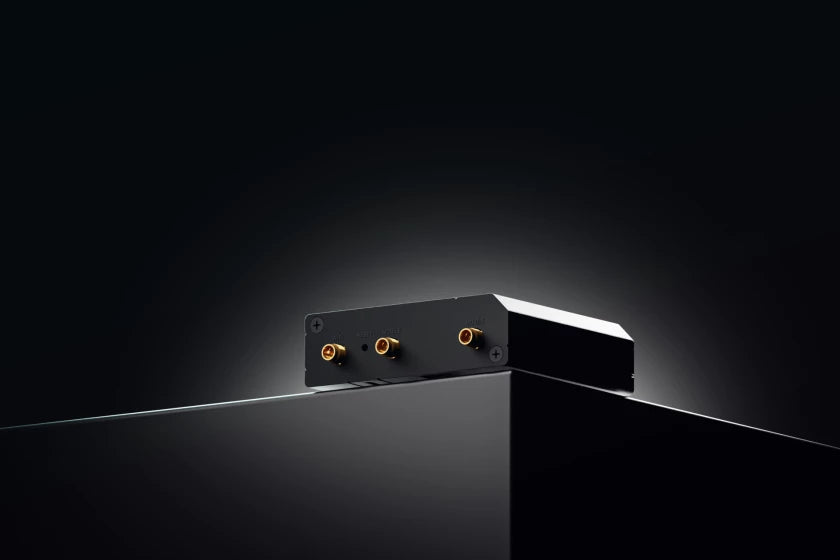

Antennas 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors
Reset Reboot/User default reset/Factory reset button


Physical Specification

Feature Details
Casing Material Aluminium housing, plastic panels
Dimensions (W x H x D) 83 x 25 x 74 mm
Weight 125 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)


Operating Environment

Feature Details
Operating Temperature -40 °C to 75 °C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30



Regulatory & Type Approvals

Category Details
Regulatory Approvals CE, UKCA, ANRT, Kenya, ICASA, FCC, IC, PTCRB, NOM, RCM, KC, Giteki, IMDA, E-mark, CB, UL/CSA Safety, RoHS, REACH, R118
Operator Approvals AT&T, Verizon, T-Mobile, Uscellular


EMC Emissions & Immunity

Category Standards
EMC Emissions & Immunity Standards EN 55032:2015 + A11:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A1:2019, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, Final Draft EN 301 489-52 V1.2.0
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2020



RF

Category Standards
RF Standards EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1


Safety Standards

Category Standards
CE Safety EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017
RCM Safety AS/NZS 62368.1:2022
CB Safety IEC 62368-1:2018
UL/CSA Safety UL 62368-1, Ed. 3 dated December 13, 20, CAN/CSA C22.2 No. 62368-1:19



Downloads

Manual & Documentation

Links

RUT241 QUICK START GUIDE (EN)
What connectivity options does this router offer and how does the WAN failover work?
It supports 4G LTE Cat 4, 3G and 2G mobile networks, plus 802.11 b/g/n Wi Fi and two 10/100 Mbps Ethernet ports. Automatic WAN failover ensures connectivity remains active if the primary link drops.
Is RMS remote management supported for the device?
Yes, RMS compatibility is provided for remote monitoring and management.
What are the power and PoE options and any limitations?
It operates on 9 to 30 VDC with reverse polarity protection and supports passive PoE over spare pairs. It is not compatible with standard PoE as defined by IEEE 802.3af, 802.3at, or 802.3bt.
How can the device be mounted and what are its operating conditions?
The unit has an aluminium casing and supports DIN rail, wall mount, or flat surface mounting with the appropriate kit. It operates from -40 C to 75 C and has IP30 ingress protection.
What is included in the standard package?
Standard package includes the RUT241 router, a 9 W power supply, two mobile antennas, one Wi Fi antenna, an Ethernet cable, SIM adapter kit, Quick Start Guide, and the packaging box.
A
Admin
Welcome to the discussion thread for RUT241 - Industrial Cellular Router
Feel free to ask questions, share tips or report issues.

Discover More In:

Industrial IoT → Network Accessories → Teltonika Networks | Official Page →

Category: View similar items (RUT241)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, RUT241 offers unstoppable connection continuity with automatic WAN failover. Industrial design, compact size, multiple connection interfaces, and compatibility with RMS make this device an excellent fit in numerous IoT and M2M solutions.

Standard package*

*Standard package contents may differ based on standard order codes.

Feature

Mobile

Specification Details
Mobile Module 4G LTE Cat 4 (up to 150 DL/50 UL Mbps), 3G (up to 21 DL/5.76 UL Mbps), 2G (up to 236.8 DL/236.8 UL kbps)
3GPP Release Release 10/11 (depending on hardware version)
Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band Management Band lock, Used band status display
SIM PIN Code Management SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN


Wireless

Feature Details
Wireless Mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi Security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID SSID stealth mode and access control based on MAC address
Wi-Fi Users Up to 50 simultaneous connections
Wireless Connectivity Features Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter Allowlist, blocklist
Wireless QR Code Generator Once scanned, a user will automatically enter your network without needing to input login information
TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device


Ethernet

Feature Details
WAN Port 1 x WAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN Port 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX



Network

Feature Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customization
Firewall Status Page View all your Firewall statistics, rules, and rule counters
Ports Management View device ports, enable/disable ports, configure auto-configuration, change transmission speed
Network Topology Visual representation of your network, showing connections between devices
Hotspot Captive portal (hotspot), internal/external Radius server, SMS authorization, SSO authentication, user management, custom themes
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, static leases with MAC wildcards
QoS / Smart Queue Management Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported by >25 service providers, manual configuration available
DNS over HTTPS Secure DNS resolution by routing DNS queries over HTTPS
Network Backup Wi-Fi WAN, Mobile, VRRP, Wired options for automatic failover
Load Balancing Balance Internet traffic over multiple WAN connections
SSHFS Mount remote file systems via SSH protocol
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history


Security

Feature Details
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, RADIUS, IP & login attempts block
Firewall Preconfigured firewall rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention DDOS prevention, SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention, port scan prevention
VLAN Port and tag-based VLAN separation
Mobile Quota Control Mobile data limit, customizable period, start time, warning limit, phone number
Web Filter Block unwanted websites via blacklist, specify allowed sites via whitelist
Access Control Control access for SSH, Web UI, CLI, and Telnet
SSL Certificate Generation Lets Encrypt and SCEP certificate generation methods
802.1x Port-based network access control server



VPN

VPN Type Details
OpenVPN Supports multiple clients and a server running simultaneously with 27 encryption methods.
OpenVPN Encryption Supports 27 encryption methods: DES-CBC 64, RC2-CBC 128, AES-256-GCM 256, AES-192-CFB 192, etc.
IPsec Supports XFRM, IKEv1, IKEv2 with 14 encryption methods for IPsec (AES128, AES256, 3DES, etc.).
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy to add TLS encryption to existing clients and servers without changing program’s code
DMVPN Scalable IPsec VPNs, Phase 2 and Phase 3, Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication, and compression in its tunnels. Client and server support


OPC UA

Mode Details
Supported Modes Client, Server
Supported Connection Types TCP



MODBUS

Mode Details
Supported Modes Server, Client
Supported Connection Types TCP
Custom Registers MODBUS TCP custom register block requests to read/write to a file inside the router, extending MODBUS TCP Client functionality
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII


Data to Server

Protocol Details
Supported Protocols HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server Extracts parameters from multiple sources and protocols, sends them to a single server; Custom LUA scripting to utilize this feature


MQTT Gateway

Gateway Type Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker


DNP3

Mode Details
Supported Modes Station, Outstation
Supported Connection TCP


DLMS

Details Information
Support DLMS - Standard protocol for utility meter data exchange
Supported Modes Client
Supported Connection Types TCP


COSEM

Details Information
COSEM Objects Allows scanning meter COSEM objects for automatic detection and configuration


API

API Support Details
Teltonika Networks Web API (beta) Expand device possibilities by using configurable API endpoints to retrieve or change data. API Documentation



Monitoring & Management

Feature Details
WEB UI HTTP/HTTPS for status, configuration, FW update, CLI, troubleshooting, multiple event log servers, firmware update notifications, event log, system log, kernel log, internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2) support
SMS SMS status, configuration, send/read SMS via HTTP POST/GET
Call Reboot, status, mobile data on/off, output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)


IoT Platforms

Platform Details
ThingWorx Allows monitoring of WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Allows monitoring of device model, revision, serial number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Includes reboot and firmware upgrade actions
Azure IoT Hub Configured with Data to Server to send all available parameters to the cloud, Direct method support for RutOS API calls, Plug and Play integration for zero-touch provisioning
AWS IoT Core Utility to interact with the AWS cloud platform, supports Jobs functionality for calling device APIs


System Characteristics

Component Details
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH Storage 16 MB, SPI Flash


Firmware / Configuration

Feature Details
WEB UI Update firmware from file, check firmware on server, configuration profiles, configuration backup
FOTA Update firmware via FOTA
RMS Update firmware/configuration for multiple devices at once
Keep Settings Update firmware without losing current configuration
Factory Settings Reset Full factory reset restores all system settings to default manufacturer's configuration


Firmware Customization

Feature Details
Operating System RutOS (OpenWrt based Linux OS)
Supported Languages Busybox shell, Lua, C, C++
Development Tools SDK package with build environment provided
GPL Customization Ability to create custom branded firmware and web page applications
Package Manager Service to install additional software on the device



Input / Output

Feature Details
Input 1 x Digital Input (0 - 6 V detected as logic low, 8 - 30 V detected as logic high)
Output 1 x Digital Output (Open collector output, max output 30 V, 300 mA)
Events Email, RMS, SMS
I/O Juggler Allows setting specific I/O conditions to initiate an event


Power

Feature Details
Connector 4-pin industrial DC power socket
Input Voltage Range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (Passive) Passive PoE over spare pairs (9 - 30 VDC, Mode B); not compatible with IEEE802.3af, 802.3at, and 802.3bt standards
Power Consumption < 6.5 W Max


Physical Interfaces

Feature Details
Ethernet 2 x RJ45 ports, 10/100 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
Power 1 x 4-pin power connector
Antennas 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors
Reset Reboot/User default reset/Factory reset button


Physical Specification

Feature Details
Casing Material Aluminium housing, plastic panels
Dimensions (W x H x D) 83 x 25 x 74 mm
Weight 125 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)


Operating Environment

Feature Details
Operating Temperature -40 °C to 75 °C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30



Regulatory & Type Approvals

Category Details
Regulatory Approvals CE, UKCA, ANRT, Kenya, ICASA, FCC, IC, PTCRB, NOM, RCM, KC, Giteki, IMDA, E-mark, CB, UL/CSA Safety, RoHS, REACH, R118
Operator Approvals AT&T, Verizon, T-Mobile, Uscellular


EMC Emissions & Immunity

Category Standards
EMC Emissions & Immunity Standards EN 55032:2015 + A11:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A1:2019, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, Final Draft EN 301 489-52 V1.2.0
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2020



RF

Category Standards
RF Standards EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1


Safety Standards

Category Standards
CE Safety EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017
RCM Safety AS/NZS 62368.1:2022
CB Safety IEC 62368-1:2018
UL/CSA Safety UL 62368-1, Ed. 3 dated December 13, 20, CAN/CSA C22.2 No. 62368-1:19



Downloads

Manual & Documentation

Links

RUT241 QUICK START GUIDE (EN)
FAQ
What connectivity options does this router offer and how does the WAN failover work?
It supports 4G LTE Cat 4, 3G and 2G mobile networks, plus 802.11 b/g/n Wi Fi and two 10/100 Mbps Ethernet ports. Automatic WAN failover ensures connectivity remains active if the primary link drops.
Is RMS remote management supported for the device?
Yes, RMS compatibility is provided for remote monitoring and management.
What are the power and PoE options and any limitations?
It operates on 9 to 30 VDC with reverse polarity protection and supports passive PoE over spare pairs. It is not compatible with standard PoE as defined by IEEE 802.3af, 802.3at, or 802.3bt.
How can the device be mounted and what are its operating conditions?
The unit has an aluminium casing and supports DIN rail, wall mount, or flat surface mounting with the appropriate kit. It operates from -40 C to 75 C and has IP30 ingress protection.
What is included in the standard package?
Standard package includes the RUT241 router, a 9 W power supply, two mobile antennas, one Wi Fi antenna, an Ethernet cable, SIM adapter kit, Quick Start Guide, and the packaging box.
Reviews
Forum
A
Admin
Welcome to the discussion thread for RUT241 - Industrial Cellular Router
Feel free to ask questions, share tips or report issues.
Similar Products

Discover More In:

Industrial IoT → Network Accessories → Teltonika Networks | Official Page →

Category: View similar items (RUT241)

Bulk Order

Fill out the form below and our team will get back to you with bulk pricing.

Custom Requirements?

Meet with our team

Related products

Related products

0106-14

Waldom Electonics

0106-14

₹ 2,623.53
