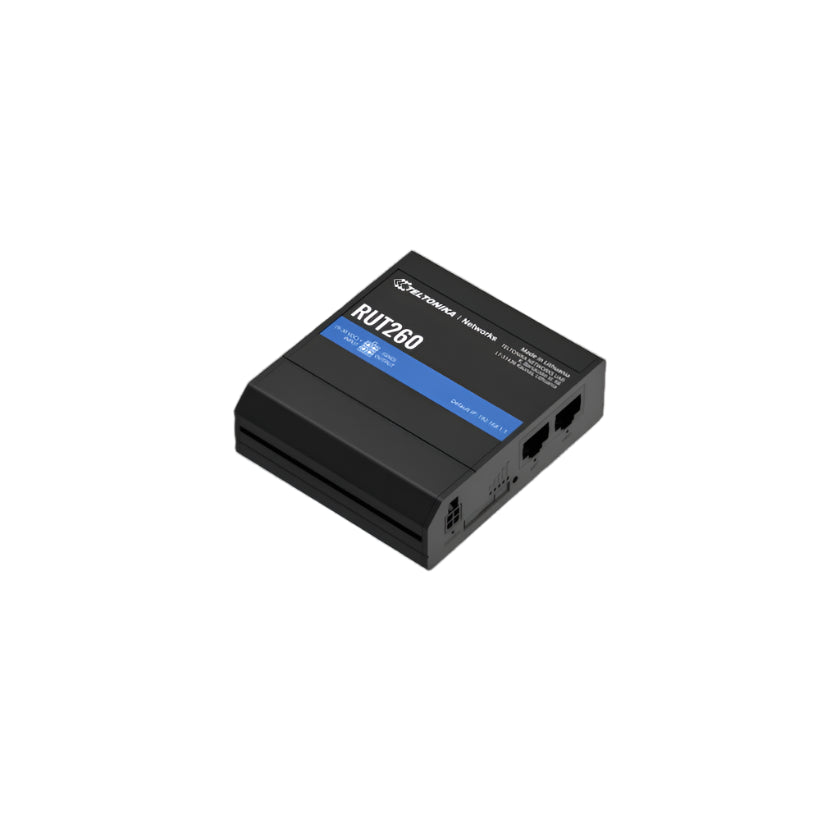

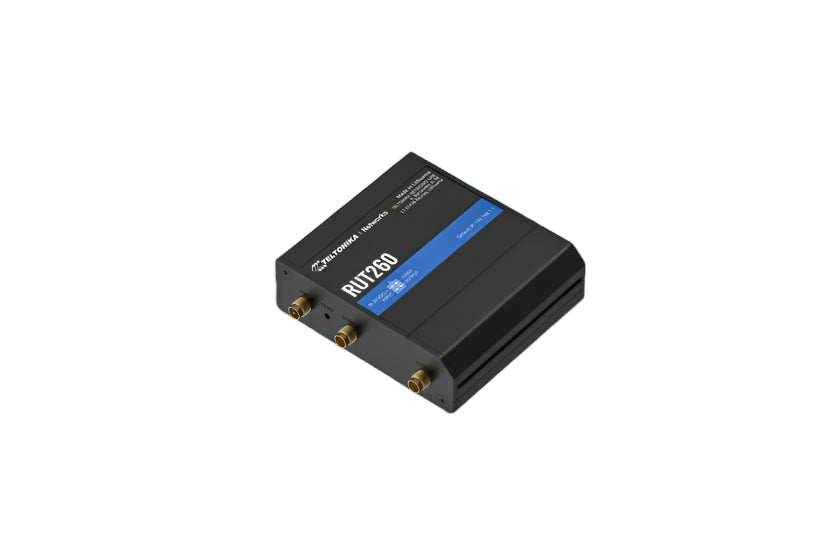

RUT260 - LTE Cat 6 Cellular Router

SKU: ELC8715

Regular price ₹ 21,499.99
Sale price ₹ 21,499.99 Regular price ₹ 42,999.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

RUT260 is a Teltonika Networks LTE Cat 6 cellular router with WAN failover. Balancing the key features of the RUT240 and RUT360, this cellular router is powerful, lightweight, and supports a wide variety of industrial protocols, including MQTT, SNMP, Modbus, and more.

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile Features

Feature Description
Mobile Module 4G LTE Cat 6, 300 DL/50 UL Mbps; 3G up to 42 DL/5.76 UL Mbps
SMS Send/read SMS, SMS autoreply, SMPP
USSD Supports sending and reading USSD
SIM Management SIM PIN, APN, mobile data control

Wireless Features

Feature Description
Wireless Mode 802.11b/g/n, AP, STA
Wi-Fi Security WPA2/WPA3, AES-CCMP, EAP-TLS
Users Up to 50 simultaneous connections

Network & Routing

Feature Description
Routing Static, Dynamic (BGP, OSPF, RIP)
VoIP Passthrough NAT helpers for H.323, SIP-alg
QoS/Traffic Management Traffic prioritization, SQM, WMM support

Security Features

Feature Description
Authentication Pre-shared key, certificates, RADIUS
Firewall Configurable rules, DMZ, NAT support
Attack Prevention DDOS, port scan, SYN flood prevention



VPN Features

VPN Type Supported Features
OpenVPN Multiple clients/server, 27 encryption methods
IPsec XFRM, IKEv1, IKEv2, 14 encryption methods
GRE GRE tunnel & IPsec support
PPTP, L2TP Client/server, L2TP over IPsec
Stunnel TLS encryption for clients/servers
DMVPN Scalable IPsec VPNs, Phase 2 & 3 support
SSTP SSTP client support
ZeroTier ZeroTier VPN client support
WireGuard Client & server support
Tinc Encryption, authentication, and compression

OPC UA & MODBUS Features

Protocol Features
OPC UA Client/server modes, TCP connection
MODBUS Server/client modes, custom register block requests, multiple data formats (INT, UINT, HEX, etc.)


Data to Server

Protocol Description
HTTP(S) Extracts parameters and sends them to a server via HTTP or HTTPS protocol
MQTT Sends and receives data from multiple sources using MQTT protocol
Azure MQTT Enables integration with Azure IoT services for data transmission
Custom LUA Utilizes custom LUA scripts for data extraction and server communication


MQTT Gateway

Feature Description
Modbus MQTT Gateway Facilitates sending commands and receiving data from a Modbus server via MQTT.



DNP3

Feature Description
Supported Modes Station, Outstation
Supported Connection TCP


DLMS

Feature Description
DLMS Support Standard protocol for utility meter data exchange
Supported Modes Client
Supported Connection TCP


DLMS

Supported modes Client
Supported connection types TCP
COSEM Allows to scan meter COSEM objects for automatic detection and configuration

API

Feature Description
Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

Feature Description
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)

IoT Platforms

Platform Description
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics

Feature Description
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash

Firmware / Configuration

Feature Description
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customization

Feature Description
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development tools SDK package with build environment provided
GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager The Package Manager is a service used to install additional software on the device

Input / Output

Feature Description
Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event

Power

Feature Description
Connector 4-pin industrial DC power socket
Input voltage range 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption Idle: < 2 W, Max: < 6.5 W

Physical Interfaces

Feature Description
Ethernet 2 x RJ45 ports, 10/100 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 2 x Connection type status, 5 x Mobile connection strength, 1 x LAN status, 1 x WAN status, 1 x Power
SIM 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder, eSIM (Optional - different hardware required; contact your sales manager)
Power 1 x 4-pin power connector
Antennas 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi
Reset Reboot/User default reset/Factory reset button

Physical Specification

Feature Description
Casing material Aluminum housing, plastic panels
Dimensions (W x H x D) 83 x 25 x 74 mm
Weight 130 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Feature Description
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Feature Description
Regulatory CE/RED, UKCA, UCRF, RCM, EAC, WEEE, RCM, R118
