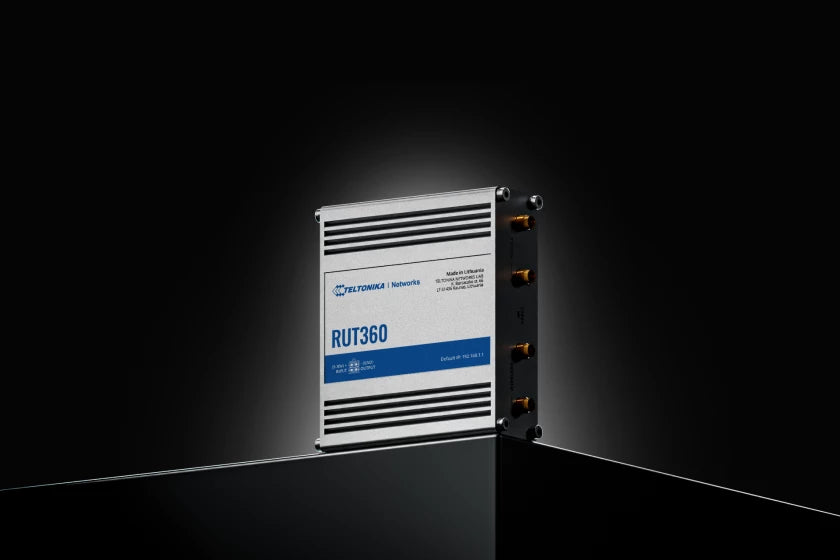

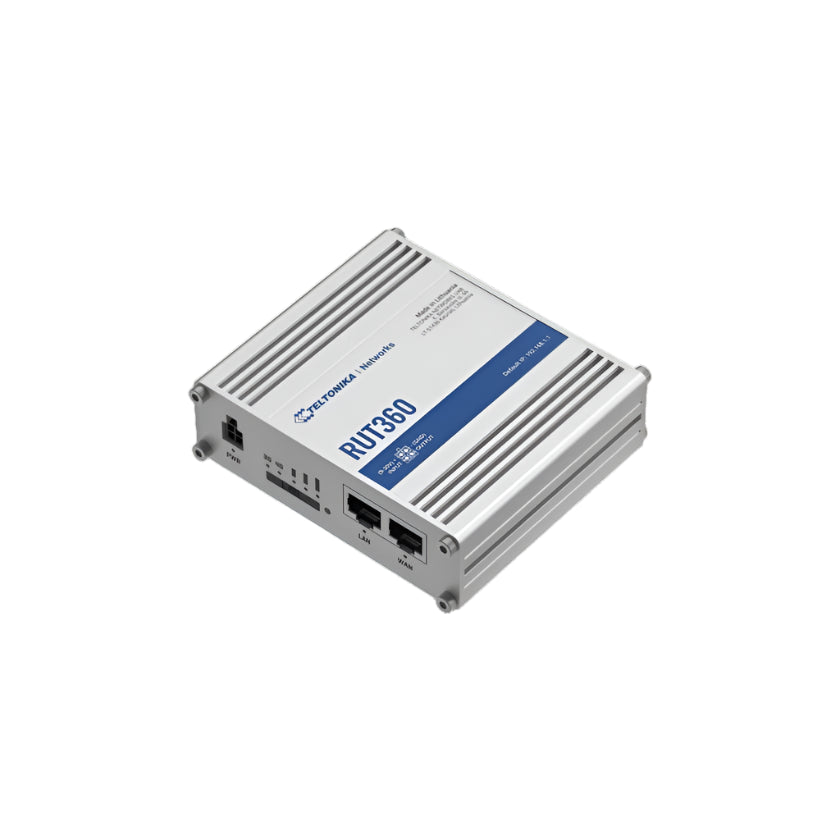

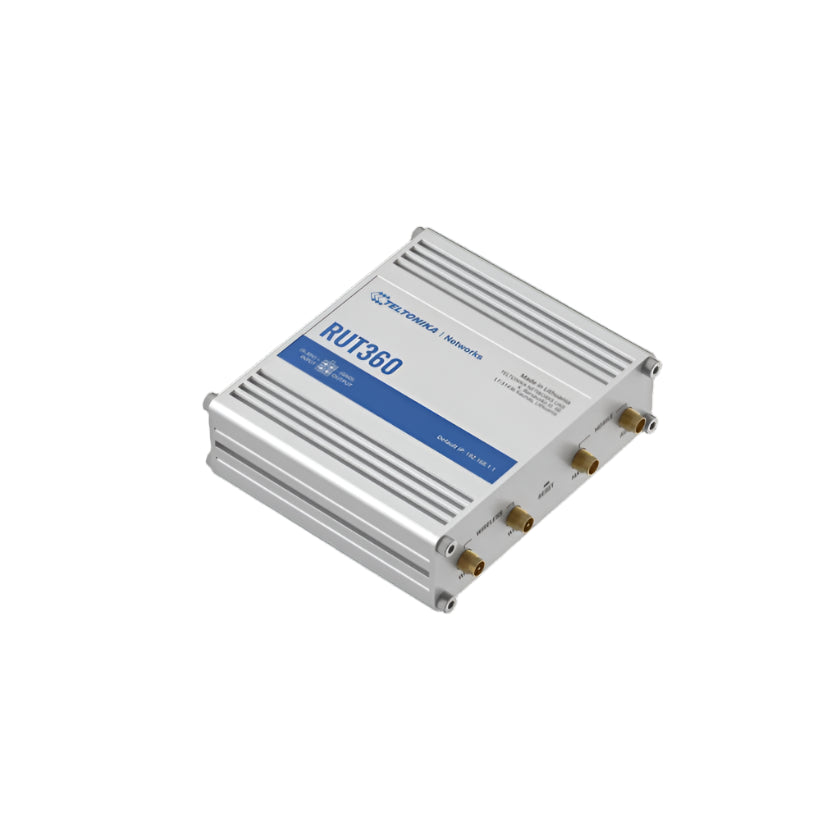

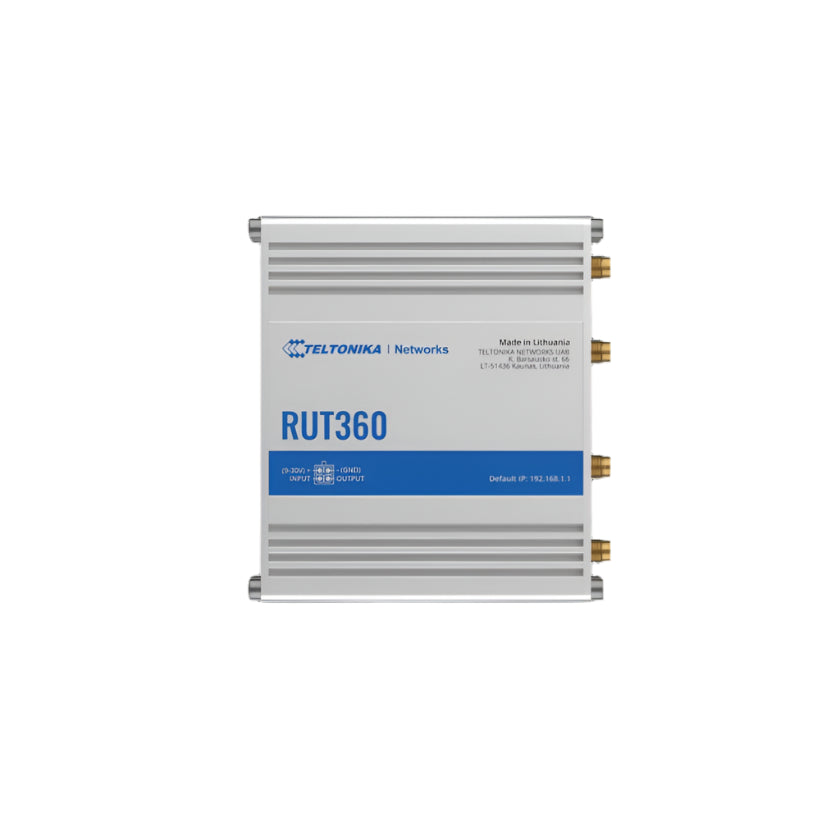

RUT360 - LTE Cat6 Industrial Cellular Router

SKU: ELC8716

ā‚¹ 36,449.99 ā‚¹ 53,399.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ā± This is a pre-order item. We'll ship it as soon as it's back in stock.
RUT360 - LTE Cat6 Industrial Cellular Routerā‚¹ 36,449.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

End of ordering:Ā 2024 September 13
End of production:Ā 2025 March 13
End of support:Ā 2030 June 13
Replacement:Ā RUT361Ā

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Feature Details
Mobile Module 4G LTE Cat 6 (up to 300 Mbps DL / 50 Mbps UL), 3G (up to 42 Mbps DL / 5.76 Mbps UL)
3GPP Release Release 11
Status IMSI, ICCID, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI, SINR, RSRP, RSRQ), EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS SMS status/configuration, HTTP POST/GET, EMAIL-to-SMS, SMS-to-EMAIL, SMS-to-HTTP, SMS autoreply, scheduled SMS, SMPP
USSD Supports sending and reading USSD messages
Black/White List Operator black/white list (by country or individual operators)
Multiple PDN Enables use of different PDNs for various network access/services
Band Management Band lock and display of used band status
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and LAN devices
Passthrough Assigns the mobile WAN IP address to another LAN device


Wireless

Feature Details
Wireless Mode 802.11b/g/n (Wi-Fi 4), 2x2 MIMO, Access Point (AP), Station (STA)
Wi-Fi Security WPA2-Enterprise (PEAP, PSK, EAP), WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, 802.11w PMF
SSID/ESSID ESSID stealth mode
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter Allowlist and blocklist

Ā

Ethernet

Port Details
WAN 1 x WAN port, 10/100 Mbps, compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3az standards. Supports auto MDI/MDIX for automatic crossover detection.
LAN 1 x LAN port, 10/100 Mbps, compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3az standards. Supports auto MDI/MDIX crossover for flexible connectivity.

Ā

Network

Feature Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing.
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL), VXLAN.
VoIP Passthrough H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets.
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP, and ICMP for link inspection.
Firewall Port forward, traffic rules, custom rules, TTL target customization.
Firewall Status Page View firewall statistics, rules, and rule counters.
Ports Management Enable/disable ports, auto-configuration, transmission speed adjustment.
Network Topology Visual representation of network connections.
Hotspot Captive portal, RADIUS server, MAC authentication, SSO authentication, customizable themes.
DHCP Static/dynamic IP allocation, DHCP relay, server configuration, status, and static leases.
QoS / SQM Traffic priority queuing by source/destination, protocol, or port.
DDNS Supports >25 service providers with manual configuration options.
Network Backup Wi-Fi WAN, Mobile, VRRP, Wired options with automatic failover.
Load Balancing Balance internet traffic across multiple WAN connections.
SSHFS Mount remote file systems via SSH protocol.


Security

Feature Details
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, RADIUS authentication, IP blocking.
Firewall Preconfigured rules via WebUI, CLI unlimited configurations, DMZ, NAT, NAT-T, NAT64.
Attack Prevention DDOS prevention, port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks).
VLAN Port and tag-based VLAN separation.
Mobile Quota Control Customizable data limits, warning limits, period, and start time.
Web Filter Blacklist and whitelist options for website blocking.
Access Control Flexible access to SSH, WebUI, CLI, and Telnet.


VPN

Feature Details
OpenVPN Multiple clients/servers, 27 encryption methods including AES-256-GCM, AES-256-CBC.
IPsec XFRM, IKEv1, IKEv2, 14 encryption methods including AES256GCM16, AES192, AES128.
GRE GRE tunnel, GRE over IPsec support.
PPTP/L2TP Client/server instances, L2TPv3, L2TP over IPsec support.
Stunnel TLS encryption for clients/servers without program code changes.
DMVPN Scalable IPsec VPNs with Phase 2/3 and Dual Hub support.
SSTP Client instance support.
ZeroTier ZeroTier VPN client support.
WireGuard WireGuard VPN client and server support.
Tinc Encryption, authentication, compression in tunnels, client and server support.


OPC UAĀ

Feature Details
Supported Modes Client, Server.
Supported Connections TCP.

Ā

MODBUSĀ

Feature Details
Supported Modes Server, Client.
Supported Connection Types TCP.
Custom Registers MODBUS TCP custom register block requests to read/write files inside the router, extending functionality.
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII.


Data to ServerĀ

Feature Details
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis.
Data to Server Extract parameters from multiple sources and protocols; send them to a single server. Includes custom LUA scripting for enhanced functionality.


MQTT GatewayĀ Ā

Feature Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through an MQTT broker.


DNP3Ā

Feature Details
Supported Modes TCP Master, DNP3 Outstation.


DLMSĀ Ā

Feature Details
DLMS Support DLMS - Standard protocol for utility meter data exchange.
Supported Modes Client.
Supported Connection Types TCP.
COSEM Allows scanning of meter COSEM objects for automatic detection and configuration.


API

Feature Details
Teltonika Networks Web API (Beta) Expand device capabilities with configurable API endpoints for data retrieval and changes. Documentation: Teltonika Developers.

Ā

Monitoring & ManagementĀ

Feature Details
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update notifications, event/system/kernel log, Internet status.
FOTA Firmware update from server, automatic notification.
SSH SSH (v1, v2).
SMS SMS status, configuration, send/read SMS via HTTP POST/GET.
Call Reboot, status, mobile data on/off, output on/off, answer/hang-up with timer, Wi-Fi on/off.
TR-069 Compatible with OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, AVSystem.
MQTT MQTT Broker, MQTT Publisher.
SNMP SNMP (v1, v2, v3), SNMP Trap, brute force protection.
JSON-RPC Management API over HTTP/HTTPS.
RMS Teltonika Remote Management System.


IoT Platform Integration

Platform Details
Cloud of Things Monitoring device data, mobile data, network info, availability.
ThingWorx Monitoring WAN type, WAN IP, mobile operator, signal strength, network type.
Cumulocity Monitor device model, revision, serial number, WAN type, IP, signal strength, reboot and firmware upgrades.
Azure IoT Hub Supports "Data to Server," direct method execution, Plug and Play integration for zero-touch provisioning.
AWS IoT Core Interaction with AWS Cloud Platform. Supports Jobs API calls via AWS Jobs functionality.


System Characteristics

Component Details
CPU Qualcomm MIPS 24kc, 650 MHz.
RAM 128 MB, DDR2.
FLASH Storage 16 MB, SPI Flash.


Firmware and ConfigurationĀ

Feature Details
WEB UI Update FW from file or server, configuration profiles, backup.
FOTA Update FW.
RMS Update FW/configuration for multiple devices.
Keep Settings Update FW without losing current configuration.
Factory Settings Reset Restores all system settings, including IP address, PIN, and user data to defaults.


Firmware Customization

Feature Details
Operating System RutOS (OpenWrt-based Linux OS).
Supported Languages Busybox shell, Lua, C, C++.
Development Tools SDK package with build environment provided.
GPL Customization Create custom branded firmware and web applications by modifying colors, logos, and other elements.

Ā

Input / Output

Feature Details
Input 1 x Digital Input: 0ā€“6 V detected as logic low; 8ā€“30 V detected as logic high.
Output 1 x Digital Output: Open collector, max output 30 V, 300 mA.
Events Trigger options: Email, RMS, SMS.
I/O Juggler Configurable I/O conditions to initiate specific events.


Power

Feature Details
Connector 4-pin industrial DC power socket.
Input Voltage Range 9ā€“30 VDC, reverse polarity protection, surge protection >31 VDC 10 Āµs max.
Power Consumption 10.5 W max.


Physical Interfaces

Interface Details

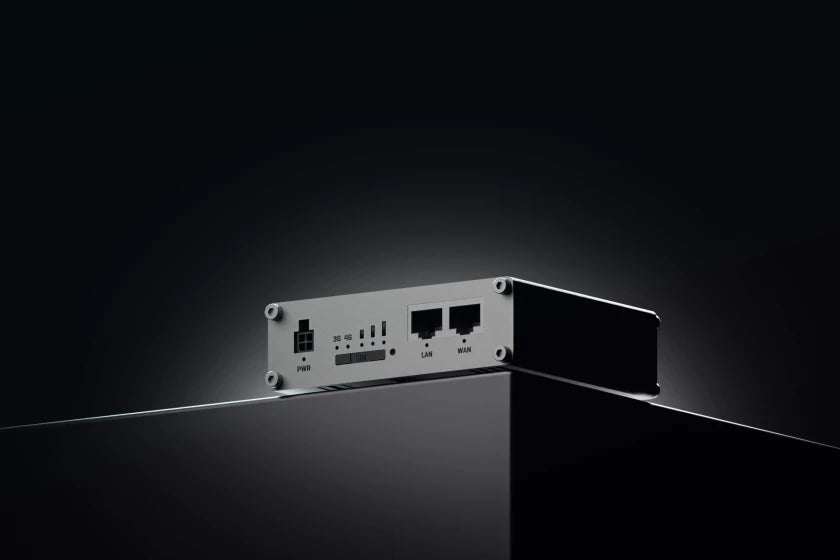

Ethernet 2 x RJ45 ports, 10/100 Mbps.
I/O's 1 x Digital Input, 1 x Digital Output on 4-pin power connector.
Status LEDs 2 x Mobile connection type, 3 x Mobile signal strength, 2 x Ethernet status, 1 x Power.
SIM 1 x Mini SIM slot (2FF), external SIM holder, supports 1.8 V/3 V.
Power 1 x 4-pin power connector.

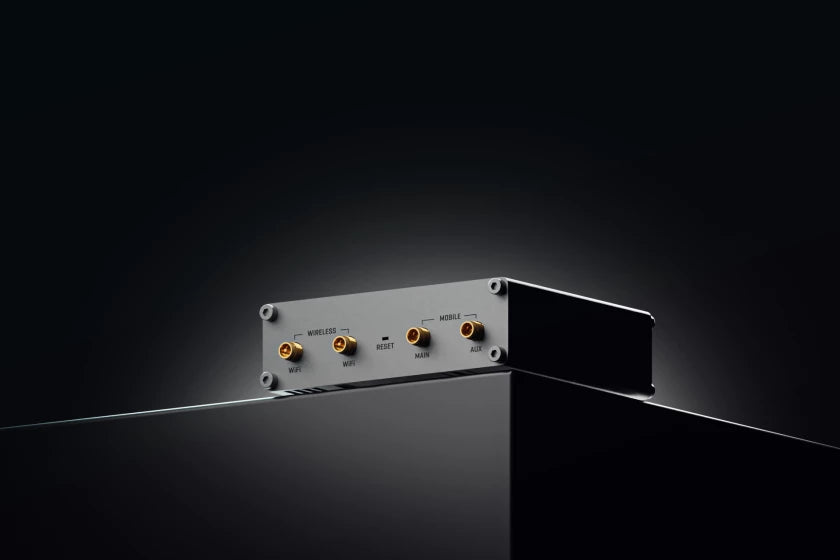

Antennas 2 x SMA connectors for LTE, 2 x RP-SMA connectors for Wi-Fi.
Reset Reboot/User default reset/Factory reset button.

Ā

Physical Specifications

Specification Details
Casing Material Aluminium housing.
Dimensions 100 x 30 x 85 mm (W x H x D).
Weight 247 g.
Mounting Options DIN rail, wall mount, flat surface (additional kits required

Ā

Operating Environment

Feature Details
Operating Temperature -40 Ā°C to 75 Ā°C.
Operating Humidity 10% to 90% non-condensing.
Ingress Protection Rating IP30.

Ā

Regulatory & Type Approvals

Category Details
Regulatory CE, UKCA, UCRF, ANRT, ICASA, FCC, IC, PTCRB, RCM, NTC, CB.
Operator Certified for AT&T, Verizon, T-Mobile, and U.S. Cellular.


EMC Emissions & Immunity

Standard Details
Emissions EN 55032:2015 + A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A1:2019.
Immunity EN 55035:2017.
Specific EMC Standards EN 301 489-1:V2.2.3, EN 301 489-17:V3.2.4, Draft EN 301 489-52:V1.1.0.
ESD EN 61000-4-2:2009.
Radiated Immunity EN IEC 61000-4-3:2006 + A1:2008 + A2:2010.
EFT EN 61000-4-4:2012.
Surge Immunity (AC Mains) EN 61000-4-5:2014 + A1:2017.
Conducted Susceptibility (CS) EN 61000-4-6:2014.
DIP EN 61000-4-11:2004 + A1:2017.

Ā

RF Standards

Standard Details
Standards EN 300 328 V2.2.2, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1.


Safety Standards

Standard Details
CE EN IEC 62368-1:2020 + A11:2020.
RCM AS/NZS 62368.1:2018.
CB IEC 62368-1:2018.

Ā

Downloads

Manual & Documentation


Links

What are the network capabilities of this router?
The device supports 4G LTE Cat 6 up to 300 Mbps down and 50 Mbps up, with 3G fallback up to 42 Mbps down and 5.76 Mbps up.
What is included in the standard package?
The standard package includes the RUT360 router, an 18 W power supply, 2x mobile antennas, 2x wifi antennas, a 1.5 m ethernet cable, SIM adapter kit, Quick Start Guide and RMS flyer; contents may vary by order code.
When will this product be discontinued and what is the replacement?
End of ordering is 2024-09-13, end of production is 2025-03-13 and end of support is 2030-06-13. The replacement is the RUT361.
What ethernet ports and power specifications does it have?
It has 2 x Ethernet ports (WAN and LAN), a mini SIM slot, and a 9 to 30 VDC power input with reverse polarity and surge protection. Power consumption is up to 10.5 W.
How can I configure and manage the router?
Configuration and monitoring are available via WEB UI and CLI, with firmware updates from server, and remote management via RMS; it also supports a range of security and networking features.
A
Admin
Welcome to the discussion thread for RUT360 - LTE Cat6 Industrial Cellular Router
Feel free to ask questions, share tips or report issues.

Discover More In:

Industrial IoT ā†’ Network Accessories ā†’ Teltonika Networks | Official Page ā†’

Category: View similar items (RUT360)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

End of ordering:Ā 2024 September 13
End of production:Ā 2025 March 13
End of support:Ā 2030 June 13
Replacement:Ā RUT361Ā

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Feature Details
Mobile Module 4G LTE Cat 6 (up to 300 Mbps DL / 50 Mbps UL), 3G (up to 42 Mbps DL / 5.76 Mbps UL)
3GPP Release Release 11
Status IMSI, ICCID, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI, SINR, RSRP, RSRQ), EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS SMS status/configuration, HTTP POST/GET, EMAIL-to-SMS, SMS-to-EMAIL, SMS-to-HTTP, SMS autoreply, scheduled SMS, SMPP
USSD Supports sending and reading USSD messages
Black/White List Operator black/white list (by country or individual operators)
Multiple PDN Enables use of different PDNs for various network access/services
Band Management Band lock and display of used band status
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and LAN devices
Passthrough Assigns the mobile WAN IP address to another LAN device


Wireless

Feature Details
Wireless Mode 802.11b/g/n (Wi-Fi 4), 2x2 MIMO, Access Point (AP), Station (STA)
Wi-Fi Security WPA2-Enterprise (PEAP, PSK, EAP), WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, 802.11w PMF
SSID/ESSID ESSID stealth mode
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter Allowlist and blocklist

Ā

Ethernet

Port Details
WAN 1 x WAN port, 10/100 Mbps, compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3az standards. Supports auto MDI/MDIX for automatic crossover detection.
LAN 1 x LAN port, 10/100 Mbps, compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3az standards. Supports auto MDI/MDIX crossover for flexible connectivity.

Ā

Network

Feature Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing.
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL), VXLAN.
VoIP Passthrough H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets.
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP, and ICMP for link inspection.
Firewall Port forward, traffic rules, custom rules, TTL target customization.
Firewall Status Page View firewall statistics, rules, and rule counters.
Ports Management Enable/disable ports, auto-configuration, transmission speed adjustment.
Network Topology Visual representation of network connections.
Hotspot Captive portal, RADIUS server, MAC authentication, SSO authentication, customizable themes.
DHCP Static/dynamic IP allocation, DHCP relay, server configuration, status, and static leases.
QoS / SQM Traffic priority queuing by source/destination, protocol, or port.
DDNS Supports >25 service providers with manual configuration options.
Network Backup Wi-Fi WAN, Mobile, VRRP, Wired options with automatic failover.
Load Balancing Balance internet traffic across multiple WAN connections.
SSHFS Mount remote file systems via SSH protocol.


Security

Feature Details
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, RADIUS authentication, IP blocking.
Firewall Preconfigured rules via WebUI, CLI unlimited configurations, DMZ, NAT, NAT-T, NAT64.
Attack Prevention DDOS prevention, port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks).
VLAN Port and tag-based VLAN separation.
Mobile Quota Control Customizable data limits, warning limits, period, and start time.
Web Filter Blacklist and whitelist options for website blocking.
Access Control Flexible access to SSH, WebUI, CLI, and Telnet.


VPN

Feature Details
OpenVPN Multiple clients/servers, 27 encryption methods including AES-256-GCM, AES-256-CBC.
IPsec XFRM, IKEv1, IKEv2, 14 encryption methods including AES256GCM16, AES192, AES128.
GRE GRE tunnel, GRE over IPsec support.
PPTP/L2TP Client/server instances, L2TPv3, L2TP over IPsec support.
Stunnel TLS encryption for clients/servers without program code changes.
DMVPN Scalable IPsec VPNs with Phase 2/3 and Dual Hub support.
SSTP Client instance support.
ZeroTier ZeroTier VPN client support.
WireGuard WireGuard VPN client and server support.
Tinc Encryption, authentication, compression in tunnels, client and server support.


OPC UAĀ

Feature Details
Supported Modes Client, Server.
Supported Connections TCP.

Ā

MODBUSĀ

Feature Details
Supported Modes Server, Client.
Supported Connection Types TCP.
Custom Registers MODBUS TCP custom register block requests to read/write files inside the router, extending functionality.
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII.


Data to ServerĀ

Feature Details
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis.
Data to Server Extract parameters from multiple sources and protocols; send them to a single server. Includes custom LUA scripting for enhanced functionality.


MQTT GatewayĀ Ā

Feature Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through an MQTT broker.


DNP3Ā

Feature Details
Supported Modes TCP Master, DNP3 Outstation.


DLMSĀ Ā

Feature Details
DLMS Support DLMS - Standard protocol for utility meter data exchange.
Supported Modes Client.
Supported Connection Types TCP.
COSEM Allows scanning of meter COSEM objects for automatic detection and configuration.


API

Feature Details
Teltonika Networks Web API (Beta) Expand device capabilities with configurable API endpoints for data retrieval and changes. Documentation: Teltonika Developers.

Ā

Monitoring & ManagementĀ

Feature Details
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update notifications, event/system/kernel log, Internet status.
FOTA Firmware update from server, automatic notification.
SSH SSH (v1, v2).
SMS SMS status, configuration, send/read SMS via HTTP POST/GET.
Call Reboot, status, mobile data on/off, output on/off, answer/hang-up with timer, Wi-Fi on/off.
TR-069 Compatible with OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, AVSystem.
MQTT MQTT Broker, MQTT Publisher.
SNMP SNMP (v1, v2, v3), SNMP Trap, brute force protection.
JSON-RPC Management API over HTTP/HTTPS.
RMS Teltonika Remote Management System.


IoT Platform Integration

Platform Details
Cloud of Things Monitoring device data, mobile data, network info, availability.
ThingWorx Monitoring WAN type, WAN IP, mobile operator, signal strength, network type.
Cumulocity Monitor device model, revision, serial number, WAN type, IP, signal strength, reboot and firmware upgrades.
Azure IoT Hub Supports "Data to Server," direct method execution, Plug and Play integration for zero-touch provisioning.
AWS IoT Core Interaction with AWS Cloud Platform. Supports Jobs API calls via AWS Jobs functionality.


System Characteristics

Component Details
CPU Qualcomm MIPS 24kc, 650 MHz.
RAM 128 MB, DDR2.
FLASH Storage 16 MB, SPI Flash.


Firmware and ConfigurationĀ

Feature Details
WEB UI Update FW from file or server, configuration profiles, backup.
FOTA Update FW.
RMS Update FW/configuration for multiple devices.
Keep Settings Update FW without losing current configuration.
Factory Settings Reset Restores all system settings, including IP address, PIN, and user data to defaults.


Firmware Customization

Feature Details
Operating System RutOS (OpenWrt-based Linux OS).
Supported Languages Busybox shell, Lua, C, C++.
Development Tools SDK package with build environment provided.
GPL Customization Create custom branded firmware and web applications by modifying colors, logos, and other elements.

Ā

Input / Output

Feature Details
Input 1 x Digital Input: 0ā€“6 V detected as logic low; 8ā€“30 V detected as logic high.
Output 1 x Digital Output: Open collector, max output 30 V, 300 mA.
Events Trigger options: Email, RMS, SMS.
I/O Juggler Configurable I/O conditions to initiate specific events.


Power

Feature Details
Connector 4-pin industrial DC power socket.
Input Voltage Range 9ā€“30 VDC, reverse polarity protection, surge protection >31 VDC 10 Āµs max.
Power Consumption 10.5 W max.


Physical Interfaces

Interface Details
Ethernet 2 x RJ45 ports, 10/100 Mbps.
I/O's 1 x Digital Input, 1 x Digital Output on 4-pin power connector.
Status LEDs 2 x Mobile connection type, 3 x Mobile signal strength, 2 x Ethernet status, 1 x Power.
SIM 1 x Mini SIM slot (2FF), external SIM holder, supports 1.8 V/3 V.
Power 1 x 4-pin power connector.
Antennas 2 x SMA connectors for LTE, 2 x RP-SMA connectors for Wi-Fi.
Reset Reboot/User default reset/Factory reset button.

Ā

Physical Specifications

Specification Details
Casing Material Aluminium housing.
Dimensions 100 x 30 x 85 mm (W x H x D).
Weight 247 g.
Mounting Options DIN rail, wall mount, flat surface (additional kits required

Ā

Operating Environment

Feature Details
Operating Temperature -40 Ā°C to 75 Ā°C.
Operating Humidity 10% to 90% non-condensing.
Ingress Protection Rating IP30.

Ā

Regulatory & Type Approvals

Category Details
Regulatory CE, UKCA, UCRF, ANRT, ICASA, FCC, IC, PTCRB, RCM, NTC, CB.
Operator Certified for AT&T, Verizon, T-Mobile, and U.S. Cellular.


EMC Emissions & Immunity

Standard Details
Emissions EN 55032:2015 + A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A1:2019.
Immunity EN 55035:2017.
Specific EMC Standards EN 301 489-1:V2.2.3, EN 301 489-17:V3.2.4, Draft EN 301 489-52:V1.1.0.
ESD EN 61000-4-2:2009.
Radiated Immunity EN IEC 61000-4-3:2006 + A1:2008 + A2:2010.
EFT EN 61000-4-4:2012.
Surge Immunity (AC Mains) EN 61000-4-5:2014 + A1:2017.
Conducted Susceptibility (CS) EN 61000-4-6:2014.
DIP EN 61000-4-11:2004 + A1:2017.

Ā

RF Standards

Standard Details
Standards EN 300 328 V2.2.2, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1.


Safety Standards

Standard Details
CE EN IEC 62368-1:2020 + A11:2020.
RCM AS/NZS 62368.1:2018.
CB IEC 62368-1:2018.

Ā

Downloads

Manual & Documentation


Links

FAQ
What are the network capabilities of this router?
The device supports 4G LTE Cat 6 up to 300 Mbps down and 50 Mbps up, with 3G fallback up to 42 Mbps down and 5.76 Mbps up.
What is included in the standard package?
The standard package includes the RUT360 router, an 18 W power supply, 2x mobile antennas, 2x wifi antennas, a 1.5 m ethernet cable, SIM adapter kit, Quick Start Guide and RMS flyer; contents may vary by order code.
When will this product be discontinued and what is the replacement?
End of ordering is 2024-09-13, end of production is 2025-03-13 and end of support is 2030-06-13. The replacement is the RUT361.
What ethernet ports and power specifications does it have?
It has 2 x Ethernet ports (WAN and LAN), a mini SIM slot, and a 9 to 30 VDC power input with reverse polarity and surge protection. Power consumption is up to 10.5 W.
How can I configure and manage the router?
Configuration and monitoring are available via WEB UI and CLI, with firmware updates from server, and remote management via RMS; it also supports a range of security and networking features.
Reviews
Forum
A
Admin
Welcome to the discussion thread for RUT360 - LTE Cat6 Industrial Cellular Router
Feel free to ask questions, share tips or report issues.
Similar Products

Discover More In:

Industrial IoT ā†’ Network Accessories ā†’ Teltonika Networks | Official Page ā†’

Category: View similar items (RUT360)

Bulk Order

Fill out the form below and our team will get back to you with bulk pricing.

Custom Requirements?

Meet with our team

Related products

Related products

0106-14

Waldom Electonics

0106-14

ā‚¹ 2,623.53
