Best seller

Teltonika Networks

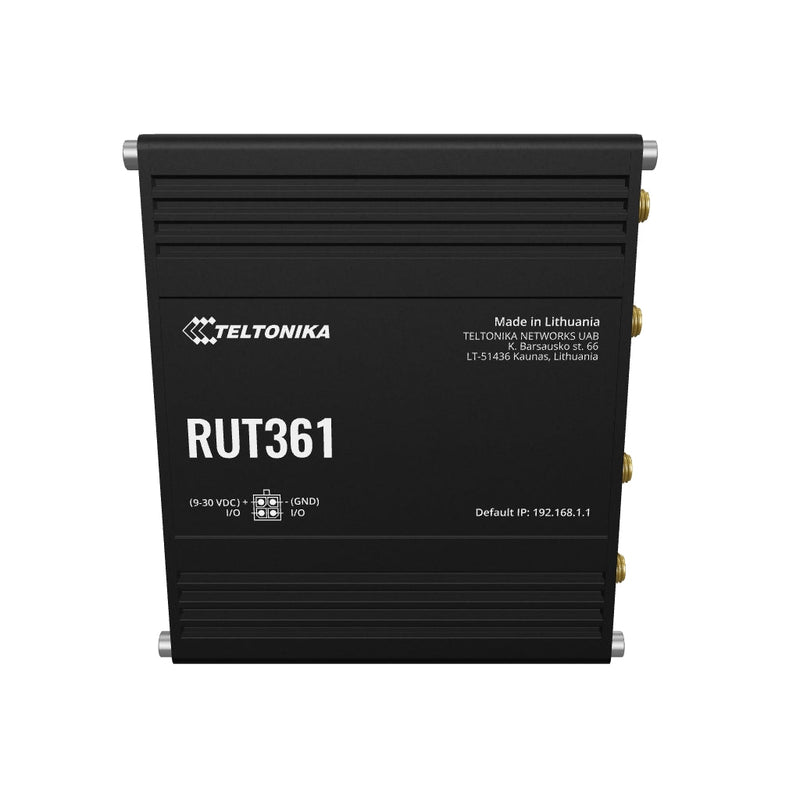

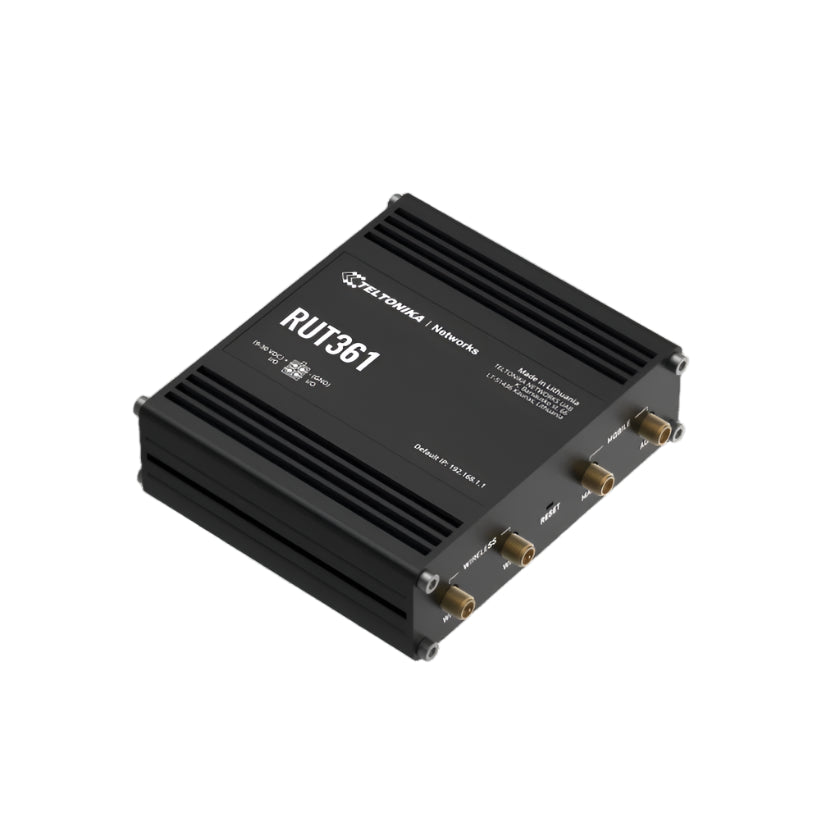

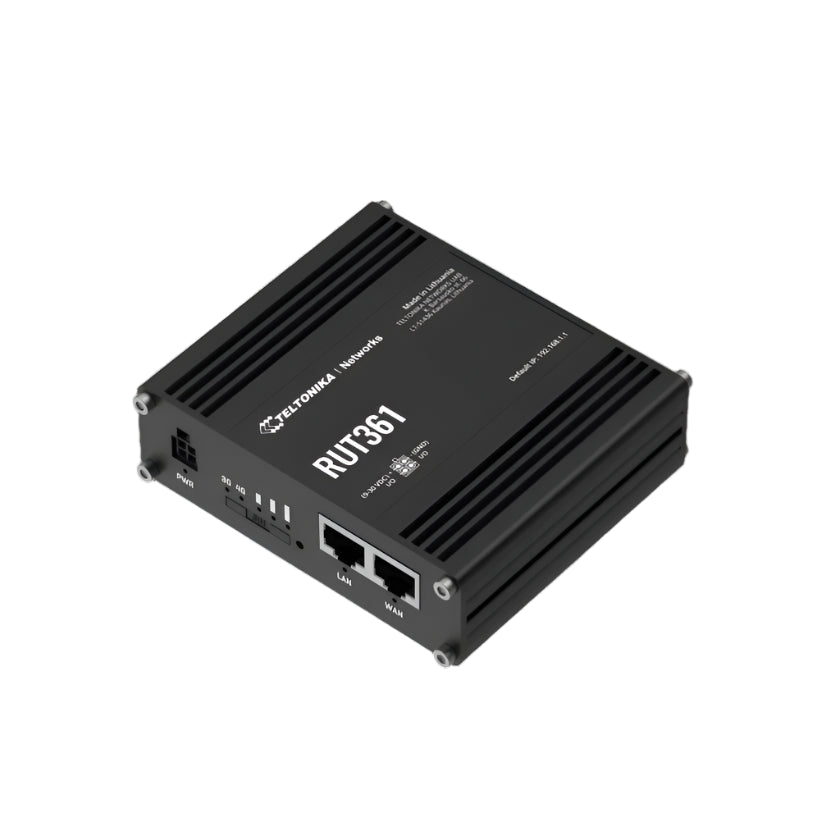

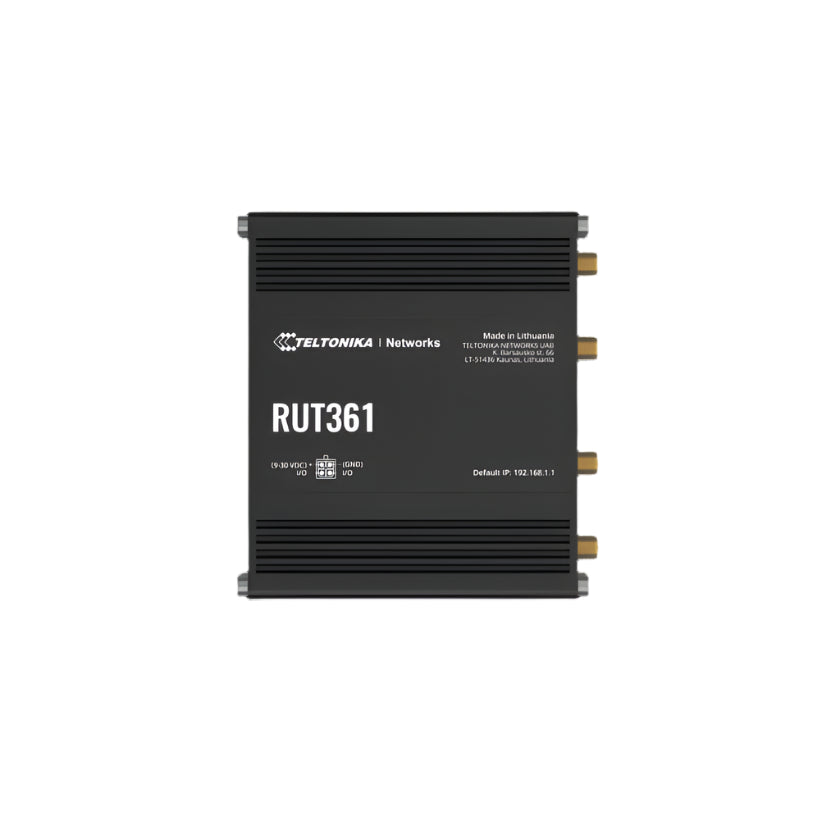

RUT361 - Industrial Cellular Router

SKU: ELC8717

₹ 33,599.99 ~~₹ 49,199.99~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

RUT361 - Industrial Cellular Router₹ 33,599.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Description

The RUT361 is a robust cellular router with speeds of up to 300 Mbps with carrier aggregation, vital for IoT solutions demanding uninterrupted networks in challenging environments. Remote monitoring, advanced security features, and WAN failover make this LTE Cat 6 router feature-rich, and two Wi-Fi antennas ensure greater device applicability in diverse M2M applications.

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Feature	Details
Mobile Module	4G LTE Cat 6 (up to 300 DL / 50 UL Mbps), 3G (up to 42 DL / 5.76 UL Mbps)
3GPP Release	Release 12
Status	IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI, SINR, RSRP, RSRQ, etc.)
SMS	SMS status, configuration, send/read SMS via HTTP POST/GET, email to SMS, SMS to email, scheduled SMS, autoreply, SMPP
USSD	Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List	Operator black/white list (by country or individual operators)
Multiple PDN	Support for different PDNs for multiple network access and services
Band Management	Band lock and used band status display
SIM PIN Code Management	Allows setting, changing, or disabling the SIM card's PIN
APN	Auto APN
Bridge	Direct connection between mobile ISP and device on LAN
Passthrough	Router assigns its mobile WAN IP address to another device on LAN

Wireless

Feature	Details
Wireless Mode	802.11b/g/n (Wi-Fi 4), 2x2 MIMO, Access Point (AP), Station (STA)
Wi-Fi Security	WPA2-Enterprise, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames
SSID/ESSID	ESSID stealth mode
Wi-Fi Users	Up to 50 simultaneous connections
Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter	Allowlist, blocklist
Wireless QR Code Generator	Users connect to the network automatically upon scanning the QR code
TravelMate	Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

Feature	Details
WAN	1 x WAN port (10/100 Mbps), compliance with IEEE 802.3, 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN	1 x LAN port (10/100 Mbps), compliance with IEEE 802.3, 802.3u, 802.3az standards, supports auto MDI/MDIX

Network

Feature	Details
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
VoIP Passthrough Support	H.323 and SIP-alg protocol NAT helpers
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forwarding, traffic rules, custom rules, TTL target customization
Firewall Status Page	View all firewall statistics, rules, and rule counters
Ports Management	Enable/disable ports, auto-configuration, transmission speed customization
Network Topology	Visual representation of the network, showing connected devices
DHCP	Static/dynamic IP allocation, DHCP relay, server configuration, static leases (MAC with wildcards)
QoS / Smart Queue Management	Traffic prioritization by source/destination, service, protocol, port, WMM, 802.11e
DDNS	Supports >25 service providers, custom configurations available
DNS over HTTPS	Secure DNS resolution via HTTPS
Network Backup	VRRP, wired options, Wi-Fi WAN, mobile failover
Load Balancing	Balance traffic over multiple WAN connections
Hotspot	Captive portal, RADIUS server, SSO authentication, walled garden, user groups, customizable themes, user management
SSHFS	Mount remote file system via SSH protocol
Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history

Security

Feature	Details
Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, internal & external RADIUS users authentication, IP & login attempt blocking, time-based login blocking, built-in random password generator
Firewall	Preconfigured rules enabled via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention	DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN	Port and tag-based VLAN separation
Mobile Quota Control	Mobile data limit, customizable period, start time, warning limit, phone number
WEB Filter	Blacklist for blocking unwanted websites, whitelist for specifying allowed sites
Access Control	Flexible control of SSH, Web interface, CLI, and Telnet access
SSL Certificate Generation	Let's Encrypt and SCEP certificate generation
802.1x	Port-based network access control server

VPN

Feature	Details
OpenVPN	Multiple clients and server instances, 27 encryption methods
OpenVPN Encryption	DES-CBC, RC2-CBC, BF-CBC, AES (128, 192, 256-bit variants), AES-GCM, and other encryption methods
IPsec	XFRM, IKEv1, IKEv2 with multiple encryption methods (e.g., AES128, AES256, AES-GCM)
GRE	GRE tunnel, GRE tunnel over IPsec support
PPTP / L2TP	Client/Server instances, L2TPv3, L2TP over IPsec support
Stunnel	Adds TLS encryption to existing clients and servers
DMVPN	Scalable IPsec VPNs, Phase 2/3, Dual Hub support
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN client support
WireGuard	WireGuard VPN client and server support
Tinc	Encryption, authentication, and compression with client and server support
Tailscale	Encrypted point-to-point connections using the WireGuard protocol

OPC UA

Feature	Details
Supported Modes	Client, Server
Connection Types	TCP

MODBUS

Feature	Details
Supported Modes	Server, Client
Connection Types	TCP
Custom Registers	MODBUS TCP custom register block requests that read/write to a file inside the router, extending MODBUS TCP Client functionality
Supported Data Formats	8-bit (INT, UINT), 16-bit (INT, UINT - MSB/LSB first), 32-bit (float, INT, UINT - big-endian, little-endian, etc.), HEX, ASCII

Data to Server

Feature	Details
Protocol	HTTP(S), MQTT, Azure MQTT
Data to Server	Extract parameters from multiple sources and protocols, send to a single server; Custom LUA scripting for enhanced functionality

MQTT Gateway

Feature	Details
Modbus MQTT Gateway	Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Feature	Details
Supported Modes	Station, Outstation
Connection	TCP

DLMS

Feature	Details
DLMS Support	DLMS - standard protocol for utility meter data exchange
Supported Modes	Client
Supported Connection Types	TCP

API

Feature	Details
Teltonika Networks Web API	Expand device possibilities using configurable API endpoints for retrieving/changing data. More info: https://developers.teltonika-networks.com

Monitoring & Management

Feature	Details
WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update notifications, event/system/kernel log, Internet status
FOTA	Firmware update from server, automatic notification
SSH	SSH (v1, v2)
SMS	SMS status, configuration, send/read SMS via HTTP POST/GET
Call	Reboot, status, mobile data on/off, output on/off, answer/hang-up with timer, Wi-Fi on/off
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
SNMP	SNMP (v1, v2, v3), SNMP Trap, brute force protection
JSON-RPC	Management API over HTTP/HTTPS
MODBUS	MODBUS TCP status/control
RMS	Teltonika Remote Management System (RMS)

IoT Platforms

Feature	Details
ThingWorx	Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things	Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Includes reboot and firmware upgrade actions
Azure IoT Hub	Configurable with Data to Server to send parameters to the cloud. Direct method support enables execution of RutOS API calls. Plug and Play integration with Device Provisioning Service allows zero-touch device provisioning.
AWS IoT Core	Utility for interacting with AWS cloud platform. Includes Jobs support for calling the device's API using AWS Jobs functionality

System Characteristics

Feature	Details
CPU	Mediatek, 580 MHz, MIPS 24KEc
RAM	128 MB, DDR2
FLASH Storage	16 MB serial NOR flash

Firmware / Configuration

Feature	Details
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA	Update FW
RMS	Update FW/configuration for multiple devices at once
Keep Settings	Update FW without losing current configuration
Factory Settings Reset	Restores all system settings, including IP address, PIN, and user data to default manufacturer's configuration

Firmware Customization

Feature	Details
Operating System	RutOS (OpenWrt based Linux OS)
Supported Languages	Busybox shell, Lua, C, C++
Development Tools	SDK package with build environment provided
GPL Customization	Create custom, branded firmware and web application by changing colors, logos, and other elements
Package Manager	Service for installing additional software on the device

Input / Output

Feature	Details
Input	Up to 2 configurable digital Inputs (0-6 V: logic low, 8-30 V: logic high)
Output	Up to 2 configurable digital Outputs (30 V, 300 mA max)
Events	Email, RMS, SMS
I/O Juggler	Enables specific I/O conditions to initiate events

Power

Feature	Details
Connector	4-pin industrial DC power socket
Input Voltage Range	9-30 VDC, reverse polarity and voltage surge/transient protection
PoE (Passive)	Optional; requires different hardware (contact sales manager)
Power Consumption	Idle: <2.4 W, Max: <4.7 W

Physical Interfaces

Feature	Details

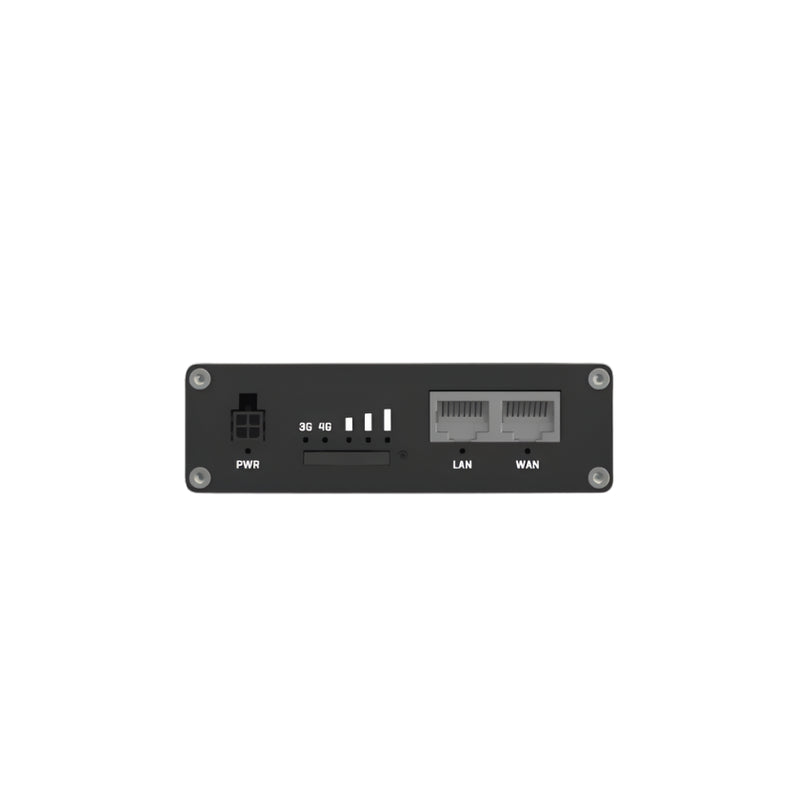

Ethernet	2 x RJ45 ports, 10/100 Mbps
I/O	2 x Configurable I/O pins on a 4-pin power connector
Status LEDs	Mobile connection type/strength, Ethernet status, power indicators
SIM	1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder
Power	1 x 4-pin power connector

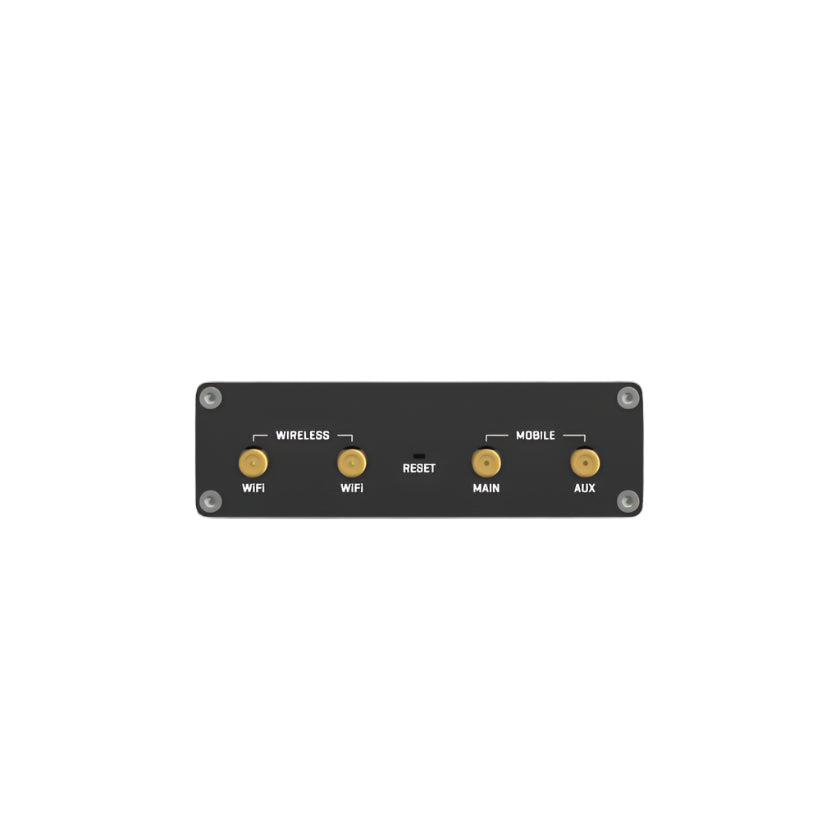

Antennas	2 x SMA for LTE, 2 x RP-SMA for Wi-Fi
Reset	Reboot/User default reset/Factory reset button

Physical Specification

Feature	Details
Casing Material	Aluminium housing
Dimensions	100 x 30 x 85 mm
Weight	243 g
Mounting Options	DIN rail, wall mount, flat surface (additional kit required)

Operating Environment

Feature	Details
Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non-condensing
Ingress Protection	IP30

Regulatory & Type Approvals

Feature	Details
Regulatory	CE, UKCA, FCC, IC, RCM, CB, WEEE, RoHS, REACH

EMC Emissions & Immunity

Feature	Standards
General Standards	EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020
Power Standards	EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021
EMC Standards	EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-52 V1.2.1
ESD	EN 61000-4-2:2009
Radiated Immunity	EN IEC 61000-4-3:2020
EFT	EN 61000-4-4:2012
Surge Immunity	EN 61000-4-5:2014 + A1:2017
Conducted Susceptibility (CS)	EN 61000-4-6:2014
DIP	EN IEC 61000-4-11:2020

RF

Feature	Standards
RF Standards	EN 300 328 V2.2.2, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1

Safety

Feature	Standards
CE Standards	EN 62368-1:2014 + A11:2017, EN IEC 62232:2017, EN 50385:2017
RCM Standards	AS/NZS 62368.1:2018
CB Standards	IEC 62368-1:2018

Safety

Feature	Standards
CE Standards	EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017
RCM Standards	AS/NZS 62368.1:2022
CB Standards	IEC 62368-1:2018

Downloads

Manual & Documentation

RUT361 FLYER (EN)

RUT361 DATASHEET (EN)

Links

RUT361 QUICK START GUIDE (EN)

FIRMWARE DOWNLOADS

RUT361 USER MANUAL

CERTIFICATIONS & APPROVALS

PRODUCT CHANGE NOTIFICATIONS

SDK DOWNLOADS

GPL DOWNLOADS

RUT361 3D MODELS

What network speeds does the device support?

The router supports 4G LTE Cat 6 with up to 300 Mbps down and 50 Mbps up, with carrier aggregation. It also supports 3G speeds up to 42 Mbps down and 5.76 Mbps up.

What ports and wireless options are available?

It has 1 WAN port and 1 LAN port, both 10/100 Mbps, plus 2x LTE antennas and 2x Wi-Fi antennas. It supports 802.11b/g/n Wi-Fi with 2x2 MIMO and AP or STA modes.

What security features are included?

The router includes preconfigured firewall rules, NAT, DMZ, and VPN options such as OpenVPN and IPsec. It also supports SSL certificate generation via Lets Encrypt and SCEP.

How can I manage and update the device firmware?

Management is via a web UI with status and configuration options. Firmware updates can be performed from a server or via FOTA, and RMS can update firmware and configuration for multiple devices.

What are the environment and mounting options?

It operates from minus 40 to 75 degrees C and has an IP30 rating. It has an aluminium housing and can be mounted on a DIN rail, wall, or flat surface with an additional kit.

A

Admin

Welcome to the discussion thread for RUT361 - Industrial Cellular Router
Feel free to ask questions, share tips or report issues.

Discover More In:

Industrial IoT → Network Accessories → Teltonika Networks | Official Page →

Category: View similar items (RUT361)

PUSR

Ethernet Switch/Industrial - USR-ISG1005/1008

₹ 3,649.99

PUSR

Ethernet Switch/Industrial - USR-ISF1005/1008

₹ 2,349.99

PUSR

Serial to Ethernet - USR-TCP232-306

₹ 2,349.99

PUSR

Ethernet Switch/Business - USR-SG1005

₹ 1,549.99

Fill out the form below and our team will get back to you with bulk pricing.

Description

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Description

The RUT361 is a robust cellular router with speeds of up to 300 Mbps with carrier aggregation, vital for IoT solutions demanding uninterrupted networks in challenging environments. Remote monitoring, advanced security features, and WAN failover make this LTE Cat 6 router feature-rich, and two Wi-Fi antennas ensure greater device applicability in diverse M2M applications.

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Feature	Details
Mobile Module	4G LTE Cat 6 (up to 300 DL / 50 UL Mbps), 3G (up to 42 DL / 5.76 UL Mbps)
3GPP Release	Release 12
Status	IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI, SINR, RSRP, RSRQ, etc.)
SMS	SMS status, configuration, send/read SMS via HTTP POST/GET, email to SMS, SMS to email, scheduled SMS, autoreply, SMPP
USSD	Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List	Operator black/white list (by country or individual operators)
Multiple PDN	Support for different PDNs for multiple network access and services
Band Management	Band lock and used band status display
SIM PIN Code Management	Allows setting, changing, or disabling the SIM card's PIN
APN	Auto APN
Bridge	Direct connection between mobile ISP and device on LAN
Passthrough	Router assigns its mobile WAN IP address to another device on LAN

Wireless

Feature	Details
Wireless Mode	802.11b/g/n (Wi-Fi 4), 2x2 MIMO, Access Point (AP), Station (STA)
Wi-Fi Security	WPA2-Enterprise, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames
SSID/ESSID	ESSID stealth mode
Wi-Fi Users	Up to 50 simultaneous connections
Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter	Allowlist, blocklist
Wireless QR Code Generator	Users connect to the network automatically upon scanning the QR code
TravelMate	Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

Feature	Details
WAN	1 x WAN port (10/100 Mbps), compliance with IEEE 802.3, 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN	1 x LAN port (10/100 Mbps), compliance with IEEE 802.3, 802.3u, 802.3az standards, supports auto MDI/MDIX

Network

Feature	Details
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
VoIP Passthrough Support	H.323 and SIP-alg protocol NAT helpers
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forwarding, traffic rules, custom rules, TTL target customization
Firewall Status Page	View all firewall statistics, rules, and rule counters
Ports Management	Enable/disable ports, auto-configuration, transmission speed customization
Network Topology	Visual representation of the network, showing connected devices
DHCP	Static/dynamic IP allocation, DHCP relay, server configuration, static leases (MAC with wildcards)
QoS / Smart Queue Management	Traffic prioritization by source/destination, service, protocol, port, WMM, 802.11e
DDNS	Supports >25 service providers, custom configurations available
DNS over HTTPS	Secure DNS resolution via HTTPS
Network Backup	VRRP, wired options, Wi-Fi WAN, mobile failover
Load Balancing	Balance traffic over multiple WAN connections
Hotspot	Captive portal, RADIUS server, SSO authentication, walled garden, user groups, customizable themes, user management
SSHFS	Mount remote file system via SSH protocol
Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history

Security

Feature	Details
Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, internal & external RADIUS users authentication, IP & login attempt blocking, time-based login blocking, built-in random password generator
Firewall	Preconfigured rules enabled via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention	DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN	Port and tag-based VLAN separation
Mobile Quota Control	Mobile data limit, customizable period, start time, warning limit, phone number
WEB Filter	Blacklist for blocking unwanted websites, whitelist for specifying allowed sites
Access Control	Flexible control of SSH, Web interface, CLI, and Telnet access
SSL Certificate Generation	Let's Encrypt and SCEP certificate generation
802.1x	Port-based network access control server

VPN

Feature	Details
OpenVPN	Multiple clients and server instances, 27 encryption methods
OpenVPN Encryption	DES-CBC, RC2-CBC, BF-CBC, AES (128, 192, 256-bit variants), AES-GCM, and other encryption methods
IPsec	XFRM, IKEv1, IKEv2 with multiple encryption methods (e.g., AES128, AES256, AES-GCM)
GRE	GRE tunnel, GRE tunnel over IPsec support
PPTP / L2TP	Client/Server instances, L2TPv3, L2TP over IPsec support
Stunnel	Adds TLS encryption to existing clients and servers
DMVPN	Scalable IPsec VPNs, Phase 2/3, Dual Hub support
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN client support
WireGuard	WireGuard VPN client and server support
Tinc	Encryption, authentication, and compression with client and server support
Tailscale	Encrypted point-to-point connections using the WireGuard protocol

OPC UA

Feature	Details
Supported Modes	Client, Server
Connection Types	TCP

MODBUS

Feature	Details
Supported Modes	Server, Client
Connection Types	TCP
Custom Registers	MODBUS TCP custom register block requests that read/write to a file inside the router, extending MODBUS TCP Client functionality
Supported Data Formats	8-bit (INT, UINT), 16-bit (INT, UINT - MSB/LSB first), 32-bit (float, INT, UINT - big-endian, little-endian, etc.), HEX, ASCII

Data to Server

Feature	Details
Protocol	HTTP(S), MQTT, Azure MQTT
Data to Server	Extract parameters from multiple sources and protocols, send to a single server; Custom LUA scripting for enhanced functionality

MQTT Gateway

Feature	Details
Modbus MQTT Gateway	Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Feature	Details
Supported Modes	Station, Outstation
Connection	TCP

DLMS

Feature	Details
DLMS Support	DLMS - standard protocol for utility meter data exchange
Supported Modes	Client
Supported Connection Types	TCP

API

Feature	Details
Teltonika Networks Web API	Expand device possibilities using configurable API endpoints for retrieving/changing data. More info: https://developers.teltonika-networks.com

Monitoring & Management

Feature	Details
WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update notifications, event/system/kernel log, Internet status
FOTA	Firmware update from server, automatic notification
SSH	SSH (v1, v2)
SMS	SMS status, configuration, send/read SMS via HTTP POST/GET
Call	Reboot, status, mobile data on/off, output on/off, answer/hang-up with timer, Wi-Fi on/off
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
SNMP	SNMP (v1, v2, v3), SNMP Trap, brute force protection
JSON-RPC	Management API over HTTP/HTTPS
MODBUS	MODBUS TCP status/control
RMS	Teltonika Remote Management System (RMS)

IoT Platforms

Feature	Details
ThingWorx	Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things	Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Includes reboot and firmware upgrade actions
Azure IoT Hub	Configurable with Data to Server to send parameters to the cloud. Direct method support enables execution of RutOS API calls. Plug and Play integration with Device Provisioning Service allows zero-touch device provisioning.
AWS IoT Core	Utility for interacting with AWS cloud platform. Includes Jobs support for calling the device's API using AWS Jobs functionality

System Characteristics

Feature	Details
CPU	Mediatek, 580 MHz, MIPS 24KEc
RAM	128 MB, DDR2
FLASH Storage	16 MB serial NOR flash

Firmware / Configuration

Feature	Details
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA	Update FW
RMS	Update FW/configuration for multiple devices at once
Keep Settings	Update FW without losing current configuration
Factory Settings Reset	Restores all system settings, including IP address, PIN, and user data to default manufacturer's configuration

Firmware Customization

Feature	Details
Operating System	RutOS (OpenWrt based Linux OS)
Supported Languages	Busybox shell, Lua, C, C++
Development Tools	SDK package with build environment provided
GPL Customization	Create custom, branded firmware and web application by changing colors, logos, and other elements
Package Manager	Service for installing additional software on the device

Input / Output

Feature	Details
Input	Up to 2 configurable digital Inputs (0-6 V: logic low, 8-30 V: logic high)
Output	Up to 2 configurable digital Outputs (30 V, 300 mA max)
Events	Email, RMS, SMS
I/O Juggler	Enables specific I/O conditions to initiate events

Power

Feature	Details
Connector	4-pin industrial DC power socket
Input Voltage Range	9-30 VDC, reverse polarity and voltage surge/transient protection
PoE (Passive)	Optional; requires different hardware (contact sales manager)
Power Consumption	Idle: <2.4 W, Max: <4.7 W

Physical Interfaces

Feature	Details
Ethernet	2 x RJ45 ports, 10/100 Mbps
I/O	2 x Configurable I/O pins on a 4-pin power connector
Status LEDs	Mobile connection type/strength, Ethernet status, power indicators
SIM	1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder
Power	1 x 4-pin power connector
Antennas	2 x SMA for LTE, 2 x RP-SMA for Wi-Fi
Reset	Reboot/User default reset/Factory reset button

Physical Specification

Feature	Details
Casing Material	Aluminium housing
Dimensions	100 x 30 x 85 mm
Weight	243 g
Mounting Options	DIN rail, wall mount, flat surface (additional kit required)

Operating Environment

Feature	Details
Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non-condensing
Ingress Protection	IP30

Regulatory & Type Approvals

Feature	Details
Regulatory	CE, UKCA, FCC, IC, RCM, CB, WEEE, RoHS, REACH

EMC Emissions & Immunity

Feature	Standards
General Standards	EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020
Power Standards	EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021
EMC Standards	EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-52 V1.2.1
ESD	EN 61000-4-2:2009
Radiated Immunity	EN IEC 61000-4-3:2020
EFT	EN 61000-4-4:2012
Surge Immunity	EN 61000-4-5:2014 + A1:2017
Conducted Susceptibility (CS)	EN 61000-4-6:2014
DIP	EN IEC 61000-4-11:2020

RF

Feature	Standards
RF Standards	EN 300 328 V2.2.2, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1

Safety

Feature	Standards
CE Standards	EN 62368-1:2014 + A11:2017, EN IEC 62232:2017, EN 50385:2017
RCM Standards	AS/NZS 62368.1:2018
CB Standards	IEC 62368-1:2018

Safety

Feature	Standards
CE Standards	EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017
RCM Standards	AS/NZS 62368.1:2022
CB Standards	IEC 62368-1:2018

Downloads

Manual & Documentation

RUT361 FLYER (EN)

RUT361 DATASHEET (EN)

Links

RUT361 QUICK START GUIDE (EN)

FIRMWARE DOWNLOADS

RUT361 USER MANUAL

CERTIFICATIONS & APPROVALS

PRODUCT CHANGE NOTIFICATIONS

SDK DOWNLOADS

GPL DOWNLOADS

RUT361 3D MODELS

FAQ

What network speeds does the device support?

The router supports 4G LTE Cat 6 with up to 300 Mbps down and 50 Mbps up, with carrier aggregation. It also supports 3G speeds up to 42 Mbps down and 5.76 Mbps up.

What ports and wireless options are available?

It has 1 WAN port and 1 LAN port, both 10/100 Mbps, plus 2x LTE antennas and 2x Wi-Fi antennas. It supports 802.11b/g/n Wi-Fi with 2x2 MIMO and AP or STA modes.

What security features are included?

The router includes preconfigured firewall rules, NAT, DMZ, and VPN options such as OpenVPN and IPsec. It also supports SSL certificate generation via Lets Encrypt and SCEP.

How can I manage and update the device firmware?

Management is via a web UI with status and configuration options. Firmware updates can be performed from a server or via FOTA, and RMS can update firmware and configuration for multiple devices.

What are the environment and mounting options?

It operates from minus 40 to 75 degrees C and has an IP30 rating. It has an aluminium housing and can be mounted on a DIN rail, wall, or flat surface with an additional kit.

Reviews
