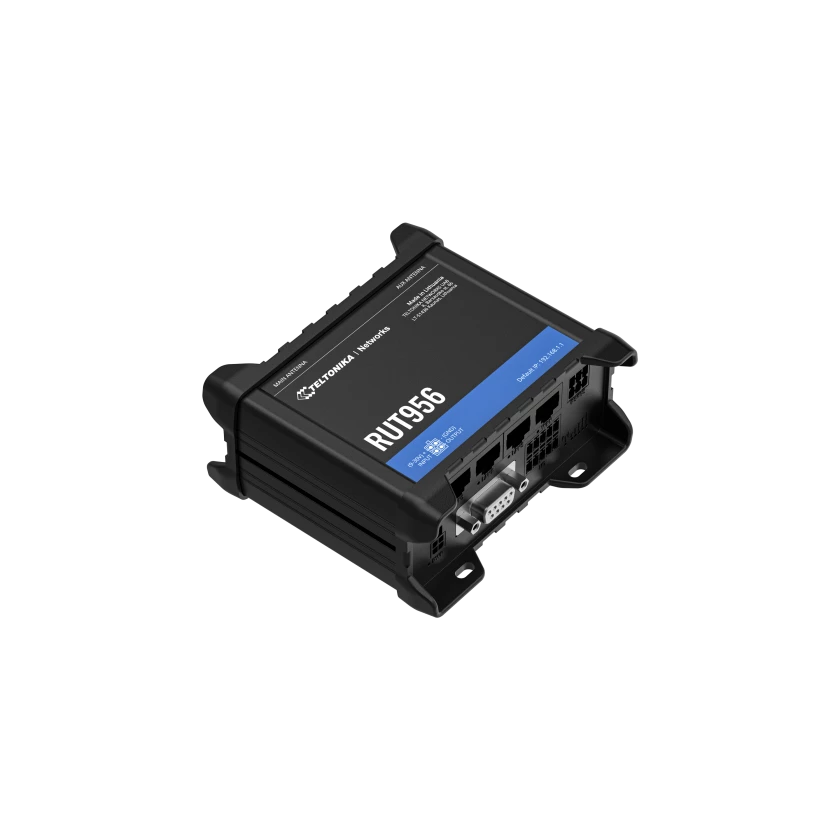

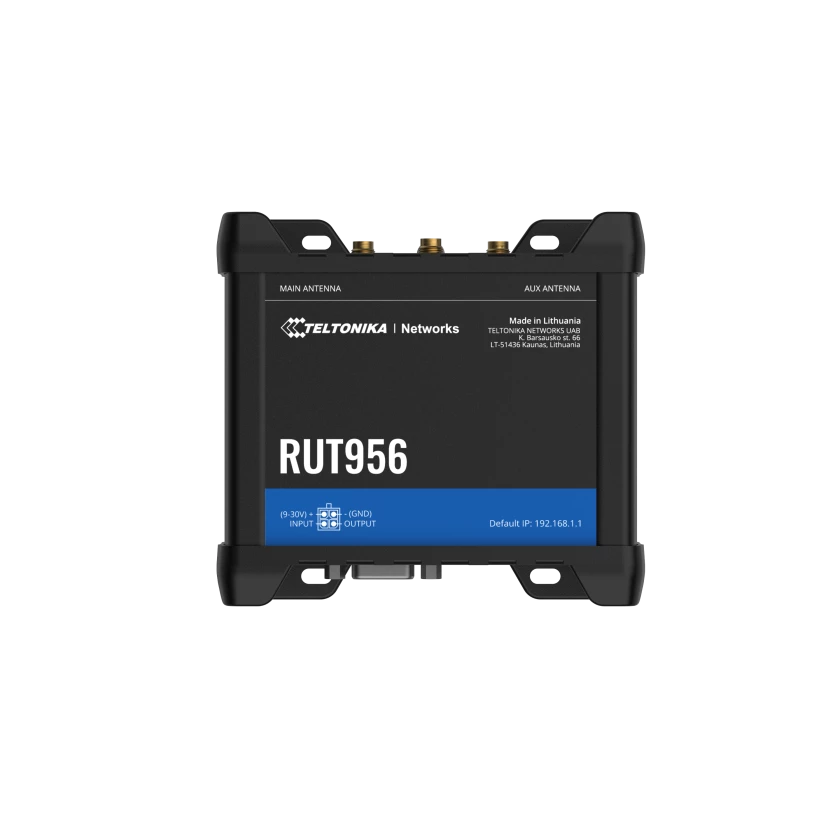

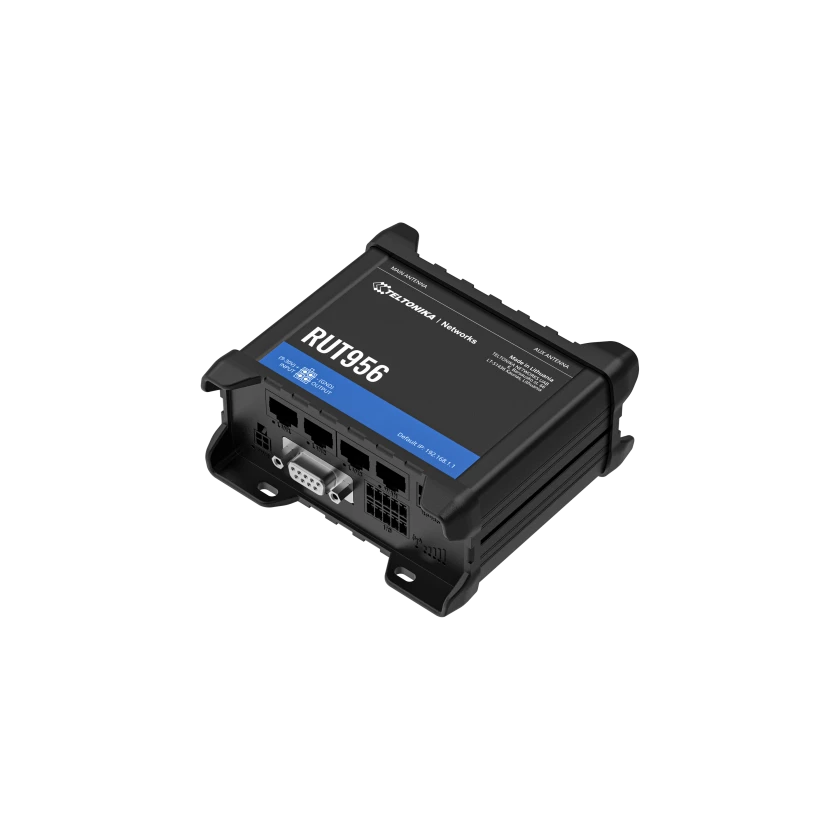

RUT956 - Industrial Cellular Router

SKU: ELC8720

ā‚¹ 38,549.99 ā‚¹ 56,499.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ā± This is a pre-order item. We'll ship it as soon as it's back in stock.
RUT956 - Industrial Cellular Routerā‚¹ 38,549.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.Ā

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Category Details
Mobile Module 4G LTE Cat 4 (150 DL / 50 UL Mbps); 3G (21 DL / 5.76 UL Mbps); 2G (236.8 DL / 236.8 UL kbps)
3GPP Release Release 11
SIM Switch 2 SIM cards; Auto-switch based on: weak signal, data/SMS limit, roaming, no network, network denied, etc.
Status IMSI, ICCID, operator, state, data connection, network type, bandwidth, signal strength (RSSI, SINR, etc.)
SMS Status, configuration, send/read via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL/HTTP/SMS, autoreply, scheduling
USSD Send and read Unstructured Supplementary Service Data messages
Black/White List Operator black/white list by country or separate operators
Multiple PDN Use different PDNs for multiple network access and services
Band Management Band lock, display used band status
SIM PIN Code Management Set, change, or disable SIM card PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN

Ā

Wireless

Category Details
Wireless Mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi Security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates
SSID/ESSID SSID stealth mode and access control based on MAC address
Wi-Fi Users Up to 100 simultaneous connections
Wireless Connectivity Features Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter Allowlist, blocklist
Wireless QR Code Generator Scans allow users to join the network automatically without inputting login information
TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device


Network

Category Details
Hotspot Captive portal, internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, group/user limitations, customizable themes, user management
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL), VXLAN
VoIP Passthrough Support H.323 and SIP-alg protocol NAT helpers for proper VoIP packet routing
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customization
DHCP Static/dynamic IP allocation, DHCP relay, server configuration, status, static leases with MAC wildcards
QoS / SQM Traffic prioritization by source/destination, service, protocol, or port; WMM, 802.11e
DDNS Supports >25 service providers; manual configuration available
DNS over HTTPS Secure DNS resolution via DNS over HTTPS proxy
Network Backup Wi-Fi WAN, Mobile, VRRP, Wired options with automatic Failover
Load Balancing Distributes Internet traffic over multiple WAN connections
SSHFS Enables mounting of remote file systems via SSH protocol
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history
Port Mirroring Mirrors network traffic on Ethernet ports for monitoring and analysis

Ā

Ethernet

Category Details
WAN 1 x WAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN 3 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Ā

Security

Category Details
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile Quota Control Mobile data limit, customizable period, start time, warning limit, phone number
WEB Filter Blacklist for blocking unwanted websites, Whitelist for specifying allowed sites only
Access Control Flexible access control for SSH, Web interface, CLI, and Telnet
SSL Certificate Generation Let's Encrypt and SCEP certificate generation methods

Ā

VPN

Category Details
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128/192/256 (CBC, CFB, CFB1, CFB8, OFB, GCM)
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128/192/256, AES-GCM with 8/12/16-byte tags)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without changes to the program code
DMVPN Scalable IPsec VPNs, supports Phase 2, Phase 3, and Dual Hub
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication, and compression in its tunnels. Client and server support.

Ā

BACNET

Category Details
Supported Modes Router
Supported Connection Types RS485, TCP
Configuration Options Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)

Ā

OPC UA

Category Details
Supported Modes Client, Server
Supported Connection Types TCP

Ā

MODBUS

Category Details
Supported Modes Server, Client
Supported Connection Types RTU (RS232, RS485), TCP, USB
Custom Registers MODBUS TCP custom register block requests, which read/write to a file inside the router, extending MODBUS TCP Client functionality
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Ā

DATA TO SERVER

Category Details
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
MQTT Gateway Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Category Details
Supported Modes Station, Outstation
Supported Connection Types RS232, RS485, TCP, USB

Ā

DLMS

Category Details
DLMS Support DLMS - standard protocol for utility meter data exchange
Supported Modes Client
Supported Connection Types RS232, RS485, TCP
COSEM Allows scanning meter COSEM objects for automatic detection and configuration

API

Category Details
API Teltonika Networks Web API (beta) support: Expand your device's possibilities by using configurable API endpoints to retrieve or change data. For more information, refer to documentation


Monitoring & Management

Category Details
WEB UI HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshoot, multiple event log servers, firmware update notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, status, mobile data on/off, output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)

IoT Platforms

Platform Details
ThingWorx Allows monitoring of WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Allows monitoring of Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Includes reboot and firmware upgrade actions
Azure IoT Hub Configured with Data to Server to send all available parameters to the cloud. Direct method support for RutOS API calls. Plug and Play integration with Device Provisioning Service for zero-touch provisioning
AWS IoT Core Utility for interaction with the AWS cloud platform. Jobs support for API calls using AWS Jobs functionality

Ā

System Characteristics

Category Details
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH Storage 16 MB, SPI Flash

Firmware / Configuration

Category Details
WEB UI Update firmware from file, check firmware on server, configuration profiles, configuration backup
FOTA Update firmware
RMS Update firmware/configuration for multiple devices at once
Keep Settings Update firmware without losing current configuration
Factory Settings Reset A full factory reset restores all system settings, including the IP address, PIN, and user data to default manufacturer's configuration

Ā

Firmware Customization

Category Details
Operating System RutOS (OpenWrt based Linux OS)
Supported Languages Busybox shell, Lua, C, C++
Development Tools SDK package with build environment provided
GPL Customization Create your own custom, branded firmware and web page applications by changing colours, logos, and other elements to fit your or your clients' needs
Package Manager The Package Manager is a service used to install additional software on the device

Location Tracking

Category Details
GNSS GPS, GLONASS, BeiDou, Galileo, and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server Software Supported server software: TAVL, RMS
Geofencing Configurable multiple geofence zones

Ā

Serial

Category Details
RS232 DB9 connector, RS232 (with RTS, CTS flow control)
RS485 RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate
Serial Functions Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

USB

Category Details
Data Rate USB 2.0
Applications Samba share, USB-to-serial
External Devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage Formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Ā

Input / Output

Category Details
Input 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x digital non-isolated input (0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
Output 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x digital open collector output (30 V, 300 mA, on 4-pin power connector)
Events Email, RMS, SMS
I/O Juggler Allows setting certain I/O conditions to initiate events

SD CARD

Category Details
Physical Size Micro SD (internal)
Applications Samba share, Storage Memory Expansion, DLNA
Capacity Up to 64 GB
Storage Formats FAT32, NTFS, ext2, ext3, ext4

Ā

Power

Category Details
Connector 4-pin industrial DC power socket
Input Voltage Range 9 ā€“ 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (Passive) Passive PoE over spare pairs. Powers up through LAN1 port, not compatible with IEEE802.3af, 802.3at, and 802.3bt standards, Mode B, 9 - 30 VDC
Power Consumption < 2 W idle, < 7 W Max

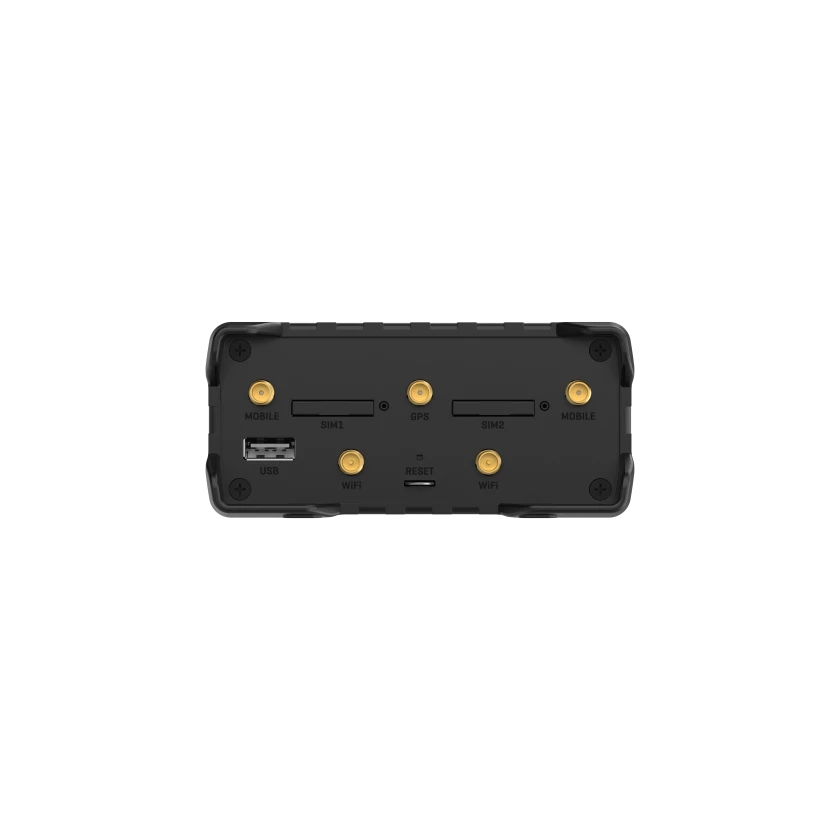

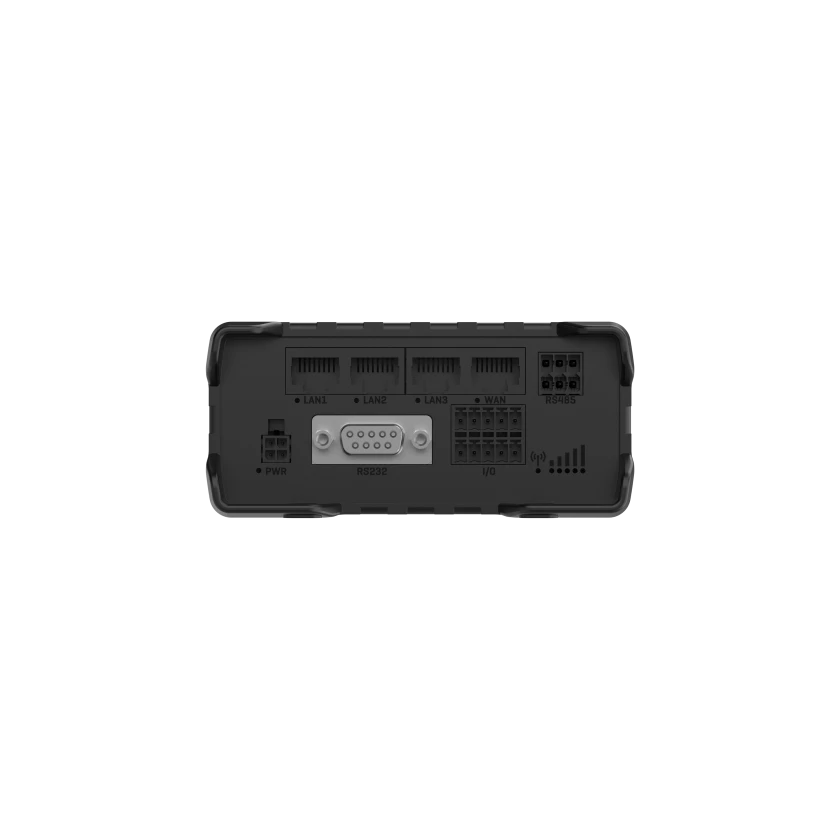

Physical Interfaces

Category Details
Ethernet 4 x RJ45 ports, 10/100 Mbps
I/Oā€™s 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)
Status LEDs 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)
Power 1 x 4-pin power connector
Input/Output 1 x 10-pin industrial socket for inputs/outputs
Antennas 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
RS232 1 x DB9 socket
RS485 1 x 6-pin industrial socket
Reset Reboot/User default reset/Factory reset button

Ā

Physical Specification

Category Details
Casing Material Aluminium housing, plastic panels
Dimensions (W x H x D) 110 x 50 x 100 mm
Weight 287 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Category Details
Operating Temperature -40 Ā°C to 75 Ā°C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Category Details
Regulatory CE, UKCA, ANRT, Kenya, CITC, ICASA, FCC, IC, PTCRB, Anatel, RCM, Giteki, IMDA, ECE R118, E-mark, UL/CSA Safety, CB, RoHS, REACH, NCC, C1D2
Operator AT&T, Verizon, T-Mobile

Ā

EMC Emissions & Immunity

Category Details
Standards EN 55032:2015 + A11:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-19 V2.1.1, EN 301 489-52 V1.2.1
ESD EN 61000-4-2:2009
Radiated Immunity EN 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2020

RF Standards

Category Details
Standards EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1, EN 303 413 V1.1.1

Safety (Ordinary Locations)

Category Details
Standards CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017, RCM: AS/NZS 62368.1:2022, CB: IEC 62368-1:2018, UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

Safety (Hazardous Locations)

Category Details
Standards UL/CSA Safety: UL 121201, 9th Ed., Rev. April 1, 2021, CAN/CSA C22.2 No. 213, 3rd Ed. April 2021
Hazardous Environments Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, Group IIC
Operating Temperature -40Ā°C ā‰¤ Ta ā‰¤ 75Ā°C, T4, IP30

Ā

Downloads

Manual & Documentation


Links

RUT956 QUICK START GUIDE (EN)
CERTIFICATIONS & APPROVALS
FIRMWARE DOWNLOADS
PRODUCT CHANGE NOTIFICATIONS
SDK DOWNLOADS
GPL DOWNLOADS
RUT956 3D MODELS
What connectivity options does the RUT956 provide?
It combines cellular, Wi Fi and wired Ethernet connectivity with automatic WAN failover and GNSS, and includes serial interfaces, I O and RutOS for equipment control and event notifications.
How many SIM cards are supported and how does SIM switching work?
The device has 2 SIM cards with auto switch based on conditions such as weak signal, roaming, data or SMS limits, and network availability.
What are the power and mounting options for this unit?
Power input is 9 30 V DC with reverse polarity and surge protection, and it supports Passive PoE over spare pairs. Mounting options include DIN rail, wall mount, or flat surface with an additional mounting kit.
What security and networking features are available?
It supports firewall rules, VPN options including OpenVPN and IPsec as well as GRE, SSTP and WireGuard, DNS over HTTPS, DHCP, NAT, VLAN and related routing features.
What are the operating environment and physical specifications?
Operating temperature is -40 C to 75 C and the unit has IP30 protection, an aluminium casing, dimensions 110 x 50 x 100 mm, and weight 287 g; mounting is available on DIN rail, wall or flat surface with the appropriate kit.
A
Admin
Welcome to the discussion thread for RUT956 - Industrial Cellular Router
Feel free to ask questions, share tips or report issues.

Discover More In:

Industrial IoT ā†’ Network Accessories ā†’ Teltonika Networks | Official Page ā†’

Category: View similar items (RUT956)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.Ā

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Category Details
Mobile Module 4G LTE Cat 4 (150 DL / 50 UL Mbps); 3G (21 DL / 5.76 UL Mbps); 2G (236.8 DL / 236.8 UL kbps)
3GPP Release Release 11
SIM Switch 2 SIM cards; Auto-switch based on: weak signal, data/SMS limit, roaming, no network, network denied, etc.
Status IMSI, ICCID, operator, state, data connection, network type, bandwidth, signal strength (RSSI, SINR, etc.)
SMS Status, configuration, send/read via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL/HTTP/SMS, autoreply, scheduling
USSD Send and read Unstructured Supplementary Service Data messages
Black/White List Operator black/white list by country or separate operators
Multiple PDN Use different PDNs for multiple network access and services
Band Management Band lock, display used band status
SIM PIN Code Management Set, change, or disable SIM card PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN

Ā

Wireless

Category Details
Wireless Mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi Security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates
SSID/ESSID SSID stealth mode and access control based on MAC address
Wi-Fi Users Up to 100 simultaneous connections
Wireless Connectivity Features Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter Allowlist, blocklist
Wireless QR Code Generator Scans allow users to join the network automatically without inputting login information
TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device


Network

Category Details
Hotspot Captive portal, internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, group/user limitations, customizable themes, user management
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL), VXLAN
VoIP Passthrough Support H.323 and SIP-alg protocol NAT helpers for proper VoIP packet routing
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customization
DHCP Static/dynamic IP allocation, DHCP relay, server configuration, status, static leases with MAC wildcards
QoS / SQM Traffic prioritization by source/destination, service, protocol, or port; WMM, 802.11e
DDNS Supports >25 service providers; manual configuration available
DNS over HTTPS Secure DNS resolution via DNS over HTTPS proxy
Network Backup Wi-Fi WAN, Mobile, VRRP, Wired options with automatic Failover
Load Balancing Distributes Internet traffic over multiple WAN connections
SSHFS Enables mounting of remote file systems via SSH protocol
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history
Port Mirroring Mirrors network traffic on Ethernet ports for monitoring and analysis

Ā

Ethernet

Category Details
WAN 1 x WAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN 3 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Ā

Security

Category Details
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile Quota Control Mobile data limit, customizable period, start time, warning limit, phone number
WEB Filter Blacklist for blocking unwanted websites, Whitelist for specifying allowed sites only
Access Control Flexible access control for SSH, Web interface, CLI, and Telnet
SSL Certificate Generation Let's Encrypt and SCEP certificate generation methods

Ā

VPN

Category Details
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128/192/256 (CBC, CFB, CFB1, CFB8, OFB, GCM)
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128/192/256, AES-GCM with 8/12/16-byte tags)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without changes to the program code
DMVPN Scalable IPsec VPNs, supports Phase 2, Phase 3, and Dual Hub
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication, and compression in its tunnels. Client and server support.

Ā

BACNET

Category Details
Supported Modes Router
Supported Connection Types RS485, TCP
Configuration Options Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)

Ā

OPC UA

Category Details
Supported Modes Client, Server
Supported Connection Types TCP

Ā

MODBUS

Category Details
Supported Modes Server, Client
Supported Connection Types RTU (RS232, RS485), TCP, USB
Custom Registers MODBUS TCP custom register block requests, which read/write to a file inside the router, extending MODBUS TCP Client functionality
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Ā

DATA TO SERVER

Category Details
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
MQTT Gateway Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Category Details
Supported Modes Station, Outstation
Supported Connection Types RS232, RS485, TCP, USB

Ā

DLMS

Category Details
DLMS Support DLMS - standard protocol for utility meter data exchange
Supported Modes Client
Supported Connection Types RS232, RS485, TCP
COSEM Allows scanning meter COSEM objects for automatic detection and configuration

API

Category Details
API Teltonika Networks Web API (beta) support: Expand your device's possibilities by using configurable API endpoints to retrieve or change data. For more information, refer to documentation


Monitoring & Management

Category Details
WEB UI HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshoot, multiple event log servers, firmware update notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, status, mobile data on/off, output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)

IoT Platforms

Platform Details
ThingWorx Allows monitoring of WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Allows monitoring of Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Includes reboot and firmware upgrade actions
Azure IoT Hub Configured with Data to Server to send all available parameters to the cloud. Direct method support for RutOS API calls. Plug and Play integration with Device Provisioning Service for zero-touch provisioning
AWS IoT Core Utility for interaction with the AWS cloud platform. Jobs support for API calls using AWS Jobs functionality

Ā

System Characteristics

Category Details
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH Storage 16 MB, SPI Flash

Firmware / Configuration

Category Details
WEB UI Update firmware from file, check firmware on server, configuration profiles, configuration backup
FOTA Update firmware
RMS Update firmware/configuration for multiple devices at once
Keep Settings Update firmware without losing current configuration
Factory Settings Reset A full factory reset restores all system settings, including the IP address, PIN, and user data to default manufacturer's configuration

Ā

Firmware Customization

Category Details
Operating System RutOS (OpenWrt based Linux OS)
Supported Languages Busybox shell, Lua, C, C++
Development Tools SDK package with build environment provided
GPL Customization Create your own custom, branded firmware and web page applications by changing colours, logos, and other elements to fit your or your clients' needs
Package Manager The Package Manager is a service used to install additional software on the device

Location Tracking

Category Details
GNSS GPS, GLONASS, BeiDou, Galileo, and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server Software Supported server software: TAVL, RMS
Geofencing Configurable multiple geofence zones

Ā

Serial

Category Details
RS232 DB9 connector, RS232 (with RTS, CTS flow control)
RS485 RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate
Serial Functions Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

USB

Category Details
Data Rate USB 2.0
Applications Samba share, USB-to-serial
External Devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage Formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Ā

Input / Output

Category Details
Input 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x digital non-isolated input (0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
Output 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x digital open collector output (30 V, 300 mA, on 4-pin power connector)
Events Email, RMS, SMS
I/O Juggler Allows setting certain I/O conditions to initiate events

SD CARD

Category Details
Physical Size Micro SD (internal)
Applications Samba share, Storage Memory Expansion, DLNA
Capacity Up to 64 GB
Storage Formats FAT32, NTFS, ext2, ext3, ext4

Ā

Power

Category Details
Connector 4-pin industrial DC power socket
Input Voltage Range 9 ā€“ 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (Passive) Passive PoE over spare pairs. Powers up through LAN1 port, not compatible with IEEE802.3af, 802.3at, and 802.3bt standards, Mode B, 9 - 30 VDC
Power Consumption < 2 W idle, < 7 W Max

Physical Interfaces

Category Details
Ethernet 4 x RJ45 ports, 10/100 Mbps
I/Oā€™s 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)
Status LEDs 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)
Power 1 x 4-pin power connector
Input/Output 1 x 10-pin industrial socket for inputs/outputs
Antennas 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
RS232 1 x DB9 socket
RS485 1 x 6-pin industrial socket
Reset Reboot/User default reset/Factory reset button

Ā

Physical Specification

Category Details
Casing Material Aluminium housing, plastic panels
Dimensions (W x H x D) 110 x 50 x 100 mm
Weight 287 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Category Details
Operating Temperature -40 Ā°C to 75 Ā°C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Category Details
Regulatory CE, UKCA, ANRT, Kenya, CITC, ICASA, FCC, IC, PTCRB, Anatel, RCM, Giteki, IMDA, ECE R118, E-mark, UL/CSA Safety, CB, RoHS, REACH, NCC, C1D2
Operator AT&T, Verizon, T-Mobile

Ā

EMC Emissions & Immunity

Category Details
Standards EN 55032:2015 + A11:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-19 V2.1.1, EN 301 489-52 V1.2.1
ESD EN 61000-4-2:2009
Radiated Immunity EN 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2020

RF Standards

Category Details
Standards EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1, EN 303 413 V1.1.1

Safety (Ordinary Locations)

Category Details
Standards CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017, RCM: AS/NZS 62368.1:2022, CB: IEC 62368-1:2018, UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

Safety (Hazardous Locations)

Category Details
Standards UL/CSA Safety: UL 121201, 9th Ed., Rev. April 1, 2021, CAN/CSA C22.2 No. 213, 3rd Ed. April 2021
Hazardous Environments Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, Group IIC
Operating Temperature -40Ā°C ā‰¤ Ta ā‰¤ 75Ā°C, T4, IP30

Ā

Downloads

Manual & Documentation


Links

RUT956 QUICK START GUIDE (EN)
CERTIFICATIONS & APPROVALS
FIRMWARE DOWNLOADS
PRODUCT CHANGE NOTIFICATIONS
SDK DOWNLOADS
GPL DOWNLOADS
RUT956 3D MODELS
FAQ
What connectivity options does the RUT956 provide?
It combines cellular, Wi Fi and wired Ethernet connectivity with automatic WAN failover and GNSS, and includes serial interfaces, I O and RutOS for equipment control and event notifications.
How many SIM cards are supported and how does SIM switching work?
The device has 2 SIM cards with auto switch based on conditions such as weak signal, roaming, data or SMS limits, and network availability.
What are the power and mounting options for this unit?
Power input is 9 30 V DC with reverse polarity and surge protection, and it supports Passive PoE over spare pairs. Mounting options include DIN rail, wall mount, or flat surface with an additional mounting kit.
What security and networking features are available?
It supports firewall rules, VPN options including OpenVPN and IPsec as well as GRE, SSTP and WireGuard, DNS over HTTPS, DHCP, NAT, VLAN and related routing features.
What are the operating environment and physical specifications?
Operating temperature is -40 C to 75 C and the unit has IP30 protection, an aluminium casing, dimensions 110 x 50 x 100 mm, and weight 287 g; mounting is available on DIN rail, wall or flat surface with the appropriate kit.
Reviews
Forum
A
Admin
Welcome to the discussion thread for RUT956 - Industrial Cellular Router
Feel free to ask questions, share tips or report issues.
Similar Products

Discover More In:

Industrial IoT ā†’ Network Accessories ā†’ Teltonika Networks | Official Page ā†’

Category: View similar items (RUT956)

Bulk Order

Fill out the form below and our team will get back to you with bulk pricing.

Custom Requirements?

Meet with our team

Related products

Related products

0106-14

Waldom Electonics

0106-14

ā‚¹ 2,623.53
