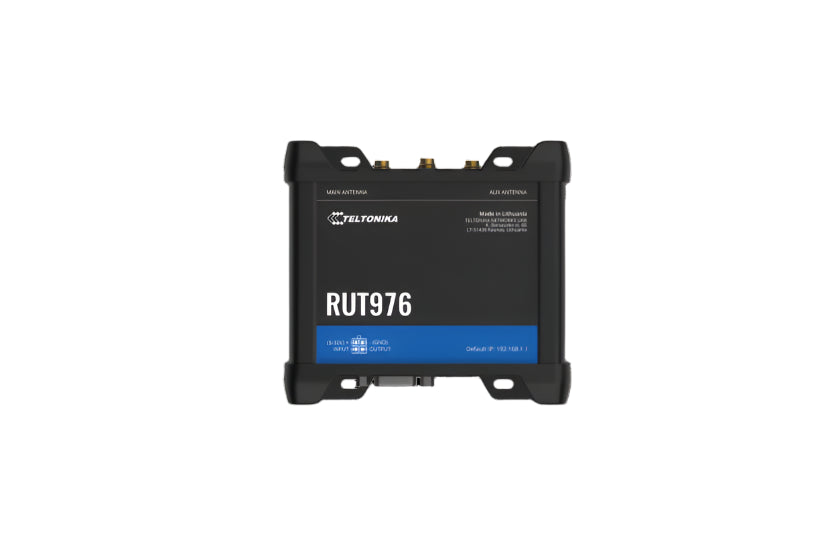

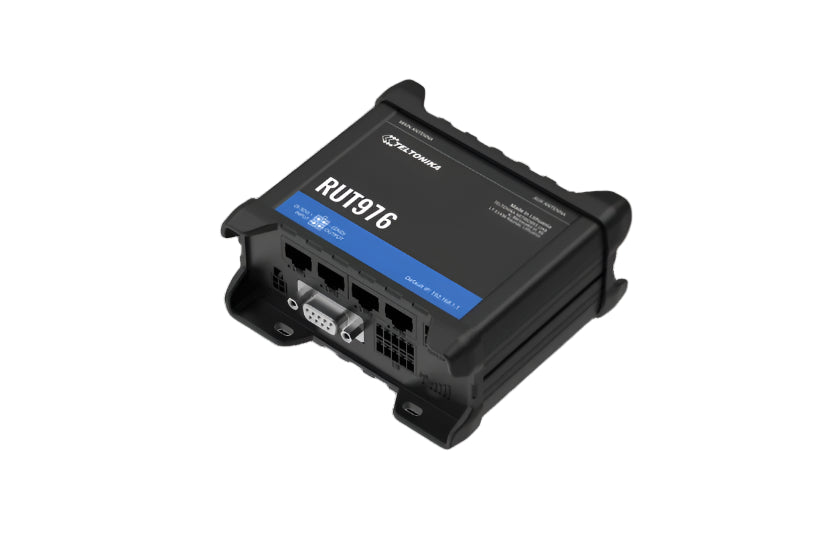

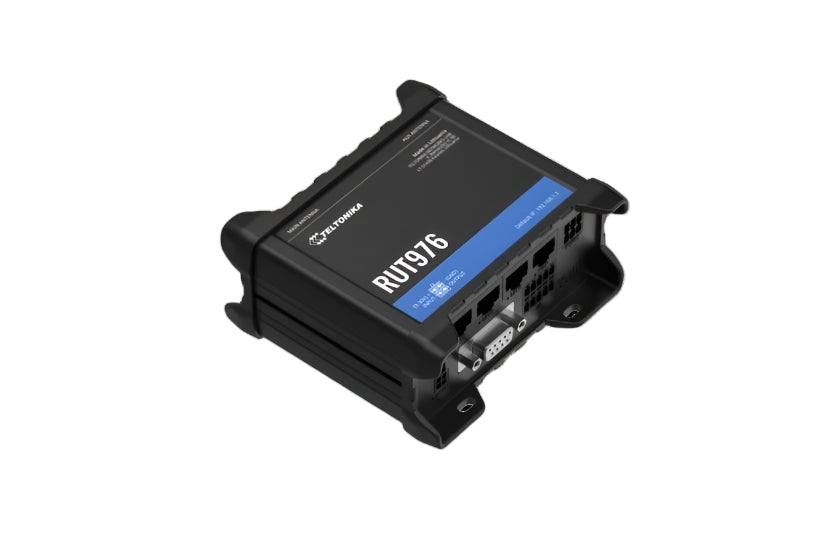

RUT976 REDCAP 5G ROUTER

Name: RUT976 REDCAP 5G ROUTER
Brand: Teltonika Networks
Price: 40349.99 INR
Availability: InStock

₹ 40,349.99

Sale Sold out

/

Tax included. Shipping calculated at checkout.

Looking for Bulk?

This is a pre order item. We will ship it when it comes in stock.

Quantity must be 1 or more

Description

The RUT976 is an industrial Redcap 5G router supporting SA architecture, carving a balanced niche between traditional 4G and full capacity 5G. This 5G router can wirelessly support up to 100 end devices and features the low latency of 5G—at affordable pricing. In case of limited 5G coverage, the RUT976 is backward compatible with 4G LTE Cat 4. It also boasts dual SIM slots with auto-failover, Wi-Fi, GNSS, a wide range of interfaces, including four 10/100 RJ45 slots, RS232, RS485, and multiple I/Os, and numerous other brilliant features for expert professional deployment

Standard package*

RUT976 router
9 W PSU
2x 5G Mobile antennas (swivel, SMA male)
2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
GNSS antenna (adhesive, SMA male, 3 m cable)
RS485 connector block
I/O connector block
Ethernet cable (1.5 m)
SIM Adapter kit
QSG (Quick Start Guide)
Packaging box

*Standard package contents may differ based on standard order codes.

Features

Mobile

Category	Details
Mobile Module	5G Sub-6Ghz SA 223 Mbps DL, 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL
3GPP Release	Release 17 RedCap
SIM Switch	2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status	IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD	Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List	Operator black/white list (by country or separate operators)
Multiple PDN	Possibility to use different PDNs for multiple network access and services
Band Management	Band lock, Used band status display
SIM Idle Protection	SIM idle protection service for devices with two SIM slots, preventing data use on the idle SIM
SIM PIN Code Management	SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN	Auto APN
Bridge	Direct connection (bridge) between mobile ISP and device on LAN
Passthrough	Router assigns its mobile WAN IP address to another device on LAN

Wireless

Category	Details
Wireless Mode	802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi Security	WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID	SSID stealth mode and access control based on MAC address
Wi-Fi Users	Up to 100 simultaneous connections
Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter	Allowlist, blocklist
Wireless QR Code Generator	Once scanned, a user will automatically enter your network without needing to input login information
TravelMate	Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

Category	Details
WAN	1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN	3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network

Category	Details
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on Lan (WOL), VXLAN
VoIP Passthrough Support	H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forward, traffic rules, custom rules
Firewall Status Page	View all your Firewall statistics, rules, and rule counters
Ports Management	View device ports, enable and disable each of them, turn auto-configuration on/off, change their transmission speed
Network Topology	Visual representation of your network, showing which devices are connected to which other devices
DHCP	Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM)	Traffic priority queuing by source/destination, service, protocol, or port, WMM, 802.11e
DDNS	Supported >25 service providers, others can be configured manually
DNS over HTTPS	DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network Backup	Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load Balancing	Balance Internet traffic over multiple WAN connections
Hotspot	Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and optionality to upload and download customized hotspot themes
SSHFS	Possibility to mount remote file system via SSH protocol
Port Mirroring	Mirroring network traffic on Ethernet ports for monitoring and analysis

Security

Category	Details
Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall	Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention	DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN	Port and tag-based VLAN separation
Mobile Quota Control	Mobile data limit, customizable period, start time, warning limit, phone number
WEB Filter	Blacklist for blocking unwanted websites, Whitelist for specifying allowed sites only
Access Control	Flexible access control of SSH, Web interface, CLI, and Telnet
SSL Certificate Generation	Let's Encrypt and SCEP certificate generation methods
802.1x	Port-based network access control server

VPN

Category	Details
OpenVPN	Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption	DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec	XFRM, IKEv1, IKEv2, with 14 encryption methods (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE	GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP	Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel	Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN	Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN client support
WireGuard	WireGuard VPN client and server support
Tinc	Tinc offers encryption, authentication, and compression in its tunnels. Client and server support

BACNET

Category	Details
Supported Modes	Router
Supported Connection Types	RS485, TCP
Configuration Options	Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)

OPC UA

Category	Details
Supported Modes	Client, Server
Supported Connection Types	TCP

MODBUS

Category	Details
Supported Modes	Server, Client
Supported Connection Types	RTU (RS232, RS485), TCP, USB
Custom Registers	MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported Data Formats	8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

Category	Details
Protocol	HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server	Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

Category	Details
Modbus MQTT Gateway	Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Category	Details
Supported Modes	TCP Master, DNP3 Outstation
Supported Connection Types	RS232, RS485, TCP, USB

DLMS

Category	Details
DLMS Support	DLMS - standard protocol for utility meter data exchange
Supported Modes	Client
Supported Connection Types	RS232, RS485, TCP
COSEM	Allows to scan meter COSEM objects for automatic detection and configuration

API

Category	Details
Teltonika Networks Web API (Beta) Support	Expand your device's capabilities by using configurable API endpoints to retrieve or change data. Documentation

Monitoring & Management

Category	Details
WEB UI	HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshooting, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, internet status
FOTA	Firmware update from server, automatic notifications
SSH	SSH (v1, v2)
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call	Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
Email	Receive email message status alerts of various services
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
SNMP	SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC	Management API over HTTP/HTTPS
RMS	Teltonika Remote Management System (RMS)

IoT Platforms

Platform	Monitoring & Actions
ThingWorx	Allows monitoring of WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things	Allows monitoring of Device Model, Revision, Serial Number, WAN Type, IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Provides reboot and firmware upgrade actions
Azure IoT Hub	Configurable with Data to Server to send all available parameters to the cloud. Direct method support allows execution of RutOS API calls on the IoT Hub. Plug and Play integration with Device Provisioning Service allows zero-touch provisioning
AWS IoT Core	Utility to interact with the AWS cloud platform. Supports Jobs functionality for calling device API using AWS Jobs

System Characteristics

Category	Details
CPU	Mediatek, 580 MHz, MIPS 24KEc
RAM	128 MB, DDR2
FLASH Storage	16 MB, NOR Flash

Firmware / Configuration

Category	Details
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA	Update firmware
RMS	Update firmware/configuration for multiple devices at once
Keep Settings	Update firmware without losing current configuration
Factory Settings Reset	Restores all system settings, including IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customization

Category	Details
Operating System	RutOS (OpenWrt based Linux OS)
Supported Languages	Busybox shell, Lua, C, C++
Development Tools	SDK package with build environment provided
GPL Customization	Ability to create custom, branded firmware and web page applications by modifying colors, logos, and other elements
Package Manager	A service used to install additional software on the device

Location Tracking

Category	Details
GNSS	GPS, GLONASS, BeiDou, Galileo, and QZSS
Coordinates	GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA	NMEA 0183
NTRIP	NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server Software	Supported server software TAVL, RMS
Geofencing	Configurable multiple geofence zones

Serial

Category	Details
RS232	DB9 connector, RS232 (with RTS, CTS flow control)
RS485	RS485 Full Duplex (4 wires) and Half Duplex (2 wires), 300-115200 baud rate
Serial Functions	Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

USB

Category	Details
Data Rate	USB 2.0
Applications	Samba share, USB-to-serial
External Devices	Possibility to connect external HDD, flash drive, printer, USB-serial adapter
Storage Formats	FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

Category	Details
Input	1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
Output	1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
Events	Email, RMS, SMS
I/O Juggler	Allows setting certain I/O conditions to initiate event

Power

Category	Details
Connector	4-pin industrial DC power socket
Input Voltage Range	9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE-out Input Voltage Range	44 – 57 VDC
PoE (Passive)	Passive PoE over Port LAN1 (Mode A/B style). Not compatible with 802.3af/at/bt. Passive PoE over spare pairs.
Power Consumption	Idle: < 3 W, Max: < 7 W

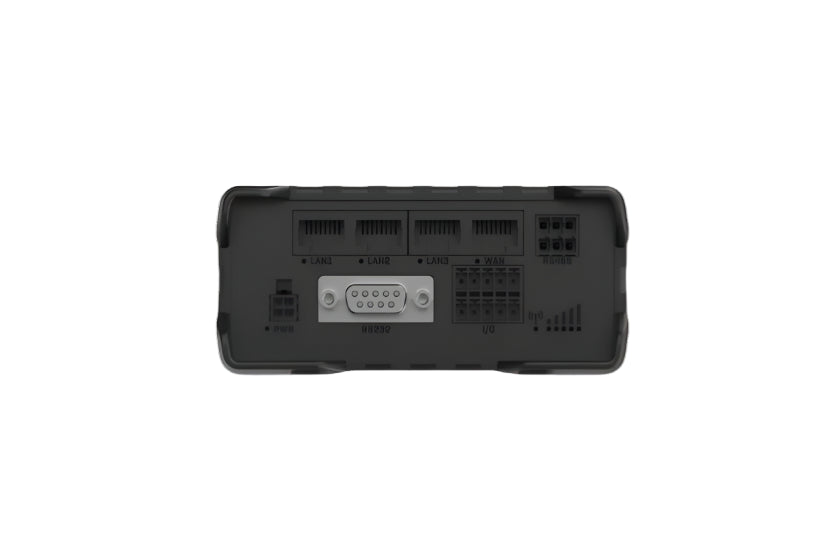

Physical Interfaces

Category	Details
Ethernet	4 x RJ45 ports, 10/100 Mbps
I/O’s	2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector
Status LEDs	1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
SIM	2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required)
Power	1 x 4-pin power connector
Input/Output	1 x 10-pin industrial socket for inputs/outputs

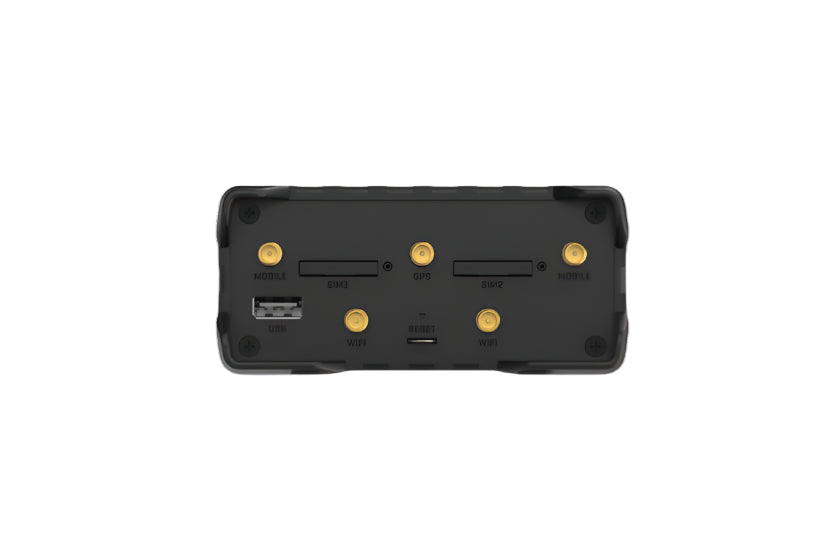

Antennas	2 x SMA for Mobile, 3 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
USB	1 x USB A port for external devices
RS232	1 x DB9 socket
RS485	1 x 6-pin industrial socket
Reset	Reboot/User default reset/Factory reset button

Physical Specification

Category	Details
Casing Material	Aluminum housing, plastic panels
Dimensions (W x H x D)	110 x 50 x 100 mm
Weight	295 g
Mounting Options	DIN rail, wall mount, flat surface (additional kit required)

Operating Environment

Category	Details
Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30

Regulatory & Type Approvals

Category	Details
Regulatory	WEEE
