Teltonika Networks

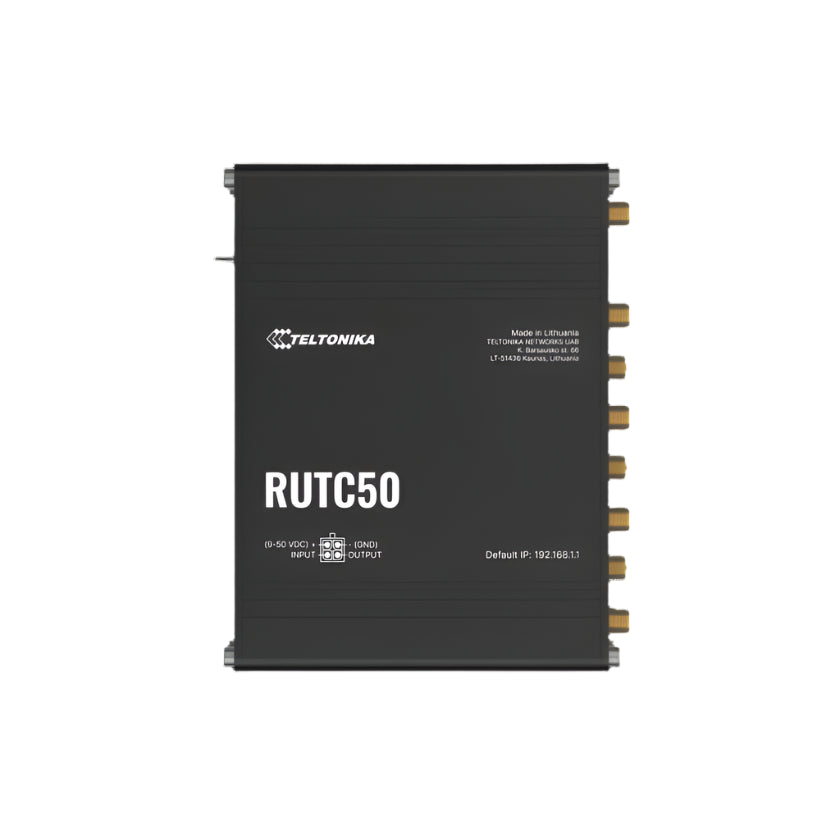

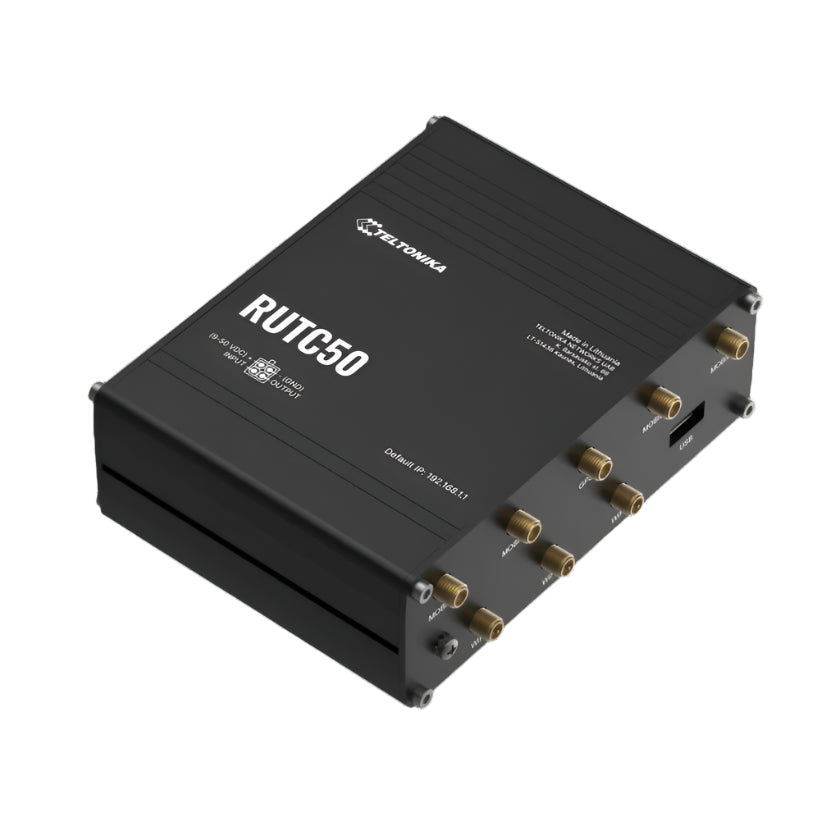

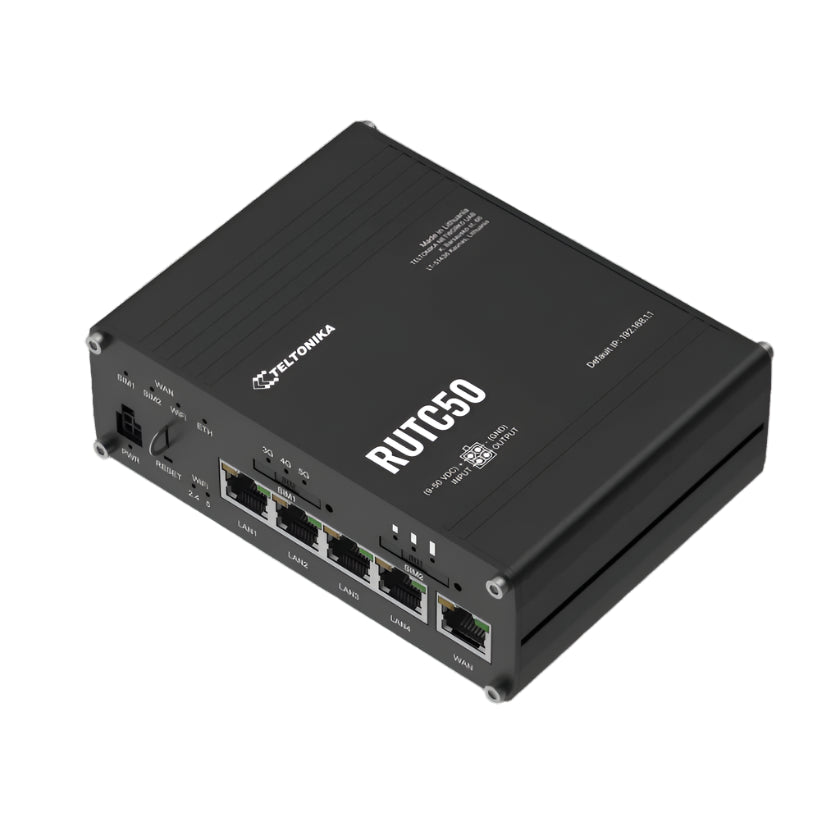

RUTC50 - Your 5G Wireless Multitool

SKU: ELC8734

₹ 118,149.99 ~~₹ 173,099.99~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

RUTC50 - Your 5G Wireless Multitool₹ 118,149.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Description

The RUTC50 is a 5G router featuring dual-band Wi-Fi 6 technology with multi-user MIMO, ensuring ultra-high cellular speeds of up to 3.4 Gbps. This 5G router is also equipped with dual SIM with auto-failover, five Gigabit Ethernet ports, and GNSS for precise location tracking. The RUTC50 supports both SA and NSA 5G architectures and is backward compatible with 4G (Cat 20) and 3G, ensuring robust and reliable performance.

Standard package*

RUTC50 Router
24 W PSU
4 x 5 G Mobile antennas (swivel, SMA male)
3 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
1 x GNSS antenna (adhesive, SMA male, 3 m cable)
Ethernet cable (1.5 m)
SIM Adapter kit
QSG (Quick Start Guide)
Packaging box

*Standard package contents may differ based on standard order codes.

Feature

Mobile

Category	Details
Mobile Module	5G Sub-6GHz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE – LTE Cat 20 2.0Gbps DL, 210Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
3GPP Release	Release 16
SIM Switch	2 SIM cards, auto-switch in cases of weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status	Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, SIM provider, operator, network type, cell ID, LAC, TAC, ARFCN, UARFCN, EARFCN
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD	Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List	Operator black/white list (by country or separate operators)
Multiple PDN	Possibility to use different PDNs for multiple network access and services
Band Management	Band lock, Used band status display
SIM Idle Protection Service	SIM not in use remains idle, preventing data usage on inactive SIM card
SIM PIN Code Management	SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN	Auto APN
Bridge	Direct connection (bridge) between mobile ISP and device on LAN
Passthrough	Router assigns its mobile WAN IP address to another device on LAN
Framed Routing	Support for IP network behind 5G UE (User Equipment)

Wireless

Category	Details
Wireless Mode	802.11b/g/n/ac/ax (Wi-Fi 6) with data transmission rates up to 2402Mbps on 5GHz, 576Mbps on 2.4GHz (Dual Band, MU-MIMO)
Wi-Fi Security	WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID	ESSID stealth mode
Wi-Fi Users	Up to 512 simultaneous connections
Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter	Allowlist, blocklist
Wireless QR Code Generator	Automatically allows users to join your network by scanning the QR code without inputting credentials
TravelMate	Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

Category	Details
WAN Port	1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN Ports	4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

Category	Details
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support	H.323 and SIP-alg protocol NAT helpers for VoIP packet routing
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP link inspection
Firewall	Port forwarding, traffic rules, custom rules, TTL target customization
Firewall Status Page	View all firewall statistics, rules, and rule counters
Ports Management	View device ports, enable/disable ports, change transmission speed, etc.
Network Topology	Visual representation of network connections
DHCP	Static/dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / SQM	Traffic prioritization by source/destination, service, protocol, or port, WMM, 802.11e
DDNS	Supported by >25 service providers, others configurable manually
DNS over HTTPS	Secure DNS resolution over HTTPS
Network Backup	Wi-Fi WAN, Mobile, VRRP, Wired options for automatic Failover
Load Balancing	Balancing Internet traffic over multiple WAN connections
Hotspot	Captive portal, Radius authentication, SMS/SSO auth, customizable themes, URL parameters
SSHFS	Mount remote file systems via SSH protocol
Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history

Security

Category	Details
802.1x	Port-based network access control client
Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, RADIUS, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall	Preconfigured firewall rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention	DDoS prevention (SYN flood, SSH, HTTP/HTTPS), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags)
VLAN	Port and tag-based VLAN separation
Mobile Quota Control	Mobile data limits with customizable period, start time, warning limit, phone number
Web Filter	Block unwanted websites or specify allowed sites only (Whitelist)
Access Control	Flexible access control for SSH, Web interface, CLI, and Telnet
SSL Certificate Generation	Let's Encrypt and SCEP certificate generation methods

VPN Support

VPN Type	Details
OpenVPN	Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption	Includes DES, RC2, AES with various modes (CBC, CFB, GCM, OFB, etc.) for 64-256 bit encryption
IPsec	XFRM, IKEv1, IKEv2, with 14 encryption methods (3DES, DES, AES128, AES192, AES256, AESGCM8, AESGCM12, etc.)
GRE	GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP	Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel	Adds TLS encryption functionality to existing clients and servers without changing program code
DMVPN	Scalable IPsec VPNs, Phase 2, Phase 3, and Dual Hub support
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN client support
WireGuard	WireGuard VPN client and server support
Tinc	Tinc offers encryption, authentication, and compression in its tunnels
Tailscale	Encrypted point-to-point connections using WireGuard protocol, speed, stability, and simplicity

OPC UA

Protocol	Supported Modes	Supported Connection Types
OPC UA	Client, Server	TCP

MODBUS

Feature	Details
Supported Modes	Server, Client
Supported Connection Types	TCP, USB
Custom Registers	MODBUS TCP custom register block requests for reading/writing to a file inside the router
Supported Data Formats	8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII

Data to Server

Feature	Details
Protocol	HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server	Extract parameters from multiple sources and different protocols and send them to a single server. Custom LUA scripting to utilize the router's Data to server feature.

MQTT Gateway

Feature	Details
Modbus MQTT Gateway	Allows sending commands and receiving data from MODBUS Server through MQTT broker.

DNP3

Feature	Details
Supported Modes	Station, Outstation
Supported Connection	TCP

DLMS

Feature	Details
DLMS Support	Standard protocol for utility meter data exchange
Supported Modes	Client
Supported Connection Types	TCP, USB

API Features

Feature	Details
Teltonika Networks Web API (beta)	Expand your device's possibilities by using configurable API endpoints to retrieve or change data. For more information, refer to developers.teltonika-networks.com.

Monitoring & Management

Feature	Details
WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status.
FOTA	Firmware update from server, automatic notification.
SSH	SSH (v1, v2).
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET.
Call	Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off.
Email	Receive email message status alerts of various services.
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem.
MQTT	MQTT Broker, MQTT publisher.
SNMP	SNMP (v1, v2, v3), SNMP Trap, Brute force protection.
JSON-RPC	Management API over HTTP/HTTPS.
RMS	Teltonika Remote Management System (RMS).

IoT Platforms

Platform	Details
ThingWorx	Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type.
Cumulocity - Cloud of Things	Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions.
Azure IoT Hub	Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs.
AWS IoT Core	Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality.

Docker

Feature	Details
Docker Support	Supports running isolated applications and services using Docker containers, enabling custom software environments and microservices deployment directly on the device.

System Characteristics

Feature	Details
CPU	Mediatek, Dual-core, 1.3 GHz, ARM Cortex A53
RAM	512MB DDR3
FLASH Storage	16MB serial NOR flash, 512MB serial NAND flash

Firmware / Configuration

Feature	Details
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup.
FOTA	Update FW.
RMS	Update FW/configuration for multiple devices at once.
Keep Settings	Update FW without losing current configuration.
Factory Settings Reset	A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customisation

Feature	Details
Operating System	RutOS (OpenWrt based Linux OS)
Supported Languages	Busybox shell, Lua, C, C++
Development Tools	SDK package with build environment provided
GPL Customization	Customize branded firmware and web page applications by changing colors, logos, and other elements.
Package Manager	Service for installing additional software on the device

Location Tracking

Feature	Details
GNSS	GPS, GLONASS, BeiDou, Galileo, and QZSS
Coordinates	GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA	NMEA 0183
NTRIP	NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server Software	Supported server software: TAVL, RMS
Geofencing	Configurable multiple geofence zones

USB

Feature	Details
Data Rate	USB 2.0
Applications	Samba share, USB-to-serial
External Devices	Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage Formats	FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

Feature	Details
Input	1 x Configurable digital input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
Output	1 x Configurable digital output, Open collector output, max output 50 V, 300 mA
Events	Email, RMS, SMS
I/O Juggler	Allows to set certain I/O conditions to initiate an event

Power

Feature	Details
Connector	4-pin industrial DC power socket
Input Voltage Range	9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (Passive)	Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at, and 802.3bt standards, Mode B, 9 - 30 VDC (Available from: HW revision 0003, Batch number 007)
Power Consumption	Idle: < 4.5 W, Max: < 13.5 W

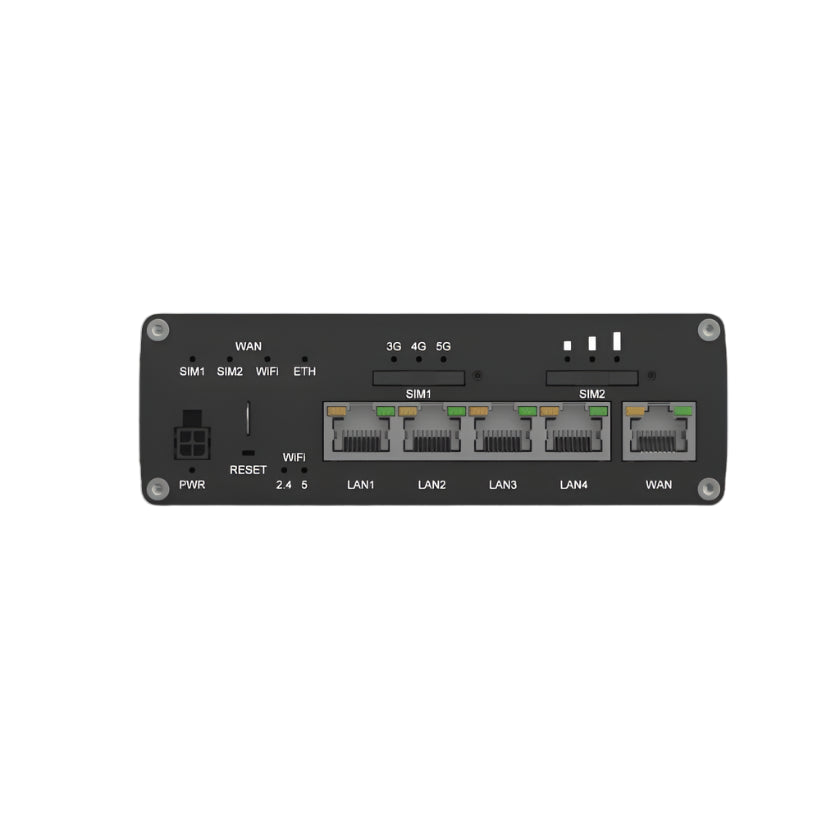

Physical Interfaces

Feature	Details
Ethernet	5 x RJ45 ports, 10/100/1000 Mbps
I/O’s	1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs	4 x WAN status LEDs, 3 x Mobile connection type, 3 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi, 2 x WAN status
SIM	2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)
Power	1 x 4-pin power connector

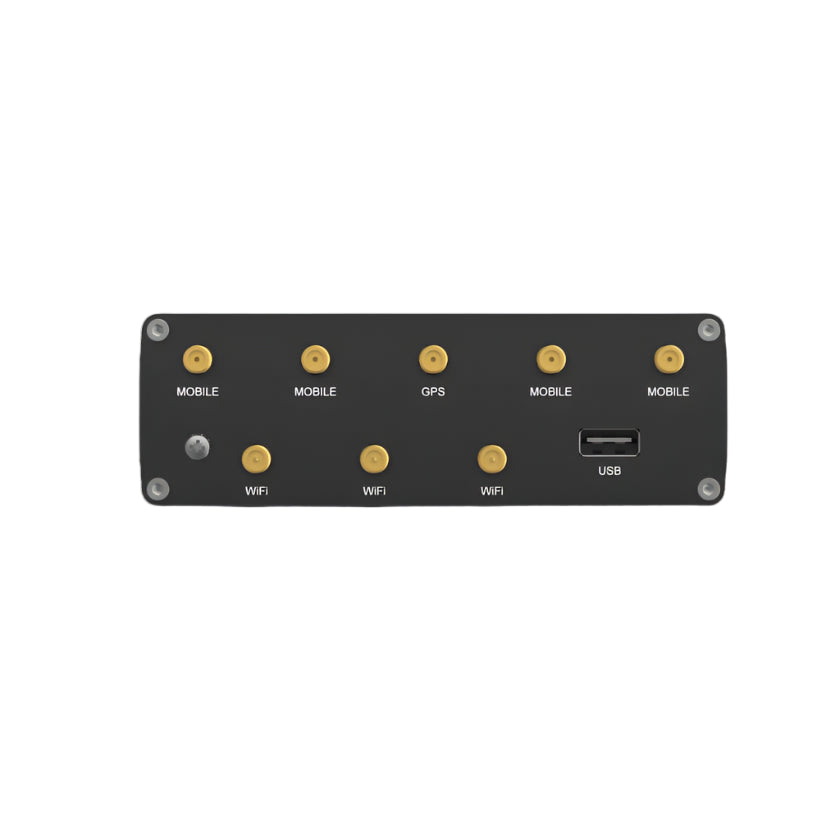

Antennas	4 x SMA for Mobile, 3 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
USB	1 x USB A port for external devices
Reset	Reboot/User default reset/Factory reset button

Other

Feature	Details
Grounding	1 x Grounding screw

Physical Specification

Feature	Details
Casing Material	Anodized aluminum housing and panels
Dimensions (W x H x D)	130.4 x 42.6 x 103.4 mm
Weight	452 g
Mounting Options	DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Feature	Details
Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30

Regulatory & Type Approvals

Feature	Details
Regulatory	REACH, RoHS, CE, UKCA, CB
Vehicle	ECE R118

EMC Emissions & Immunity

Category	Standard
EMC Emissions & Immunity	EN 55032:2015 + A11:2020 + A1:2020
	EN 55035:2017 + A11:2020
	EN 61000-3-3:2013 + A1:2019 + A2:2021
	EN IEC 61000-3-2:2019 + A1:2021
	EN 301 489-1 V2.2.3
	EN 301 489-3 V2.3.2
	EN 301 489-17 V3.2.4
	EN 301 489-19 V2.2.1
	EN 301 489-52 V1.2.1

RF

Category	Standard
RF Standards	EN 300 328 V2.2.2
	EN 300 440 V2.2.1
	EN 301 893 V2.1.1
	EN 303 413 V1.2.1
	EN 301 908-1 V15.2.1
	EN 301 908-2 V13.1.1
	EN 301 908-13 V13.2.1
	Draft EN 301 908-25 V15.1.1_0.0.21

Safety

Category	Standard
Safety Standards	EN IEC 62368-1:2020 + A11:2020
	EN IEC 62311:2020

Safety (Ordinary Locations)

Category	Standard
Safety (Ordinary Locations)	EN IEC 62368-1:2020 + A11:2020

Downloads

Manual & Documentation

RUTC50 DATASHEET (EN)

RUTC50 FLYER (EN)

Links

RUTC50 QUICK START GUIDE (EN)

FIRMWARE DOWNLOADS

RUTC50 USER MANUAL

CERTIFICATIONS & APPROVALS

SDK DOWNLOADS

GPL DOWNLOADS

RUTC50 3D MODELS

PRODUCT CHANGE NOTIFICATIONS

What are the key networking capabilities of the RUTC50?

It is a 5G router with dual band Wi-Fi 6 and MU-MIMO, supporting SA and NSA 5G with speeds up to 3.4 Gbps downlink. It is backward compatible with 4G LTE Cat 20 and 3G.

How does the dual SIM with auto failover work?

The device supports two SIM cards with auto switch in cases of weak signal, data limit, roaming, no network, or data connection fail.

What is included in the standard package when you buy this model?

The standard package includes the RUTC50 router, a 24 W power supply, 4 x 5G mobile antennas, 3 x Wi-Fi antennas, a GNSS antenna, an Ethernet cable, a SIM adapter kit, a Quick Start Guide, and the packaging box. Contents may vary by order code.

What ports and connectivity options are available on the device?

It offers 1 WAN port and 4 LAN ports, 5 x RJ45 network ports in total, 1 x USB A port for external devices, and 2 x SIM slots with a flexible SIM setup. eSIM is available with different hardware requirements.

What security and management features are supported for enterprise use?

The router provides firewall and a wide range of VPN options including OpenVPN, IPsec, GRE, SSTP, WireGuard, and more, along with QoS, VLAN, DNS over HTTPS, DDNS, and extensive management features.

A

Admin

Welcome to the discussion thread for RUTC50 - Your 5G Wireless Multitool
Feel free to ask questions, share tips or report issues.

Discover More In:

Industrial IoT → Network Accessories → Teltonika Networks | Official Page →

Category: View similar items (RUTC50)

PUSR

Ethernet Switch/Industrial - USR-ISG1005/1008

₹ 3,649.99

PUSR

Ethernet Switch/Industrial - USR-ISF1005/1008

₹ 2,349.99

PUSR

Serial to Ethernet - USR-TCP232-306

₹ 2,349.99

PUSR

Ethernet Switch/Business - USR-SG1005

₹ 1,549.99

Fill out the form below and our team will get back to you with bulk pricing.

Description

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Description

The RUTC50 is a 5G router featuring dual-band Wi-Fi 6 technology with multi-user MIMO, ensuring ultra-high cellular speeds of up to 3.4 Gbps. This 5G router is also equipped with dual SIM with auto-failover, five Gigabit Ethernet ports, and GNSS for precise location tracking. The RUTC50 supports both SA and NSA 5G architectures and is backward compatible with 4G (Cat 20) and 3G, ensuring robust and reliable performance.

Standard package*

RUTC50 Router
24 W PSU
4 x 5 G Mobile antennas (swivel, SMA male)
3 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
1 x GNSS antenna (adhesive, SMA male, 3 m cable)
Ethernet cable (1.5 m)
SIM Adapter kit
QSG (Quick Start Guide)
Packaging box

*Standard package contents may differ based on standard order codes.
