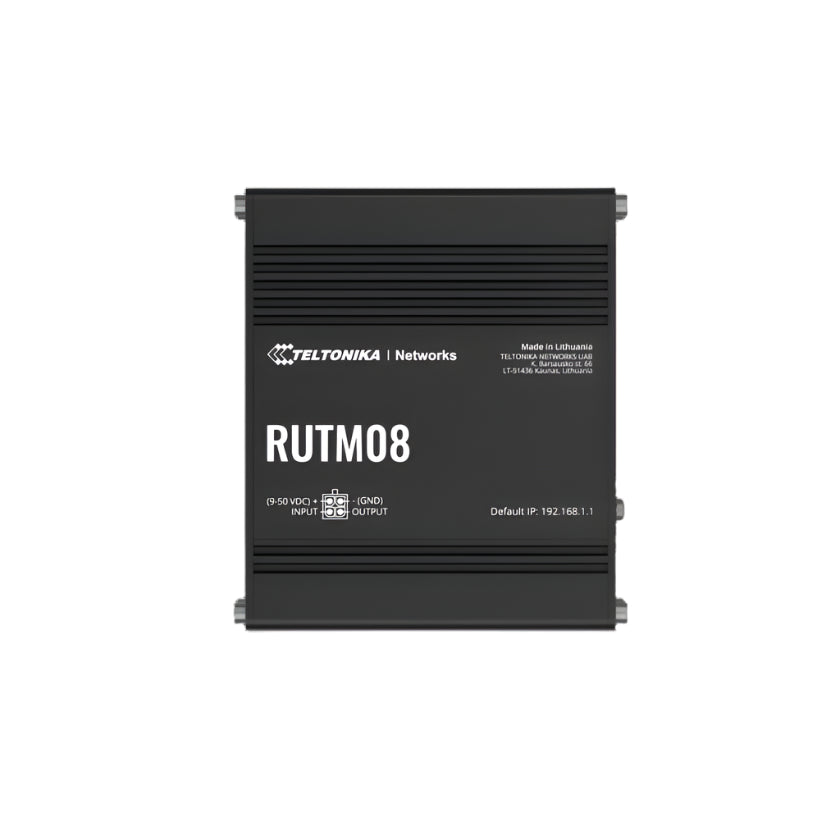

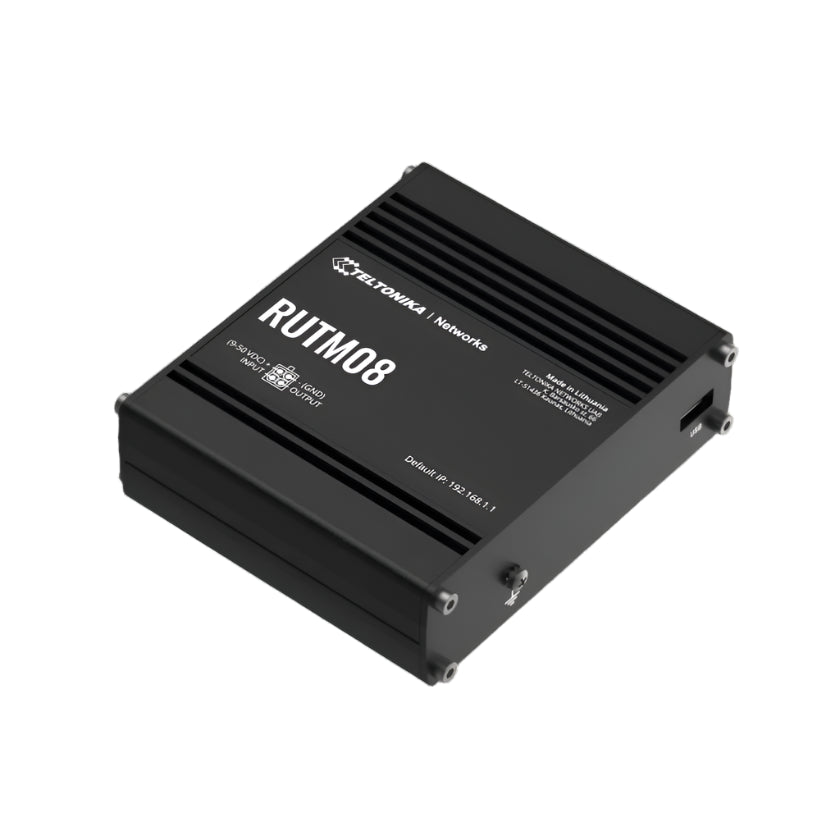

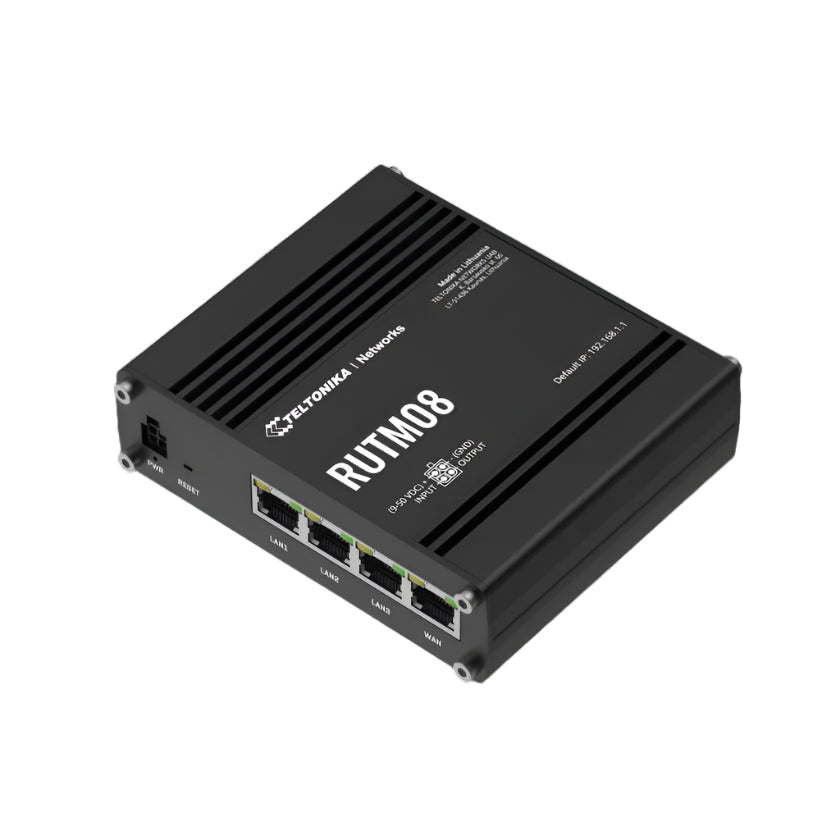

RUTM08 - Industrial Wired Router

SKU: ELC8727

Regular price ₹ 10,499.99
Sale price ₹ 10,499.99 Regular price ₹ 20,999.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

The RUTM08 is an industrial wired router designed for establishing reliable cable connections across a broad range of industrial applications. The router has four Gigabit RJ45 ports, which enable rapid network and data transmission between connected endpoints. The RUTM08 can support up to 128 tag/port-based VLANs for enhanced network flexibility as well as multiple VPNs and M2M communication protocols, which are particularly relevant in industrial environments.

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Ethernet

Type Specification
WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover



Network

Feature Specification
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page View all your Firewall statistics, rules, and rule counters
Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed
Network topology Visual representation of your network, showing which devices are connected to which other devices
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
SSHFS Possibility to mount remote file system via SSH protocol
VRF support Initial virtual routing and forwarding (VRF) support
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history


Security

Feature Specification
802.1x Port-based network access control client
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of SSH, Web interface, CLI and Telnet
SSL certificate generation Let's Encrypt and SCEP certificate generation methods



VPN

VPN Type Specification
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in its tunnels. Client and server support.
Tailscale Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol


OPC UA

Feature Specification
Supported modes Client, Server
Supported connection types TCP


MODBUS

Feature Specification
Supported modes Server, Client
Supported connection types TCP, USB
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII



Data to Server

Feature Specification
Protocol HTTP(S), MQTT, Azure MQTT
Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature


MQTT Gateway

Feature Specification
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker


DNP3

Feature Specification
Supported modes Station, Outstation
Supported connection TCP, USB


DLMS

Feature Specification
DLMS Support DLMS - standard protocol for utility meter data exchange
Supported modes Client
Supported connection types TCP, USB


COSEM

Feature Specification
COSEM Allows to scan meter COSEM objects for automatic detection and configuration



API

Feature Specification
Teltonika Networks Web API Expand device possibilities by using configurable API endpoints to retrieve or change data. For more details, visit Teltonika Developer Docs


Monitoring & Management

Feature Specification
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
Email Receive email message status alerts of various services
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)


IoT Platforms

Platform Supported Features
Cumulocity - Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Has reboot and firmware upgrade actions
Azure IoT Hub Can be configured with Data to Server to send all available parameters to the cloud. Has Direct method support to execute RutOS API calls on the IoT Hub. Also supports zero-touch device provisioning with Device Provisioning Service


System Characteristics

Feature Specification
CPU MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM 256MB, DDR3
FLASH Storage 16 MB serial NOR flash, 256 MB serial NAND flash


Firmware / Configuration

Feature Specification
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration



Firmware Customisation

Feature Specification
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
GPL customisation You can create custom, branded firmware and web page application by changing colors, logos, and other elements
Package Manager A service used to install additional software on the device


USB

Feature Specification
Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4


Input / Output

Feature Specification
Input 1 x Configurable digital input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
Output 1 x Configurable digital output, Open collector output, max output 50 V, 300 mA
Events Email, RMS
I/O juggler Allows to set certain I/O conditions to initiate an event


Power

Feature Specification
Connector 4-pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power consumption Idle: < 1.8 W / Max: < 5.5 W



Physical Interfaces

Feature Specification

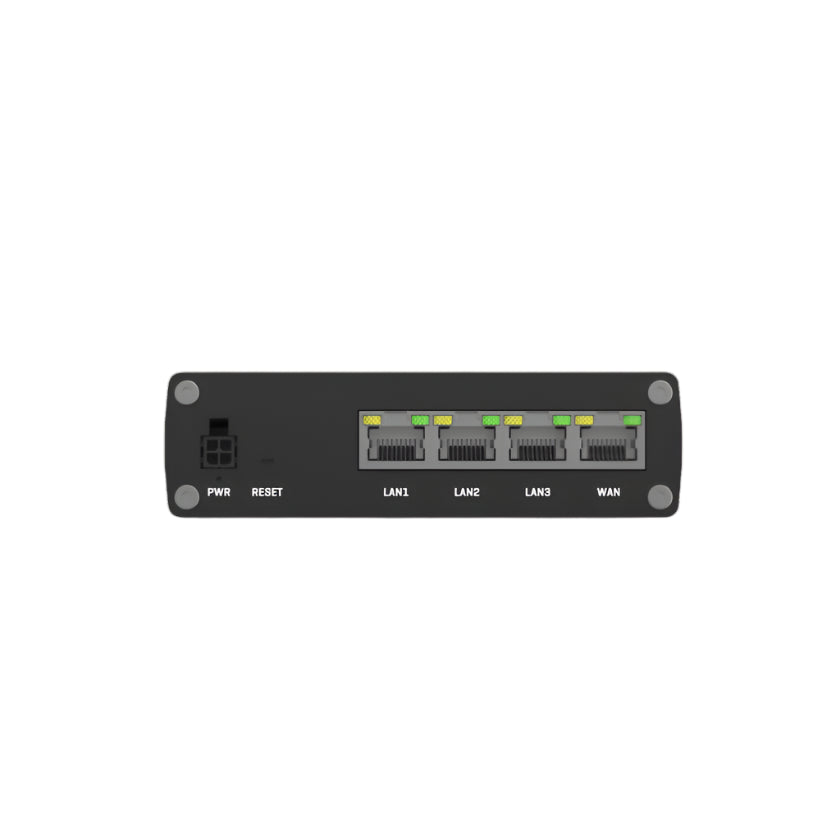

Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 8 x LAN status LEDs, 1 x Power LED
Power 1 x 4-pin power connector
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw


Physical Specification

Feature Specification
Casing material Anodized aluminum housing and panels
Dimensions (W x H x D) 115 x 32.2 x 95.2 mm
Weight 353 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)


Operating Environment

Feature Specification
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Feature Specification
Regulatory CE, UKCA, RCM, CB


EMC Emissions & Immunity

Feature Specification
Standards EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021
ESD EN 61000-4-2: 2009
Radiated Immunity EN IEC 61000-4-3:2020
EFT EN 61000-4-4: 2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN IEC 61000-4-11:2020


Safety

Feature Specification
Standards IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020


Safety (Ordinary Locations)

Feature Specification
CE EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020
RCM AS/NZS 62368.1:2022
CB IEC62368-1:2018
