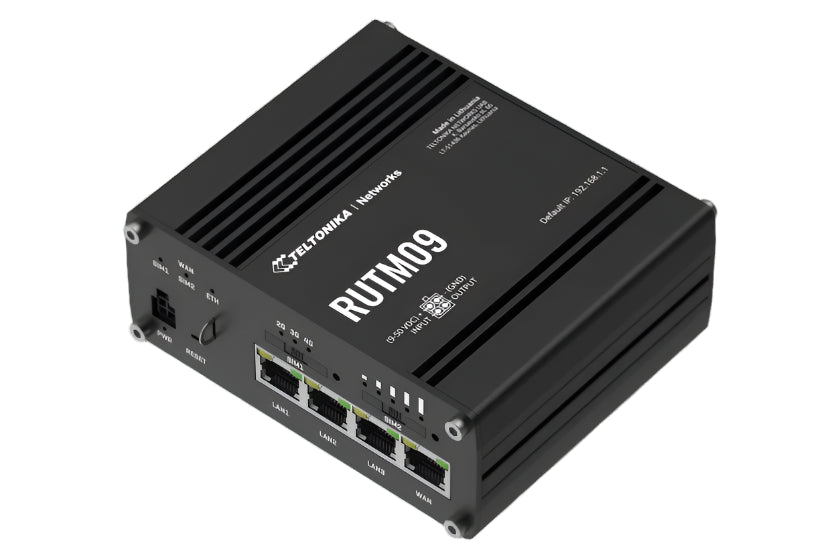

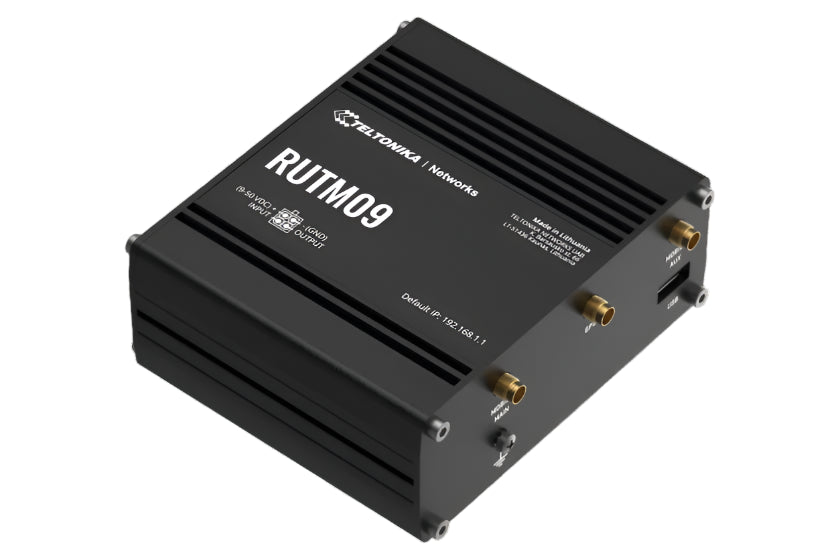

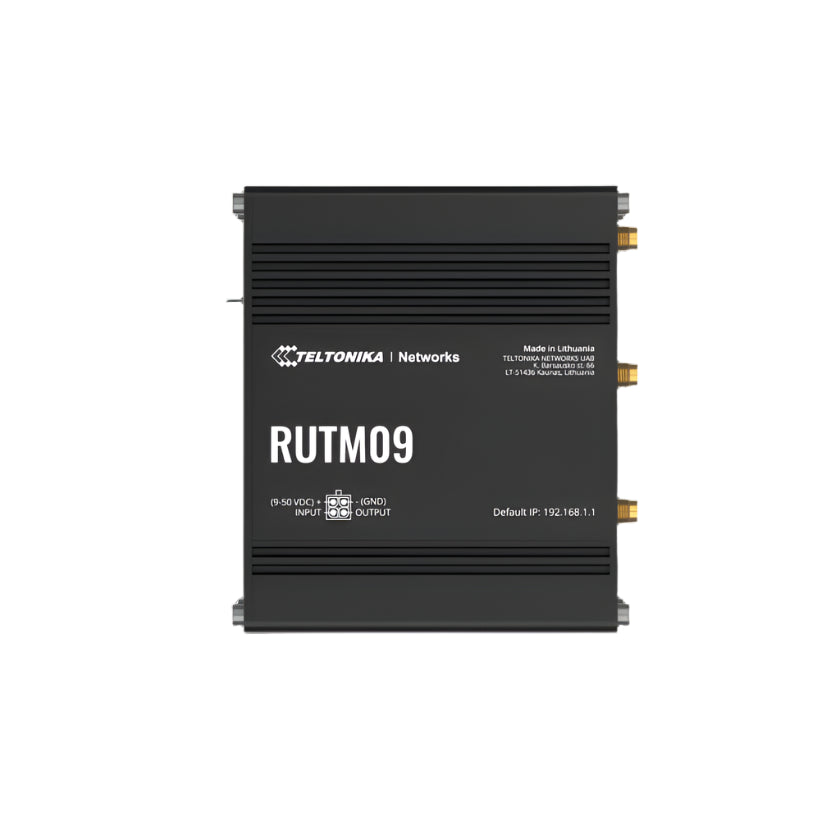

RUTM09 - 4G LTE Router

SKU: ELC8728

ā‚¹ 42,799.99 ā‚¹ 62,699.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ā± This is a pre-order item. We'll ship it as soon as it's back in stock.
RUTM09 - 4G LTE Routerā‚¹ 42,799.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

The RUTM09 is a wireless 4G LTE router developed for high-cellular-speed applications. It comes with Cat 6 and dual SIM capabilities, enabling the device to support speeds of up to 300 Mbps and functions like carrier aggregation and failover. Additionally, the RUTM09 comes with four Gigabit RJ45 ports and includes GNSS, enabling GPS tracking for precise location detection. These features make the RUTM09 an exceptional choice for ensuring non-interruptible network connectivity for mobile applications or those requiring tracking.

Standard package*

Features

Mobile

Feature Details
4G LTE Cat 6 up to 300 DL / 50 UL Mbps; 3G up to 42 DL / 5.76 UL Mbps
3GPP Release Release 12
SIM Switch 2 SIM cards, auto-switch based on: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS auto-reply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List Operator black/white list (by country or separate operators)
Multiple PDN Use of different PDNs for multiple network access and services
Band Management Band lock, used band status display
SIM Idle Protection Idle SIM remains unused until switched to; no data usage on the inactive SIM
SIM PIN Code Management Enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN

Ā

Ethernet

Feature Details
WAN 1 x WAN port, 10/100/1000 Mbps; compliant with IEEE 802.3, IEEE 802.3u, and 802.3az standards; supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps; compliant with IEEE 802.3, IEEE 802.3u, and 802.3az standards; supports auto MDI/MDIX crossover

Ā

Network

Feature Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL), VXLAN
VoIP Passthrough Support H.323 and SIP-ALG protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP, and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customization
Firewall Status Page View all Firewall statistics, rules, and rule counters
Ports Management View device ports, enable/disable each port, toggle auto-configuration, adjust transmission speed
Network Topology Visual representation of your network and connected devices
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, static leases (MAC with wildcards)
QoS / Smart Queue Management Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supports >25 service providers, with manual configuration for others
DNS Over HTTPS DNS over HTTPS proxy for secure DNS resolution
Network Backup Mobile, VRRP, and wired options for automatic failover
Load Balancing Balance Internet traffic over multiple WAN connections
Hotspot Captive portal, internal/external Radius server, MAC authentication, SMS authorization, SSO, landing page, walled garden, user management, customizable themes
SSHFS Mount remote file system via SSH protocol
VRF Support Initial virtual routing and forwarding (VRF) support
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history

Ā

Security

Feature Details
802.1x Port-based network access control client
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, internal & external RADIUS user authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention DDOS prevention (SYN flood, SSH attack, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile Quota Control Mobile data limit with customizable period, start time, warning limit, and phone number settings
Web Filter Blacklist to block unwanted websites; whitelist to specify allowed sites
Access Control Flexible control for SSH, Web interface, CLI, and Telnet access
SSL Certificate Generation Supports Let's Encrypt and SCEP certificate generation methods

Ā

VPN

Feature Details
OpenVPN Multiple clients and a server can run simultaneously; 27 encryption methods
OpenVPN Encryption Includes DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, AES-128-GCM, AES-256-GCM, etc.
IPsec XFRM, IKEv1, IKEv2; 14 encryption methods including 3DES, AES128, AES256, AES128GCM8, AES256GCM16
GRE GRE tunnel and GRE tunnel over IPsec support
PPTP, L2TP Simultaneous Client/Server instances; L2TPv3 and L2TP over IPsec support
Stunnel Adds TLS encryption functionality to existing clients/servers without altering the program code
DMVPN Scalable IPsec VPNs with Phase 2, Phase 3, and Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Offers encryption, authentication, and compression in tunnels; Client and server support
Tailscale Provides speed, stability, and simplicity with encrypted point-to-point connections using WireGuard protocol

Ā

OPC UA

Feature Details
Supported Modes Client, Server
Supported Connections TCP

MODBUS

Feature Details
Supported Modes Server, Client
Supported Connection Types TCP, USB
Custom Registers MODBUS TCP custom register block requests that read/write to a file inside the router, extending MODBUS TCP Client functionality
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Ā

Data to Server

Feature Details
Protocol HTTP(S), MQTT, Azure MQTT
Data to Server Extract parameters from multiple sources and protocols, and send them to a single server
Custom LUA Scripting Enables custom scripts to utilize the router's Data to Server feature

Ā

MQTT Gateway

Feature Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through an MQTT broker

DNP3

Feature Details
Supported Modes Station, Outstation
Supported Connections TCP, USB

Ā

DLMS

Feature Details
DLMS Support DLMS - standard protocol for utility meter data exchange
Supported Modes Client
Supported Connections TCP, USB

COSEM

Feature Details
COSEM Allows scanning of meter COSEM objects for automatic detection and configuration

API

Feature Details
Teltonika Networks Web API (Beta) Support Expand your device's possibilities using configurable API endpoints to retrieve or change data. For more information, refer to the documentation


Monitoring & Management

Feature Details
WEB UI HTTP/HTTPS access for status, configuration, firmware updates, CLI, troubleshooting, event log servers, firmware update notifications, system log, kernel log, internet status
FOTA Firmware update from server with automatic notification
SSH SSH (v1, v2)
SMS SMS status, configuration, send/read SMS via HTTP POST/GET
Call Reboot, status, mobile data on/off, output on/off, answer/hang-up with a timer
Email Receive email alerts for various service status changes
TR-069 Supports OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT Publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)

Ā

IoT Platforms

Feature Details
ThingWorx Monitors WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Monitors Device Model, Revision, Serial Number, WAN Type/IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Also supports reboot and firmware upgrade actions
Azure IoT Hub Can be configured with Data to Server to send parameters to the cloud. Supports Direct method for executing RutOS API calls, and Plug and Play integration with Device Provisioning Service for zero-touch device provisioning
AWS IoT Core Utility for interacting with AWS cloud platform, with Jobs Support for calling device API using AWS Jobs functionality

System Characteristics

Feature Details
CPU MediaTek, Dual-core, 880 MHz, MIPS1004Kc
RAM 256 MB, DDR3
FLASH Storage 16 MB serial NOR flash, 256 MB serial NAND flash

Ā

Firmware / Configuration

Feature Details
WEB UI Update firmware from file, check firmware on server, configuration profiles, configuration backup
FOTA Update firmware
RMS Update firmware/configuration for multiple devices at once
Keep Settings Update firmware without losing current configuration
Factory Settings Reset Full reset restores all system settings, including IP address, PIN, and user data to default configuration

Firmware Customization

Feature Details
Operating System RutOS (OpenWrt-based Linux OS)
Supported Languages Busybox shell, Lua, C, C++
Development Tools SDK package with build environment provided
GPL Customization Create custom, branded firmware and web applications by modifying colours, logos, and other elements
Package Manager Service used to install additional software on the device

Ā

Location Tracking

Feature Details
GNSS GPS, GLONASS, BeiDou, Galileo, and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
Server Software Supported server software: TAVL, RMS
Geofencing Configurable multiple geofence zones

USB

Feature Details
Data Rate USB 2.0
Applications Samba share, USB-to-serial
External Devices Connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage Formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Ā

Input / Output

Feature Details
Input 1 x Configurable digital input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
Output 1 x Configurable digital output, Open collector output, max output 50 V, 300 mA
Events Email, RMS, SMS
I/O Juggler Allows setting certain I/O conditions to initiate events

Power

Feature Details
Connector 4-pin industrial DC power socket
Input Voltage Range 9 ā€“ 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (Passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at, and 802.3bt standards, Mode B, 9 - 50 VDC
Power Consumption Idle: < 2.65 W, Max: < 9.82 W

Ā

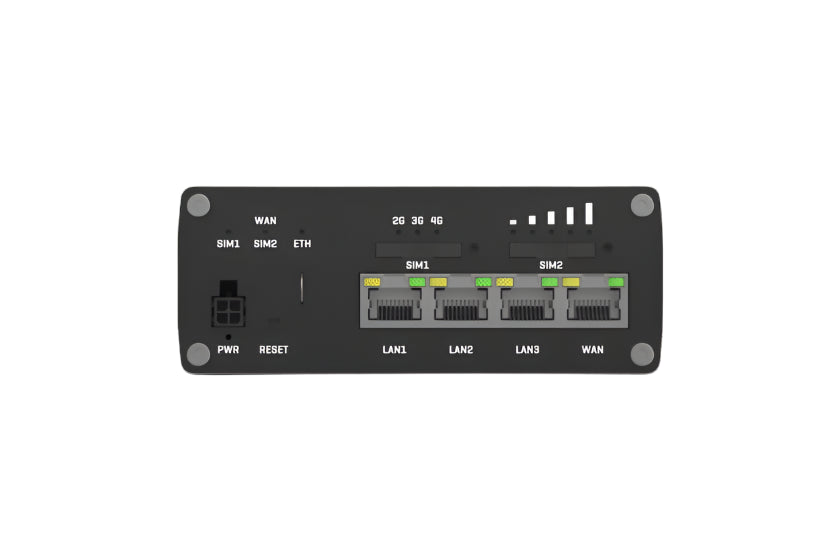

Physical Interfaces

Feature Details
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
I/Oā€™s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 3 x WAN type LEDs, 3 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 1 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 1 x 4-pin power connector
Antennas 2 x SMA for Mobile, 1 x SMA for GNSS
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw

Physical Specification

Feature Details
Casing Material Anodized aluminum housing and panels
Dimensions (W x H x D) 115 x 44.2 x 95.1 mm
Weight 457 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)

Ā

Operating Environment

Feature Details
Operating Temperature -40 Ā°C to 75 Ā°C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Feature Details
Regulatory CE, UKCA, RCM, CB

Ā

EMC Emissions & Immunity

Feature Details
Standards EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN IEC 61000-3-2:2019 + A1:2021
ESD EN 61000-4-2: 2009
Radiated Immunity EN IEC 61000-4-3: 2020
EFT EN 61000-4-4: 2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014+A1:2017
Surge Immunity (AC Power Line) EN 61000-4-5:2014+A1:2017
CS EN 61000-4-6: 2014
DIP EN IEC 61000-4-11: 2020

Ā

RF Standards

Feature Details
Standards EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1, EN 303 413 V1.2.1

Safety Standards

Feature Details
CE EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020
RCM AS/NZS 62368.1:2022
CB IEC 62368-1:2018

Ā

Safety (Ordinary Locations)

Feature Details
Standards CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020
RCM: AS/NZS 62368.1:2022
CB: IEC62368-1:2018

Ā

Downloads

Manual & Documentation


Links

RUTM09 QUICK START GUIDE (EN)
FIRMWARE DOWNLOADS
RUTM09 USER MANUAL
CERTIFICATIONS & APPROVALS
PRODUCT CHANGE NOTIFICATIONS
SDK DOWNLOADS
GPL DOWNLOADS
RUTM09 3D MODELS
How does the dual SIM auto switch work?
The router supports two SIM cards and auto switches between them. The switch is triggered by factors such as weak signal, data limit, roaming, no network, data connection fail, and SIM idle protection.
What speeds and network technologies are supported?
It supports 4G LTE Cat 6 up to 300 Mbps down and 50 Mbps up, and 3G up to 42 Mbps down and 5.76 Mbps up.
How many network ports does it have and how are they configured?
The unit provides four Gigabit Ethernet ports with 1 WAN port and 3 LAN ports.
Does it support GNSS location tracking and geofencing?
Yes, it includes a GNSS antenna and supports GPS, GLONASS, BeiDou, Galileo and QZSS for coordinates, and geofencing features to configure multiple zones.
What mounting options and environmental conditions is the router designed for?
It can be mounted on DIN rail, wall, or flat surfaces with additional kits; it operates from -40 C to 75 C and has IP30 protection.
A
Admin
Welcome to the discussion thread for RUTM09 - 4G LTE Router
Feel free to ask questions, share tips or report issues.

Discover More In:

Industrial IoT ā†’ Network Accessories ā†’ Teltonika Networks | Official Page ā†’

Category: View similar items (RUTM09)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

The RUTM09 is a wireless 4G LTE router developed for high-cellular-speed applications. It comes with Cat 6 and dual SIM capabilities, enabling the device to support speeds of up to 300 Mbps and functions like carrier aggregation and failover. Additionally, the RUTM09 comes with four Gigabit RJ45 ports and includes GNSS, enabling GPS tracking for precise location detection. These features make the RUTM09 an exceptional choice for ensuring non-interruptible network connectivity for mobile applications or those requiring tracking.

Standard package*

Features

Mobile

Feature Details
4G LTE Cat 6 up to 300 DL / 50 UL Mbps; 3G up to 42 DL / 5.76 UL Mbps
3GPP Release Release 12
SIM Switch 2 SIM cards, auto-switch based on: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS auto-reply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List Operator black/white list (by country or separate operators)
Multiple PDN Use of different PDNs for multiple network access and services
Band Management Band lock, used band status display
SIM Idle Protection Idle SIM remains unused until switched to; no data usage on the inactive SIM
SIM PIN Code Management Enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN

Ā

Ethernet

Feature Details
WAN 1 x WAN port, 10/100/1000 Mbps; compliant with IEEE 802.3, IEEE 802.3u, and 802.3az standards; supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps; compliant with IEEE 802.3, IEEE 802.3u, and 802.3az standards; supports auto MDI/MDIX crossover

Ā

Network

Feature Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL), VXLAN
VoIP Passthrough Support H.323 and SIP-ALG protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP, and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customization
Firewall Status Page View all Firewall statistics, rules, and rule counters
Ports Management View device ports, enable/disable each port, toggle auto-configuration, adjust transmission speed
Network Topology Visual representation of your network and connected devices
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, static leases (MAC with wildcards)
QoS / Smart Queue Management Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supports >25 service providers, with manual configuration for others
DNS Over HTTPS DNS over HTTPS proxy for secure DNS resolution
Network Backup Mobile, VRRP, and wired options for automatic failover
Load Balancing Balance Internet traffic over multiple WAN connections
Hotspot Captive portal, internal/external Radius server, MAC authentication, SMS authorization, SSO, landing page, walled garden, user management, customizable themes
SSHFS Mount remote file system via SSH protocol
VRF Support Initial virtual routing and forwarding (VRF) support
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history

Ā

Security

Feature Details
802.1x Port-based network access control client
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, internal & external RADIUS user authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention DDOS prevention (SYN flood, SSH attack, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile Quota Control Mobile data limit with customizable period, start time, warning limit, and phone number settings
Web Filter Blacklist to block unwanted websites; whitelist to specify allowed sites
Access Control Flexible control for SSH, Web interface, CLI, and Telnet access
SSL Certificate Generation Supports Let's Encrypt and SCEP certificate generation methods

Ā

VPN

Feature Details
OpenVPN Multiple clients and a server can run simultaneously; 27 encryption methods
OpenVPN Encryption Includes DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, AES-128-GCM, AES-256-GCM, etc.
IPsec XFRM, IKEv1, IKEv2; 14 encryption methods including 3DES, AES128, AES256, AES128GCM8, AES256GCM16
GRE GRE tunnel and GRE tunnel over IPsec support
PPTP, L2TP Simultaneous Client/Server instances; L2TPv3 and L2TP over IPsec support
Stunnel Adds TLS encryption functionality to existing clients/servers without altering the program code
DMVPN Scalable IPsec VPNs with Phase 2, Phase 3, and Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Offers encryption, authentication, and compression in tunnels; Client and server support
Tailscale Provides speed, stability, and simplicity with encrypted point-to-point connections using WireGuard protocol

Ā

OPC UA

Feature Details
Supported Modes Client, Server
Supported Connections TCP

MODBUS

Feature Details
Supported Modes Server, Client
Supported Connection Types TCP, USB
Custom Registers MODBUS TCP custom register block requests that read/write to a file inside the router, extending MODBUS TCP Client functionality
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Ā

Data to Server

Feature Details
Protocol HTTP(S), MQTT, Azure MQTT
Data to Server Extract parameters from multiple sources and protocols, and send them to a single server
Custom LUA Scripting Enables custom scripts to utilize the router's Data to Server feature

Ā

MQTT Gateway

Feature Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through an MQTT broker

DNP3

Feature Details
Supported Modes Station, Outstation
Supported Connections TCP, USB

Ā

DLMS

Feature Details
DLMS Support DLMS - standard protocol for utility meter data exchange
Supported Modes Client
Supported Connections TCP, USB

COSEM

Feature Details
COSEM Allows scanning of meter COSEM objects for automatic detection and configuration

API

Feature Details
Teltonika Networks Web API (Beta) Support Expand your device's possibilities using configurable API endpoints to retrieve or change data. For more information, refer to the documentation


Monitoring & Management

Feature Details
WEB UI HTTP/HTTPS access for status, configuration, firmware updates, CLI, troubleshooting, event log servers, firmware update notifications, system log, kernel log, internet status
FOTA Firmware update from server with automatic notification
SSH SSH (v1, v2)
SMS SMS status, configuration, send/read SMS via HTTP POST/GET
Call Reboot, status, mobile data on/off, output on/off, answer/hang-up with a timer
Email Receive email alerts for various service status changes
TR-069 Supports OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT Publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)

Ā

IoT Platforms

Feature Details
ThingWorx Monitors WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Monitors Device Model, Revision, Serial Number, WAN Type/IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Also supports reboot and firmware upgrade actions
Azure IoT Hub Can be configured with Data to Server to send parameters to the cloud. Supports Direct method for executing RutOS API calls, and Plug and Play integration with Device Provisioning Service for zero-touch device provisioning
AWS IoT Core Utility for interacting with AWS cloud platform, with Jobs Support for calling device API using AWS Jobs functionality

System Characteristics

Feature Details
CPU MediaTek, Dual-core, 880 MHz, MIPS1004Kc
RAM 256 MB, DDR3
FLASH Storage 16 MB serial NOR flash, 256 MB serial NAND flash

Ā

Firmware / Configuration

Feature Details
WEB UI Update firmware from file, check firmware on server, configuration profiles, configuration backup
FOTA Update firmware
RMS Update firmware/configuration for multiple devices at once
Keep Settings Update firmware without losing current configuration
Factory Settings Reset Full reset restores all system settings, including IP address, PIN, and user data to default configuration

Firmware Customization

Feature Details
Operating System RutOS (OpenWrt-based Linux OS)
Supported Languages Busybox shell, Lua, C, C++
Development Tools SDK package with build environment provided
GPL Customization Create custom, branded firmware and web applications by modifying colours, logos, and other elements
Package Manager Service used to install additional software on the device

Ā

Location Tracking

Feature Details
GNSS GPS, GLONASS, BeiDou, Galileo, and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
Server Software Supported server software: TAVL, RMS
Geofencing Configurable multiple geofence zones

USB

Feature Details
Data Rate USB 2.0
Applications Samba share, USB-to-serial
External Devices Connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage Formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Ā

Input / Output

Feature Details
Input 1 x Configurable digital input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
Output 1 x Configurable digital output, Open collector output, max output 50 V, 300 mA
Events Email, RMS, SMS
I/O Juggler Allows setting certain I/O conditions to initiate events

Power

Feature Details
Connector 4-pin industrial DC power socket
Input Voltage Range 9 ā€“ 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (Passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at, and 802.3bt standards, Mode B, 9 - 50 VDC
Power Consumption Idle: < 2.65 W, Max: < 9.82 W

Ā

Physical Interfaces

Feature Details
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
I/Oā€™s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 3 x WAN type LEDs, 3 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 1 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 1 x 4-pin power connector
Antennas 2 x SMA for Mobile, 1 x SMA for GNSS
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw

Physical Specification

Feature Details
Casing Material Anodized aluminum housing and panels
Dimensions (W x H x D) 115 x 44.2 x 95.1 mm
Weight 457 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)

Ā

Operating Environment

Feature Details
Operating Temperature -40 Ā°C to 75 Ā°C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Feature Details
Regulatory CE, UKCA, RCM, CB

Ā

EMC Emissions & Immunity

Feature Details
Standards EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN IEC 61000-3-2:2019 + A1:2021
ESD EN 61000-4-2: 2009
Radiated Immunity EN IEC 61000-4-3: 2020
EFT EN 61000-4-4: 2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014+A1:2017
Surge Immunity (AC Power Line) EN 61000-4-5:2014+A1:2017
CS EN 61000-4-6: 2014
DIP EN IEC 61000-4-11: 2020

Ā

RF Standards

Feature Details
Standards EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1, EN 303 413 V1.2.1

Safety Standards

Feature Details
CE EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020
RCM AS/NZS 62368.1:2022
CB IEC 62368-1:2018

Ā

Safety (Ordinary Locations)

Feature Details
Standards CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020
RCM: AS/NZS 62368.1:2022
CB: IEC62368-1:2018

Ā

Downloads

Manual & Documentation


Links

RUTM09 QUICK START GUIDE (EN)
FIRMWARE DOWNLOADS
RUTM09 USER MANUAL
CERTIFICATIONS & APPROVALS
PRODUCT CHANGE NOTIFICATIONS
SDK DOWNLOADS
GPL DOWNLOADS
RUTM09 3D MODELS
FAQ
How does the dual SIM auto switch work?
The router supports two SIM cards and auto switches between them. The switch is triggered by factors such as weak signal, data limit, roaming, no network, data connection fail, and SIM idle protection.
What speeds and network technologies are supported?
It supports 4G LTE Cat 6 up to 300 Mbps down and 50 Mbps up, and 3G up to 42 Mbps down and 5.76 Mbps up.
How many network ports does it have and how are they configured?
The unit provides four Gigabit Ethernet ports with 1 WAN port and 3 LAN ports.
Does it support GNSS location tracking and geofencing?
Yes, it includes a GNSS antenna and supports GPS, GLONASS, BeiDou, Galileo and QZSS for coordinates, and geofencing features to configure multiple zones.
What mounting options and environmental conditions is the router designed for?
It can be mounted on DIN rail, wall, or flat surfaces with additional kits; it operates from -40 C to 75 C and has IP30 protection.
Reviews
Forum
A
Admin
Welcome to the discussion thread for RUTM09 - 4G LTE Router
Feel free to ask questions, share tips or report issues.
Similar Products

Discover More In:

Industrial IoT ā†’ Network Accessories ā†’ Teltonika Networks | Official Page ā†’

Category: View similar items (RUTM09)

Bulk Order

Fill out the form below and our team will get back to you with bulk pricing.

Custom Requirements?

Meet with our team

Related products

Related products

0106-14

Waldom Electonics

0106-14

ā‚¹ 2,623.53
