Description

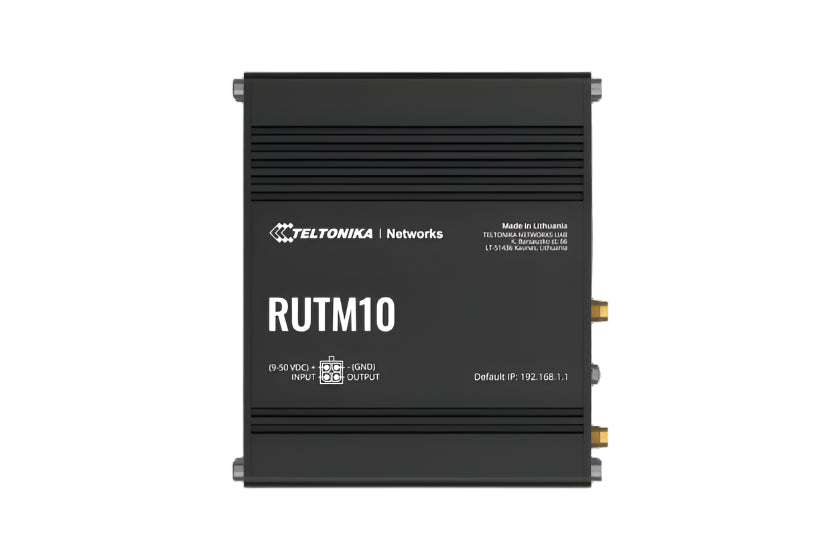

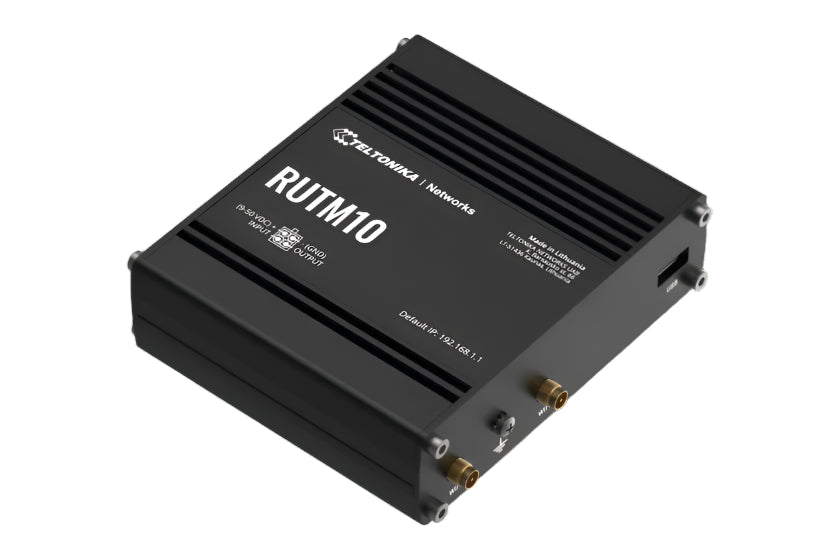

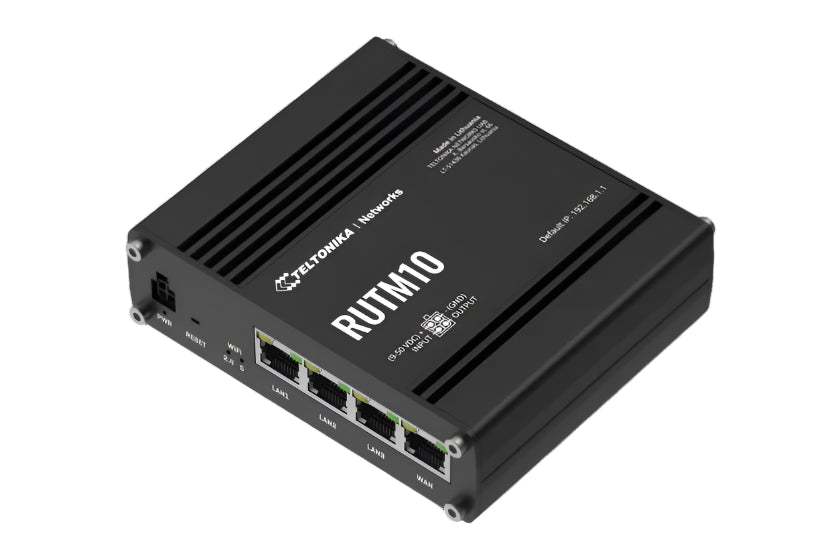

The RUTM10 is a wired router featuring four Gigabit RJ45 ports and Wi-Fi 5 connectivity options, making it ideal for applications that require both wired connections and a wireless access option for Internet access. The RUTM10 can establish a Wi-Fi mesh network within your networking solutions, enabling a smoother and more robust wireless network experience while making it highly secure due to the router’s support of VPNs like OpenVPN, IPsec, Wireguard, and Tailscale.
Standard package*
- Router RUTM10
- 18 W PSU
- 2x Wi-Fi antennas (swivel, RP-SMA male)
- Ethernet cable (1.5 m)
- QSG (Quick Start Guide)
- Packaging box
*Standard package contents may differ based on standard order codes
Features
Wireless
Feature | Details |
---|---|
Wireless Mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
Wi-Fi Security | WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
SSID/ESSID | ESSID stealth mode |
Wi-Fi Users | Up to 150 simultaneous connections |
Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k) |
Wireless MAC Filter | Allowlist, blocklist |
Wireless QR Code Generator | Once scanned, a user will automatically enter your network without needing to input login information |
TravelMate | Forward Wi-Fi hotspot landing page to a subsequent connected device |
Ethernet
Feature | Details |
---|---|
WAN | 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
LAN | 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
Network
Feature | Details |
---|---|
Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing |
Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
VoIP Passthrough Support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
Firewall | Port forward, traffic rules, custom rules, TTL target customization |
Firewall Status Page | View all Firewall statistics, rules, and rule counters |
Ports Management | View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed |
Network Topology | Visual representation of your network, showing which devices are connected to which other devices |
DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards |
QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol, or port, WMM, 802.11e |
DDNS | Supported >25 service providers, others can be configured manually |
DNS over HTTPS | DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS |
Network Backup | Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automatic Failover |
Load Balancing | Balance Internet traffic over multiple WAN connections |
Hotspot | Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes, and optionality to upload and download customized hotspot themes |
SSHFS | Possibility to mount remote file system via SSH protocol |
VRF Support | Initial virtual routing and forwarding (VRF) support |
Traffic Management | Real-time monitoring, wireless signal charts, traffic usage history |
Security
Feature | Details |
---|---|
802.1x | Port-based network access control client |
Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
Firewall | Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
Attack Prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
VLAN | Port and tag-based VLAN separation |
WEB Filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
Access Control | Flexible access control of SSH, Web interface, CLI, and Telnet |
SSL Certificate Generation | Let's Encrypt and SCEP certificate generation methods |
VPN
Feature | Details |
---|---|
OpenVPN | Multiple clients and a server can run simultaneously, 27 encryption methods |
OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
IPsec | XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
GRE | GRE tunnel, GRE tunnel over IPsec support |
PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
DMVPN | Method of building scalable IPsec VPNs, Phase 2 and Phase 3, and Dual Hub support |
SSTP | SSTP client instance support |
ZeroTier | ZeroTier VPN client support |
WireGuard | WireGuard VPN client and server support |
Tinc | Tinc offers encryption, authentication, and compression in its tunnels. Client and server support |
Tailscale | Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open-source WireGuard protocol |
OPC UA
Supported Modes | Supported Connection Types |
---|---|
Client, Server | TCP |
MODBUS
Attribute | Details |
---|---|
Supported Modes | Server, Client |
Supported Connection Types | TCP, USB |
Custom Registers | MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality |
Supported Data Formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
DATA TO SERVER
Attribute | Details |
---|---|
Protocol | HTTP(S), MQTT, Azure MQTT |
Data to Server | Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature |
MQTT Gateway
Attribute | Details |
---|---|
Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
DNP3
Attribute | Details |
---|---|
Supported modes | Station, Outstation |
Supported connection | TCP, USB |
DLMS
Attribute | Details |
---|---|
DLMS Support | DLMS - standard protocol for utility meter data exchange |
Supported modes | Client |
Supported connection types | TCP, USB |
COSEM | Allows to scan meter COSEM objects for automatic detection and configuration |
API
Attribute | Details |
---|---|
Teltonika Networks Web API (beta) support | Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: Teltonika Web API Documentation |
Monitoring & Management
Attribute | Details |
---|---|
WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status |
FOTA | Firmware update from server, automatic notification |
SSH | SSH (v1, v2) |
Receive email message status alerts of various services | |
TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
MQTT | MQTT Broker, MQTT publisher |
SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
JSON-RPC | Management API over HTTP/HTTPS |
RMS | Teltonika Remote Management System (RMS) |
IoT Platforms
Platform | Details |
---|---|
Cumulocity - Cloud of Things | Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Has reboot and firmware upgrade actions. |
Azure IoT Hub | Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows executing RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs. |
System Characteristics
Component | Specification |
---|---|
CPU | MediaTek, Dual-Core, 880 MHz, MIPS1004Kc |
RAM | 256MB, DDR3 |
FLASH Storage | 16 MB serial NOR flash, 256 MB serial NAND flash |
Firmware / Configuration
Component | Specification |
---|---|
WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
FOTA | Update FW |
RMS | Update FW/configuration for multiple devices at once |
Keep Settings | Update FW without losing current configuration |
Factory Settings Reset | A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration |
FIRMWARE CUSTOMISATION
Component | Specification |
---|---|
Operating System | RutOS (OpenWrt based Linux OS) |
Supported Languages | Busybox shell, Lua, C, C++ |
Development Tools | SDK package with build environment provided |
GPL Customization | Create custom, branded firmware and web page application by changing colors, logos, and other elements |
Package Manager | Service used to install additional software on the device |
USB
Component | Specification |
---|---|
Data Rate | USB 2.0 |
Applications | Samba share, USB-to-serial |
External Devices | Connect external HDD, flash drive, additional modem, printer, USB-serial adapter |
Storage Formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
Input / Output
Component | Specification |
---|---|
Input | 1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high |
Output | 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA |
Events | Email, RMS |
I/O Juggler | Allows to set certain I/O conditions to initiate event |
Power
Component | Specification |
---|---|
Connector | 4-pin industrial DC power socket |
Input Voltage Range | 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max |
PoE (Passive) | Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC |
Power Consumption | Idle: < 3.51 W, Max: < 8.65 W |
Physical Interfaces
Component | Specification |
---|---|

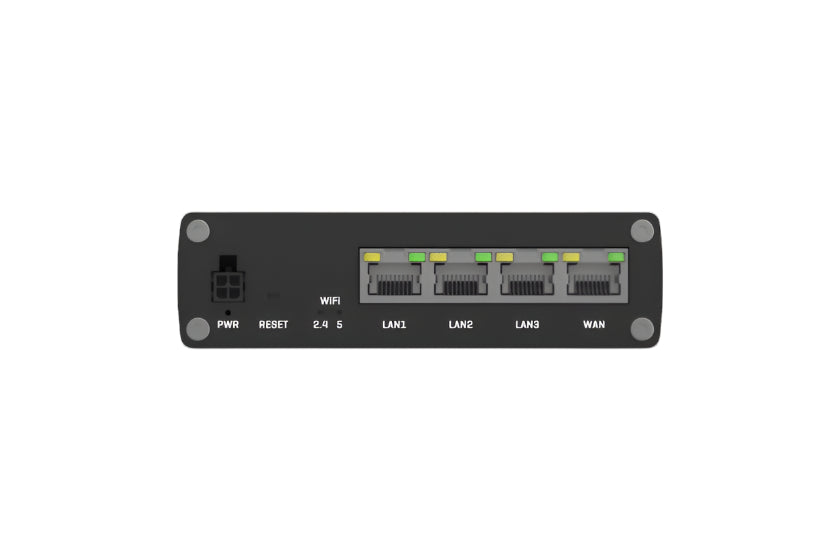

Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps |
I/O's | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
Status LEDs | 8 x LAN status, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs |
Power | 1 x 4-pin power connector |
Antennas | 2 x RP-SMA for Wi-Fi |
USB | 1 x USB A port for external devices |
Reset | Reboot/User default reset/Factory reset button |
Other | 1 x Grounding screw |
Physical Specification
Component | Specification |
---|---|
Casing Material | Anodized aluminum housing and panels |
Dimensions (W x H x D) | 115 x 32.2 x 95.2 mm |
Weight | 359 g |
Mounting Options | DIN rail, wall mount, flat surface (all require additional kit) |
Operating Environment
Component | Specification |
---|---|
Operating Temperature | -40 °C to 75 °C |
Operating Humidity | 10% to 90% non-condensing |
Ingress Protection Rating | IP30 |
Regulatory & Type Approvals
Component | Specification |
---|---|
Regulatory | CE, UKCA, RCM, CB |
EMC Emissions & Immunity
Standard | Specification |
---|---|
EN 55032:2015 + A11:2021 | EMC Emissions |
EN 55035:2017 + A11:2020 | EMC Immunity |
EN IEC 61000-3-2:2019 + A1:2021 | EMC Immunity |
EN 61000-3-3:2013 + A1:2019 + A2:2021 | EMC Immunity |
EN 301 489-1 V2.2.3 | EMC Immunity |
EN 301 489-3 V2.1.1 | EMC Immunity |
EN 301 489-17 V3.2.4 | EMC Immunity |
EN 301 489-52 V1.2.1 | EMC Immunity |
EN 61000-4-2:2009 | ESD |
EN IEC 61000-4-3:2020 | Radiated Immunity |
EN 61000-4-4:2012 | EFT |
EN 61000-4-5:2014 + A1:2017 | Surge Immunity (AC Mains Power Port) |
EN 61000-4-6:2014 | CS |
EN IEC 61000-4-11:2020 | DIP |
RF Standards
Standard | Specification |
---|---|
EN 301 908-1 V15.2.1 | RF Standard |
EN 301 908-2 V13.1.1 | RF Standard |
EN 301 908-13 V13.2.1 | RF Standard |
EN 300 328 V2.2.2 | RF Standard |
EN 301 893 V2.1.1 | RF Standard |
EN 300 440 V2.2.1 | RF Standard |
Safety Standards
Certification | Standard |
---|---|
CE | EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020 |
RCM | AS/NZS 62368.1:2022 |
CB | IEC62368-1:2018 |
Safety (Ordinary Locations)
Certification | Standard |
---|---|
CE | EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020 |
RCM | AS/NZS 62368.1:2022 |
CB | IEC62368-1:2018 |
