Teltonika Networks

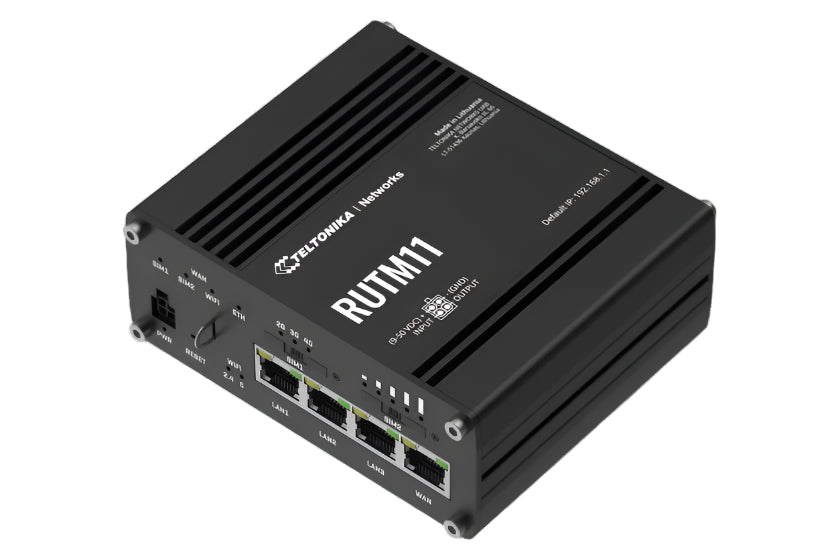

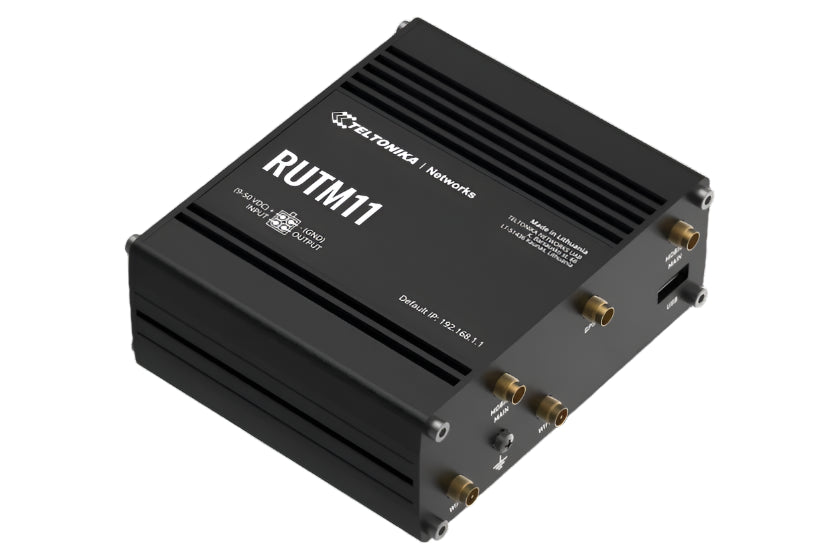

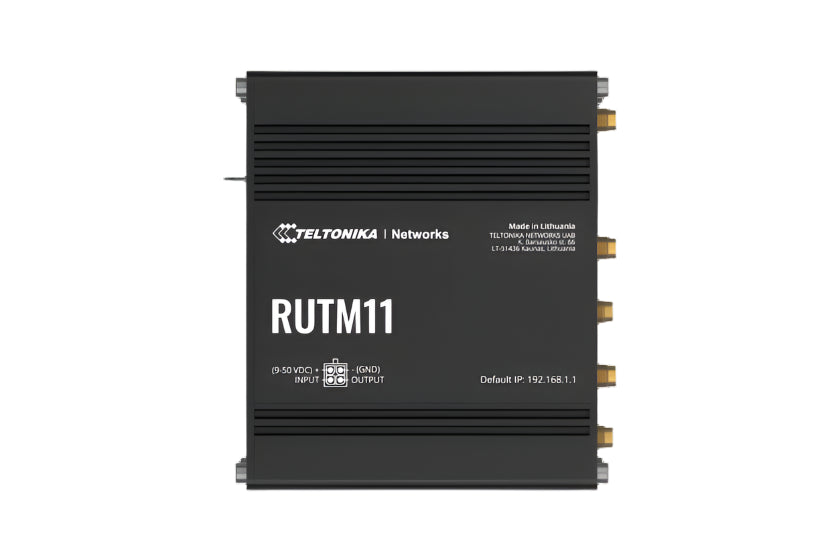

RUTM11 - Industrial 4G LTE Router

SKU: ELC8730

₹ 47,149.99 ~~₹ 69,099.99~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

RUTM11 - Industrial 4G LTE Router₹ 47,149.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Description

The RUTM11 is an industrial LTE router from Teltonika, designed for applications that demand high data throughput and a robust network connection with zero tolerance for high latency and interruptions. The RUTM11 comes equipped with four Gigabit RJ45 ports, dual-band Wi-Fi, and dual SIM capabilities, enabling multiple failover scenarios. This router features LTE Cat 6, allowing it to achieve cellular speeds of up to 300 Mbps, which can be increased with carrier aggregation.

Standard package*

Router RUTM11
18 W PSU
2x Mobile antennas (swivel, SMA male)
2x Wi-Fi antennas (swivel, RP-SMA male)
1x GNSS antenna (adhesive, SMA male, 3 m cable)
Ethernet cable (1.5 m)
SIM Adapter kit
QSG (Quick Start Guide)
Packaging box

Features

Mobile

Feature	Details
Mobile module	4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps
3GPP Release	Release 12
SIM switch	2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status	IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD	Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list	Operator black/white list (by country or separate operators)
Multiple PDN	Possibility to use different PDNs for multiple network access and services
Band management	Band lock, used band status display
SIM idle protection service	When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
SIM PIN code management	Enables setting, changing, or disabling the SIM card's PIN
APN	Auto APN
Bridge	Direct connection (bridge) between mobile ISP and device on LAN
Passthrough	Router assigns its mobile WAN IP address to another device on LAN

Wireless

Feature	Details
Wireless Mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
Wi-Fi Security	WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID	ESSID stealth mode
Wi-Fi Users	Up to 150 simultaneous connections
Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter	Allowlist, blocklist
Wireless QR Code Generator	Once scanned, a user will automatically enter your network without needing to input login information
TravelMate	Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

Feature	Details
WAN	1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN	3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

Feature	Details
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support	H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forward, traffic rules, custom rules, TTL target customisation
Firewall Status Page	View all your Firewall statistics, rules, and rule counters
Ports Management	View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network Topology	Visual representation of your network, showing which devices are connected to which other devices
DHCP	Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM)	Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS	Supported >25 service providers, others can be configured manually
DNS over HTTPS	DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network Backup	Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load Balancing	Balance Internet traffic over multiple WAN connections
Hotspot	Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
SSHFS	Possibility to mount remote file system via SSH protocol
VRF Support	Initial virtual routing and forwarding (VRF) support
Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history

Security

Feature	Details
802.1x	Port-based network access control client
Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall	Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention	DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN	Port and tag-based VLAN separation
Mobile Quota Control	Mobile data limit, customizable period, start time, warning limit, phone number
WEB Filter	Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access Control	Flexible access control of SSH, Web interface, CLI and Telnet
SSL Certificate Generation	Let's Encrypt and SCEP certificate generation methods

VPN

Feature	Details
OpenVPN	Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption	DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec	XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE	GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP	Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel	Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN	Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN client support
WireGuard	WireGuard VPN client and server support
Tinc	Tinc offers encryption, authentication and compression in its tunnels. Client and server support
Tailscale	Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

OPC UA

Feature	Details
Supported Modes	Client, Server
Supported Connection Types	TCP

MODBUS

Feature	Details
Supported Modes	Server, Client
Supported Connection Types	TCP, USB
Custom Registers	MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported Data Formats	8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to Server

Feature	Details
Protocol	HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server	Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

Feature	Details
Modbus MQTT Gateway	Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Feature	Details
Supported Modes	Station, Outstation
Supported Connection	TCP, USB

DLMS

Feature	Details
DLMS Support	DLMS - standard protocol for utility meter data exchange
Supported Modes	Client
Supported Connection Types	TCP, USB
COSEM	Allows to scan meter COSEM objects for automatic detection and configuration

API

Feature	Details
Teltonika Networks Web API (beta) Support	Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to the documentation: Teltonika Networks API Documentation

Monitoring & Management

Feature	Details
WEB UI	HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA	Firmware update from server, automatic notification
SSH	SSH (v1, v2)
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call	Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
Email	Receive email message status alerts of various services
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
SNMP	SNMP (v1, v2, v3), SNMP Trap, Brute force protection
RMS	Teltonika Remote Management System (RMS)

IoT Platforms

Feature	Details
ThingWorx	Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things	Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub	Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows executing RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core	Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics

Feature	Details
CPU	MediaTek, Dual-core, 880 MHz, MIPS1004Kc
RAM	256 MB, DDR3
FLASH Storage	16 MB serial NOR flash, 256 MB serial NAND flash

Firmware / Configuration

Feature	Details
WEB UI	Update firmware from file, check firmware on server, configuration profiles, configuration backup
FOTA	Update firmware
RMS	Update firmware/configuration for multiple devices at once
Keep Settings	Update firmware without losing current configuration
Factory Settings Reset	A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customization

Feature	Details
Operating System	RutOS (OpenWrt based Linux OS)
Supported Languages	Busybox shell, Lua, C, C++
Development Tools	SDK package with build environment provided
GPL Customization	You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager	The Package Manager is a service used to install additional software on the device

Location Tracking

Feature	Details
GNSS	GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates	GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA	NMEA 0183
NTRIP	NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server Software	Supported server software: TAVL, RMS
Geofencing	Configurable multiple geofence zones

USB

Feature	Details
Data Rate	USB 2.0
Applications	Samba share, USB-to-serial
External Devices	Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage Formats	FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

Feature	Details
Input	1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
Output	1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA
Events	Email, RMS, SMS
I/O Juggler	Allows setting certain I/O conditions to initiate event

Power

Feature	Details
Connector	4-pin industrial DC power socket
Input Voltage Range	9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (Passive)	Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at, and 802.3bt standards, Mode B, 9 - 50 VDC
Power Consumption	Idle: < 3.9 W, Max: < 12.3 W

Physical Interfaces

Feature	Details
Ethernet	4 x RJ45 ports, 10/100/1000 Mbps
I/O's	1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs	4 x WAN type LEDs, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi
SIM	2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power	1 x 4-pin power connector

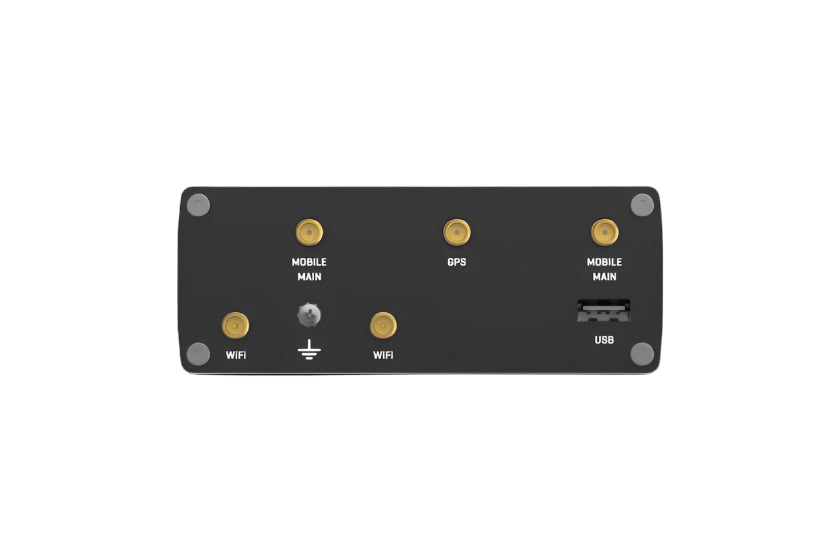

Antennas	2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
USB	1 x USB A port for external devices
Reset	Reboot/User default reset/Factory reset button
Other	1 x Grounding screw

Physical Specification

Feature	Details
Casing Material	Anodized aluminum housing and panels
Dimensions (W x H x D)	115 x 44.2 x 95.1 mm
Weight	460 g
Mounting Options	DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Feature	Details
Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30

Regulatory & Type Approvals

Feature	Details
Regulatory	WEE

EMC Emissions & Immunity

Feature	Details
Standards	EN 55032:2015 + A11:2021
	EN 55035:2017 + A11:2020
	EN IEC 61000-3-2:2019 + A1:2021
	EN 61000-3-3:2013 + A1:2019 + A2:2021
	EN 301 489-1 V2.2.3
	EN 301 489-3 V2.1.1
	EN 301 489-17 V3.2.4
	EN 301 489-19 V2.2.1
	EN 301 489-52 V1.2.1
ESD	EN 61000-4-2:2009
Radiated Immunity	EN IEC 61000-4-3:2020
EFT	EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)	EN 61000-4-5:2014 + A1:2017
CS	EN 61000-4-6:2014
DIP	EN 61000-4-11:2020

RF

Feature	Details
Standards	EN 301 908-1 V15.2.1
	EN 301 908-2 V13.1.1
	EN 301 908-13 V13.2.1
	EN 303 413 V1.2.1
	EN 300 328 V2.2.2
	EN 301 893 V2.1.1
	EN 300 440 V2.2.1

Safety

Feature	Details
Standards	CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020
	RCM: AS/NZS 62368.1:2022
	CB: IEC62368-1:2018

Safety (Ordinary Locations)

Feature	Details
Standards	CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020
	RCM: AS/NZS 62368.1:2022
	CB: IEC62368-1:2018

Downloads

Manual & Documentation

RUTM11 FLYER (EN)

RUTM11 DATASHEET (EN)

Links

RUTM11 QUICK START GUIDE (EN)

FIRMWARE DOWNLOADS

RUTM11 USER MANUAL

CERTIFICATIONS & APPROVALS

PRODUCT CHANGE NOTIFICATIONS

SDK DOWNLOADS

GPL DOWNLOADS

RUTM11 3D MODELS

What are the main network interfaces and wireless capabilities of the device?

It provides 1 x WAN port and 3 x LAN ports for wired connectivity, 2 SIM slots with automatic switch, and dual band Wi Fi 2.4 GHz and 5 GHz with data rates up to 867 Mbps.

How does the dual SIM feature work and when does automatic switching occur?

The router supports two SIM cards with auto switch in cases such as weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, and SIM idle protection.

What security and VPN options are available on this router?

It supports multiple VPN protocols including OpenVPN, IPsec, SSTP, and WireGuard, along with firewall and access control features.

What are the operating conditions and physical ruggedness of the device?

The unit operates from minus 40 to 75 degrees Celsius and has an IP30 rated enclosure with an anodized aluminum housing.

How can I manage and update the device options and firmware?

Configuration and monitoring are available via a Web UI over HTTP or HTTPS, and firmware updates can be performed via RMS or the local Web UI.

A

Admin

Welcome to the discussion thread for RUTM11 - Industrial 4G LTE Router
Feel free to ask questions, share tips or report issues.

Discover More In:

Industrial IoT → Network Accessories → Teltonika Networks | Official Page →

Category: View similar items (RUTM11)

PUSR

Ethernet Switch/Industrial - USR-ISG1005/1008

₹ 3,649.99

PUSR

Ethernet Switch/Industrial - USR-ISF1005/1008

₹ 2,349.99

PUSR

Serial to Ethernet - USR-TCP232-306

₹ 2,349.99

PUSR

Ethernet Switch/Business - USR-SG1005

₹ 1,549.99

Fill out the form below and our team will get back to you with bulk pricing.

Description

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Description

The RUTM11 is an industrial LTE router from Teltonika, designed for applications that demand high data throughput and a robust network connection with zero tolerance for high latency and interruptions. The RUTM11 comes equipped with four Gigabit RJ45 ports, dual-band Wi-Fi, and dual SIM capabilities, enabling multiple failover scenarios. This router features LTE Cat 6, allowing it to achieve cellular speeds of up to 300 Mbps, which can be increased with carrier aggregation.

Standard package*

Router RUTM11
18 W PSU
2x Mobile antennas (swivel, SMA male)
2x Wi-Fi antennas (swivel, RP-SMA male)
1x GNSS antenna (adhesive, SMA male, 3 m cable)
Ethernet cable (1.5 m)
SIM Adapter kit
QSG (Quick Start Guide)
Packaging box
