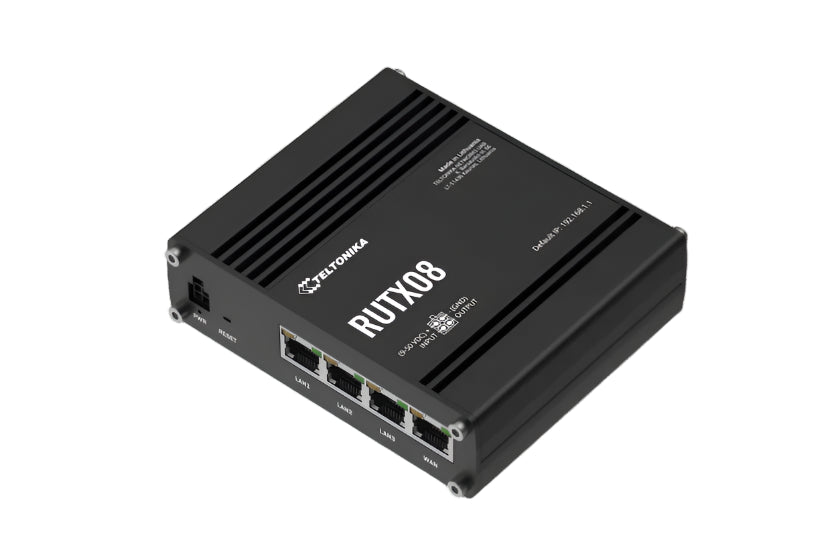

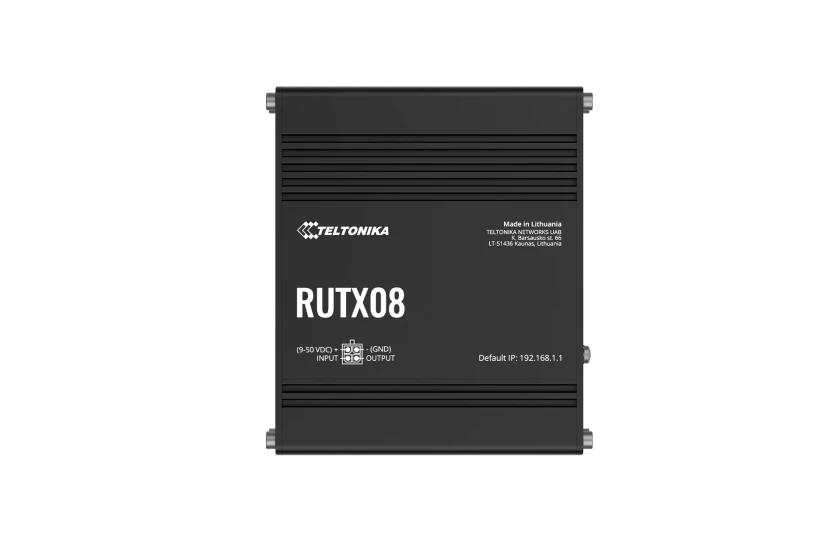

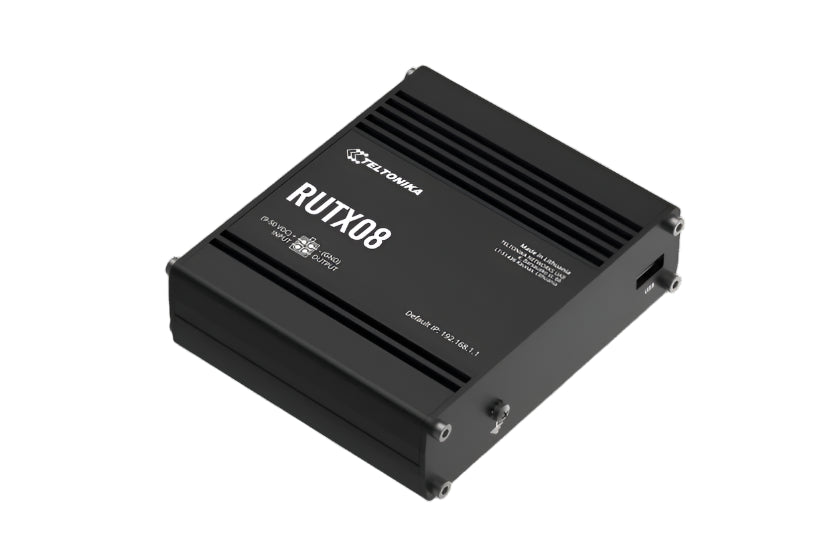

RUTX08 - INDUSTRIAL ETHERNET ROUTER

SKU: ELC8738

₹ 23,149.99 ₹ 33,899.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
⏱ This is a pre-order item. We'll ship it as soon as it's back in stock.
RUTX08 - INDUSTRIAL ETHERNET ROUTER₹ 23,149.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

This robust industrial router has four Gigabit Ethernet ports, a Quad-Core CPU, and 256 MB RAM. These powerful specifications combined with core RutOS software features, such as multiple VPN services, advanced Firewall, and RMS support, make this device a superb industrial performer.

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Ethernet

Category Details
WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

Category Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customization
Firewall status page View all your Firewall statistics, rules, and rule counters
Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology Visual representation of your network, showing which devices are connected to which other devices
Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and optionality to upload and download customized hotspot themes
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol
VRF support Initial virtual routing and forwarding (VRF) support
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history



Security

Category Details
802.1x Port-based network access control client
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of SSH, Web interface, CLI and Telnet
SSL certificate generation Let's Encrypt and SCEP certificate generation methods

VPN

VPN Type Details
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in its tunnels. Client and server support.
Tailscale Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol



MODBUS

Category Details
Supported modes Server, Client
Supported connection types TCP, USB
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

Category Details
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

Category Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Category Details
Supported modes Station, Outstation
Supported connection TCP, USB

DLMS

Category Details
DLMS Support DLMS - standard protocol for utility meter data exchange
Supported modes Client
Supported connection types TCP, USB
Category Details
COSEM Allows to scan meter COSEM objects for automatic detection and configuration



API

Category Details
Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, refer to the documentation: Teltonika Networks API

Monitoring & Management

Category Details
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)

IoT Platforms

Platform Details
ThingWorx Allows monitoring of: WAN Type, WAN IP
Cumulocity - Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Has reboot and firmware upgrade actions
Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs



System Characteristics

Component Specification
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH Storage 256 MB, SPI Flash

Firmware / Configuration

Category Details
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Firmware update
RMS Update FW/configuration for multiple devices at once
Keep Settings Update FW without losing current configuration
Factory Settings Reset A full factory reset restores all system settings, including IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customization

Category Details
Operating System RutOS (OpenWrt-based Linux OS)
Supported Languages Busybox shell, Lua, C, C++
Development Tools SDK package with build environment provided
GPL Customization Create custom, branded firmware and web applications by changing colors, logos, and other elements
Package Manager A service used to install additional software on the device



USB

Component Specification
Data Rate USB 2.0
Applications Samba share, USB-to-serial
External Devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage Formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

Component Specification
Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events Email, RMS
I/O Juggler Allows setting certain I/O conditions to initiate events

Power

Component Specification
Connector 4-pin industrial DC power socket
Input Voltage Range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (Passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power Consumption 6 W Max

Physical Interfaces

Component Specification
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 8 x LAN status LEDs, 1 x Power LED
Power 1 x 4-pin power connector
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw



Physical Specification

Component Specification
Casing Material Aluminium housing
Dimensions (W x H x D) 115 x 32.2 x 95.2 mm
Weight 345 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Component Specification
Operating Temperature -40 °C to 75 °C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Component Specification
Regulatory CE, UKCA, EAC, UCRF, CITC, ANRT, NOM, UL/CSA Safety, CB

EMC Emissions & Immunity Standards

Standard Specification
Emissions & Immunity EN 55032:2015, EN 55035:2017
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014
Surge Immunity (AC Power Line) EN 61000-4-5:2014
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2004

Safety Standards

Component Specification
Safety Standards CE: EN 62368-1:2014 + A11:2017, EN 62311:2008
RCM: AS/NZS 62368.1:2018
CB: IEC 62368-1:2018



Downloads

Manual & Documentation


Links

RUTX08 QUICK START GUIDE (EN)
FIRMWARE DOWNLOADS
RUTX08 USER MANUAL
CERTIFICATIONS & APPROVALS
PRODUCT CHANGE NOTIFICATIONS
SDK DOWNLOADS
GPL DOWNLOADS
RUTX08 3D MODELS
What are the network interfaces and routing capabilities?
It provides 1 WAN port and 3 LAN ports with 10/100/1000 Mbps speeds. It supports static routing and dynamic routing protocols such as BGP, OSPF, RIP, EIGRP and NHRP.
What VPN and firewall features are available?
RutOS offers multiple VPN services including OpenVPN and IPsec with various encryption options. A configurable firewall and QoS features are included for traffic control and security.
How is the device powered and can it be powered via the network port?
Power is supplied through a 4 pin 9 to 50 VDC input with reverse polarity and surge protection. Passive PoE power through the LAN1 port is supported but not IEEE 802.3af/at/bt standards.
What are the operating conditions and physical features?
The device has an aluminium housing with IP30 rating and operates from -40 C to 75 C and 10 to 90 percent humidity. It includes 4 x RJ45 Ethernet ports, status LEDs and mounting options for DIN rail, wall mount or flat surface.
What is included in the standard package and can contents vary?
Standard contents are the RUTX08 router, an 18 W power supply, an Ethernet cable, a quick start guide and the packaging box. Contents may differ based on standard order codes.
A
Admin
Welcome to the discussion thread for RUTX08 - INDUSTRIAL ETHERNET ROUTER
Feel free to ask questions, share tips or report issues.

Discover More In:

IOT Modules → Network Accessories → Teltonika Networks | Official Page →

Category: View similar items (RUTX08)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

This robust industrial router has four Gigabit Ethernet ports, a Quad-Core CPU, and 256 MB RAM. These powerful specifications combined with core RutOS software features, such as multiple VPN services, advanced Firewall, and RMS support, make this device a superb industrial performer.

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Ethernet

Category Details
WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

Category Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customization
Firewall status page View all your Firewall statistics, rules, and rule counters
Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology Visual representation of your network, showing which devices are connected to which other devices
Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and optionality to upload and download customized hotspot themes
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol
VRF support Initial virtual routing and forwarding (VRF) support
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history



Security

Category Details
802.1x Port-based network access control client
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of SSH, Web interface, CLI and Telnet
SSL certificate generation Let's Encrypt and SCEP certificate generation methods

VPN

VPN Type Details
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in its tunnels. Client and server support.
Tailscale Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol



MODBUS

Category Details
Supported modes Server, Client
Supported connection types TCP, USB
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

Category Details
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

Category Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Category Details
Supported modes Station, Outstation
Supported connection TCP, USB

DLMS

Category Details
DLMS Support DLMS - standard protocol for utility meter data exchange
Supported modes Client
Supported connection types TCP, USB
Category Details
COSEM Allows to scan meter COSEM objects for automatic detection and configuration



API

Category Details
Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, refer to the documentation: Teltonika Networks API

Monitoring & Management

Category Details
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)

IoT Platforms

Platform Details
ThingWorx Allows monitoring of: WAN Type, WAN IP
Cumulocity - Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Has reboot and firmware upgrade actions
Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs



System Characteristics

Component Specification
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH Storage 256 MB, SPI Flash

Firmware / Configuration

Category Details
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Firmware update
RMS Update FW/configuration for multiple devices at once
Keep Settings Update FW without losing current configuration
Factory Settings Reset A full factory reset restores all system settings, including IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customization

Category Details
Operating System RutOS (OpenWrt-based Linux OS)
Supported Languages Busybox shell, Lua, C, C++
Development Tools SDK package with build environment provided
GPL Customization Create custom, branded firmware and web applications by changing colors, logos, and other elements
Package Manager A service used to install additional software on the device



USB

Component Specification
Data Rate USB 2.0
Applications Samba share, USB-to-serial
External Devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage Formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

Component Specification
Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events Email, RMS
I/O Juggler Allows setting certain I/O conditions to initiate events

Power

Component Specification
Connector 4-pin industrial DC power socket
Input Voltage Range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (Passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power Consumption 6 W Max

Physical Interfaces

Component Specification
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 8 x LAN status LEDs, 1 x Power LED
Power 1 x 4-pin power connector
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw



Physical Specification

Component Specification
Casing Material Aluminium housing
Dimensions (W x H x D) 115 x 32.2 x 95.2 mm
Weight 345 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Component Specification
Operating Temperature -40 °C to 75 °C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Component Specification
Regulatory CE, UKCA, EAC, UCRF, CITC, ANRT, NOM, UL/CSA Safety, CB

EMC Emissions & Immunity Standards

Standard Specification
Emissions & Immunity EN 55032:2015, EN 55035:2017
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014
Surge Immunity (AC Power Line) EN 61000-4-5:2014
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2004

Safety Standards

Component Specification
Safety Standards CE: EN 62368-1:2014 + A11:2017, EN 62311:2008
RCM: AS/NZS 62368.1:2018
CB: IEC 62368-1:2018



Downloads

Manual & Documentation


Links

RUTX08 QUICK START GUIDE (EN)
FIRMWARE DOWNLOADS
RUTX08 USER MANUAL
CERTIFICATIONS & APPROVALS
PRODUCT CHANGE NOTIFICATIONS
SDK DOWNLOADS
GPL DOWNLOADS
RUTX08 3D MODELS
FAQ
What are the network interfaces and routing capabilities?
It provides 1 WAN port and 3 LAN ports with 10/100/1000 Mbps speeds. It supports static routing and dynamic routing protocols such as BGP, OSPF, RIP, EIGRP and NHRP.
What VPN and firewall features are available?
RutOS offers multiple VPN services including OpenVPN and IPsec with various encryption options. A configurable firewall and QoS features are included for traffic control and security.
How is the device powered and can it be powered via the network port?
Power is supplied through a 4 pin 9 to 50 VDC input with reverse polarity and surge protection. Passive PoE power through the LAN1 port is supported but not IEEE 802.3af/at/bt standards.
What are the operating conditions and physical features?
The device has an aluminium housing with IP30 rating and operates from -40 C to 75 C and 10 to 90 percent humidity. It includes 4 x RJ45 Ethernet ports, status LEDs and mounting options for DIN rail, wall mount or flat surface.
What is included in the standard package and can contents vary?
Standard contents are the RUTX08 router, an 18 W power supply, an Ethernet cable, a quick start guide and the packaging box. Contents may differ based on standard order codes.
Reviews
Forum
A
Admin
Welcome to the discussion thread for RUTX08 - INDUSTRIAL ETHERNET ROUTER
Feel free to ask questions, share tips or report issues.
Similar Products

Discover More In:

IOT Modules → Network Accessories → Teltonika Networks | Official Page →

Category: View similar items (RUTX08)

Bulk Order

Fill out the form below and our team will get back to you with bulk pricing.

Custom Requirements?

Meet with our team

Related products

Related products

0106-14

Waldom Electonics

0106-14

₹ 2,623.53
