Best seller

Teltonika Networks

RUTX09 - Industrial Cellular Router

SKU: ELC8722

ā‚¹ 47,349.99 ā‚¹ 69,399.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ā± This is a pre-order item. We'll ship it as soon as it's back in stock.
RUTX09 - Industrial Cellular Routerā‚¹ 47,349.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

RUTX09 is an LTE-A Cat 6 cellular IoT router with dual-SIM, Carrier Aggregation, and four Gigabit Ethernet interfaces. Designed as a primary or backup internet source, it can offer up to 300 Mbps cellular speeds with high data throughput.

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Feature Details
Mobile Module 4G LTE Cat 6 up to 300 DL / 50 UL Mbps; 3G up to 42 DL / 5.76 UL Mbps
3GPP Release Release 12
SIM Switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band Management Band lock, Used band status display
SIM Idle Protection Service When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
SIM PIN Code Management Enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN

Ā

Ethernet

Feature Details
WAN 1 x WAN port, 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3az standards, supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3az standards, supports auto MDI/MDIX crossover

Ā

Network

Feature Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support H.323 and SIP-alg protocol NAT helpers
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customization
Firewall Status Page View Firewall statistics, rules, and rule counters
Ports Management Enable/disable device ports, auto-configuration, transmission speed
Network Topology Visual representation of network connections
Hotspot Captive portal, Radius authentication, user management, customisable themes
DHCP Static/dynamic IP allocation, DHCP relay, DHCP server configuration
QoS / Smart Queue Management (SQM) Traffic prioritization by source/destination, protocol, port
DDNS >25 supported service providers
DNS over HTTPS Proxy for secure DNS resolution
Network Backup Wi-Fi WAN, Mobile, VRRP, Wired options for automatic failover
Load Balancing Balance traffic over multiple WAN connections
SSHFS Remote file system mount via SSH protocol
VRF Support Initial Virtual Routing and Forwarding (VRF) support
Traffic Management Real-time monitoring, wireless signal charts


Security

Feature Details
802.1x Port-based network access control
Authentication Pre-shared key, digital certificates, TACACS+, Internal & External RADIUS
Firewall Preconfigured firewall rules, DMZ, NAT, NAT-T, NAT64
Attack Prevention DDOS prevention, port scan prevention
VLAN Port and tag-based VLAN separation
Mobile Quota Control Mobile data limit, customizable period
WEB Filter Block unwanted websites, whitelist for allowed sites
Access Control SSH, Web, CLI, Telnet access control
SSL Certificate Generation Let's Encrypt, SCEP


VPN

Feature Details
OpenVPN Multiple clients and a server, 27 encryption methods
IPsec XFRM, IKEv1, IKEv2, 14 encryption methods
GRE GRE tunnel, GRE over IPsec support
PPTP, L2TP Client/Server instances, L2TPv3, L2TP over IPsec
Stunnel Proxy adding TLS encryption to existing clients and servers
DMVPN Scalable IPsec VPNs, Phase 2/3, Dual Hub
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Encryption, authentication, and compression in tunnels
Tailscale Encrypted point-to-point connections with WireGuard


OPC UA

Feature Details
Supported Modes Client, Server
Supported Connection Types TCP

Ā

MODBUS

Feature Details
Supported Modes Server, Client
Supported Connection Types TCP, USB
Custom Registers MODBUS TCP custom register block requests that read/write to a file inside the router, extending MODBUS TCP Client functionality
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII


Data to Server

Feature Details
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server Extract parameters from multiple sources and protocols and send them to a single server; Custom LUA scripting for extended functionality


MQTT Gateway

Feature Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through an MQTT broker


DNP3

Feature Details
Supported Modes Station, Outstation
Supported Connection Types TCP, USB

Ā

DLMS

Feature Details
DLMS Support Standard protocol for utility meter data exchange
Supported Modes Client
Supported Connection Types TCP, USB


COSEMĀ

Feature Details
COSEM Scans meter COSEM objects for automatic detection and configuration


API

Feature Details
Teltonika Networks Web API (Beta) Expand device possibilities by using configurable API endpoints to retrieve or change data. For more information, visit: Teltonika Networks API Documentation

Ā

Monitoring & ManagementĀ

Feature Details
WEB UI HTTP/HTTPS access for status, configuration, firmware update, CLI, troubleshooting, multiple event log servers, event log, system log, kernel log, Internet status.
FOTA Firmware update from server with automatic notifications.
SSH SSH (v1, v2) for remote access.
SMS SMS status, configuration, send/read SMS via HTTP POST/GET.
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off.
TR-069 Supports OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem.
MQTT MQTT Broker, MQTT publisher for communication.
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection.
JSON-RPC Management API over HTTP/HTTPS.
RMS Teltonika Remote Management System (RMS).


IoT Platforms Integration

Platform Monitoring Details
ThingWorx Monitors WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type.
Cumulocity - Cloud of Things Monitors Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions.
Azure IoT Hub Configured with Data to Server to send parameters to the cloud. Direct method support for RutOS API calls. Plug and Play integration with Device Provisioning Service.
AWS IoT Core Supports AWS Jobs to call device API using AWS Jobs functionality.


System Characteristics

Component Details
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH storage 256 MB, SPI Flash


Firmware / ConfigurationĀ

Feature Details
WEB UI Update firmware from file, check firmware on server, configuration profiles, configuration backup.
FOTA Update firmware automatically.
RMS Update firmware/configuration for multiple devices at once.
Keep settings Update firmware without losing current configuration.
Factory settings reset Full factory reset restores all system settings to the default manufacturer's configuration.


Firmware CustomizationĀ

Feature Details
Operating System RutOS (OpenWrt-based Linux OS).
Supported Languages Busybox shell, Lua, C, C++.
Development Tools SDK package with build environment provided.
GPL Customization Ability to create custom, branded firmware and web page applications by changing colors, logos, and other elements.
Package Manager Service used to install additional software on the device.


Location Tracking

Feature Details
GNSS Supports GPS, GLONASS, BeiDou, Galileo, and QZSS.
Coordinates GNSS coordinates available via WebUI, SMS, TAVL, RMS.
NMEA NMEA 0183 support for communication.
NTRIP NTRIP protocol for networked RTCM via Internet Protocol.
Server Software Supported software: TAVL, RMS.
Geofencing Configurable multiple geofence zones for location tracking.


USB

Feature Details
Data Rate USB 2.0
Applications Samba share, USB-to-serial.
External Devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter.
Storage Formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4.

Ā

Input / Output Features

Feature Details
Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high.
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA.
Events Email, RMS, SMS notifications for event handling.
I/O Juggler Allows to set certain I/O conditions to initiate events.


Power Features

Feature Details
Connector 4-pin industrial DC power socket.
Input Voltage Range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection.
PoE (Passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at, and 802.3bt standards, Mode B, 9 - 50 VDC.
Power Consumption 9 W Max.


Physical Interfaces

Feature Details

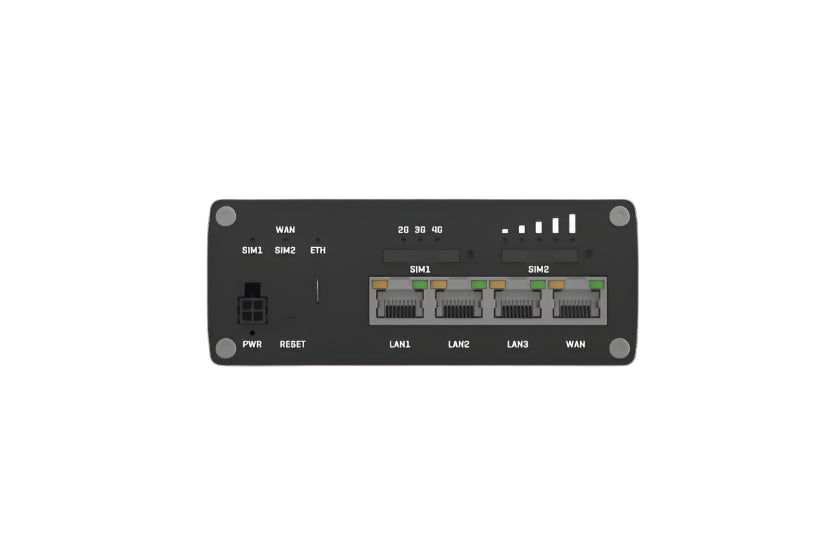

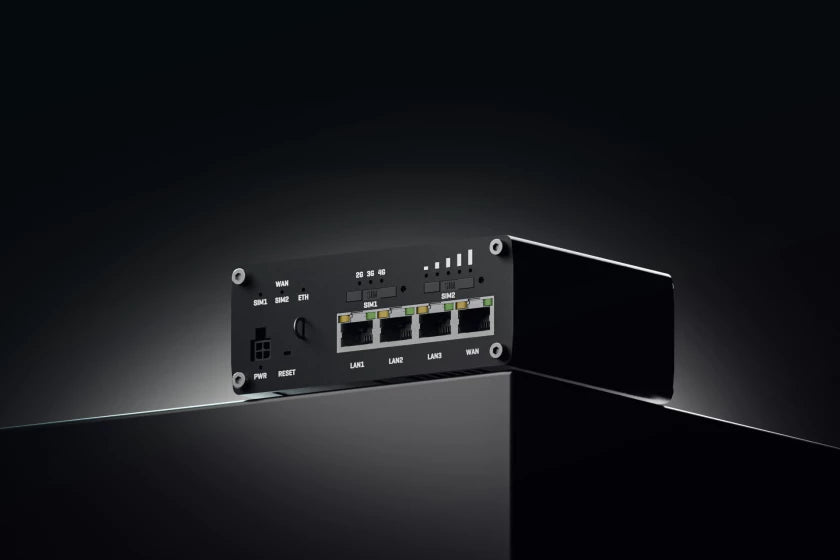

Ethernet 4 x RJ45 ports, 10/100/1000 Mbps.
I/Oā€™s 1 x Digital Input, 1 x Digital Output on 4-pin power connector.
Status LEDs 3 x WAN type, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 3 x WAN status, 1 x Power LED.
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders.
Power 1 x 4-pin power connector.

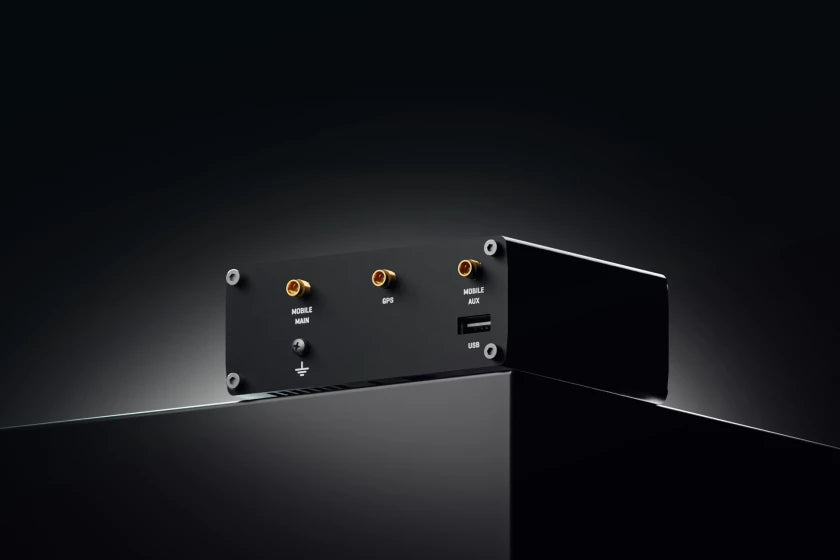

Antennas 2 x SMA for LTE, 1 x SMA for GNSS.
USB 1 x USB A port for external devices.
Reset Reboot/User default reset/Factory reset button.
Other 1 x Grounding screw.


Physical Specification

Feature Details
Casing Material Aluminium housing.
Dimensions (W x H x D) 115 x 44.2 x 95.1 mm.
Weight 455 g.
Mounting Options DIN rail, wall mount, flat surface (all require additional kit).


Operating Environment

Feature Details
Operating Temperature -40 Ā°C to 75 Ā°C.
Operating Humidity 10% to 90% non-condensing.
Ingress Protection Rating IP30.


Regulatory & Type Approvals

Feature Details
Regulatory Approvals CE, UKCA, EAC, UCRF, CITC, ANRT, ICASA, NOM, RCM, IMDA, NTC, E-mark, UL/CSA Safety, CB, RoHS, REACH.
Operator Deutsche Telekom AG.

Ā

EMC Emissions & Immunity Standards

Standards Details
EN 55032:2015 + A11:2020
EN 55035:2017 + A11:2020
EN 301 489-1 V2.2.3
Draft EN 301 489-19 V2.2.0
EN 301 489-52 V1.2.1
ESD EN 61000-4-2:2009
Radiated Immunity EN 61000-4-3:2006 + A1:2008 + A2:2010
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2004


RF Standards

Standards Details
EN 303 413 V1.2.1
EN 301 908-1 V15.1.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.1.1


Safety Standards

Standards Details
CE EN 62368-1:2014 + A11:2017, EN IEC 62311:2020, EN 50665:2017
RCM AS/NZS 60950.1: 2015
CB IEC 62368-1:2018
UL/CSA Safety UL 62368-1 (3rd Ed., Rev. December 13, 2019), CAN/CSA C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

Ā

Manual & Documentation

Links


What is this router designed for and what are its key capabilities?
It is an LTE A Cat 6 cellular router that can be used as a primary or backup internet source, with dual SIM, carrier aggregation and four Gigabit Ethernet ports, offering up to 300 Mbps downlink and 50 Mbps uplink.
How many SIM cards are supported and how does the SIM switching work?
The device supports two SIM cards with auto switch logic for conditions such as weak signal, data limit, roaming, or no network, and the unused SIM remains idle to conserve data.
What network and security features are available?
It supports routing with static and dynamic options, a wide set of network protocols, and VPN options including OpenVPN, IPsec, GRE, SSTP and WireGuard, plus firewall, NAT and QoS capabilities.
What is included in the standard package?
Standard package items include the RUTX09 router, an 18 W power supply, two mobile antennas, a GNSS antenna with 3 m cable, SIM adapter kit, 1.5 m Ethernet cable, a Quick Start Guide and the packaging box.
How can I manage firmware updates and device configuration?
Firmware can be updated via the WEB UI or FOTA from a server, and the device supports remote management via RMS for multi device firmware and configuration updates.
A
Admin
Welcome to the discussion thread for RUTX09 - Industrial Cellular Router
Feel free to ask questions, share tips or report issues.

Discover More In:

Industrial IoT ā†’ Network Accessories ā†’ Teltonika Networks | Official Page ā†’

Category: View similar items (RUTX09)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

RUTX09 is an LTE-A Cat 6 cellular IoT router with dual-SIM, Carrier Aggregation, and four Gigabit Ethernet interfaces. Designed as a primary or backup internet source, it can offer up to 300 Mbps cellular speeds with high data throughput.

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Feature Details
Mobile Module 4G LTE Cat 6 up to 300 DL / 50 UL Mbps; 3G up to 42 DL / 5.76 UL Mbps
3GPP Release Release 12
SIM Switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band Management Band lock, Used band status display
SIM Idle Protection Service When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
SIM PIN Code Management Enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN

Ā

Ethernet

Feature Details
WAN 1 x WAN port, 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3az standards, supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3az standards, supports auto MDI/MDIX crossover

Ā

Network

Feature Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support H.323 and SIP-alg protocol NAT helpers
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customization
Firewall Status Page View Firewall statistics, rules, and rule counters
Ports Management Enable/disable device ports, auto-configuration, transmission speed
Network Topology Visual representation of network connections
Hotspot Captive portal, Radius authentication, user management, customisable themes
DHCP Static/dynamic IP allocation, DHCP relay, DHCP server configuration
QoS / Smart Queue Management (SQM) Traffic prioritization by source/destination, protocol, port
DDNS >25 supported service providers
DNS over HTTPS Proxy for secure DNS resolution
Network Backup Wi-Fi WAN, Mobile, VRRP, Wired options for automatic failover
Load Balancing Balance traffic over multiple WAN connections
SSHFS Remote file system mount via SSH protocol
VRF Support Initial Virtual Routing and Forwarding (VRF) support
Traffic Management Real-time monitoring, wireless signal charts


Security

Feature Details
802.1x Port-based network access control
Authentication Pre-shared key, digital certificates, TACACS+, Internal & External RADIUS
Firewall Preconfigured firewall rules, DMZ, NAT, NAT-T, NAT64
Attack Prevention DDOS prevention, port scan prevention
VLAN Port and tag-based VLAN separation
Mobile Quota Control Mobile data limit, customizable period
WEB Filter Block unwanted websites, whitelist for allowed sites
Access Control SSH, Web, CLI, Telnet access control
SSL Certificate Generation Let's Encrypt, SCEP


VPN

Feature Details
OpenVPN Multiple clients and a server, 27 encryption methods
IPsec XFRM, IKEv1, IKEv2, 14 encryption methods
GRE GRE tunnel, GRE over IPsec support
PPTP, L2TP Client/Server instances, L2TPv3, L2TP over IPsec
Stunnel Proxy adding TLS encryption to existing clients and servers
DMVPN Scalable IPsec VPNs, Phase 2/3, Dual Hub
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Encryption, authentication, and compression in tunnels
Tailscale Encrypted point-to-point connections with WireGuard


OPC UA

Feature Details
Supported Modes Client, Server
Supported Connection Types TCP

Ā

MODBUS

Feature Details
Supported Modes Server, Client
Supported Connection Types TCP, USB
Custom Registers MODBUS TCP custom register block requests that read/write to a file inside the router, extending MODBUS TCP Client functionality
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII


Data to Server

Feature Details
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server Extract parameters from multiple sources and protocols and send them to a single server; Custom LUA scripting for extended functionality


MQTT Gateway

Feature Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through an MQTT broker


DNP3

Feature Details
Supported Modes Station, Outstation
Supported Connection Types TCP, USB

Ā

DLMS

Feature Details
DLMS Support Standard protocol for utility meter data exchange
Supported Modes Client
Supported Connection Types TCP, USB


COSEMĀ

Feature Details
COSEM Scans meter COSEM objects for automatic detection and configuration


API

Feature Details
Teltonika Networks Web API (Beta) Expand device possibilities by using configurable API endpoints to retrieve or change data. For more information, visit: Teltonika Networks API Documentation

Ā

Monitoring & ManagementĀ

Feature Details
WEB UI HTTP/HTTPS access for status, configuration, firmware update, CLI, troubleshooting, multiple event log servers, event log, system log, kernel log, Internet status.
FOTA Firmware update from server with automatic notifications.
SSH SSH (v1, v2) for remote access.
SMS SMS status, configuration, send/read SMS via HTTP POST/GET.
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off.
TR-069 Supports OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem.
MQTT MQTT Broker, MQTT publisher for communication.
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection.
JSON-RPC Management API over HTTP/HTTPS.
RMS Teltonika Remote Management System (RMS).


IoT Platforms Integration

Platform Monitoring Details
ThingWorx Monitors WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type.
Cumulocity - Cloud of Things Monitors Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions.
Azure IoT Hub Configured with Data to Server to send parameters to the cloud. Direct method support for RutOS API calls. Plug and Play integration with Device Provisioning Service.
AWS IoT Core Supports AWS Jobs to call device API using AWS Jobs functionality.


System Characteristics

Component Details
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH storage 256 MB, SPI Flash


Firmware / ConfigurationĀ

Feature Details
WEB UI Update firmware from file, check firmware on server, configuration profiles, configuration backup.
FOTA Update firmware automatically.
RMS Update firmware/configuration for multiple devices at once.
Keep settings Update firmware without losing current configuration.
Factory settings reset Full factory reset restores all system settings to the default manufacturer's configuration.


Firmware CustomizationĀ

Feature Details
Operating System RutOS (OpenWrt-based Linux OS).
Supported Languages Busybox shell, Lua, C, C++.
Development Tools SDK package with build environment provided.
GPL Customization Ability to create custom, branded firmware and web page applications by changing colors, logos, and other elements.
Package Manager Service used to install additional software on the device.


Location Tracking

Feature Details
GNSS Supports GPS, GLONASS, BeiDou, Galileo, and QZSS.
Coordinates GNSS coordinates available via WebUI, SMS, TAVL, RMS.
NMEA NMEA 0183 support for communication.
NTRIP NTRIP protocol for networked RTCM via Internet Protocol.
Server Software Supported software: TAVL, RMS.
Geofencing Configurable multiple geofence zones for location tracking.


USB

Feature Details
Data Rate USB 2.0
Applications Samba share, USB-to-serial.
External Devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter.
Storage Formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4.

Ā

Input / Output Features

Feature Details
Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high.
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA.
Events Email, RMS, SMS notifications for event handling.
I/O Juggler Allows to set certain I/O conditions to initiate events.


Power Features

Feature Details
Connector 4-pin industrial DC power socket.
Input Voltage Range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection.
PoE (Passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at, and 802.3bt standards, Mode B, 9 - 50 VDC.
Power Consumption 9 W Max.


Physical Interfaces

Feature Details
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps.
I/Oā€™s 1 x Digital Input, 1 x Digital Output on 4-pin power connector.
Status LEDs 3 x WAN type, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 3 x WAN status, 1 x Power LED.
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders.
Power 1 x 4-pin power connector.
Antennas 2 x SMA for LTE, 1 x SMA for GNSS.
USB 1 x USB A port for external devices.
Reset Reboot/User default reset/Factory reset button.
Other 1 x Grounding screw.


Physical Specification

Feature Details
Casing Material Aluminium housing.
Dimensions (W x H x D) 115 x 44.2 x 95.1 mm.
Weight 455 g.
Mounting Options DIN rail, wall mount, flat surface (all require additional kit).


Operating Environment

Feature Details
Operating Temperature -40 Ā°C to 75 Ā°C.
Operating Humidity 10% to 90% non-condensing.
Ingress Protection Rating IP30.


Regulatory & Type Approvals

Feature Details
Regulatory Approvals CE, UKCA, EAC, UCRF, CITC, ANRT, ICASA, NOM, RCM, IMDA, NTC, E-mark, UL/CSA Safety, CB, RoHS, REACH.
Operator Deutsche Telekom AG.

Ā

EMC Emissions & Immunity Standards

Standards Details
EN 55032:2015 + A11:2020
EN 55035:2017 + A11:2020
EN 301 489-1 V2.2.3
Draft EN 301 489-19 V2.2.0
EN 301 489-52 V1.2.1
ESD EN 61000-4-2:2009
Radiated Immunity EN 61000-4-3:2006 + A1:2008 + A2:2010
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2004


RF Standards

Standards Details
EN 303 413 V1.2.1
EN 301 908-1 V15.1.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.1.1


Safety Standards

Standards Details
CE EN 62368-1:2014 + A11:2017, EN IEC 62311:2020, EN 50665:2017
RCM AS/NZS 60950.1: 2015
CB IEC 62368-1:2018
UL/CSA Safety UL 62368-1 (3rd Ed., Rev. December 13, 2019), CAN/CSA C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

Ā

Manual & Documentation

Links


FAQ
What is this router designed for and what are its key capabilities?
It is an LTE A Cat 6 cellular router that can be used as a primary or backup internet source, with dual SIM, carrier aggregation and four Gigabit Ethernet ports, offering up to 300 Mbps downlink and 50 Mbps uplink.
How many SIM cards are supported and how does the SIM switching work?
The device supports two SIM cards with auto switch logic for conditions such as weak signal, data limit, roaming, or no network, and the unused SIM remains idle to conserve data.
What network and security features are available?
It supports routing with static and dynamic options, a wide set of network protocols, and VPN options including OpenVPN, IPsec, GRE, SSTP and WireGuard, plus firewall, NAT and QoS capabilities.
What is included in the standard package?
Standard package items include the RUTX09 router, an 18 W power supply, two mobile antennas, a GNSS antenna with 3 m cable, SIM adapter kit, 1.5 m Ethernet cable, a Quick Start Guide and the packaging box.
How can I manage firmware updates and device configuration?
Firmware can be updated via the WEB UI or FOTA from a server, and the device supports remote management via RMS for multi device firmware and configuration updates.
Reviews
Forum
A
Admin
Welcome to the discussion thread for RUTX09 - Industrial Cellular Router
Feel free to ask questions, share tips or report issues.
Similar Products

Discover More In:

Industrial IoT ā†’ Network Accessories ā†’ Teltonika Networks | Official Page ā†’

Category: View similar items (RUTX09)

Bulk Order

Fill out the form below and our team will get back to you with bulk pricing.

Custom Requirements?

Meet with our team

Related products

Related products

0106-14

Waldom Electonics

0106-14

ā‚¹ 2,623.53
