Teltonika Networks

RUTX10 - Professional Ethernet Router

SKU: ELC8739

₹ 31,199.99 ~~₹ 45,699.99~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

RUTX10 - Professional Ethernet Router₹ 31,199.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Description

This professional router combines the best of wired and wireless routing functionalities with Gigabit Ethernet, Bluetooth LE, and AC Wi-Fi. Advanced remote management capabilities, along with numerous supported security and networking protocols, make RUTX10 an ideal choice for professional applications

Standard package*

Router RUTX10
18 W PSU
2x Wi-Fi antennas (swivel, RP-SMA male)
1x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
Ethernet cable (1.5 m)
QSG (Quick Start Guide)
Packaging box

*Standard package contents may differ based on standard order codes.

Features

Ethernet

Category	Details
WAN	1 x WAN port, 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN	3 x LAN ports, 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Wireless

Category	Details
Wireless Mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
Wi-Fi Security	WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, 802.11w PMF (Protected Management Frames)
SSID/ESSID	ESSID stealth mode
Wi-Fi Users	Supports up to 150 simultaneous connections
Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter	Allowlist, blocklist
Wireless QR Code Generator	Generates QR codes for automatic Wi-Fi login without manual entry
TravelMate	Forwards Wi-Fi hotspot landing page to a subsequent connected device

Security

Category	Details
SSL Certificate Generation	Supports Let's Encrypt and SCEP certificate generation methods
802.1x	Port-based network access control client
Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, random password generator
Firewall	Preconfigured firewall rules via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention	DDOS prevention (SYN flood, SSH, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN	Port and tag-based VLAN separation
WEB Filter	Blacklist for blocking unwanted websites, Whitelist for specifying allowed sites
Access Control	Flexible access control for SSH, Web interface, CLI, and Telnet

Bluetooth

Category	Details
Bluetooth Version	Bluetooth 4.0
Communication Type	Bluetooth low energy (LE) for short-range communication

Network

Category	Details
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support	H.323 and SIP-alg protocol NAT helpers for proper routing of VoIP packets
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forward, traffic rules, custom rules, TTL target customization
Firewall Status Page	View all firewall statistics, rules, and rule counters
Ports Management	View device ports, enable/disable ports, configure speed, auto-configuration
Network Topology	Visual representation of your network, showing connected devices
Hotspot	Captive portal, internal/external Radius server, SMS and SSO authentication, customizable landing page, user scripts, URL parameters
DHCP	Static and dynamic IP allocation, DHCP relay, DHCP server configuration, static leases
QoS / Smart Queue Management (SQM)	Traffic priority queuing, WMM, 802.11e
DDNS	Supported >25 service providers, manual configuration available
DNS over HTTPS	Secure DNS resolution via proxy routing DNS queries over HTTPS
Network Backup	Automatic Failover with Wi-Fi WAN, VRRP, and wired options
Load Balancing	Balance Internet traffic over multiple WAN connections
SSHFS	Mount remote file system via SSH protocol
VRF Support	Initial Virtual Routing and Forwarding (VRF) support
Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history

VPN

VPN Type	Details
OpenVPN	Multiple clients and server instances, 27 encryption methods supported
OpenVPN Encryption	Supports encryption methods such as AES, DES, RC2, BF, and CAST5
IPsec	XFRM, IKEv1, IKEv2 with 14 encryption methods (AES128, AES256, 3DES)
GRE	GRE tunnel and GRE over IPsec support
PPTP, L2TP	Client/Server instances, L2TPv3, L2TP over IPsec
Stunnel	TLS encryption for existing clients and servers
DMVPN	Scalable IPsec VPNs, Phase 2/3 and Dual Hub support
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN client support
WireGuard	WireGuard VPN client and server support
Tinc	Client and server support, offers encryption, authentication, and compression
Tailscale	Speed, stability, simplicity with encrypted point-to-point connections

OPC UA

Category	Details
Supported Modes	Client, Server
Supported Connection Types	TCP

MODBUS

Category	Details
Supported Modes	Server, Client
Supported Connection Types	TCP, USB
Custom Registers	MODBUS TCP custom register block requests that read/write to a file inside the router.
Supported Data Formats	8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII

Data to Server

Category	Details
Protocol	HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server	Extract parameters from multiple sources and protocols and send them to a single server; Custom LUA scripting for utilizing router's Data to Server feature

MQTT Gateway

Category	Details
Modbus MQTT Gateway	Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Category	Details
Supported Modes	Station, Outstation
Supported Connection	TCP, USB

DLMS

Category	Details
DLMS Support	Standard protocol for utility meter data exchange
Supported Modes	Client
Supported Connection Types	TCP, USB

COSEM

Category	Details
COSEM Support	Allows scanning meter COSEM objects for automatic detection and configuration

API

Category	Details
Web API Support	Teltonika Networks Web API (beta) support for configurable API endpoints to retrieve or change data. For more information, refer to Teltonika Networks Web API Documentation

Monitoring & Management

Category	Details
WEB UI	HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshooting, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA	Firmware update from server, automatic notification
SSH	SSH (v1, v2)
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
SNMP	SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC	Management API over HTTP/HTTPS
RMS	Teltonika Remote Management System (RMS)

IoT Platforms

Platform	Details
ThingWorx	Allows monitoring of: WAN Type, WAN IP
Cumulocity - Cloud of Things	Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Includes reboot and firmware upgrade actions
Azure IoT Hub	Can be configured with Data to Server to send all parameters to the cloud. Direct method support for RutOS API calls on the IoT Hub. Plug and Play integration with Device Provisioning Service for zero-touch device provisioning.

System Characteristics

Category	Details
CPU	Quad-core ARM Cortex A7, 717 MHz
RAM	256 MB, DDR3
FLASH Storage	256 MB, SPI Flash

Firmware / Configuration

Category	Details
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA	Update FW
RMS	Update FW/configuration for multiple devices at once
Keep Settings	Update FW without losing current configuration
Factory Settings Reset	A full factory reset restores all system settings to default configuration
FIRMWARE CUSTOMISATION	OpenWrt based RutOS operating system, supports Busybox shell, Lua, C, C++, Python, Java in Package manager. SDK package with build environment. GPL customization options to modify firmware.

Location Tracking

Category	Details
NTRIP	NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

USB

Category	Details
Data Rate	USB 2.0
Applications	Samba share, USB-to-serial
External Devices	Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage Formats	FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

Category	Details
Input	1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output	1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events	Email, RMS
I/O Juggler	Allows setting certain I/O conditions to initiate event

Power

Category	Details
Connector	4-pin industrial DC power socket
Input Voltage Range	9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (Passive)	Power through LAN1 port (not compatible with IEEE802.3af, 802.3at, and 802.3bt standards), Mode B, 9 - 50 VDC
Power Consumption	9 W Max

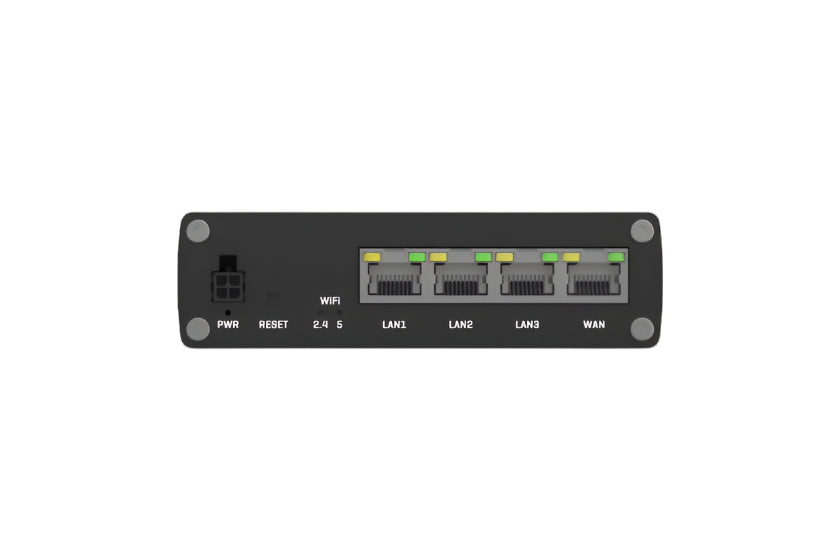

Physical Interfaces

Category	Details
Ethernet	4 x RJ45 ports, 10/100/1000 Mbps
I/O’s	1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs	8 x LAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
Power	1 x 4-pin power connector
Antennas	2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth
USB	1 x USB A port for external devices
Reset	Reboot/User default reset/Factory reset button
Other	1 x Grounding screw

Physical Specification

Category	Details
Casing Material	Aluminium housing
Dimensions (W x H x D)	115 x 32.2 x 95.2 mm
Weight	355 g
Mounting Options	DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Category	Details
Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30

Regulatory & Type Approvals

Category	Details
Regulatory	CE, UKCA, EAC, UCRF, CITC, ICASA, ANRT, FCC, IC, PTCRB, RCM, IMDA, SIRIM, NTC, E-mark, Railway, UL/CSA Safety, CB
EMC Emissions & Immunity Standards	EN 55032:2015 + A11:2020, EN 55035:2017 + A11:2020, EN 301 489-1 V2.2.3, EN 301 489-3 V2.1.2, EN 301 489-17 V3.2.4
Radiated Immunity	EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT	EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)	EN 61000-4-5:2014 + A1:2017
CS	EN 61000-4-6:2014
DIP	EN 61000-4-11:2004
RF Standards	EN 300 328 V2.2.2, EN 301 893 V2.1.1, EN 300 440 V2.2.1
Safety Standards	CE: EN IEC 62368-1:2020 + A11:2020, EN 62311:2020, RCM: AS/NZS 62368.1:2022, CB: IEC 62368-1:2018

EMC Emissions & Immunity Standards

Category	Standard
EMC Emissions	EN 55032:2015 + A11:2020
	EN 55035:2017 + A11:2020
	EN 301 489-1 V2.2.3
	EN 301 489-3 V2.1.2
	EN 301 489-17 V3.2.4
Radiated Immunity	EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT (Electrical Fast Transient)	EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)	EN 61000-4-5:2014 + A1:2017
CS (Conducted Susceptibility)	EN 61000-4-6:2014
DIP (Voltage Dips and Interruptions)	EN 61000-4-11:2004

RF Standards

Category	Standard
RF Standards	EN 300 328 V2.2.2
	EN 301 893 V2.1.1
	EN 300 440 V2.2.1

Safety Standards

Category	Standard
Safety Standards (CE)	EN IEC 62368-1:2020 + A11:2020, EN 62311:2020
Safety Standards (RCM)	AS/NZS 62368.1:2022
Safety Standards (CB)	IEC 62368-1:2018

Downloads

Manual & Documentation

RUTX10 FLYER (EN)

RUTX10 DATASHEET (EN)

Links

What connectivity options and ports are available on this device?

It provides 1 WAN port and 3 LAN ports with gigabit speeds, totaling 4 Ethernet RJ45 ports, and supports auto MDI/MDIX. A USB A port is also available for external devices.

Can the router be managed remotely and what management options exist?

Yes. It offers advanced remote management capabilities via the WEB UI and SSH, and can be managed through Teltonika RMS for centralized control.

What wireless capabilities and security standards does it support?

It supports dual band 802.11ac Wave 2 (WiFi 5) up to 867 Mbps with MU MIMO and fast roaming. Security options include WPA2 enterprise, WPA3 modes, EAP TLS with certificates, 802.11w PMF, and client isolation.

How is the device powered and can PoE be used?

Power is supplied by a 9 to 50 V DC input with reverse polarity protection. It supports passive PoE through LAN1 in Mode B within that range, and is not compatible with IEEE 802.3af/at/bt standards.

How are firmware and software updates handled?

Firmware updates can be delivered from a server with automatic notifications (FOTA). The device also supports configuration backup and management options via the WEB UI.

A

Admin

Welcome to the discussion thread for RUTX10 - Professional Ethernet Router
Feel free to ask questions, share tips or report issues.

Discover More In:

Industrial IoT → IOT Modules → Network Accessories →

Category: View similar items (RUTX10)

PUSR

Ethernet Switch/Industrial - USR-ISG1005/1008

₹ 3,649.99

PUSR

Ethernet Switch/Industrial - USR-ISF1005/1008

₹ 2,349.99

PUSR

Serial to Ethernet - USR-TCP232-306

₹ 2,349.99

PUSR

Ethernet Switch/Business - USR-SG1005

₹ 1,549.99

Fill out the form below and our team will get back to you with bulk pricing.

Description

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Description

This professional router combines the best of wired and wireless routing functionalities with Gigabit Ethernet, Bluetooth LE, and AC Wi-Fi. Advanced remote management capabilities, along with numerous supported security and networking protocols, make RUTX10 an ideal choice for professional applications

Standard package*

Router RUTX10
18 W PSU
2x Wi-Fi antennas (swivel, RP-SMA male)
1x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
Ethernet cable (1.5 m)
QSG (Quick Start Guide)
Packaging box

*Standard package contents may differ based on standard order codes.

Features

Ethernet

Category	Details
WAN	1 x WAN port, 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN	3 x LAN ports, 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Wireless

Category	Details
Wireless Mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
Wi-Fi Security	WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, 802.11w PMF (Protected Management Frames)
SSID/ESSID	ESSID stealth mode
Wi-Fi Users	Supports up to 150 simultaneous connections
Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter	Allowlist, blocklist
Wireless QR Code Generator	Generates QR codes for automatic Wi-Fi login without manual entry
TravelMate	Forwards Wi-Fi hotspot landing page to a subsequent connected device

Security

Category	Details
SSL Certificate Generation	Supports Let's Encrypt and SCEP certificate generation methods
802.1x	Port-based network access control client
Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, random password generator
Firewall	Preconfigured firewall rules via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention	DDOS prevention (SYN flood, SSH, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN	Port and tag-based VLAN separation
WEB Filter	Blacklist for blocking unwanted websites, Whitelist for specifying allowed sites
Access Control	Flexible access control for SSH, Web interface, CLI, and Telnet

Bluetooth

Category	Details
Bluetooth Version	Bluetooth 4.0
Communication Type	Bluetooth low energy (LE) for short-range communication

Network

Category	Details
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support	H.323 and SIP-alg protocol NAT helpers for proper routing of VoIP packets
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forward, traffic rules, custom rules, TTL target customization
Firewall Status Page	View all firewall statistics, rules, and rule counters
Ports Management	View device ports, enable/disable ports, configure speed, auto-configuration
Network Topology	Visual representation of your network, showing connected devices
Hotspot	Captive portal, internal/external Radius server, SMS and SSO authentication, customizable landing page, user scripts, URL parameters
DHCP	Static and dynamic IP allocation, DHCP relay, DHCP server configuration, static leases
QoS / Smart Queue Management (SQM)	Traffic priority queuing, WMM, 802.11e
DDNS	Supported >25 service providers, manual configuration available
DNS over HTTPS	Secure DNS resolution via proxy routing DNS queries over HTTPS
Network Backup	Automatic Failover with Wi-Fi WAN, VRRP, and wired options
Load Balancing	Balance Internet traffic over multiple WAN connections
SSHFS	Mount remote file system via SSH protocol
VRF Support	Initial Virtual Routing and Forwarding (VRF) support
Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history

VPN

VPN Type	Details
OpenVPN	Multiple clients and server instances, 27 encryption methods supported
OpenVPN Encryption	Supports encryption methods such as AES, DES, RC2, BF, and CAST5
IPsec	XFRM, IKEv1, IKEv2 with 14 encryption methods (AES128, AES256, 3DES)
GRE	GRE tunnel and GRE over IPsec support
PPTP, L2TP	Client/Server instances, L2TPv3, L2TP over IPsec
Stunnel	TLS encryption for existing clients and servers
DMVPN	Scalable IPsec VPNs, Phase 2/3 and Dual Hub support
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN client support
WireGuard	WireGuard VPN client and server support
Tinc	Client and server support, offers encryption, authentication, and compression
Tailscale	Speed, stability, simplicity with encrypted point-to-point connections

OPC UA

Category	Details
Supported Modes	Client, Server
Supported Connection Types	TCP

MODBUS

Category	Details
Supported Modes	Server, Client
Supported Connection Types	TCP, USB
Custom Registers	MODBUS TCP custom register block requests that read/write to a file inside the router.
Supported Data Formats	8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII

Data to Server

Category	Details
Protocol	HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server	Extract parameters from multiple sources and protocols and send them to a single server; Custom LUA scripting for utilizing router's Data to Server feature

MQTT Gateway

Category	Details
Modbus MQTT Gateway	Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Category	Details
Supported Modes	Station, Outstation
Supported Connection	TCP, USB

DLMS

Category	Details
DLMS Support	Standard protocol for utility meter data exchange
Supported Modes	Client
Supported Connection Types	TCP, USB

COSEM

Category	Details
COSEM Support	Allows scanning meter COSEM objects for automatic detection and configuration

API

Category	Details
Web API Support	Teltonika Networks Web API (beta) support for configurable API endpoints to retrieve or change data. For more information, refer to Teltonika Networks Web API Documentation

Monitoring & Management

Category	Details
WEB UI	HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshooting, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA	Firmware update from server, automatic notification
SSH	SSH (v1, v2)
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
SNMP	SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC	Management API over HTTP/HTTPS
RMS	Teltonika Remote Management System (RMS)

IoT Platforms

Platform	Details
ThingWorx	Allows monitoring of: WAN Type, WAN IP
Cumulocity - Cloud of Things	Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Includes reboot and firmware upgrade actions
Azure IoT Hub	Can be configured with Data to Server to send all parameters to the cloud. Direct method support for RutOS API calls on the IoT Hub. Plug and Play integration with Device Provisioning Service for zero-touch device provisioning.

System Characteristics

Category	Details
CPU	Quad-core ARM Cortex A7, 717 MHz
RAM	256 MB, DDR3
FLASH Storage	256 MB, SPI Flash

Firmware / Configuration

Category	Details
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA	Update FW
RMS	Update FW/configuration for multiple devices at once
Keep Settings	Update FW without losing current configuration
Factory Settings Reset	A full factory reset restores all system settings to default configuration
FIRMWARE CUSTOMISATION	OpenWrt based RutOS operating system, supports Busybox shell, Lua, C, C++, Python, Java in Package manager. SDK package with build environment. GPL customization options to modify firmware.

Location Tracking

Category	Details
NTRIP	NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

USB

Category	Details
Data Rate	USB 2.0
Applications	Samba share, USB-to-serial
External Devices	Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage Formats	FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

Category	Details
Input	1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output	1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events	Email, RMS
I/O Juggler	Allows setting certain I/O conditions to initiate event

Power

Category	Details
Connector	4-pin industrial DC power socket
Input Voltage Range	9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (Passive)	Power through LAN1 port (not compatible with IEEE802.3af, 802.3at, and 802.3bt standards), Mode B, 9 - 50 VDC
Power Consumption	9 W Max

Physical Interfaces

Category	Details
Ethernet	4 x RJ45 ports, 10/100/1000 Mbps
I/O’s	1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs	8 x LAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
Power	1 x 4-pin power connector
Antennas	2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth
USB	1 x USB A port for external devices
Reset	Reboot/User default reset/Factory reset button
Other	1 x Grounding screw

Physical Specification

Category	Details
Casing Material	Aluminium housing
Dimensions (W x H x D)	115 x 32.2 x 95.2 mm
Weight	355 g
Mounting Options	DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Category	Details
Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30

Regulatory & Type Approvals

Category	Details
Regulatory	CE, UKCA, EAC, UCRF, CITC, ICASA, ANRT, FCC, IC, PTCRB, RCM, IMDA, SIRIM, NTC, E-mark, Railway, UL/CSA Safety, CB
EMC Emissions & Immunity Standards	EN 55032:2015 + A11:2020, EN 55035:2017 + A11:2020, EN 301 489-1 V2.2.3, EN 301 489-3 V2.1.2, EN 301 489-17 V3.2.4
Radiated Immunity	EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT	EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)	EN 61000-4-5:2014 + A1:2017
CS	EN 61000-4-6:2014
DIP	EN 61000-4-11:2004
RF Standards	EN 300 328 V2.2.2, EN 301 893 V2.1.1, EN 300 440 V2.2.1
Safety Standards	CE: EN IEC 62368-1:2020 + A11:2020, EN 62311:2020, RCM: AS/NZS 62368.1:2022, CB: IEC 62368-1:2018

EMC Emissions & Immunity Standards

Category	Standard
EMC Emissions	EN 55032:2015 + A11:2020
	EN 55035:2017 + A11:2020
	EN 301 489-1 V2.2.3
	EN 301 489-3 V2.1.2
	EN 301 489-17 V3.2.4
Radiated Immunity	EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT (Electrical Fast Transient)	EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)	EN 61000-4-5:2014 + A1:2017
CS (Conducted Susceptibility)	EN 61000-4-6:2014
DIP (Voltage Dips and Interruptions)	EN 61000-4-11:2004

RF Standards

Category	Standard
RF Standards	EN 300 328 V2.2.2
	EN 301 893 V2.1.1
	EN 300 440 V2.2.1

Safety Standards

Category	Standard
Safety Standards (CE)	EN IEC 62368-1:2020 + A11:2020, EN 62311:2020
Safety Standards (RCM)	AS/NZS 62368.1:2022
Safety Standards (CB)	IEC 62368-1:2018

Downloads

Manual & Documentation

RUTX10 FLYER (EN)

RUTX10 DATASHEET (EN)

Links

FAQ

What connectivity options and ports are available on this device?

It provides 1 WAN port and 3 LAN ports with gigabit speeds, totaling 4 Ethernet RJ45 ports, and supports auto MDI/MDIX. A USB A port is also available for external devices.

Can the router be managed remotely and what management options exist?

Yes. It offers advanced remote management capabilities via the WEB UI and SSH, and can be managed through Teltonika RMS for centralized control.

What wireless capabilities and security standards does it support?

It supports dual band 802.11ac Wave 2 (WiFi 5) up to 867 Mbps with MU MIMO and fast roaming. Security options include WPA2 enterprise, WPA3 modes, EAP TLS with certificates, 802.11w PMF, and client isolation.

How is the device powered and can PoE be used?

Power is supplied by a 9 to 50 V DC input with reverse polarity protection. It supports passive PoE through LAN1 in Mode B within that range, and is not compatible with IEEE 802.3af/at/bt standards.

How are firmware and software updates handled?

Firmware updates can be delivered from a server with automatic notifications (FOTA). The device also supports configuration backup and management options via the WEB UI.

Reviews
