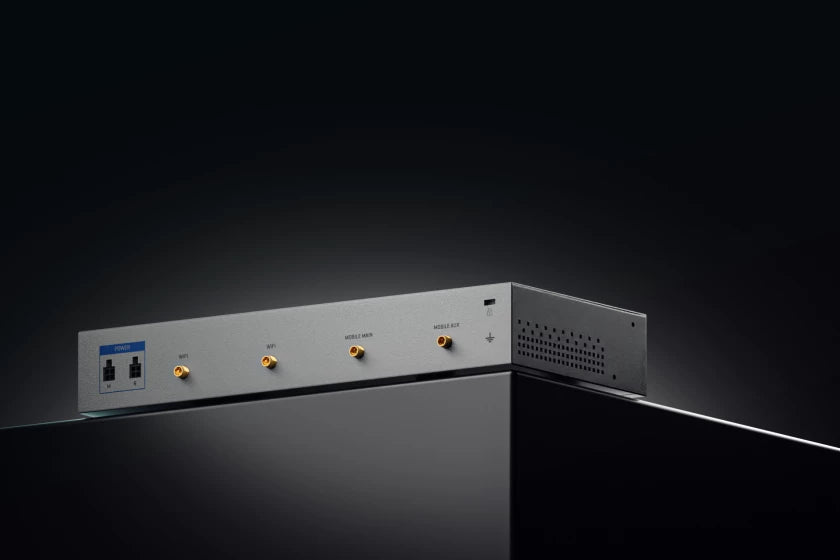

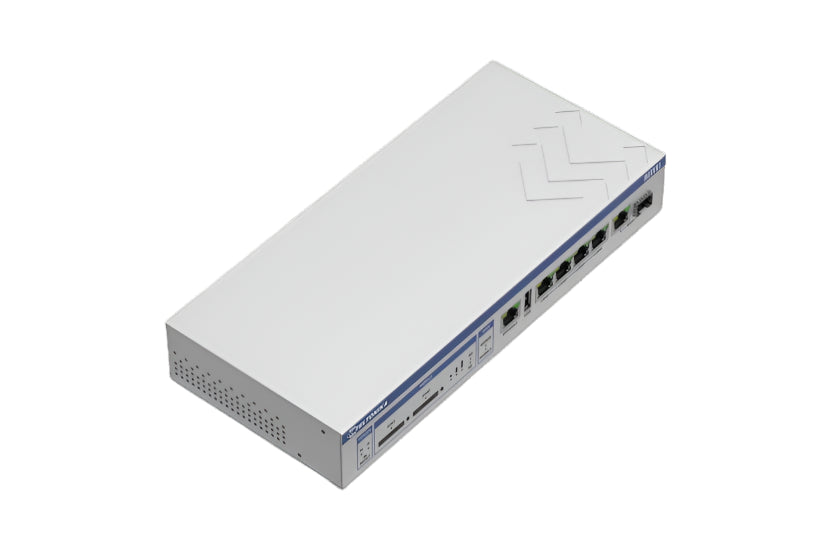

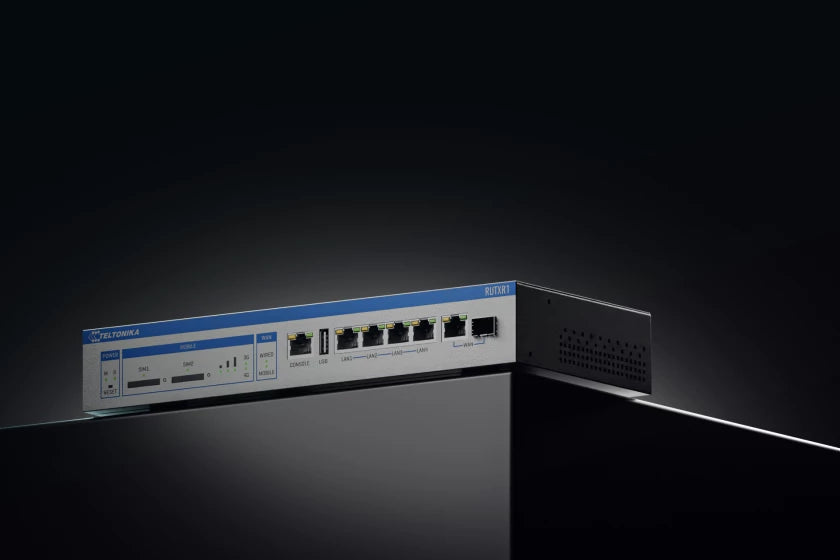

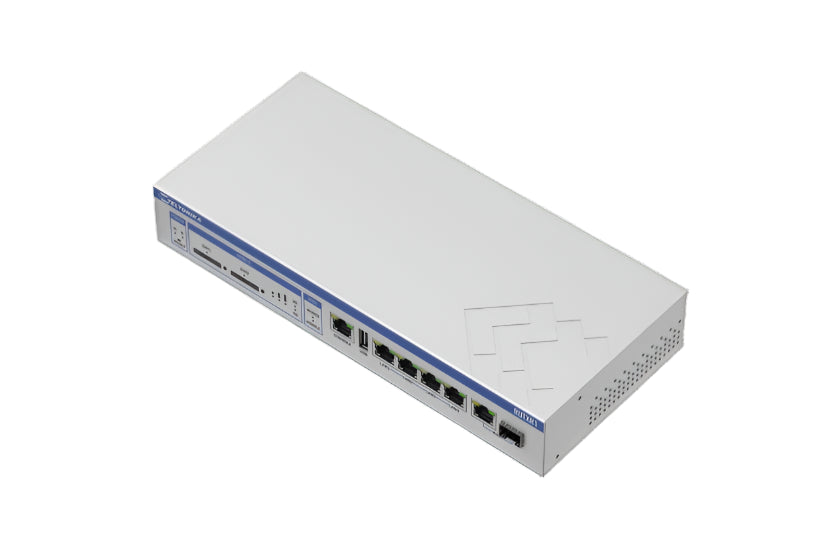

RUTXR1 - Enterprise Rack-Mountable SFP/LTE Router

SKU: ELC8724

₹ 60,449.99 ₹ 88,599.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
⏱ This is a pre-order item. We'll ship it as soon as it's back in stock.
RUTXR1 - Enterprise Rack-Mountable SFP/LTE Router₹ 60,449.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

The first rack-mountable LTE Cat 6 router in the Teltonika Networks portfolio comes with redundant power supplies, WAN failover, dual-SIM, SFP, USB, and dedicated console ports. This feature-rich device with highly customizable and powerful RutOS is perfect where a fast and ultra-reliable connection is needed.

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Feature Details
Mobile module 4G LTE Cat 6 up to 300 DL / 50 UL Mbps; 3G up to 42 DL / 5.76 UL Mbps
3GPP Release Release 11
SIM switch Supports 2 SIM cards, auto-switch for weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS SMS status, configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list (by country or separate operators)
Multiple PDN Use different PDNs for multiple network access and services
Band management Band lock, used band status display
SIM idle protection service No data usage on idle SIM until device switches to it
SIM PIN code management Manage SIM PIN (set, change, disable)
APN Auto APN configuration
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns mobile WAN IP address to device on LAN


Wireless

Feature Details
Wireless mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5), data rates up to 867 Mbps, Dual Band, MU-MIMO, 802.11r fast transition, Access Point (AP), Station (STA)
Wi-Fi security WPA2-Enterprise, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, 802.11w PMF
SSID/ESSID ESSID stealth mode
Wi-Fi users Supports up to 150 simultaneous connections
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filter Allowlist, blocklist
Wireless QR code generator Allows users to join network by scanning QR code without inputting login info
TravelMate Forward Wi-Fi hotspot landing page to connected devices


Ethernet

Feature Details
WAN 1 x WAN port 10/100/1000 Mbps, IEEE 802.3, IEEE 802.3u, 802.3az, auto MDI/MDIX crossover
Fibre 1 x SFP port (cannot work simultaneously with Ethernet WAN port)
LAN 4 x LAN ports 10/100/1000 Mbps, IEEE 802.3, IEEE 802.3u, 802.3az, auto MDI/MDIX crossover


Network

Feature Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers for VoIP packet routing
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwarding, traffic rules, custom rules, TTL target customisation
Firewall status page View all Firewall statistics, rules, and rule counters
Ports management View, enable/disable ports, manage auto-configuration, change transmission speed
Network topology Visual representation of the network, device connections
Hotspot Captive portal, internal/external Radius server, Radius MAC authentication, SMS, SSO, and more authentication options, user management, customizable themes
DHCP Static/dynamic IP allocation, DHCP relay, server configuration, static leases
QoS / Smart Queue Management (SQM) Traffic priority by source/destination, service, protocol, or port, WMM, 802.11e
DDNS Support for over 25 service providers, manual configuration for others
DNS over HTTPS Secure DNS resolution by routing DNS queries over HTTPS
Network backup Wi-Fi WAN, Mobile, Fiber, VRRP, Wired options, automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Mount remote file system via SSH protocol
VRF support Virtual routing and forwarding (VRF) support
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history


Security

Feature Details
802.1x Port-based network access control client
Authentication Pre-shared key, digital certificates, TACACS+, RADIUS, IP/login block, time-based blocking, random password generator
Firewall Preconfigured rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention DDOS (SYN flood protection), SSH, HTTP/HTTPS, port scan (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan)
VLAN Port and tag-based VLAN separation
Mobile quota control Mobile data limit, customizable period, start time, phone number
WEB filter Block unwanted websites with blacklist, allow only specified sites with whitelist
Access control Flexible access control for SSH, Web UI, CLI, and Telnet
SSL certificate generation Let's Encrypt and SCEP certificate generation methods


VPN

Feature Details
OpenVPN Multiple clients and server, 27 encryption methods
OpenVPN Encryption Encryption methods: DES, RC2, AES128, AES192, AES256, and others
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods (AES128GCM, AES256GCM, etc.)
GRE GRE tunnel and support for GRE tunnel over IPsec
PPTP, L2TP Client/Server instances, L2TPv3, L2TP over IPsec support
Stunnel Adds TLS encryption functionality without program code changes
DMVPN Scalable IPsec VPNs, Phase 2 & Phase 3, Dual Hub support
SSTP SSTP client support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Encryption, authentication, and compression in tunnels
Tailscale Speed, stability, simplicity, encrypted point-to-point connections using WireGuard protocol



OPC UA

Feature Details
Supported modes Client, Server
Supported connection types TCP


MODBUS

Feature Details
Supported modes Server, Client
Supported connection types TCP, USB
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, extending MODBUS TCP Client functionality
Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII


Data To Server

Feature Details
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
Data to server Extract parameters from multiple sources and protocols, send to a single server; Custom LUA scripting for utilizing Data to Server features


MQTT Gateway

Feature Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker


DNP3

Feature Details
Supported modes Station, Outstation
Supported connection types TCP, USB


DLMS

Feature Details
DLMS Support Standard protocol for utility meter data exchange
Supported modes Client
Supported connection types TCP, USB


COSEM

Feature Details
COSEM Allows scanning of meter COSEM objects for automatic detection and configuration


API

Feature Details
Teltonika Networks Web API (beta) support Expand device possibilities with configurable API endpoints to retrieve or change data. Documentation



Monitoring & Management

Feature Details
WEB UI HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA (Firmware Over The Air) Firmware update from server, automatic notification
SSH SSH (v1, v2)
Email Receive email message status alerts for various services
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, status, mobile data on/off, output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)


IoT Platforms

Platform Monitoring/Features
ThingWorx Allows monitoring of WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Allows monitoring of Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Includes reboot and firmware upgrade actions
Azure IoT Hub Configured with Data to Server to send available parameters to the cloud, Direct method support for RutOS API calls, Plug and Play integration with Device Provisioning Service for zero-touch provisioning
AWS IoT Core Utility to interact with AWS cloud platform, Jobs support for calling device's API using AWS Jobs functionality


System Characteristics

Feature Details
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH storage 256 MB, SPI Flash


Firmware / Configuration

Feature Details
WEB UI Update firmware from file, check firmware on server, configuration profiles, configuration backup
FOTA Update firmware
RMS Update firmware/configuration for multiple devices at once
Keep settings Update firmware without losing current configuration
Factory settings reset Full factory reset restores all system settings, including IP address, PIN, and user data to the default manufacturer's configuration


Firmware Customisation

Feature Details
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++, Python, Java in Package manager
Development tools SDK package with build environment provided
GPL customization Create custom, branded firmware and web page application with personalized colors, logos, and other elements
Package Manager Service for installing additional software on the device



Location Tracking

Feature Details
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)


USB

Feature Details
Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4


Power

Feature Details
Connector 2 x 4-pin industrial DC power sockets for main and redundancy power source
Input voltage range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
Power consumption Idle: < 3W, max: 18W

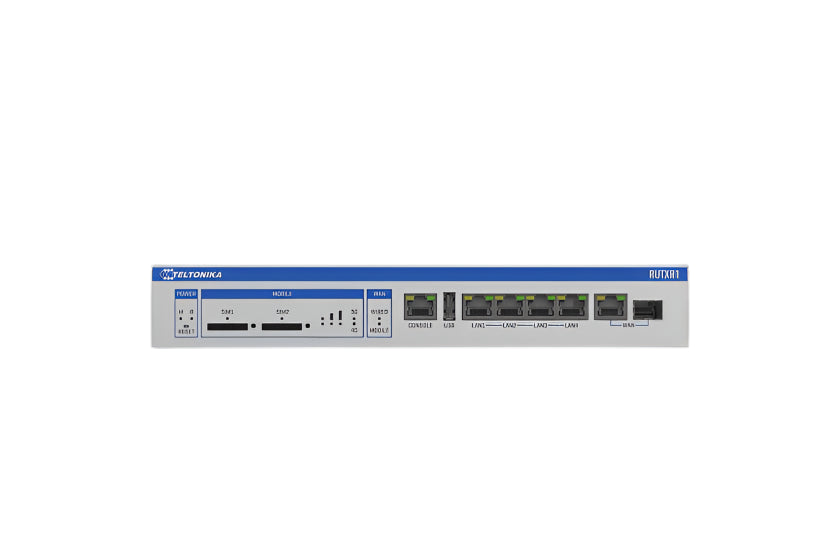

Physical Interfaces

Feature Details
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs 2 x WAN type, 2 x Mobile connection type, 3 x Mobile signal strength, 2 x active SIM, 10 x Ethernet status, 2 x Console status, 2 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 2 x 4-pin DC connector
Antennas 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Grounding 1 x Grounding screw, 1 x lock
Fibre 1 x SFP port


Physical Specification

Feature Details
Casing material Full steel housing
Dimensions (W x H x D) 272 x 42.6 x 122.6 mm
Weight 1093 g
Mounting options Rack mounting kit


Operating Environment

Feature Details
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing


Regulatory & Type Approvals

Feature Details
Regulatory CE, UKCA, EAC, UCRF, CITC, ANRT, RCM, NTC, CB



EMC Emissions & Immunity

Standard Details
EN 55032:2015 + A11:2020 EMC Emissions
EN 55035:2017 + A11:2020 Immunity
EN IEC 61000-3-2:2019 Harmonics Emission
EN 61000-3-3:2013 + A1:2019 Voltage Fluctuations & Flicker
EN 301 489-1:V2.2.3 General EMC Requirements
EN 301 489-3:V2.1.1 EMC for Mobile & Portable Communication Devices
EN 301 489-17:V3.2.4 EMC for Broadband Equipment
Draft EN 301 489-52:V1.1.2 EMC for Automotive Devices
ESD EN 61000-4-2:2009 (Electrostatic Discharge)
Radiated Immunity EN IEC 61000-4-3:2006 + A1:2008 + A2:2010 (Electromagnetic Radiated Immunity)
EFT EN 61000-4-4:2012 (Electrical Fast Transients)
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017 (Surge Immunity)
CS EN 61000-4-6:2014 (Conducted Susceptibility)
DIP EN IEC 61000-4-11:2020 (Voltage Dips and Interruptions)


RF Standards

Standard Details
EN 300 328:V2.2.2 Radio Equipment and Systems (WLAN)
EN 301 893:V2.1.1 Broadband Radio Access Networks
EN 300 440:V2.2.1 Short Range Devices (SRDs)
EN 301 908-1:V13.1.1 IMT Mobile Communications
EN 301 908-2:V13.1.1 IMT Mobile Communications
EN 301 908-13:V13.1.1 IMT Mobile Communications (5G)


Safety Standards

Standard Details
CE EN 62368-1:2014 + A11:2017 (Audio/video, IT & Communication Equipment Safety)
UL/CSA Safety UL 62368-1 (3rd Ed., Rev. December 13, 2019), CAN/CSA C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019) (Safety for IT Equipment)
CB IEC 62368-1:2018 (International Safety Standard)


Downloads

Manual & Documentation

Links

How does WAN failover work on the device?
The router supports WAN failover between mobile networks and other connections, using dual SIM cards with auto switch when signal strength or data conditions change.
What is included in the standard package and how is the unit mounted?
The standard package includes the RUTXR1 with an 18 W PSU, two mobile antennas, two WiFi antennas, a rack mounting kit, SIM adapter kit, Ethernet cable and a quick start guide; contents may vary by order code.
Can I use WiFi and what are the wireless capabilities?
Yes, it provides a dual band wifi access point with data rates up to 867 Mbps, MU-MIMO, and supports security options such as WPA2 and WPA3.
How do I manage and update the firmware and settings?
Firmware can be updated via FOTA from the server or via the web UI, and the device supports remote management through Teltonika RMS and an API.
What about warranty delivery and returns for this product?
Warranty terms and return policies are not listed here; please check with the seller for exact delivery times and returns options.
A
Admin
Welcome to the discussion thread for RUTXR1 - Enterprise Rack-Mountable SFP/LTE Router
Feel free to ask questions, share tips or report issues.

Discover More In:

Industrial IoT → Network Accessories → Teltonika Networks | Official Page →

Category: View similar items (RUTXR1)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

The first rack-mountable LTE Cat 6 router in the Teltonika Networks portfolio comes with redundant power supplies, WAN failover, dual-SIM, SFP, USB, and dedicated console ports. This feature-rich device with highly customizable and powerful RutOS is perfect where a fast and ultra-reliable connection is needed.

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Feature Details
Mobile module 4G LTE Cat 6 up to 300 DL / 50 UL Mbps; 3G up to 42 DL / 5.76 UL Mbps
3GPP Release Release 11
SIM switch Supports 2 SIM cards, auto-switch for weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS SMS status, configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list (by country or separate operators)
Multiple PDN Use different PDNs for multiple network access and services
Band management Band lock, used band status display
SIM idle protection service No data usage on idle SIM until device switches to it
SIM PIN code management Manage SIM PIN (set, change, disable)
APN Auto APN configuration
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns mobile WAN IP address to device on LAN


Wireless

Feature Details
Wireless mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5), data rates up to 867 Mbps, Dual Band, MU-MIMO, 802.11r fast transition, Access Point (AP), Station (STA)
Wi-Fi security WPA2-Enterprise, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, 802.11w PMF
SSID/ESSID ESSID stealth mode
Wi-Fi users Supports up to 150 simultaneous connections
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filter Allowlist, blocklist
Wireless QR code generator Allows users to join network by scanning QR code without inputting login info
TravelMate Forward Wi-Fi hotspot landing page to connected devices


Ethernet

Feature Details
WAN 1 x WAN port 10/100/1000 Mbps, IEEE 802.3, IEEE 802.3u, 802.3az, auto MDI/MDIX crossover
Fibre 1 x SFP port (cannot work simultaneously with Ethernet WAN port)
LAN 4 x LAN ports 10/100/1000 Mbps, IEEE 802.3, IEEE 802.3u, 802.3az, auto MDI/MDIX crossover


Network

Feature Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers for VoIP packet routing
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwarding, traffic rules, custom rules, TTL target customisation
Firewall status page View all Firewall statistics, rules, and rule counters
Ports management View, enable/disable ports, manage auto-configuration, change transmission speed
Network topology Visual representation of the network, device connections
Hotspot Captive portal, internal/external Radius server, Radius MAC authentication, SMS, SSO, and more authentication options, user management, customizable themes
DHCP Static/dynamic IP allocation, DHCP relay, server configuration, static leases
QoS / Smart Queue Management (SQM) Traffic priority by source/destination, service, protocol, or port, WMM, 802.11e
DDNS Support for over 25 service providers, manual configuration for others
DNS over HTTPS Secure DNS resolution by routing DNS queries over HTTPS
Network backup Wi-Fi WAN, Mobile, Fiber, VRRP, Wired options, automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Mount remote file system via SSH protocol
VRF support Virtual routing and forwarding (VRF) support
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history


Security

Feature Details
802.1x Port-based network access control client
Authentication Pre-shared key, digital certificates, TACACS+, RADIUS, IP/login block, time-based blocking, random password generator
Firewall Preconfigured rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention DDOS (SYN flood protection), SSH, HTTP/HTTPS, port scan (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan)
VLAN Port and tag-based VLAN separation
Mobile quota control Mobile data limit, customizable period, start time, phone number
WEB filter Block unwanted websites with blacklist, allow only specified sites with whitelist
Access control Flexible access control for SSH, Web UI, CLI, and Telnet
SSL certificate generation Let's Encrypt and SCEP certificate generation methods


VPN

Feature Details
OpenVPN Multiple clients and server, 27 encryption methods
OpenVPN Encryption Encryption methods: DES, RC2, AES128, AES192, AES256, and others
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods (AES128GCM, AES256GCM, etc.)
GRE GRE tunnel and support for GRE tunnel over IPsec
PPTP, L2TP Client/Server instances, L2TPv3, L2TP over IPsec support
Stunnel Adds TLS encryption functionality without program code changes
DMVPN Scalable IPsec VPNs, Phase 2 & Phase 3, Dual Hub support
SSTP SSTP client support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Encryption, authentication, and compression in tunnels
Tailscale Speed, stability, simplicity, encrypted point-to-point connections using WireGuard protocol



OPC UA

Feature Details
Supported modes Client, Server
Supported connection types TCP


MODBUS

Feature Details
Supported modes Server, Client
Supported connection types TCP, USB
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, extending MODBUS TCP Client functionality
Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII


Data To Server

Feature Details
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
Data to server Extract parameters from multiple sources and protocols, send to a single server; Custom LUA scripting for utilizing Data to Server features


MQTT Gateway

Feature Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker


DNP3

Feature Details
Supported modes Station, Outstation
Supported connection types TCP, USB


DLMS

Feature Details
DLMS Support Standard protocol for utility meter data exchange
Supported modes Client
Supported connection types TCP, USB


COSEM

Feature Details
COSEM Allows scanning of meter COSEM objects for automatic detection and configuration


API

Feature Details
Teltonika Networks Web API (beta) support Expand device possibilities with configurable API endpoints to retrieve or change data. Documentation



Monitoring & Management

Feature Details
WEB UI HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA (Firmware Over The Air) Firmware update from server, automatic notification
SSH SSH (v1, v2)
Email Receive email message status alerts for various services
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, status, mobile data on/off, output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)


IoT Platforms

Platform Monitoring/Features
ThingWorx Allows monitoring of WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Allows monitoring of Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Includes reboot and firmware upgrade actions
Azure IoT Hub Configured with Data to Server to send available parameters to the cloud, Direct method support for RutOS API calls, Plug and Play integration with Device Provisioning Service for zero-touch provisioning
AWS IoT Core Utility to interact with AWS cloud platform, Jobs support for calling device's API using AWS Jobs functionality


System Characteristics

Feature Details
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH storage 256 MB, SPI Flash


Firmware / Configuration

Feature Details
WEB UI Update firmware from file, check firmware on server, configuration profiles, configuration backup
FOTA Update firmware
RMS Update firmware/configuration for multiple devices at once
Keep settings Update firmware without losing current configuration
Factory settings reset Full factory reset restores all system settings, including IP address, PIN, and user data to the default manufacturer's configuration


Firmware Customisation

Feature Details
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++, Python, Java in Package manager
Development tools SDK package with build environment provided
GPL customization Create custom, branded firmware and web page application with personalized colors, logos, and other elements
Package Manager Service for installing additional software on the device



Location Tracking

Feature Details
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)


USB

Feature Details
Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4


Power

Feature Details
Connector 2 x 4-pin industrial DC power sockets for main and redundancy power source
Input voltage range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
Power consumption Idle: < 3W, max: 18W


Physical Interfaces

Feature Details
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs 2 x WAN type, 2 x Mobile connection type, 3 x Mobile signal strength, 2 x active SIM, 10 x Ethernet status, 2 x Console status, 2 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 2 x 4-pin DC connector
Antennas 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Grounding 1 x Grounding screw, 1 x lock
Fibre 1 x SFP port


Physical Specification

Feature Details
Casing material Full steel housing
Dimensions (W x H x D) 272 x 42.6 x 122.6 mm
Weight 1093 g
Mounting options Rack mounting kit


Operating Environment

Feature Details
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing


Regulatory & Type Approvals

Feature Details
Regulatory CE, UKCA, EAC, UCRF, CITC, ANRT, RCM, NTC, CB



EMC Emissions & Immunity

Standard Details
EN 55032:2015 + A11:2020 EMC Emissions
EN 55035:2017 + A11:2020 Immunity
EN IEC 61000-3-2:2019 Harmonics Emission
EN 61000-3-3:2013 + A1:2019 Voltage Fluctuations & Flicker
EN 301 489-1:V2.2.3 General EMC Requirements
EN 301 489-3:V2.1.1 EMC for Mobile & Portable Communication Devices
EN 301 489-17:V3.2.4 EMC for Broadband Equipment
Draft EN 301 489-52:V1.1.2 EMC for Automotive Devices
ESD EN 61000-4-2:2009 (Electrostatic Discharge)
Radiated Immunity EN IEC 61000-4-3:2006 + A1:2008 + A2:2010 (Electromagnetic Radiated Immunity)
EFT EN 61000-4-4:2012 (Electrical Fast Transients)
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017 (Surge Immunity)
CS EN 61000-4-6:2014 (Conducted Susceptibility)
DIP EN IEC 61000-4-11:2020 (Voltage Dips and Interruptions)


RF Standards

Standard Details
EN 300 328:V2.2.2 Radio Equipment and Systems (WLAN)
EN 301 893:V2.1.1 Broadband Radio Access Networks
EN 300 440:V2.2.1 Short Range Devices (SRDs)
EN 301 908-1:V13.1.1 IMT Mobile Communications
EN 301 908-2:V13.1.1 IMT Mobile Communications
EN 301 908-13:V13.1.1 IMT Mobile Communications (5G)


Safety Standards

Standard Details
CE EN 62368-1:2014 + A11:2017 (Audio/video, IT & Communication Equipment Safety)
UL/CSA Safety UL 62368-1 (3rd Ed., Rev. December 13, 2019), CAN/CSA C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019) (Safety for IT Equipment)
CB IEC 62368-1:2018 (International Safety Standard)


Downloads

Manual & Documentation

Links

FAQ
How does WAN failover work on the device?
The router supports WAN failover between mobile networks and other connections, using dual SIM cards with auto switch when signal strength or data conditions change.
What is included in the standard package and how is the unit mounted?
The standard package includes the RUTXR1 with an 18 W PSU, two mobile antennas, two WiFi antennas, a rack mounting kit, SIM adapter kit, Ethernet cable and a quick start guide; contents may vary by order code.
Can I use WiFi and what are the wireless capabilities?
Yes, it provides a dual band wifi access point with data rates up to 867 Mbps, MU-MIMO, and supports security options such as WPA2 and WPA3.
How do I manage and update the firmware and settings?
Firmware can be updated via FOTA from the server or via the web UI, and the device supports remote management through Teltonika RMS and an API.
What about warranty delivery and returns for this product?
Warranty terms and return policies are not listed here; please check with the seller for exact delivery times and returns options.
Reviews
Forum
A
Admin
Welcome to the discussion thread for RUTXR1 - Enterprise Rack-Mountable SFP/LTE Router
Feel free to ask questions, share tips or report issues.
Similar Products

Discover More In:

Industrial IoT → Network Accessories → Teltonika Networks | Official Page →

Category: View similar items (RUTXR1)

Bulk Order

Fill out the form below and our team will get back to you with bulk pricing.

Custom Requirements?

Meet with our team

Related products

Related products

0106-14

Waldom Electonics

0106-14

₹ 2,623.53
