Serial Bus Servo Controller: Hiwonder Serial Bus Servo Controller Communication Tester

Serial Bus Servo Controller: Hiwonder Serial Bus Servo Controller Communication Tester

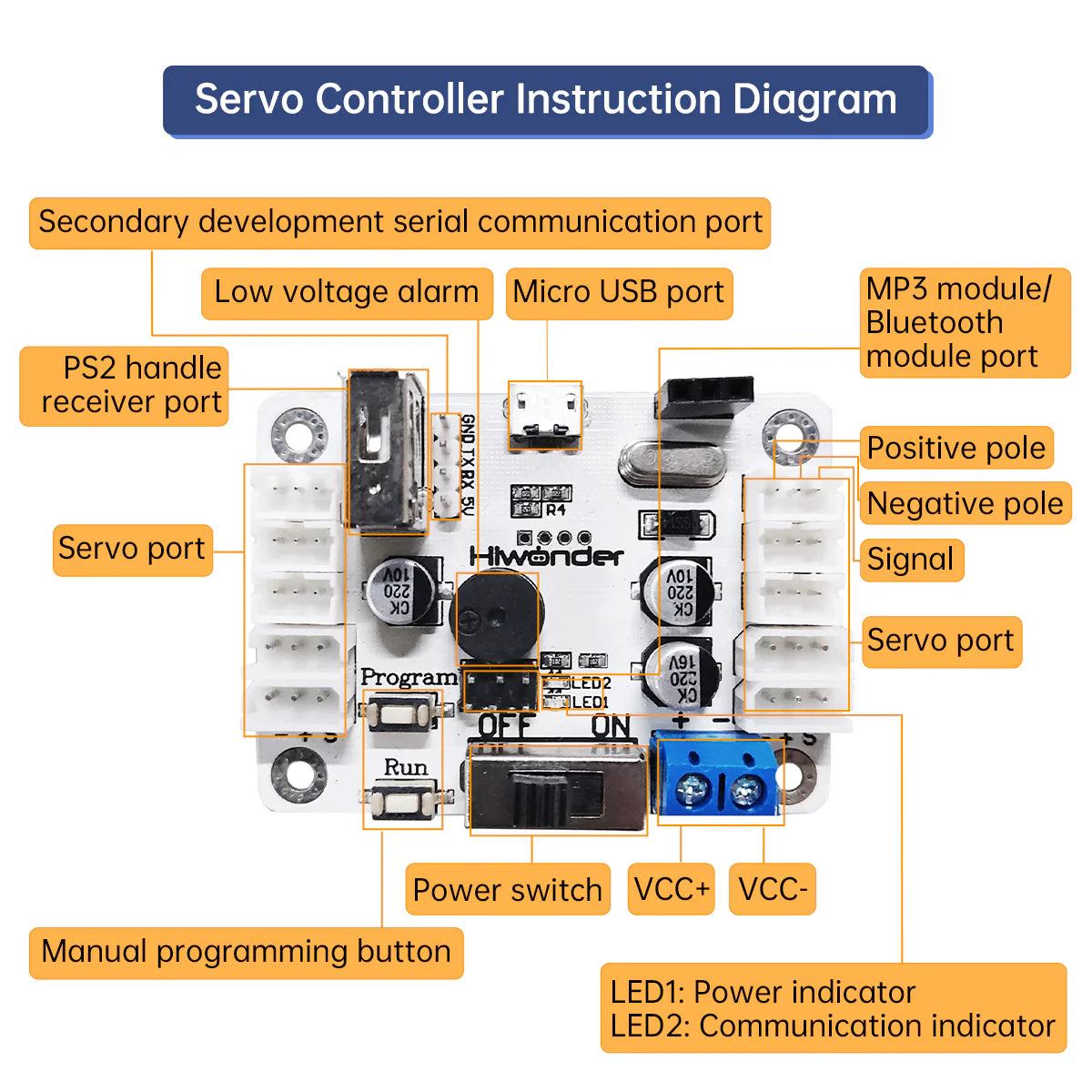

Hiwonder intelligent serial bus servo controller can be used in serial servo control, and it can combine with PS2 wireless handle to realize servo remote control. It supports manual programming, online debugging and TTL serial port communication. If you are using serial bus servo of 11.1V, like LX-224HV, 824HV, etc, please use 11.1V lithium battery to power the servo.

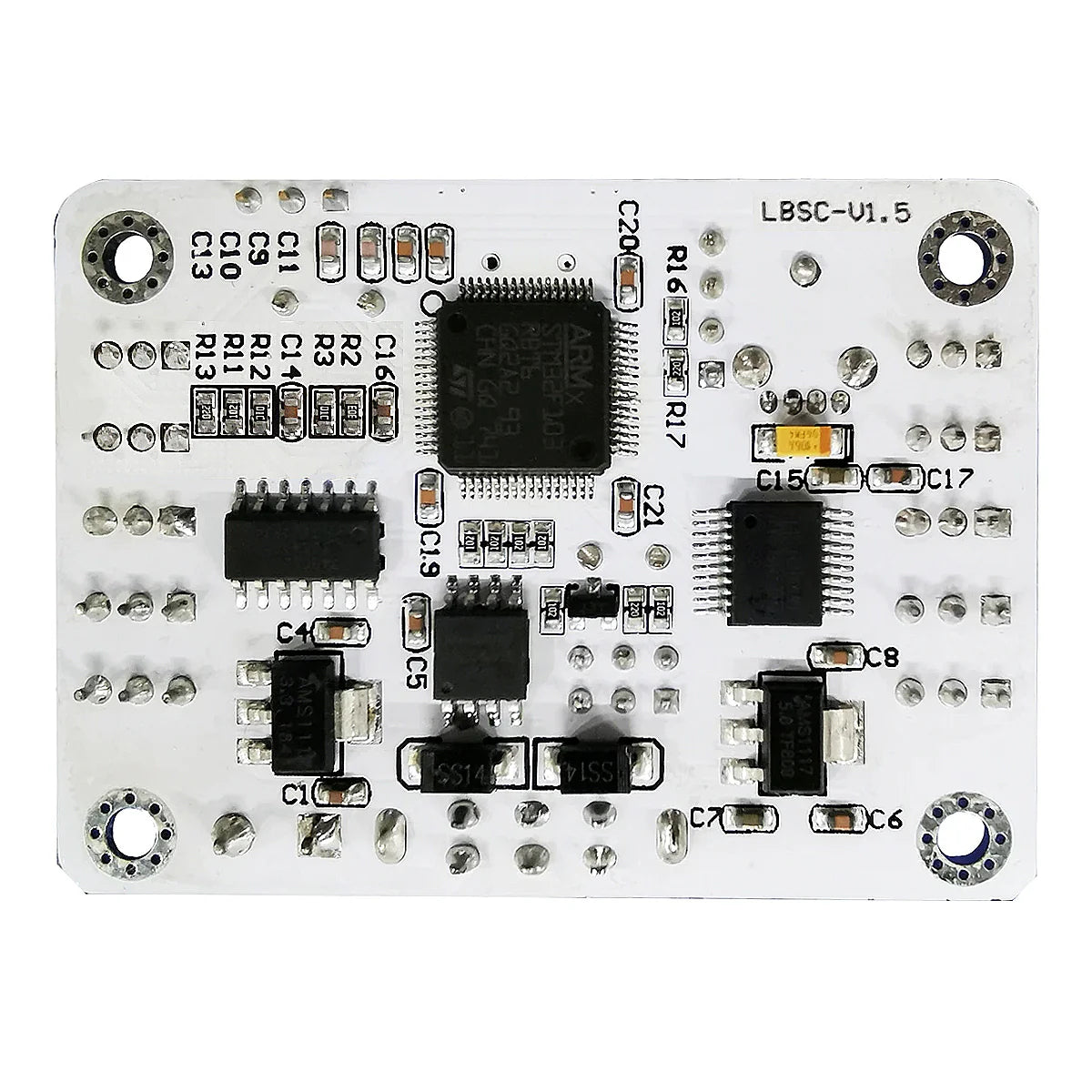

High-performance Chip - The CPU adopts a high-performance STM32 micro-controller with ARM Cortex-M3 core, which controls motion with high precision and adjustable speed.

Support Manual Button Programming - You can set the servo angle without using a host computer to achieve fast programming and simple and convenient operation.

PS2 Handle Interface - The controller supports PS2 handle control, which is simple and convenient to operate. The remote-control distance is about 10 meters.

Simple Wiring - The controller has built. in positive and negative power interfaces, which is simple to wire and easy to operate.

Large Capacity Memory - 16M large capacity memory, which can include 230 action groups, and each action group contains 510 actions!

Low-voltage Alarm - When the positive voltage is lower than 5.6v, the buzzer will make a beep sound to remind users to charge the battery.

Built-in Switch -The controller has a built-in switch, which is easy to use and reduces your wiring worries.

Support External MP3 or Bluetooth Module - If you plug in the MP3 module, you can make the robot make sounds; if you plug in the Bluetooth module, you can control the robot through Bluetooth.

Computer Driver-free - The controller supports online debugging without in-stalling any driver.

Support Serial Port Communication - It can connect to other micro-controller and other micro-controller can send command to it. Communication protocols of 51, STM32 and Arduino microcontroller are provided.

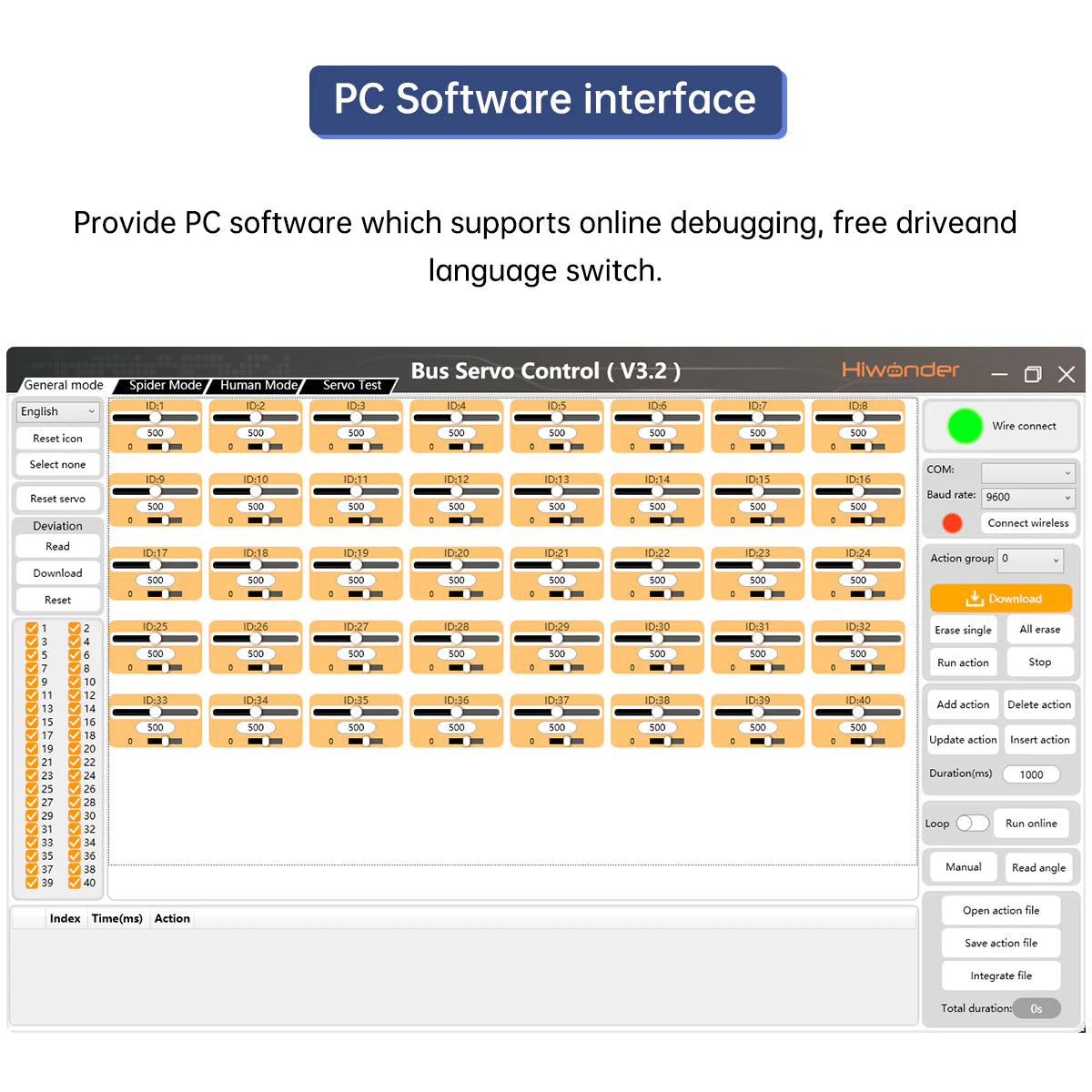

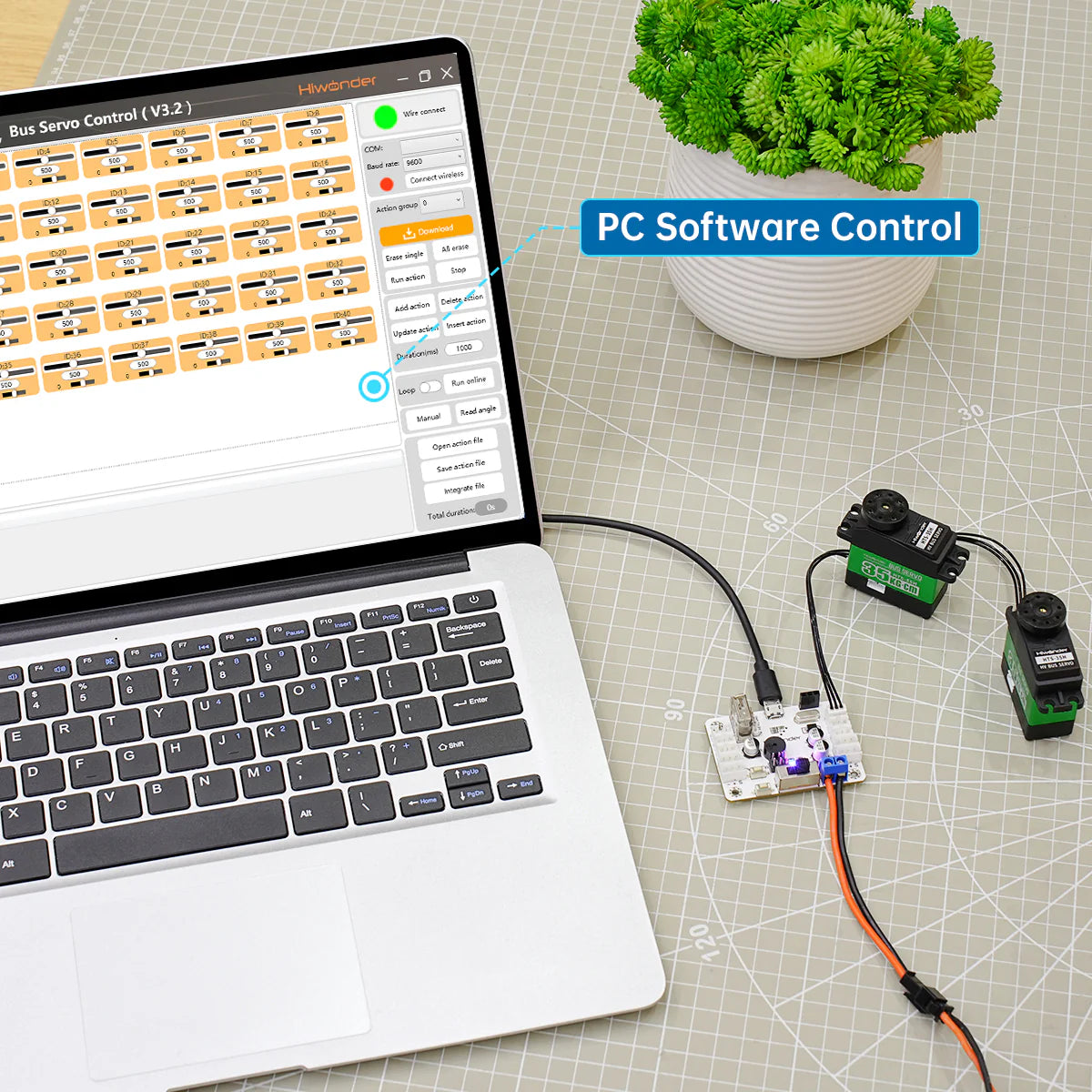

PC Software Interface

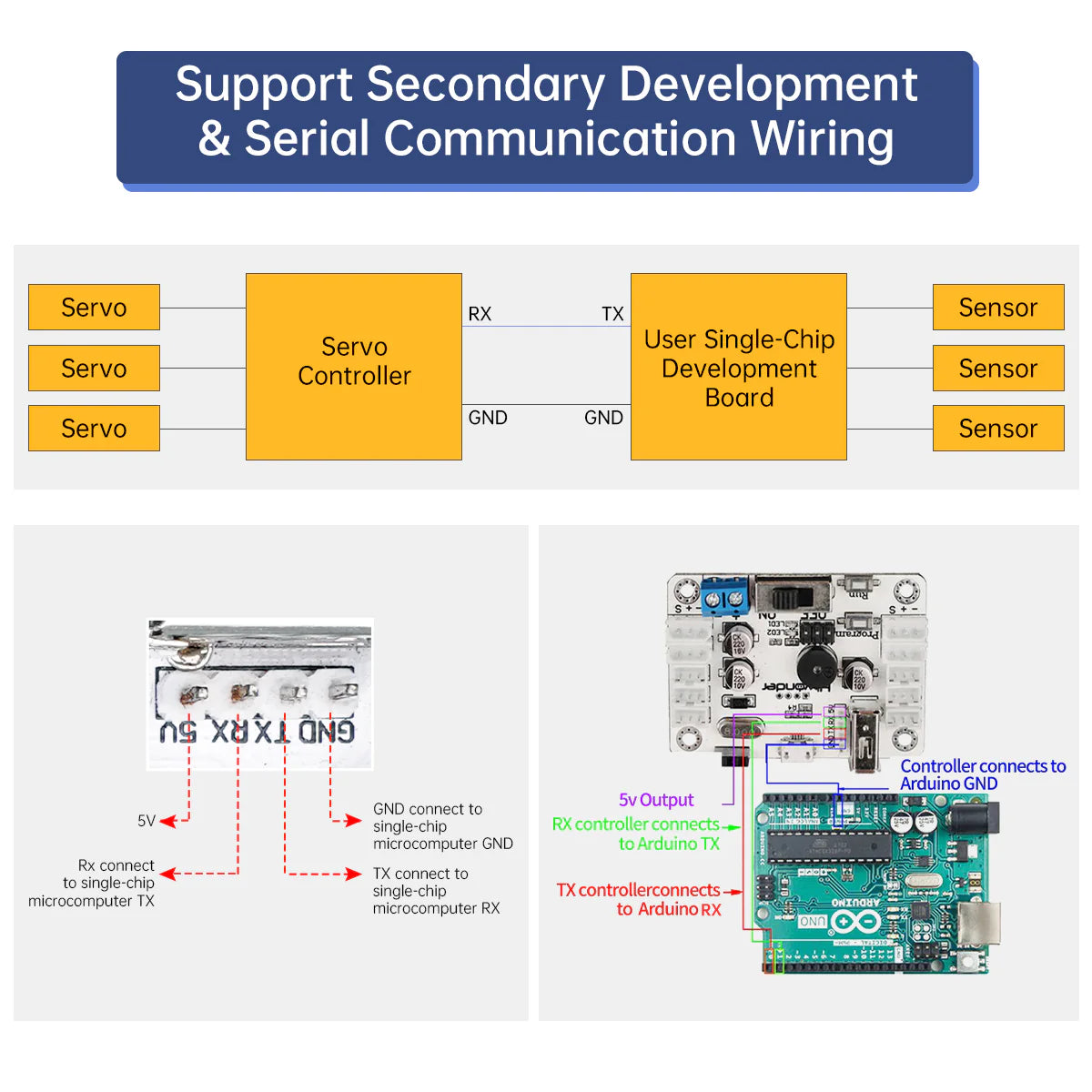

The servo controller has a reserved serial communication interface, which can conduct TTL serial communication with other development boards. The development board can send instructions to the controller to enable your robot to achieve intelligent control. We provide three communication routines for Arduino, Raspberry Pi and Jetson Nano for your reference to facilitate your learning.

Support Development Board Expansion

The servo controller has a reserved serial communication interface, which can conduct TTL serial communication with other development boards. The development board can send instructions to the controller to enable your robot to achieve intelligent control. We provide three communication routines for Arduino, Raspberry Pi and Jetson Nano for your reference to facilitate your learning.

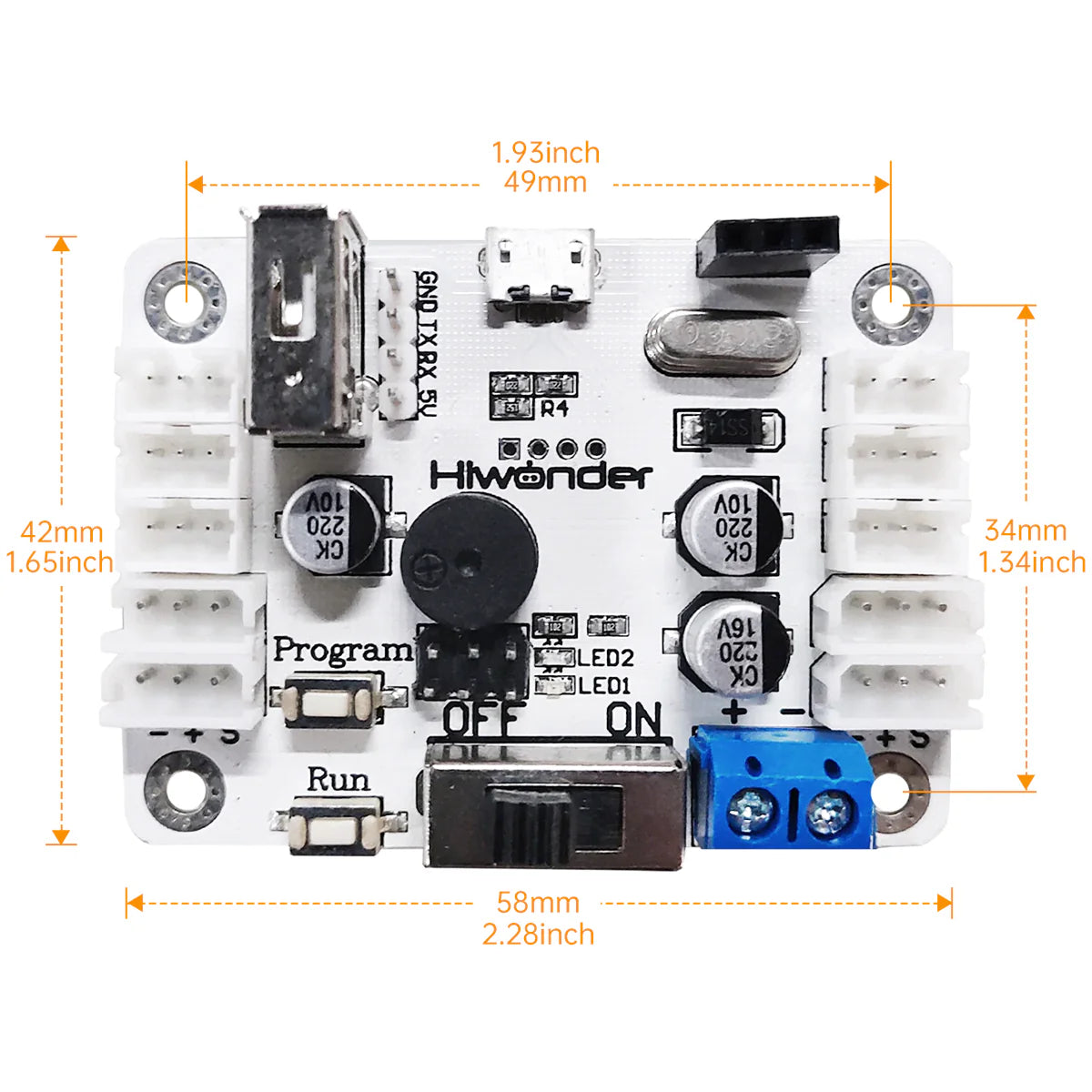

Specifications

Package Includes
