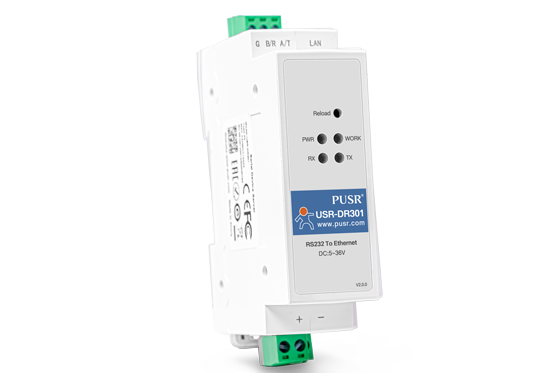

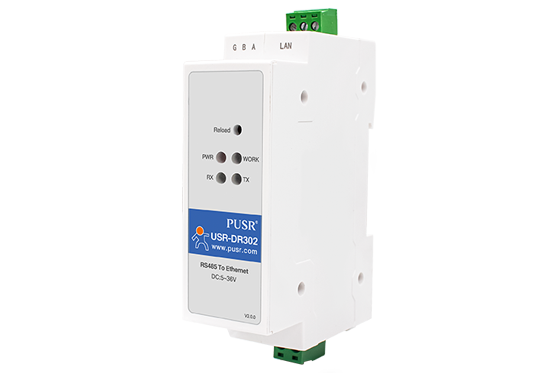

DIN-Rail RS485/RS232 to Ethernet Converters USR-DR302/301 can transmit data transparently between TCP/IP and RS485/RS232, which are widespread required in industrial automation.
Basic Function of DIN-Rail RS485/RS232 to Ethernet Converter USR-DR302/301
Realize bidirectional transparent transmission between RS485/RS232 and Ethernet

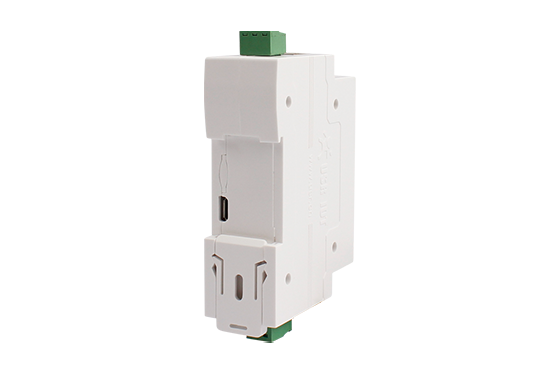

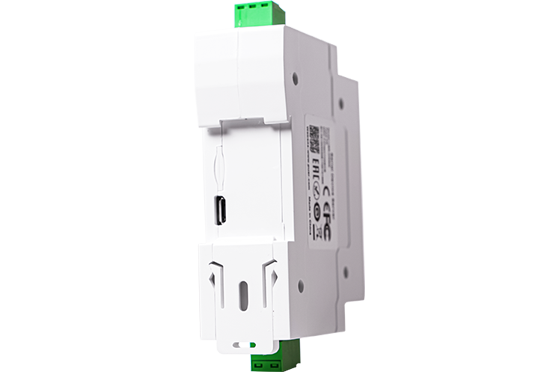

DIN-Rail mounted RS485/RS232 to Ethernet Converter
Small size, easy to manage and maintain, cost-effective
Function Diagram
Working mode
TCP Client
Serial to Ethernet converter USR-DR302/301 will initiate TCP connection to the destination IP address that configured by the user and serial to Ethernet converter will continuously try to reconnect if establishing TCP connection unsuccessfully.
TCP Server
Serial to Ethernet converter USR-DR302/301 monitors the set port and waits for a TCP client connection. Data from the serial device will transmit to all successfully connected via serial to Ethernet converter.
UDP client
USR-DR302/301 only communicates with the target interface of the target IP, thus, to assure the accuracy of data transmission.
UDP Server
DR302/301 can transmit the data automatically to the last time transferred device after receiving the data, which is suitable for multi-network devices that need to communicate with the DR302/301.
Httpd Client
DR302/301 supports the function of transmitting the serial data to the specified server in the form of httpsD (GET/POST).
Support Modbus gateway
More functions
Virtual serial software
Solve the problem of PC software as a serial port cannot communicate with networking device.
Network Heartbeat Packet
Serial server maintains the normal connection with the server by sending heartbeat packet regularly.
Identity Heartbeat Packet
When 302/301 works as TCP Client, it can send identity packet packet to TCP server which can be identification. Identity packet can be IMEI code, ICCID code and user editable identity packet.
PC+ABSC material, portable, low cost, V0 flame retardant, ensure the safety of the product.
Applications
Power data networking transmission
Small size which is available for narrow space; DIN-Rail mounting, easy to install on the wall; The terminal data of the distribution box can quickly convert into the network data, real-time communication, reduce the cost effectively.
Unattended Weighing
Connect serial to ethernet converter USR-DR302/301 to barrier gate and it can realize remote control of barrier gate by Ethernet in control center.
Traffic Lights Management System
Connect serial to Ethernet converter USR-DR302/301, and it can realize traffic data acquisition and processing by Ethernet in the control center. And the control room personnel can quickly make traffic scheduling and planning according to the site condition.
PARAMETER
USR-DR302/301 - DIN-Rail RS485/RS232 to Ethernet Converter Specifications
What interfaces and mounting options does the device provide?

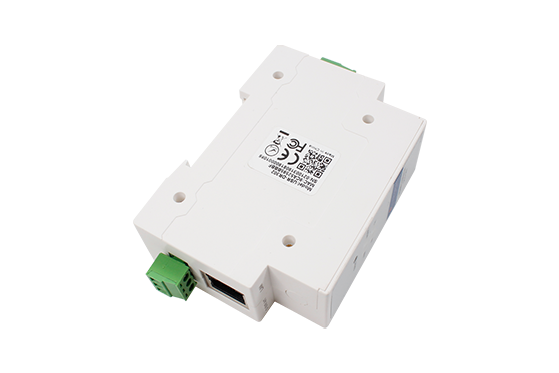

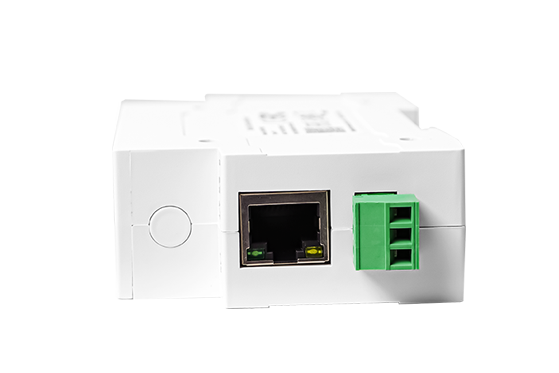

The unit is a DIN-Rail mounted converter with one RS485 or RS232 serial port and an Ethernet RJ45 port for 10/100 Mbps network connectivity. It supports static IP or DHCP for network configuration.
What network operation modes are supported and how does TCP Client mode operate?
It supports TCP Server, TCP Client, UDP Server, UDP Client and Httpd Client, plus Modbus RTU to TCP. In TCP Client mode it initiates a connection to a configured IP and will continuously attempt to reconnect if the connection fails.
What are the power, environmental, and physical specifications?

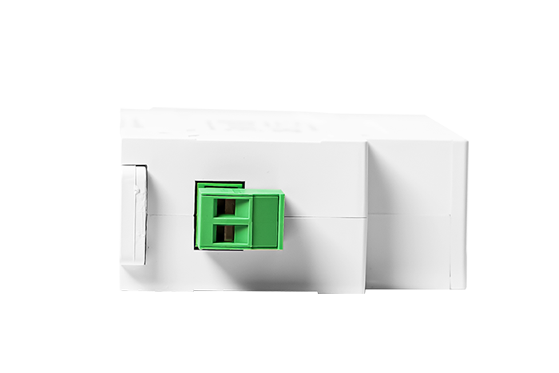

It operates from DC power 5.0 to 36.0 V, draws about 130 mA at 5 V, and measures 71.0 x 60.0 x 25.0 mm with IP30 protection. It can operate from -40 to 85 C and 5 to 95 percent RH.
How do I configure the device and what software is available for integration?
Configuration can be done via configuration software, a web page, or AT commands. It supports Virtual serial software, VCOM, USRIOT Cloud, and setup and test utilities for integration.
What features support reliable operation in industrial environments?
It provides transparent bidirectional data transfer between RS485/RS232 and Ethernet, supports multiple TCP clients, data caching, heartbeat mechanisms, and protection features suitable for industrial use.
