Shrouded Box Header (2X5 pin) - DC3-10P (2 pieces)

SKU: PRO2007

₹ 41.99 ₹ 89.00

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Shrouded Box Header (2X5 pin) - DC3-10P (2 pieces)₹ 41.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

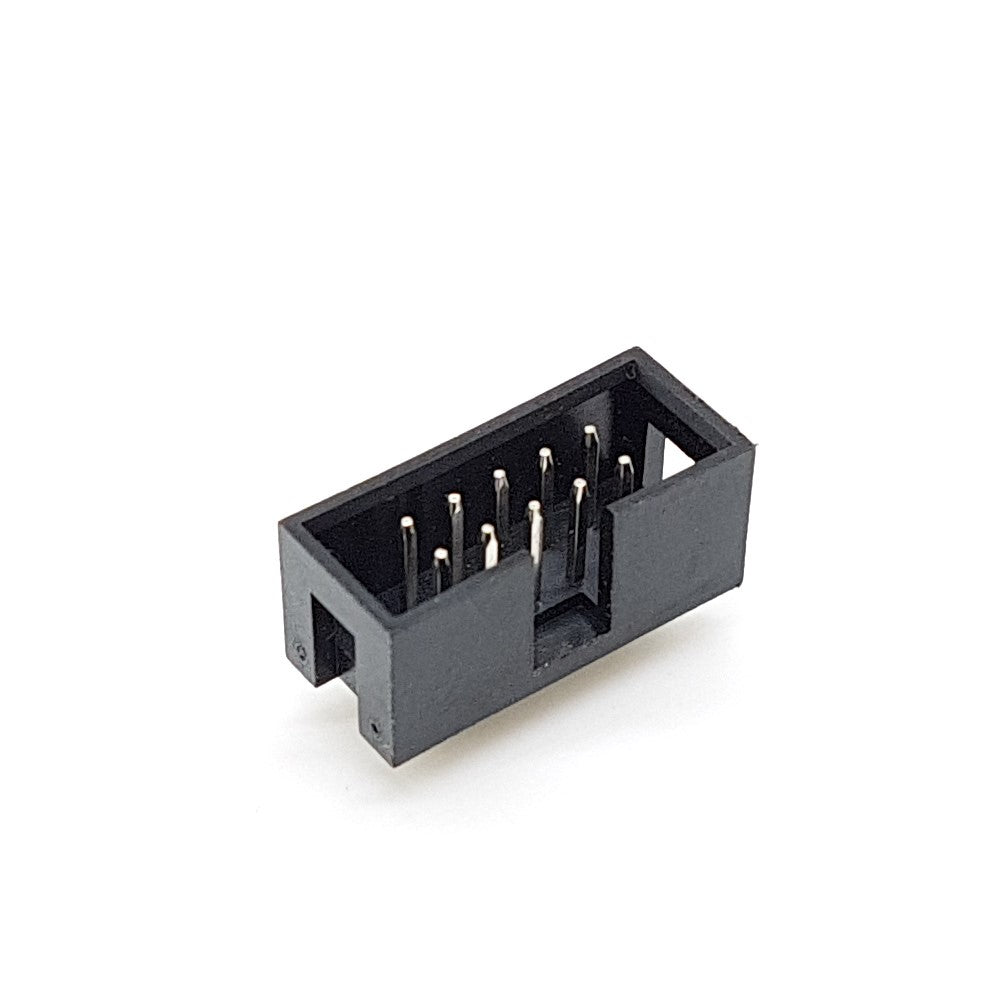

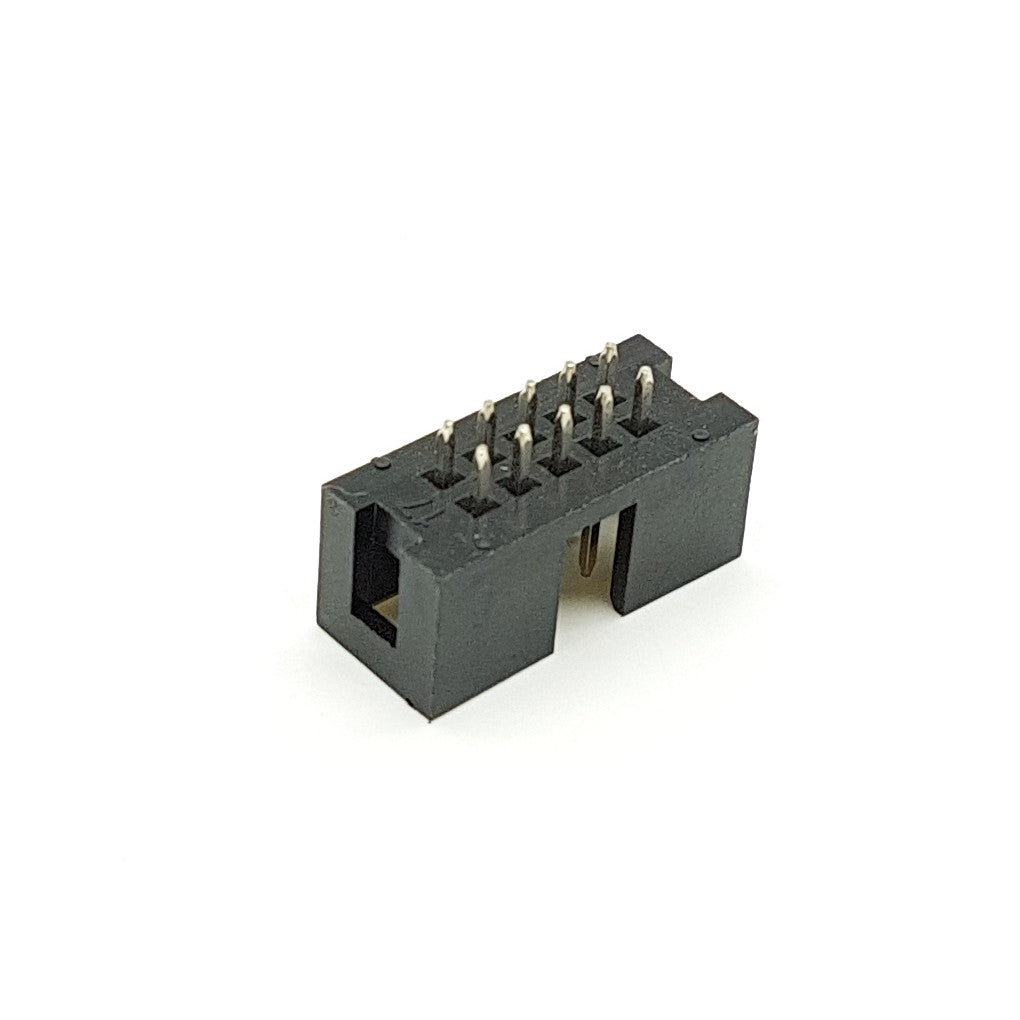

These useful 10-pin (2×5) shrouded male box headers are a dual row shrouded header for use with dual row IDC female socket connectors. The low profile, space saving design has a centre slot for the socket's polarization bump. Pins 0.1in pitch (2.54mm).

DC3-10P 2 Row 10 Pin 2.54mm pitch. It can also be with our Flat Ribbon Cable.



Product Features:

  • Product Name : DC3-10P
  • Material : Plastic, Metal;
  • Pitch : 2.54mm / 0.1";
  • Total Size : 20 x 9 x 12mm / 0.79" x 0.35" x 0.47" (L*W*H)
  • Color : Black, Silver Tone;
  • Weight : 130g
  • Package Content : 2 pieces of DC3-10P
Specifications

What is the pin configuration and pitch of this header?
It is a 2x5 pin shrouded male box header with a 2.54 mm (0.1 inch) pitch, and the package contains two pieces.
What is the purpose of the center slot?
The center slot accommodates the socket polarization bump to ensure proper alignment.
What connectors is it designed to mate with?
It is designed for use with dual row IDC female socket connectors.
What are the material and color specifications?
The header is made of plastic and metal with a black and silver tone.
What are the dimensions and package contents?
The total size is 20 x 9 x 12 mm and the package includes 2 pieces.
