Description

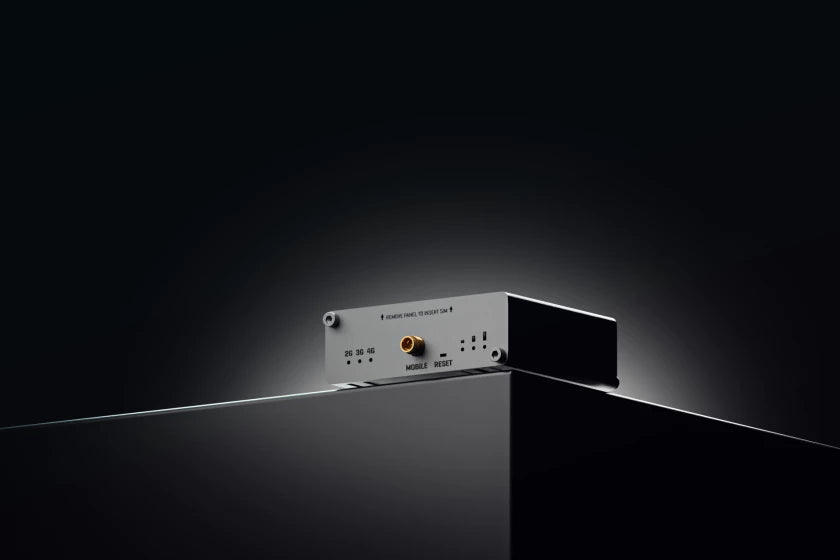

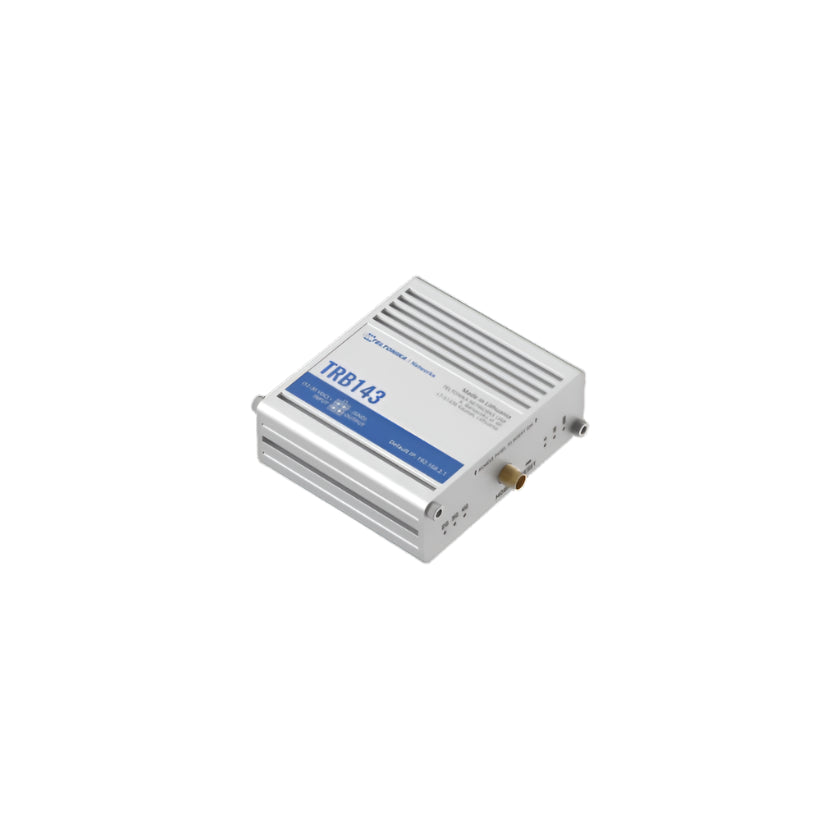

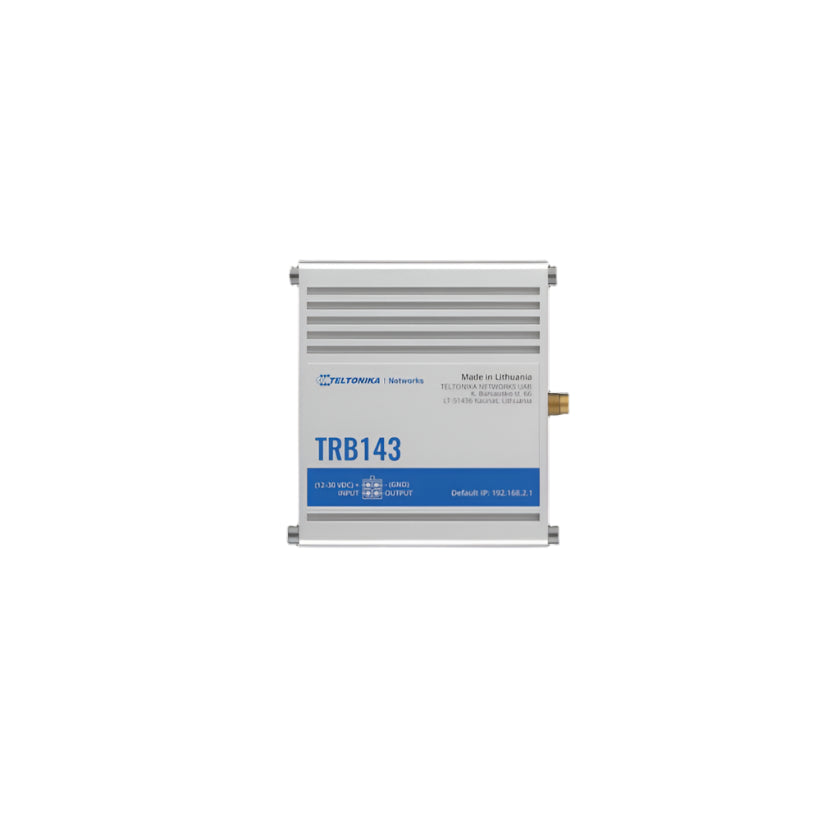

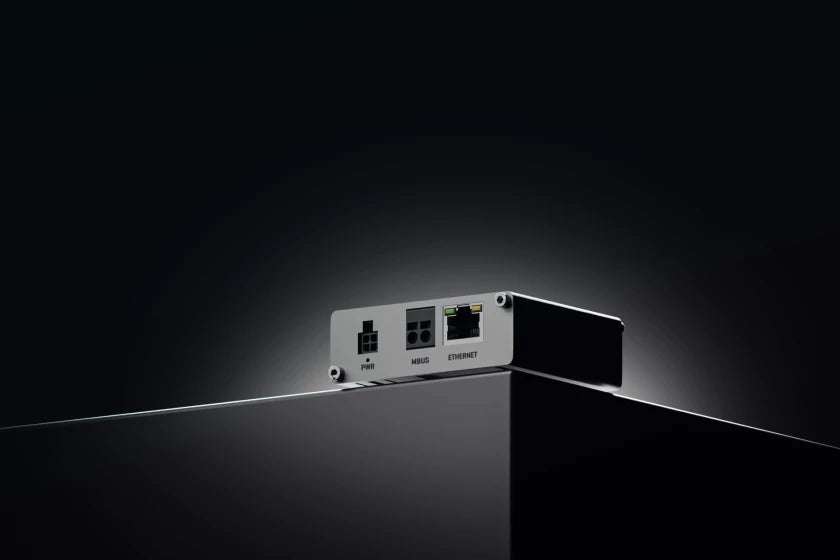

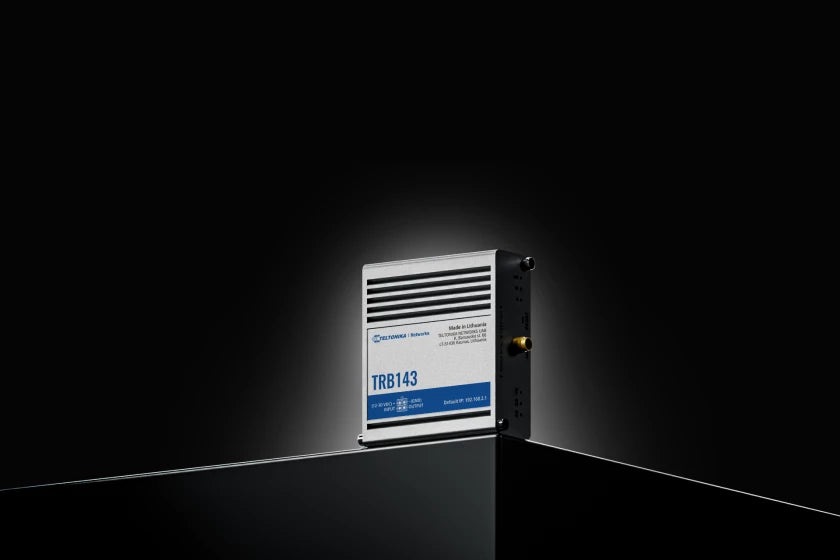

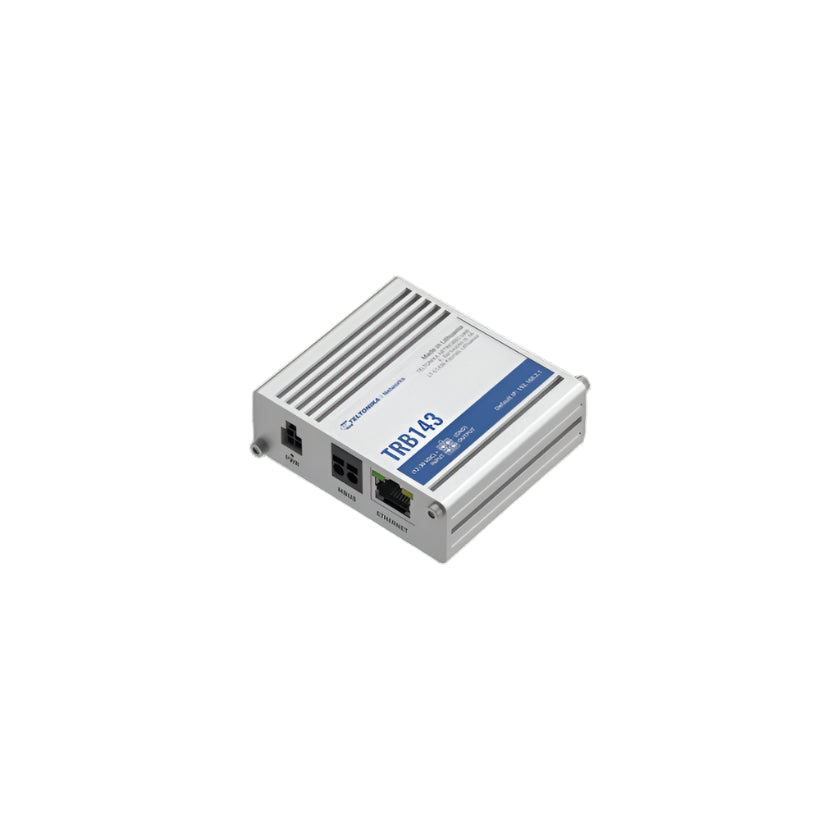

The TRB143 industrial gateway was designed with an integrated M-Bus interface specifically for telemetry and utility-monitoring applications. It features cellular and wired connectivity, one Gigabit Ethernet port, and a pair of digital Inputs/Outputs, making it applicable to a variety of environment-monitoring scenarios.
Standard package*
- TRB143
- 18 W PSU
- 1x Mobile antenna (magnetic mount, SMA male, 3 m cable)
- 1x hex key
- 1x LAN cable
- QSG (Quick Start Guide)
- Packaging box
*Standard package contents may differ based on standard order codes.
Feature
Mobile
| Feature | Description |
|---|---|
| Mobile Module | 4G LTE Cat 4: up to 150 Mbps download / 50 Mbps upload; 3G: up to 21 Mbps download / 5.76 Mbps upload; 2G: up to 236.8 kbps download/upload |
| 3GPP Release | Release 11 |
| Status Monitoring | IMSI, ICCID, operator details, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC |
| SMS Management | SMS status, configuration, send/read via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, scheduled SMS, autoreply, SMPP |
| USSD Support | Sending and reading Unstructured Supplementary Service Data messages |
| Operator Lists | Blacklist/Whitelist by country or specific operators |
| Multiple PDN | Support for different PDNs for multiple network access and services |
| Band Management | Band lock, used band status display |
| SIM PIN Management | Setting, changing, or disabling the SIM card's PIN |
| APN Configuration | Auto APN |
| Bridge Mode | Direct connection between mobile ISP and device on LAN |
| Passthrough Mode | Gateway assigns its mobile WAN IP address to another device on LAN |
Ethernet Features
| Feature | Description |
|---|---|
| ETH Port | 1 x Ethernet port, 10/100/1000 Mbps, compliant with IEEE 802.3, 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
Network Features
| Feature | Description |
|---|---|
| Routing | Static routing |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| VoIP Passthrough | H.323 and SIP-alg protocol NAT helpers for proper routing of VoIP packets |
| Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forwarding, traffic rules, custom rules, TTL target customization |
| Firewall Status Page | View all firewall statistics, rules, and rule counters |
| Ports Management | View device ports, enable/disable, auto-configuration toggle, change transmission speed |
| Network Topology | Visual representation of the network, showing connected devices |
| Hotspot | Captive portal, internal/external Radius server, SMS authorization, SSO authentication, landing page options, user management, customizable themes |
| DHCP | Static and dynamic IP allocation, DHCP relay, server configuration, status, static leases with MAC wildcards |
| QoS / Smart Queue | Traffic priority queuing by source/destination, service, protocol, or port; WMM, 802.11e |
| DDNS | Support for over 25 service providers, with manual configuration options |
| DNS over HTTPS | Secure DNS resolution by routing queries over HTTPS |
| Network Backup | VRRP, wired options, and mobile for automatic failover |
| SSHFS | Mount remote file system via SSH protocol |
| Traffic Management | Real-time monitoring, wireless signal charts, traffic usage history |
Security Features
| Feature | Description |
|---|---|
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, internal/external RADIUS user authentication, IP & login attempt blocking, time-based login blocking, built-in random password generator |
| Firewall | Preconfigured rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| Attack Prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| Mobile Quota Control | Mobile data limit, customizable period, start time, warning limit, phone number |
| Web Filter | Blacklist for blocking unwanted websites, whitelist for specifying allowed sites |
| Access Control | Flexible control of SSH, Web interface, CLI, and Telnet access |
| SSL Certificate Generation | Let's Encrypt and SCEP certificate generation methods |
VPN Features
| Feature | Description |
|---|---|
| OpenVPN | Multiple clients and a server can run simultaneously, supporting 27 encryption methods |
| IPsec | XFRM, IKEv1, IKEv2, with 14 encryption methods including 3DES, DES, AES variants |
| GRE | GRE tunnel, GRE over IPsec support |
| PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
| Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without code changes |
| DMVPN | Method for building scalable IPsec VPNs, supporting Phase 2, Phase 3, and Dual Hub |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server support |
Safety Features
| Feature | Description |
|---|---|
| Anti-brute Force Protection | SSH, web interface, and Telnet brute force attack protection |
| Data Encryption | AES-256 hardware encryption |
| Backup/Restore Configurations | Configuration backup via remote (cloud) or local storage |
| Automatic Recovery | Automatic recovery in case of system failure |
| Firmware Rollback | Rollback to previous stable firmware version |
| Root of Trust | Secure boot with a trusted hardware root of trust |
