TRB246 - Industrial IoT Gateway

SKU: ELC8711

ā‚¹ 27,149.99 ā‚¹ 39,799.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ā± This is a pre-order item. We'll ship it as soon as it's back in stock.
TRB246 - Industrial IoT Gatewayā‚¹ 27,149.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

The TRB246 is an industrial 4G LTE gateway equipped with I/Os, RS232, RS485, and Ethernet interfaces for IoT solutions requiring versatility and reliable M2M communication support. This gateway has dual SIM functionality and supports multiple protocols, like DNP3, DLMS, and Modbus, vital for ensuring smooth data transmission. Encased in aluminium housing, this industrial-grade IoT gateway can tolerate extreme environmental conditions in manufacturing, agriculture, or construction.

Standard package*

*Standard package contents may differ based on standard order codes.

Feature

Mobile

Feature Details
Mobile Module 4G LTE up to 150 DL/50 UL Mbps; 3G up to 42 DL/5.76 UL Mbps; 2G up to 296 DL/236.8 UL Kbps
3GPP Release Release 11
SIM Switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, on roaming, no network, network denied, data connection fail
Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band Management Band lock, Used band status display
SIM Idle Protection Service When working with devices with two SIM slots, the one not in use remains idle until switched to
SIM PIN Code Management Enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Gateway assigns its mobile WAN IP address to another device on LAN


Ethernet

Feature Details
Ethernet Port 1 x ETH port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover


Network

Feature Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
Firewall Status Page View all your Firewall statistics, rules, and rule counters
Ports Management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed
Network Topology Visual representation of your network, showing which devices are connected to which other devices
Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network Backup Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
SSHFS Possibility to mount remote file system via SSH protocol
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history


Security

Feature Details
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Tag-based VLAN separation
Mobile Quota Control Mobile data limit, customizable period, start time, warning limit, phone number
Web Filter Blacklist for blocking unwanted websites, Whitelist for specifying allowed sites only
Access Control Flexible access control of SSH, Web interface, CLI, and Telnet
SSL Certificate Generation Let's Encrypt and SCEP certificate generation methods


VPN

VPN Type Details
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programā€™s code
DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3, Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication, and compression in its tunnels. Client and server support.


BACNET

Feature Details
Supported Modes Router
Supported Connection Types RS485, TCP
Configuration Options Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)


OPC UA

Feature Details
Supported Modes Client, Server
Supported Connection Types TCP


MODBUS

Feature Details
Supported Modes Server, Client
Supported Connection Types RTU (RS232, RS485), TCP
Custom Registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII


Data to Server

Feature Details
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature


MQTT Gateway

Feature Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker


DNP3

Feature Details
Supported Modes Station, Outstation
Supported Connection Types RS232, RS485, TCP


DLMS

Feature Details
DLMS Support DLMS - standard protocol for utility meter data exchange. Support through serial and TCP
Supported Modes Client
Supported Connection Types RS232, RS485, TCP


API

Feature Details
Teltonika Networks Web API (beta) Support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: Teltonika Networks Web API

Ā

Monitoring & Management

Feature Details
WEB UI HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, status, mobile data on/off, output on/off, answer/hang-up with timer
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)


IoT Platforms

Platform Features
ThingWorx Monitoring of WAN Type, WAN IP, Mobile Operator Name, Signal Strength, Network Type
Cumulocity - Cloud of Things Monitoring of Device Model, Revision, Serial Number, WAN IP, Mobile Cell ID, Operator, Signal Strength, Reboot and Firmware upgrade actions
Azure IoT Hub Configuration with Data to Server, Direct Method support, Plug and Play integration with Device Provisioning Service
AWS IoT Core Interaction with AWS cloud, Jobs Support, Execute RutOS API calls via AWS Jobs functionality


System Characteristics

Feature Details
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB
FLASH Storage 16 MB


Firmware / Configuration

Feature Details
WEB UI Update FW from file, check FW on server, configuration profiles, backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep Settings Update FW without losing current configuration
Factory Settings Reset Full factory reset restores all system settings to default


Firmware Customization

Feature Details
Operating System RutOS (OpenWrt based Linux OS)
Supported Languages Busybox shell, Lua, C, C++
Development Tools SDK package with build environment provided
GPL Customization Create custom, branded firmware and web page application
Package Manager Service used to install additional software on the device

Ā

Location Tracking

Feature Details
GNSS GPS, GLONASS, BeiDou, Galileo, QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server Software Supported server software: TAVL, RMS
Geofencing Configurable multiple geofence zones
Tracking Sensitivity -157 dBm
Position Accuracy 2.5m CEP


Serial Interfaces

Feature Details
RS232 Terminal block connector: TX, RX, RTS, CTS
RS485 Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface)
Serial Functions Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client


Input / Output

Feature Details
Input 3x Configurable Digital Inputs, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 1x Analog input (0 - 30 V)
Output 3x Configurable Digital Outputs, Open collector output, max output 30 V, 300 mA
Events Email, RMS, SMS
I/O Juggler Allows to set certain I/O conditions to initiate an event


Power

Feature Details
Connector 2-pin in 16-pin industrial terminal block
Input Voltage Range 9 ā€“ 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 Āµs max
Power Consumption Idle: < 1.5 W, Max: < 3.5 W


Physical Interfaces

Feature Details
Ethernet 1 x RJ45 port, 10/100 Mbps

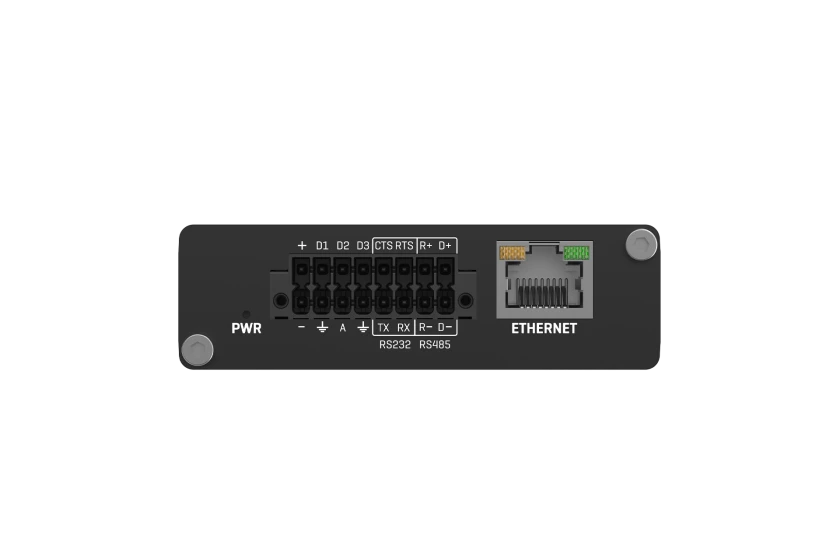

I/Oā€™s 3 x Configurable digital I/O in 16-pin terminal block
Status LEDs 3 x connection status LEDs, 3 x connection strength LEDs, 1 x power LED, 1 x Eth port status LED
SIM 2 x SIM slots (Mini SIM ā€“ 2FF), 1.8 V/3 V, double stacked SIM tray
Power 1 x 16-pin terminal block

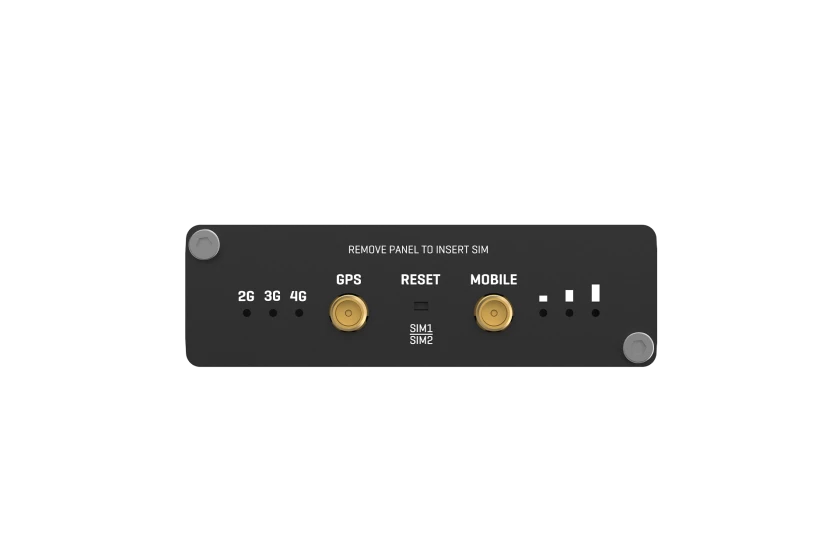

Antennas 1 x SMA connector for LTE, 1 x SMA connector for GNSS
RS232 4-pin in 16-pin terminal block (TX, RX, RTS, CTS)
RS485 4-pin in 16-pin terminal block (D+, D-, R+, R-)
Reset Reboot/User default reset/Factory reset button

Ā

Physical Specification

Feature Details
Casing Material Aluminium housing
Dimensions (W x H x D) 83 x 25 x 74.2 mm
Weight 165 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Feature Details
Operating Temperature -40 Ā°C to 75 Ā°C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Approval Details
Regulatory CE, UKCA, EAC, RCM, FCC, IC, CB, WEEE

EMC Emissions & Immunity Standards

Standard Details
Emissions EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021
Immunity EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-19 V2.2.1, EN 301 489-52 V1.2.1
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity EN 61000-4-5:2014 +A1:2017
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2020

RF Standards

Standard Details
RF EN 301 511 V12.5.1, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1, EN 303 413 V1.2.1

Safety Standards

Standard Details
Safety CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, CB: IEC 62368-1:2018

Ā

Downloads

Manual & Documentation

Links

What makes the TRB246 suitable for harsh industrial environments?
It features an aluminium housing with wide operating range from -40 C to 75 C and 10 to 90 percent non condensing humidity, providing rugged performance in demanding conditions.
What network and SIM capabilities does it offer?
The gateway supports 4G LTE up to 150 DL/50 UL Mbps, 3G and 2G, and has two SIM slots with auto switch. SIM management includes PIN code handling and related features such as APN settings and SMS options.
Which industrial protocols and interfaces are supported for data exchange?
MODBUS is supported in server or client mode over RS232 RS485 or TCP, and DNP3 and DLMS client/server configurations are available for utility and metering applications.
How are firmware updates and device management handled?
Firmware can be updated from a server via FOTA, and devices can be managed through the WEB UI or RMS, with additional management options via API and remote provisioning.
Which cloud platforms and data integration options are available?
The gateway can connect to ThingWorx, Cumulocity, Azure IoT Hub and AWS IoT Core, and supports MQTT and HTTP(S) data transfers to cloud services for IoT applications.
A
Admin
Welcome to the discussion thread for TRB246 - Industrial IoT Gateway
Feel free to ask questions, share tips or report issues.

Discover More In:

Industrial IoT ā†’ IOT Modules ā†’ Network Accessories ā†’

Category: View similar items (TRB246)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

The TRB246 is an industrial 4G LTE gateway equipped with I/Os, RS232, RS485, and Ethernet interfaces for IoT solutions requiring versatility and reliable M2M communication support. This gateway has dual SIM functionality and supports multiple protocols, like DNP3, DLMS, and Modbus, vital for ensuring smooth data transmission. Encased in aluminium housing, this industrial-grade IoT gateway can tolerate extreme environmental conditions in manufacturing, agriculture, or construction.

Standard package*

*Standard package contents may differ based on standard order codes.

Feature

Mobile

Feature Details
Mobile Module 4G LTE up to 150 DL/50 UL Mbps; 3G up to 42 DL/5.76 UL Mbps; 2G up to 296 DL/236.8 UL Kbps
3GPP Release Release 11
SIM Switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, on roaming, no network, network denied, data connection fail
Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band Management Band lock, Used band status display
SIM Idle Protection Service When working with devices with two SIM slots, the one not in use remains idle until switched to
SIM PIN Code Management Enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Gateway assigns its mobile WAN IP address to another device on LAN


Ethernet

Feature Details
Ethernet Port 1 x ETH port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover


Network

Feature Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
Firewall Status Page View all your Firewall statistics, rules, and rule counters
Ports Management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed
Network Topology Visual representation of your network, showing which devices are connected to which other devices
Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network Backup Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
SSHFS Possibility to mount remote file system via SSH protocol
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history


Security

Feature Details
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Tag-based VLAN separation
Mobile Quota Control Mobile data limit, customizable period, start time, warning limit, phone number
Web Filter Blacklist for blocking unwanted websites, Whitelist for specifying allowed sites only
Access Control Flexible access control of SSH, Web interface, CLI, and Telnet
SSL Certificate Generation Let's Encrypt and SCEP certificate generation methods


VPN

VPN Type Details
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programā€™s code
DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3, Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication, and compression in its tunnels. Client and server support.


BACNET

Feature Details
Supported Modes Router
Supported Connection Types RS485, TCP
Configuration Options Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)


OPC UA

Feature Details
Supported Modes Client, Server
Supported Connection Types TCP


MODBUS

Feature Details
Supported Modes Server, Client
Supported Connection Types RTU (RS232, RS485), TCP
Custom Registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII


Data to Server

Feature Details
Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature


MQTT Gateway

Feature Details
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker


DNP3

Feature Details
Supported Modes Station, Outstation
Supported Connection Types RS232, RS485, TCP


DLMS

Feature Details
DLMS Support DLMS - standard protocol for utility meter data exchange. Support through serial and TCP
Supported Modes Client
Supported Connection Types RS232, RS485, TCP


API

Feature Details
Teltonika Networks Web API (beta) Support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: Teltonika Networks Web API

Ā

Monitoring & Management

Feature Details
WEB UI HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, status, mobile data on/off, output on/off, answer/hang-up with timer
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)


IoT Platforms

Platform Features
ThingWorx Monitoring of WAN Type, WAN IP, Mobile Operator Name, Signal Strength, Network Type
Cumulocity - Cloud of Things Monitoring of Device Model, Revision, Serial Number, WAN IP, Mobile Cell ID, Operator, Signal Strength, Reboot and Firmware upgrade actions
Azure IoT Hub Configuration with Data to Server, Direct Method support, Plug and Play integration with Device Provisioning Service
AWS IoT Core Interaction with AWS cloud, Jobs Support, Execute RutOS API calls via AWS Jobs functionality


System Characteristics

Feature Details
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB
FLASH Storage 16 MB


Firmware / Configuration

Feature Details
WEB UI Update FW from file, check FW on server, configuration profiles, backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep Settings Update FW without losing current configuration
Factory Settings Reset Full factory reset restores all system settings to default


Firmware Customization

Feature Details
Operating System RutOS (OpenWrt based Linux OS)
Supported Languages Busybox shell, Lua, C, C++
Development Tools SDK package with build environment provided
GPL Customization Create custom, branded firmware and web page application
Package Manager Service used to install additional software on the device

Ā

Location Tracking

Feature Details
GNSS GPS, GLONASS, BeiDou, Galileo, QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server Software Supported server software: TAVL, RMS
Geofencing Configurable multiple geofence zones
Tracking Sensitivity -157 dBm
Position Accuracy 2.5m CEP


Serial Interfaces

Feature Details
RS232 Terminal block connector: TX, RX, RTS, CTS
RS485 Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface)
Serial Functions Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client


Input / Output

Feature Details
Input 3x Configurable Digital Inputs, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 1x Analog input (0 - 30 V)
Output 3x Configurable Digital Outputs, Open collector output, max output 30 V, 300 mA
Events Email, RMS, SMS
I/O Juggler Allows to set certain I/O conditions to initiate an event


Power

Feature Details

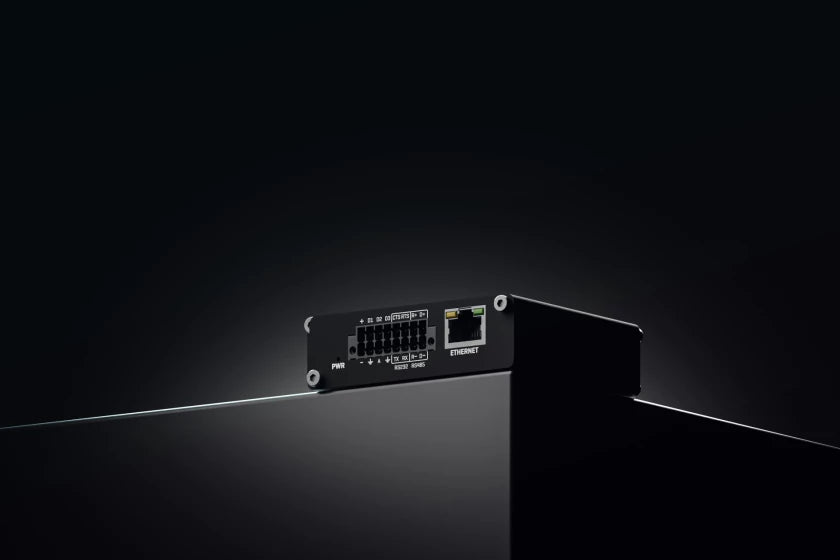

Connector 2-pin in 16-pin industrial terminal block
Input Voltage Range 9 ā€“ 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 Āµs max
Power Consumption Idle: < 1.5 W, Max: < 3.5 W


Physical Interfaces

Feature Details
Ethernet 1 x RJ45 port, 10/100 Mbps
I/Oā€™s 3 x Configurable digital I/O in 16-pin terminal block
Status LEDs 3 x connection status LEDs, 3 x connection strength LEDs, 1 x power LED, 1 x Eth port status LED
SIM 2 x SIM slots (Mini SIM ā€“ 2FF), 1.8 V/3 V, double stacked SIM tray
Power 1 x 16-pin terminal block

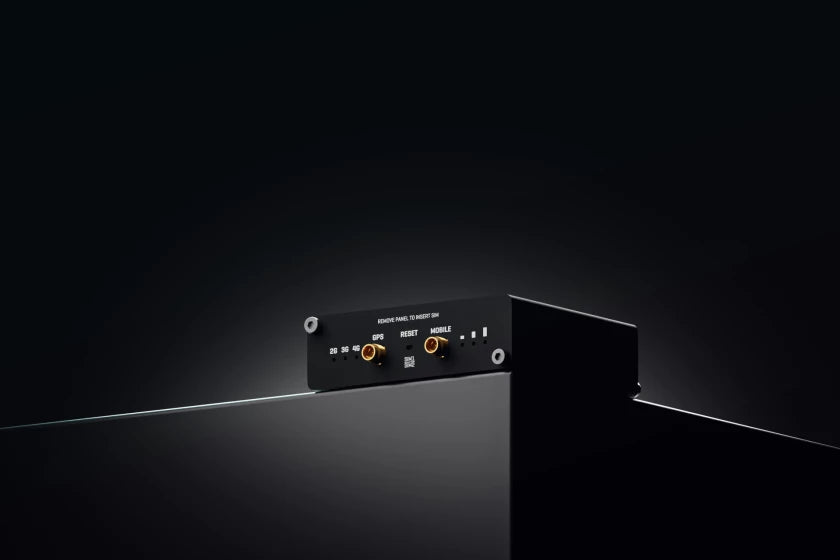

Antennas 1 x SMA connector for LTE, 1 x SMA connector for GNSS
RS232 4-pin in 16-pin terminal block (TX, RX, RTS, CTS)
RS485 4-pin in 16-pin terminal block (D+, D-, R+, R-)
Reset Reboot/User default reset/Factory reset button

Ā

Physical Specification

Feature Details
Casing Material Aluminium housing
Dimensions (W x H x D) 83 x 25 x 74.2 mm
Weight 165 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Feature Details
Operating Temperature -40 Ā°C to 75 Ā°C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Approval Details
Regulatory CE, UKCA, EAC, RCM, FCC, IC, CB, WEEE

EMC Emissions & Immunity Standards

Standard Details
Emissions EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021
Immunity EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-19 V2.2.1, EN 301 489-52 V1.2.1
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity EN 61000-4-5:2014 +A1:2017
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2020

RF Standards

Standard Details
RF EN 301 511 V12.5.1, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1, EN 303 413 V1.2.1

Safety Standards

Standard Details
Safety CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, CB: IEC 62368-1:2018

Ā

Downloads

Manual & Documentation

Links

FAQ
What makes the TRB246 suitable for harsh industrial environments?
It features an aluminium housing with wide operating range from -40 C to 75 C and 10 to 90 percent non condensing humidity, providing rugged performance in demanding conditions.
What network and SIM capabilities does it offer?
The gateway supports 4G LTE up to 150 DL/50 UL Mbps, 3G and 2G, and has two SIM slots with auto switch. SIM management includes PIN code handling and related features such as APN settings and SMS options.
Which industrial protocols and interfaces are supported for data exchange?
MODBUS is supported in server or client mode over RS232 RS485 or TCP, and DNP3 and DLMS client/server configurations are available for utility and metering applications.
How are firmware updates and device management handled?
Firmware can be updated from a server via FOTA, and devices can be managed through the WEB UI or RMS, with additional management options via API and remote provisioning.
Which cloud platforms and data integration options are available?
The gateway can connect to ThingWorx, Cumulocity, Azure IoT Hub and AWS IoT Core, and supports MQTT and HTTP(S) data transfers to cloud services for IoT applications.
Reviews
Forum
A
Admin
Welcome to the discussion thread for TRB246 - Industrial IoT Gateway
Feel free to ask questions, share tips or report issues.
Similar Products

Discover More In:

Industrial IoT ā†’ IOT Modules ā†’ Network Accessories ā†’

Category: View similar items (TRB246)

Bulk Order

Fill out the form below and our team will get back to you with bulk pricing.

Custom Requirements?

Meet with our team

Related products

Related products

0106-14

Waldom Electonics

0106-14

ā‚¹ 2,623.53
