Teltonika Networks

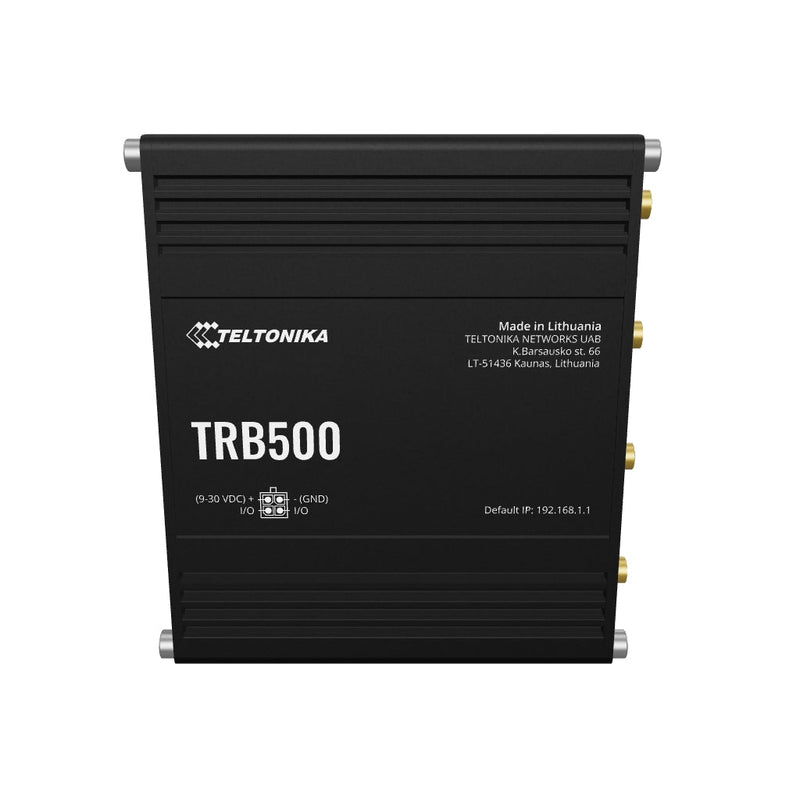

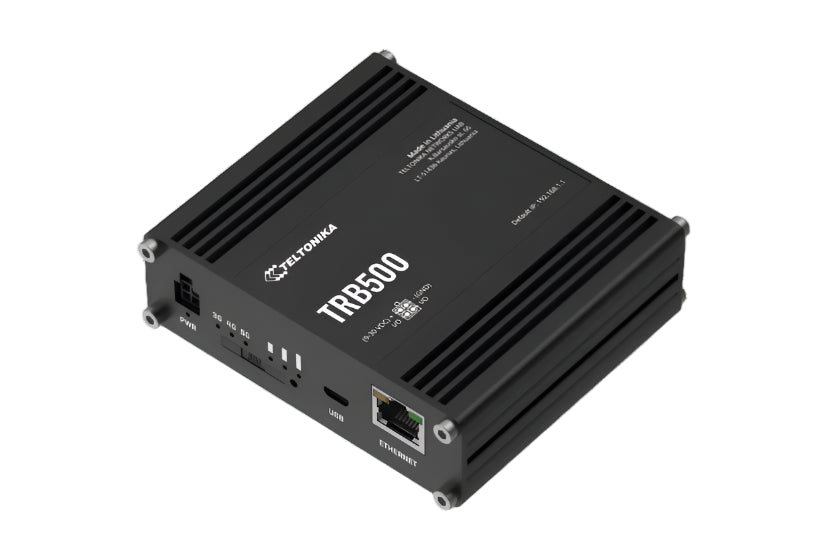

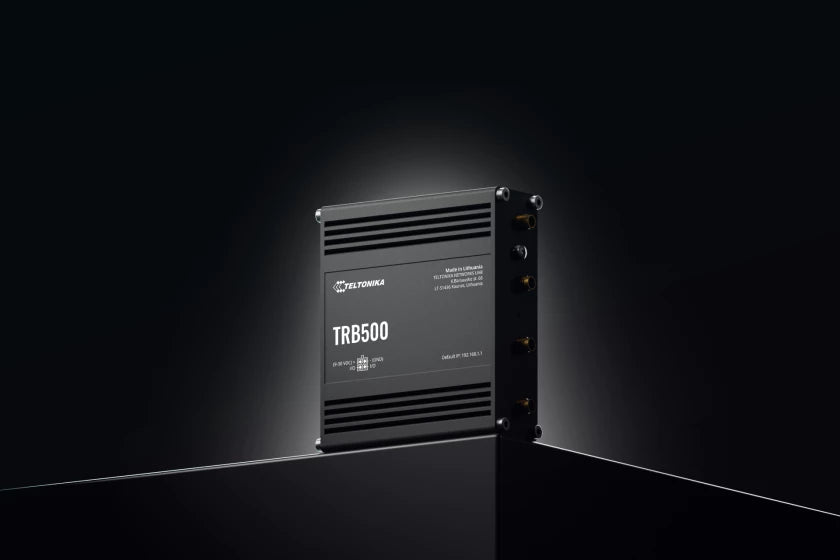

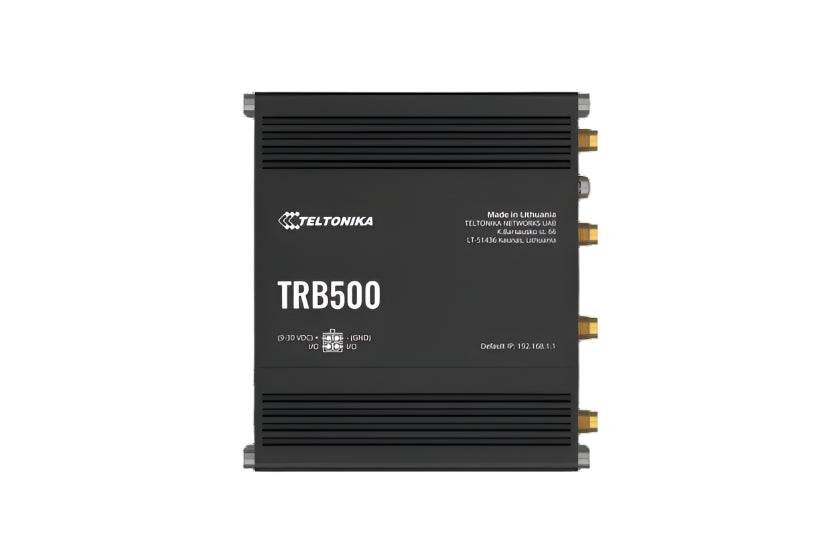

TRB500 - Industrial 5G Gateway

SKU: ELC8735

₹ 63,749.99 ~~₹ 93,399.99~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

TRB500 - Industrial 5G Gateway₹ 63,749.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Description

TRB500 is a compact, energy-efficient 5G gateway for ultra-fast data transmission with ultra-low latency. Backward compatibility with 4G and 3G networks enables future-proofing solution infrastructures even in areas where 5G is not yet available.

Standard package*

TRB500 Gateway
9 W PSU
4x Mobile antennas (swivel, SMA male)
Micro-USB cable (0.8 m)
Ethernet cable
SIM Adapter kit
QSG (Quick Start Guide)
Packaging box

*Standard package contents may differ based on standard order codes.

Features

Mobile

Feature	Details
Mobile Module	5G Sub-6GHz SA/NSA: 2.1/3.3 Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2) 4G LTE Cat 20: Up to 2.0 Gbps DL, 200 Mbps UL 3G: Up to 42 Mbps DL, 5.76 Mbps UL
3GPP Release	Release 15
Status Indicators	IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI, SINR, RSRP, RSRQ), EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS Features	- SMS status, configuration - Send/read SMS via HTTP POST/GET - Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS - Scheduled SMS, SMS autoreply - SMPP support
USSD Support	Sending and reading Unstructured Supplementary Service Data (USSD) messages
Operator Black/White List	Configure black/white list by country or operator
Band Management	Band lock and used band status display
SIM PIN Code Management	Set, change, or disable SIM card PIN
APN Management	Auto APN configuration
Bridge Mode	Direct connection (bridge) between mobile ISP and device on LAN
Passthrough	Gateway assigns its mobile WAN IP address to another device on LAN
Framed Routing	Supports an IP network behind 5G UE

Ethernet

Feature	Details
Ethernet Port	1 x ETH port
Speed	10/100/1000 Mbps
Additional Features	Supports auto MDI/MDIX crossover

Network

Feature	Details
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough	H.323 and SIP-ALG protocol NAT helpers for proper routing of VoIP packets
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forward, traffic rules, custom rules, TTL target customization
Firewall Status Page	View firewall statistics, rules, and rule counters
Ports Management	View device ports, enable/disable, configure auto-mode, change transmission speed
Network Topology	Visual representation of network connections
Hotspot	Captive portal, RADIUS authentication (internal/external), SMS authorization, SSO, landing pages, walled garden, user groups, user management, customizable themes
DHCP	Static and dynamic IP allocation, DHCP relay, DHCP server configuration, static leases (MAC with wildcards)
DDNS	Supports >25 providers, manual configuration for others
DNS Over HTTPS	Proxy for secure DNS resolution via HTTPS
Network Backup	Automatic failover: Mobile, VRRP, Wired
SSHFS	Mount remote file system via SSH protocol
Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history

Security

Feature	Details
Authentication	Pre-shared key, digital certificates (X.509), TACACS+, RADIUS (internal/external), IP blocking, login attempt limits, random password generator
Firewall	Preconfigured rules, unlimited custom rules (CLI), DMZ, NAT, NAT-T, NAT64
Attack Prevention	DDoS prevention (SYN flood, SSH/HTTP attacks), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan)
VLAN	Port and tag-based VLAN separation
Mobile Quota Control	Data limits, customizable periods, warning notifications, phone number integration
Web Filter	Blacklist and whitelist for website filtering
Access Control	Flexible control for SSH, WebUI, CLI, Telnet
SSL Certificates	Automatic generation via Let's Encrypt and SCEP

VPN

Feature	Details
OpenVPN	Multiple clients/servers, 27 encryption methods (e.g., AES-128-GCM, AES-256-CBC)
IPsec	XFRM, IKEv1, IKEv2, with 14 encryption methods (e.g., AES256GCM16)
GRE	GRE tunnel, GRE over IPsec
PPTP/L2TP	PPTP and L2TP client/server instances, L2TPv3, L2TP over IPsec
Stunnel	TLS encryption proxy
DMVPN	Dynamic Multipoint VPN (Phase 2/3, Dual Hub support)
SSTP	Secure Socket Tunneling Protocol (SSTP) client
ZeroTier	ZeroTier VPN client
WireGuard	WireGuard VPN client and server
Tinc	Tinc VPN client and server (encryption, authentication, compression)

OPC UA

Feature	Details
Supported Modes	Client, Server
Supported Connection Types	TCP

MODBUS

Feature	Details
Supported Modes	Server, Client
Supported Connection Types	TCP
Custom Registers	MODBUS TCP custom register block requests, enabling read/write operations to a file inside the router, extending MODBUS TCP Client functionality
Supported Data Formats	8-bit: INT, UINT 16-bit: INT, UINT (MSB or LSB first) 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to Server

Feature	Details
Protocol	HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server	Extract parameters from multiple sources and protocols, and send them to a single server. Includes support for custom LUA scripting to utilize the router's features.

MQTT Gateway

Feature	Details
Modbus MQTT Gateway	Enables sending commands and receiving data from MODBUS Server through an MQTT broker.

DNP3

Feature	Details
Supported Modes	Station, Outstation
Supported Connection	TCP

DLMS

Feature	Details
DLMS Support	Standard protocol for utility meter data exchange.
Supported Modes	Client
Supported Connection Types	TCP
COSEM	Enables scanning of meter COSEM objects for automatic detection and configuration.

API

Feature	Details
Teltonika Networks Web API	Beta support for configurable API endpoints to retrieve or change data. Refer to the documentation: Teltonika Developers.

Monitoring & Management

Feature	Details
WEB UI	HTTP/HTTPS access for status, configuration, firmware update, CLI, troubleshooting, event log servers, firmware availability notifications, and system logs.
FOTA	Firmware update from server with automatic notifications.
SSH	Supports SSH (v1, v2).
SMS	SMS status, configuration, send/read SMS via HTTP POST/GET.
Call	Reboot, status, mobile data on/off, output on/off, and answer/hang-up with timer.
TR-069	Supports OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, and AVSystem.
MQTT	MQTT Broker and MQTT Publisher support.
SNMP	Supports SNMP (v1, v2, v3), SNMP Trap, and Brute force protection.
JSON-RPC	Management API over HTTP/HTTPS.
RMS	Teltonika Remote Management System (RMS).

IoT Platforms

Platform	Monitoring Features
ThingWorx	Monitors WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type.
Cumulocity - Cloud of Things	Monitors Device Model, Revision, Serial Number, WAN Type, IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, Reboot, and Firmware upgrade actions.
Azure IoT Hub	Configures with Data to Server for cloud parameters. Supports Direct Method to execute RutOS API calls. Plug and Play integration with Device Provisioning Service.
AWS IoT Core	Interacts with AWS cloud platform and supports AWS Jobs functionality for device API calls.

System Characteristics

Feature	Details
CPU	Single core ARM Cortex A7, 1.5 GHz
RAM	256 MB (128 MB available for userspace)
FLASH storage	512 MB (200 MB available for userspace)

Firmware / Configuration

Feature	Details
WEB UI	Allows firmware update from file, checking firmware on server, configuration profiles, and backup.
FOTA	Firmware update feature.
RMS	Update firmware/configuration for multiple devices simultaneously.
Keep settings	Update firmware without losing current configuration.
Factory settings reset	Restores all system settings, including IP address, PIN, and user data, to the default manufacturer's configuration.

Firmware Customization

Feature	Details
Operating System	RutOS (OpenWrt-based Linux OS).
Supported Languages	Busybox shell, Lua, C, C++, Python, and Java (via Package Manager).
Development Tools	SDK package with a pre-configured build environment for firmware development.
GPL Customization	Create custom-branded firmware and web applications by modifying colors, logos, and other firmware elements to meet client or business branding requirements.
Package Manager	Allows installation of additional software on the device.

Input / Output

Feature	Details
Input	Up to 2 configurable digital inputs (shared). Logic low: 0-6 V, Logic high: 8-30 V.
Output	Up to 2 configurable digital outputs (shared). Open collector output, max 30 V, 300 mA.
Events	Triggered via Email, RMS, or SMS.
I/O Juggler	Enables setting specific I/O conditions to trigger events.

Power

Feature	Details
Connector	4-pin industrial DC power socket.
Input Voltage Range	9–30 VDC with reverse polarity protection and surge protection (+/-1 kV, 50 µs max).
Power Consumption	Idle: < 3 W; Maximum: < 6 W.

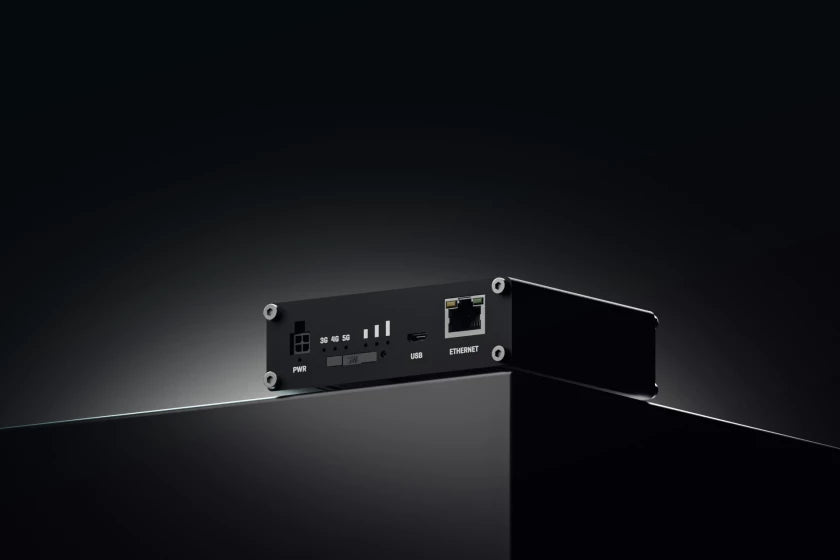

Physical Interfaces

Interface	Details
Ethernet	1 x RJ45 port, 10/100/1000 Mbps.
I/O	2 configurable I/O pins on a 4-pin power connector.
Status LEDs	3 connection-type LEDs, 3 connection-strength LEDs, 2 Ethernet status LEDs, 1 power LED.
SIM	1 x Mini SIM (2FF) slot, compatible with 1.8 V/3 V SIMs.
Power	1 x 4-pin power connector.

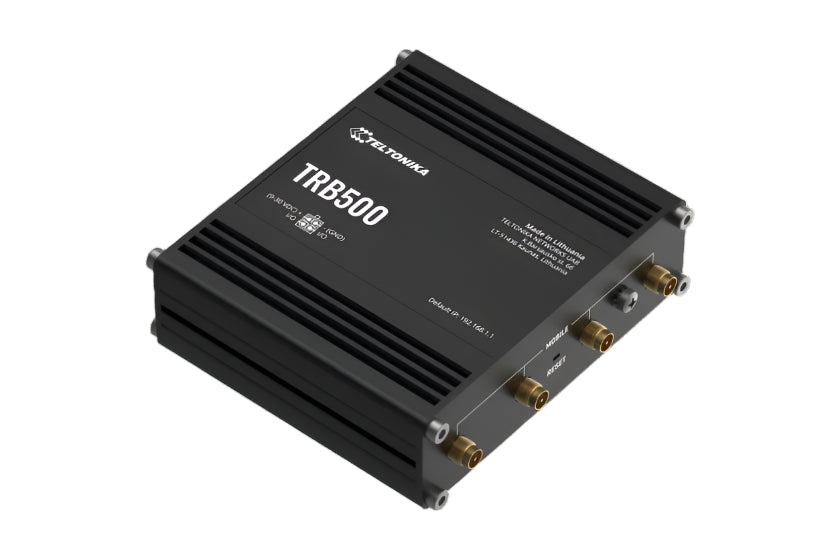

Antennas	4 x SMA connectors for mobile antennas.
USB	1 x Micro USB providing a virtual network interface.
Reset	Reboot, user default reset, and factory reset options.

Physical Specifications

Feature	Details
Casing Material	Aluminium housing.
Dimensions	100 x 30 x 93.4 mm.
Weight	241 g.
Mounting Options	DIN rail, wall mount, or flat surface (additional kits required).

Operating Environment

Feature	Details
Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non-condensing
Ingress Protection	IP30

Regulatory & Type Approvals

Category	Details
Regulatory	CE, UKCA, RCM, CB, NBTC, RoHS, REACH

EMC Emissions & Immunity

Category	Standards
Emissions	EN 55032:2015 + A11:2020 + A1:2020
	EN IEC 61000-3-2:2019 + A1:2021
	EN 61000-3-3:2013 + A1:2019 + A2:2021
	EN 301 489-1 V2.2.3
	EN 301 489-52 V1.2.1
Immunity	EN 55035:2017 + A11:2020
	EN 61000-4-2:2009 (ESD)
	EN IEC 61000-4-3:2020 (Radiated Immunity)
	EN 61000-4-4:2012 (EFT)
	EN 61000-4-5:2014 + A1:2017 (Surge Immunity)
	EN 61000-4-6:2014 (CS)
	EN 61000-4-11:2020 (DIP)

RF Standards

Standards
EN 301 908-1 V13.1.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.1.1
EN 301 908-25 V15.1.1_15.0.6

Safety Standards

Category	Details
CE	EN IEC 62368-1:2020 + A11:2020, EN 62311:2020
RCM	AS/NZS 62368.1:2022
CB	IEC 62368-1:2018

Downloads

Manual & Documentation

Links

What networks does the gateway support and how does backward compatibility affect deployment?

It supports 5G Sub-6 GHz SA/NSA with up to 2.1/3.3 Gbps downlink and 0.9/0.6 Gbps uplink, 4G LTE Cat 20 up to 2.0 Gbps downlink and 200 Mbps uplink, and 3G up to 42 Mbps downlink. Backward compatibility ensures operation in areas where 5G is not yet available.

What is included in the standard package for TRB500?

The standard package includes the TRB500 Gateway, 9 W PSU, 4x mobile antennas, Micro-USB cable 0.8 m, Ethernet cable, SIM Adapter kit, QSG, and the packaging box. Contents may differ based on standard order codes.

What are the power and environmental specifications?

Power is 9 to 30 V DC with reverse polarity and surge protection. Idle power is under 3 W and maximum under 6 W. Operating temperature is -40 to 75 C and IP30 rated.

What security and management features are supported?

The device features firewall with preconfigured and custom rules, NAT, VLAN separation, and a range of VPN options including OpenVPN, IPsec, GRE, SSTP, WireGuard, and Tinc. It supports RMS remote management, web API, SNMP, and a web user interface for status and firmware updates.

How can I access setup guides updates and support resources?

You can access setup guides and manuals from the TRB500 downloads section such as the Quick Start Guide and User Manual. Firmware updates are available via FOTA and the web UI, and remote management is available through RMS.
