TTGO T-Call SIM800C ESP32

SKU: ELC8057

₹ 2,599.99 ~~₹ 2,799.99~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

TTGO T-Call SIM800C ESP32₹ 2,599.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

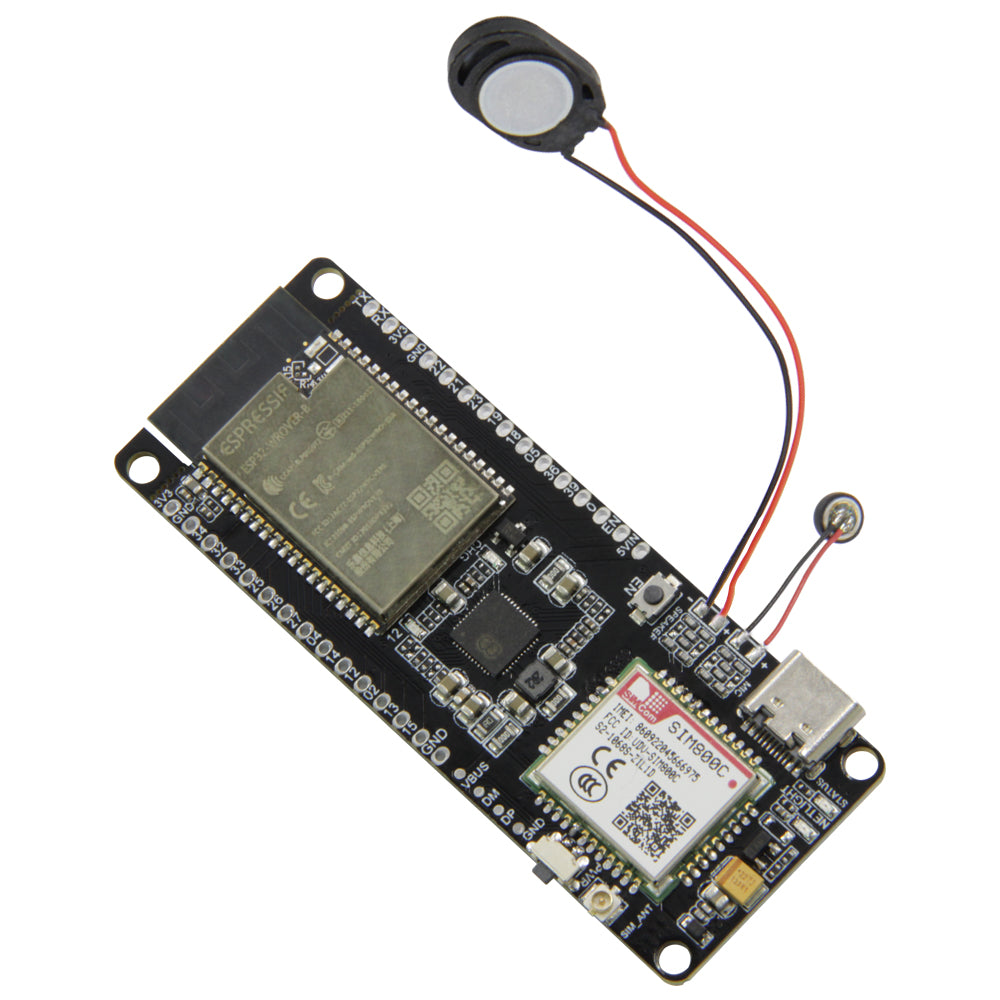

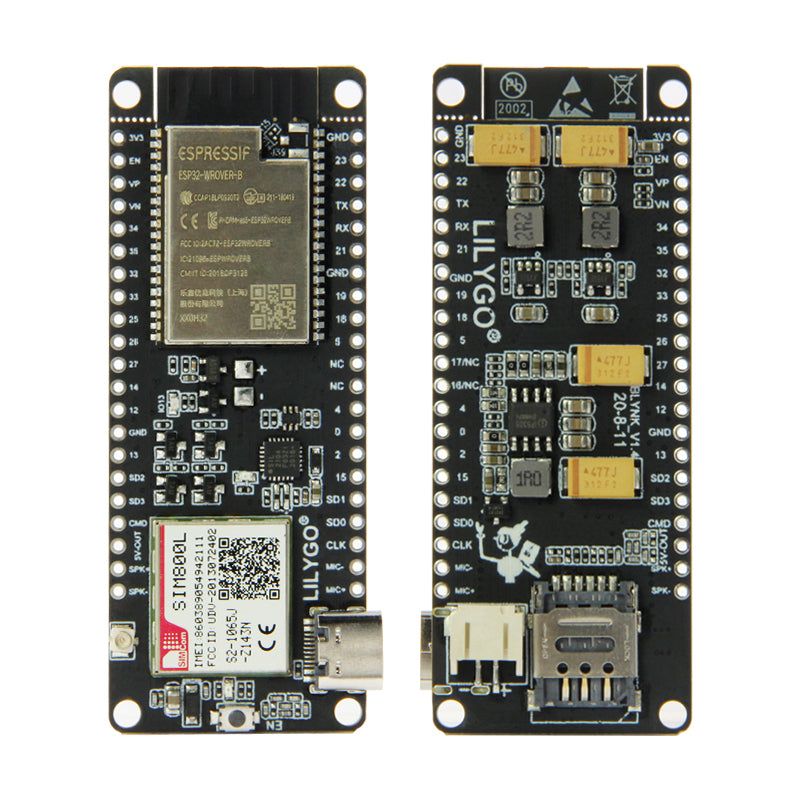

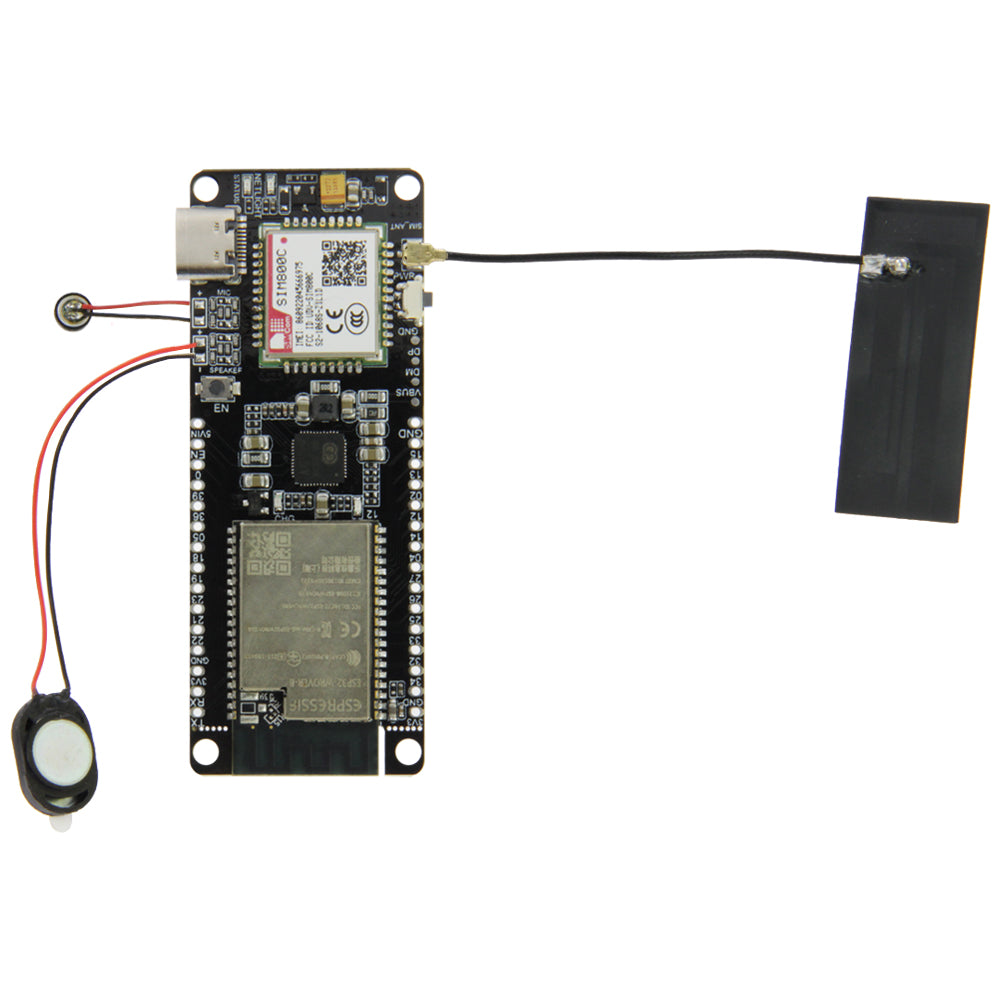

The TTGO T-Call is an ESP32 development board that besides Wi-Fi and Bluetooth also combines a SIM800C GSM/GPRS module.

More Information can be found here!

Projects with the T-Call ESP32 SIM800L board to get started (using Arduino IDE):

NOTE: You can use the same examples with SIM800C.

Package Contains:

1 X T-Call&SIM800C V02
1 X Power Cable(PH 2pin 2.0mm)
1 X SIM Antenna (7 cm)
2 X Pin

Hardware Specifications
Chipset	ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
FLASH	QSPI flash 4MB / PSRAM 8MB
SRAM	520 kB SRAM
Button	Reset
Modular interface	UART、SPI、SDIO、I2C、PWM、TV PWM、I2S、IRGPIO
On-board clock	40MHz crystal oscillator
Working voltage	2.7V-3.6V
Working current	About 70mA
Sleep current	About 1.1mA
SIM card	Only supports Nano SIM card
Working temperature range	-40℃ ~ +85℃
Size&Weight	78.83mm28.92mm8.06mm(11.77g)
Power Supply Specifications
Power Supply	USB 5V/1A
Charging current	500mA
Battery	3.7V lithium battery
JST Connector	2Pin 1.25mm
USB	Type-C
Wi-Fi
Standard	FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
Protocol	802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval
Frequency range	2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power	22dBm
Communication distance	300m
Bluetooth
Protocol	meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency	with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency	CVSD&SBC audio frequency
Software specification
Wi-Fi Mode	Station/SoftAP/SoftAP+Station/P2P
Security mechanism	WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type	AES/RSA/ECC/SHA
Firmware upgrade	UART download/OTA（Through network/host to download and write firmware）
Software Development	Support cloud server development /SDK for user firmware development
Networking protocol	IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User Configuration	AT + Instruction set, cloud server, android/iOSapp
OS	FreeRTOS

What are the main connectivity options available on this board?

It provides Wi-Fi 802.11 b/g/n up to 150 Mbps, Bluetooth v4.2 BR/EDR and BLE, and a SIM800C GSM/GPRS module for cellular connectivity.

Which SIM card type is supported by the GSM module?

The module only supports Nano SIM cards.

What are the power and operating voltage requirements?

Working voltage is 2.7V to 3.6V and it can be powered from USB 5V/1A; there is also a 3.7V lithium battery option with a 2 pin JST connector.

What firmware and software options are available for development?

Firmware can be upgraded via UART download or OTA; it supports AT instructions and there is a cloud server SDK for user firmware development and FreeRTOS OS.

What is included in the package and what are the board dimensions?

The package includes 1 X T-Call&SIM800C V02, 1 X Power Cable(PH 2pin 2.0mm), 1 X SIM Antenna(7 cm) and 2 X Pin. The board size is 78.83 mm by 28.92 mm by 8.06 mm and it weighs 11.77 g.
