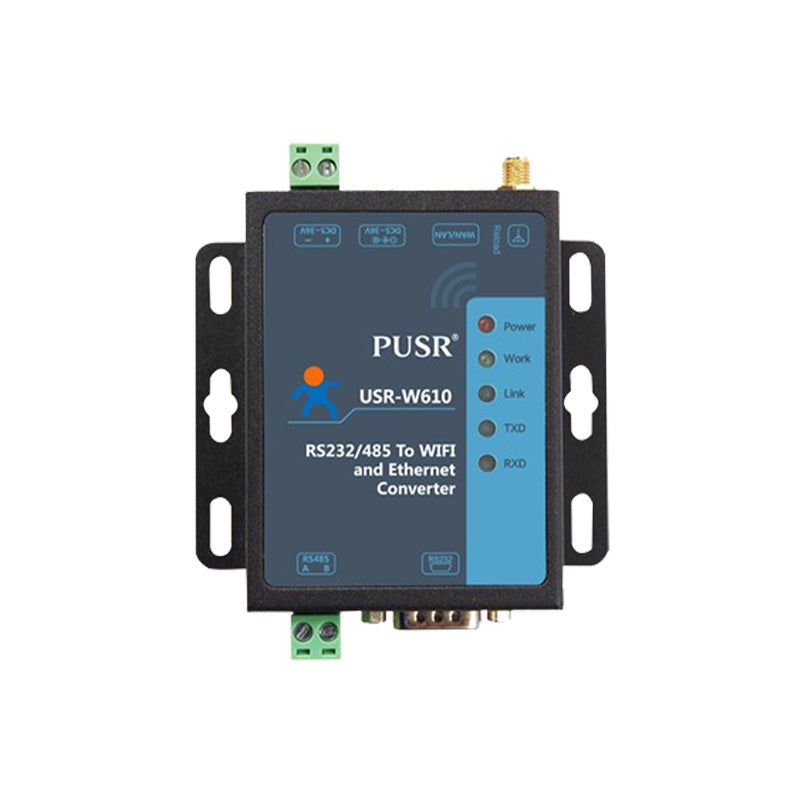

USR-W610 is Serial RS232 or RS485 to WIFI converter, which can realize the bi-directional transparent data transmission between RS232/RS485 and Wi-Fi. It also supports Wi-Fi to Ethernet.
Ā
RS232/485 to Wi-Fi/Ethernet Converter
USR-W610 is a device that can realize data communication between serial port and Ethernet/Wi-Fi. Through this device, the communication between the on-site serial device and the remote SCADA system can be realized. It has a 232 serial port and a 485-serial port, but the two serial ports cannot be used simultaneously. It integrates a wealth of network protocols like MQTT, TCP, UDP etc. and supports a variety of networking methods, suitable for various scenarios.
Ā
For serial to Wi-Fi/Ethernet converter, PUSR offers 3 models to meet the needs of customers in different scenarios, and the main differences are shown in the table on the left.
Ā
Ā
The USR-W610 provides a wealth of networking methods to meet customer networking needs.
ā¢ AP mode: Allow network devices to access USR-W610 via Wi-Fi or Ethernet.
ā¢ STA mode: USR-W610 as a network device accesses other networks via Wi-Fi.
ā¢ AP+STA mode: Work in AP and STA mode simultaneously.
ā¢ Bridge mode: The device connected to the Ethernet port of W610 is equivalent to directly connecting to the upper-level network, and the W610 is equivalent to being transparent.
ā¢ Router mode: The device connected to the Ethernet port of W610 will be assigned an IP by the W610.
Ā
Ā
Data is transmitted transparently between serial port and Wi-Fi / Ethernet via TCP/UDP/HTTP Protocol, enabling data transfer between serial port device and network device.
Ā
Ā
Data is transmitted transparently between serial port and Wi-Fi/Ethernet via MQTT/TCP/UDP/HTTP Protocol, enabling data transfer between serial port device and remote SCADA system.
Ā
In this mode, USR-W610 needs work as UDP Client or TCP Client, it allows users to send serial data to different servers. Data, server IP and port information should be included in the data packet sent by the serial device
Ā
ā¢ Modbus Gateway: Modbus RTU/TCP protocol conversion and multi-host Modbus polling.
ā¢ Heartbeat Packet Function: Remote server can detect abnormal disconnection from the client using this feature.
ā¢ Registration Packet Function: The server can identify different clients by using registration packets.
ā¢ WebSocket Function: It can realize the real-time interaction between the serial device connected to W610 and the web page on PC.
Ā
Ā
ā¢ EFT Protection: Protect device against damage caused by instantaneous current interference in circuit, such as lightning stroke, power switch, etc.
ā¢ ESD Protection: Prevent electrostatic damage equipment, such as dust electrostatic, electric arc environment etc.
ā¢ Watchdog: Hardware software dual watchdog to ensure stable operation without downtime.
ā¢ Wide Operation Temperature: -40ā~ 85ā
Ā
Ā
ā¢ Dimension: 28.0*110.0*64.7 mm.
ā¢ Dimension: 82.5*86*25 mm

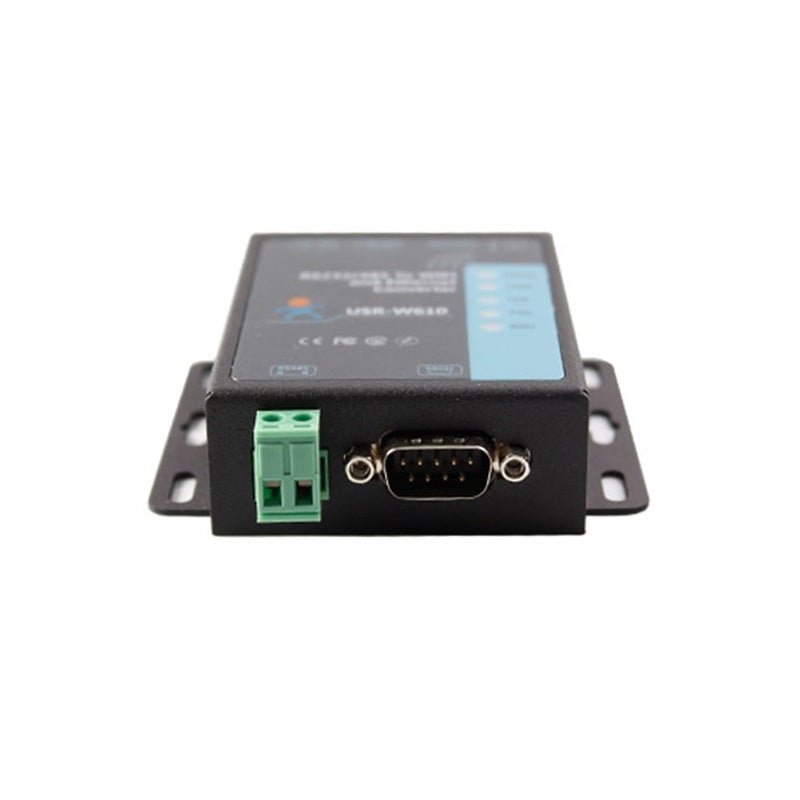

ā¢ Serial port: 1*RS232, 1*RS485. Baud rate range: 300~460.8K bps. The two serial ports canāt work simultaneously.

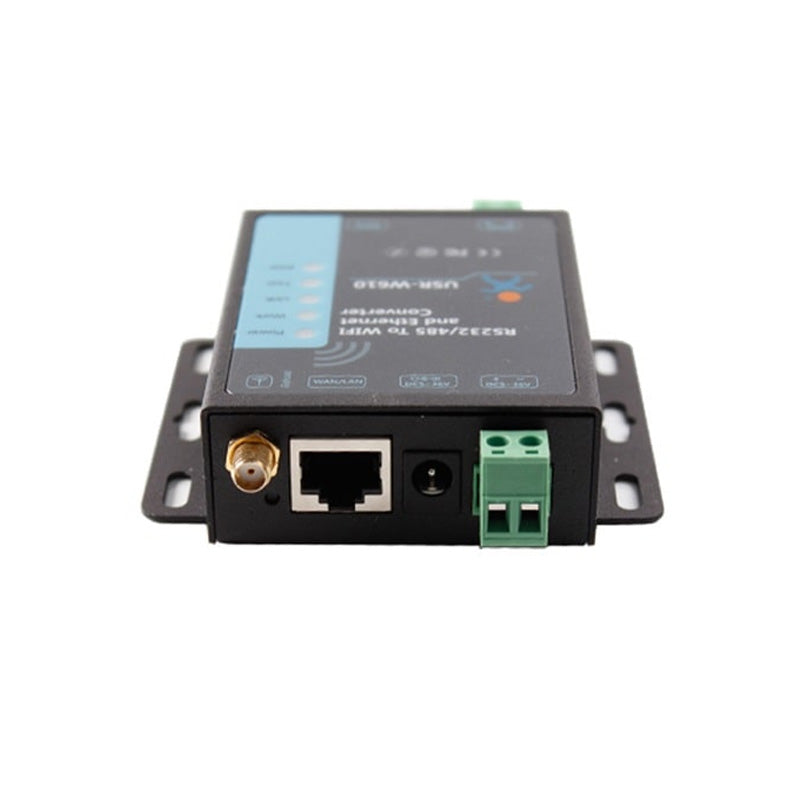

ā¢ Ethernet port: 10/100M MDI/MDIX, auto switch between cross and direct connection, 1.5KV electromagnetic isolation.
ā¢ Power Supply: 5~36V input, DC socket and terminal block
ā¢ Installation: Wall mounting
ā¢ Reload button: In the case of forgetting the parameters, long press to restore the factory settings.
ā¢ Antenna Connector: 1*SMA-Female
Ā
ā¢ 1* USR-W610
ā¢ 1*Ā Wi-Fi Antenna
**Power Adapter is not included in the box.
Please use this link to add it to your cart: 12V 1A (12W) Power Adapter
Ā
Ā
The USR-W610 combined with soil sensors can quickly and effectively acquire multiple sets of important data such as farmland soil temperature, humidity, pH, etc., which is convenient for users to adjust the management method in time, improve management efficiency, and create modern smart agriculture.
Ā
The medical equipment transmits the entered data to the cloud server in real time through Wi-Fi network of W610.Users can quickly complete the collection, storage and analysis of important data.
Ā
Ā
| Items | Description |
|---|---|
| Ethernet |
|
| Wi-Fi |
|
| Hardware |
|
| Software |
|
| More |
|
Ā
Ā
Documents
| [User Manual] USR-W610-datasheet-V1.0.1 | Download >> |
| [User Manual] USR-W610 User Manual | Download >> |
| [TELEC Certificates] USR-WIFI232-A2-TELEC | Download >> |
| [Certificates]W610-FCC-Grant | Download >> |
| [CE Certificates] CE-Certificates-serial-to-Wi-Fi | Download >> |
| [At Command Set]USR-W610-AT-Command-Set-V1.0.0 | Download >> |
| [Application Case] How to Connect Serial to Wi-Fi Converter to PUSR Cloud | Download >> |
Ā
Utilities
| [Setup Software] USR-W610-ATSetup_V1.0.4 | Download >> |
| [PC Test Software] USR-TCP232-Test-V1.3 | Download >> |
| [Virtual COM Software]USR-VCOM_V5.0.4_Setup | Download >> |
Ā
Development Files
| [Socket Demo] Socket_Demo.zip | Download >> |
| [Example] Low Power WIFI Module UART Command Example | Download >> |
Ā
Ā
Ā
