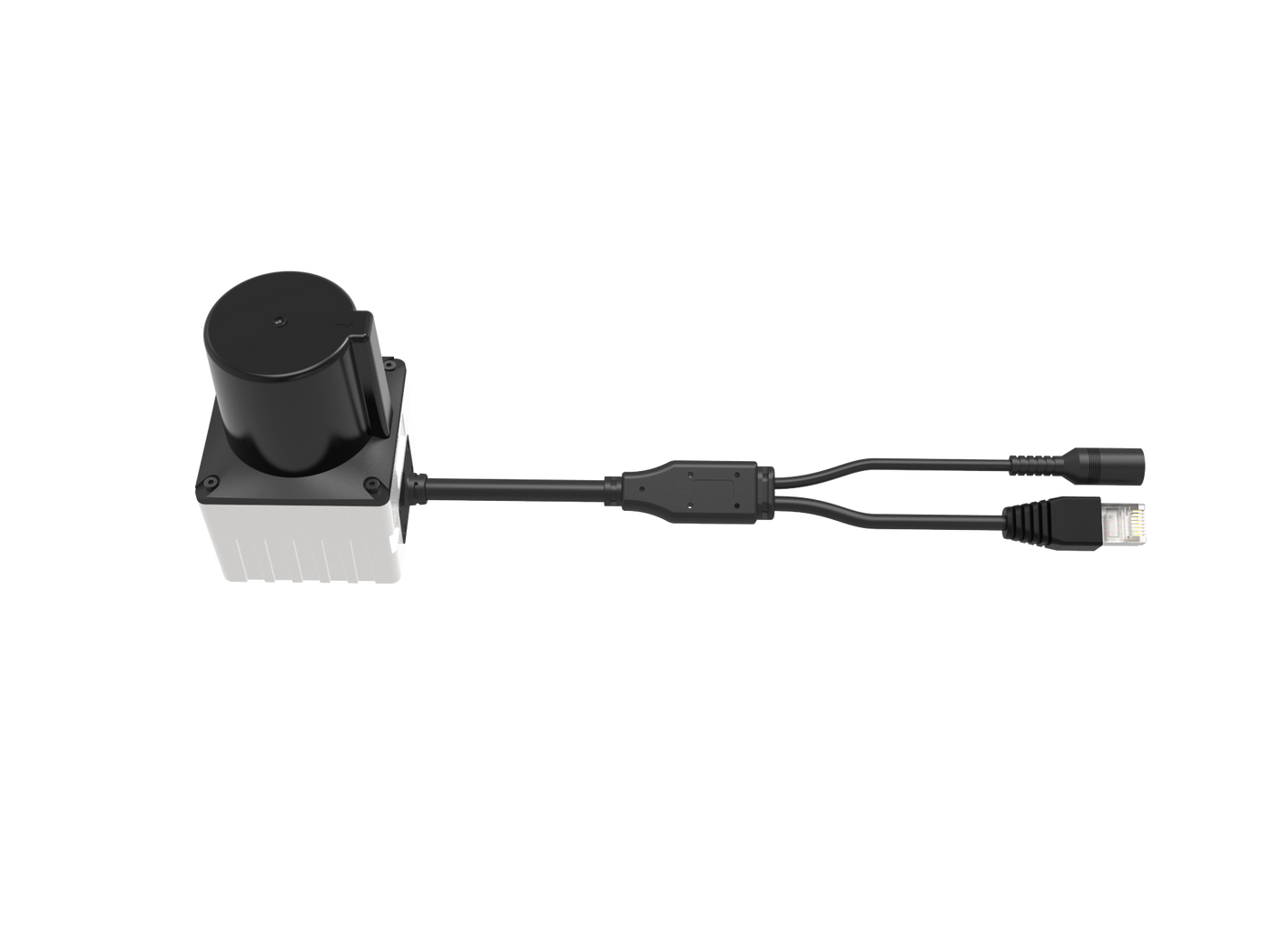

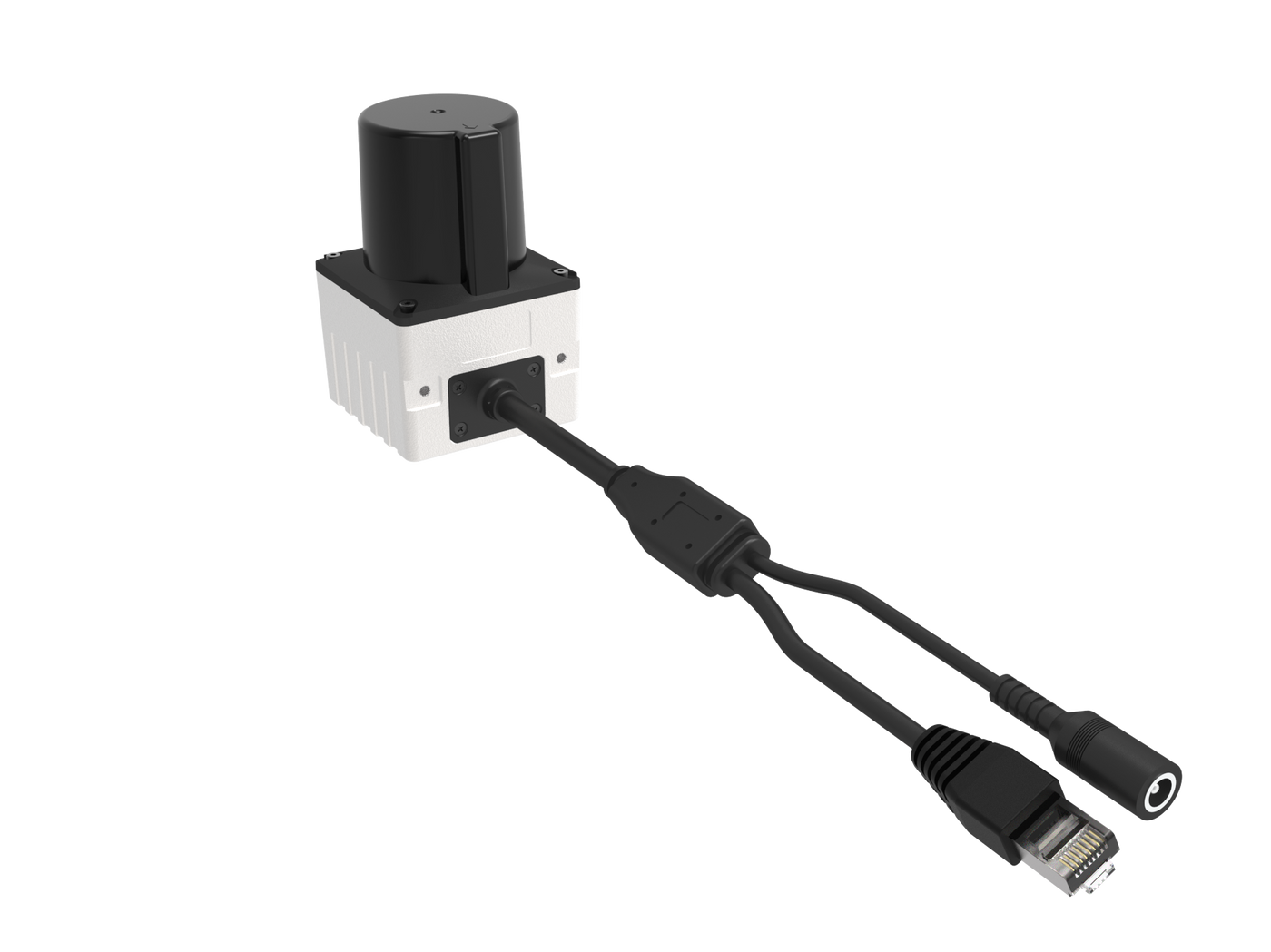

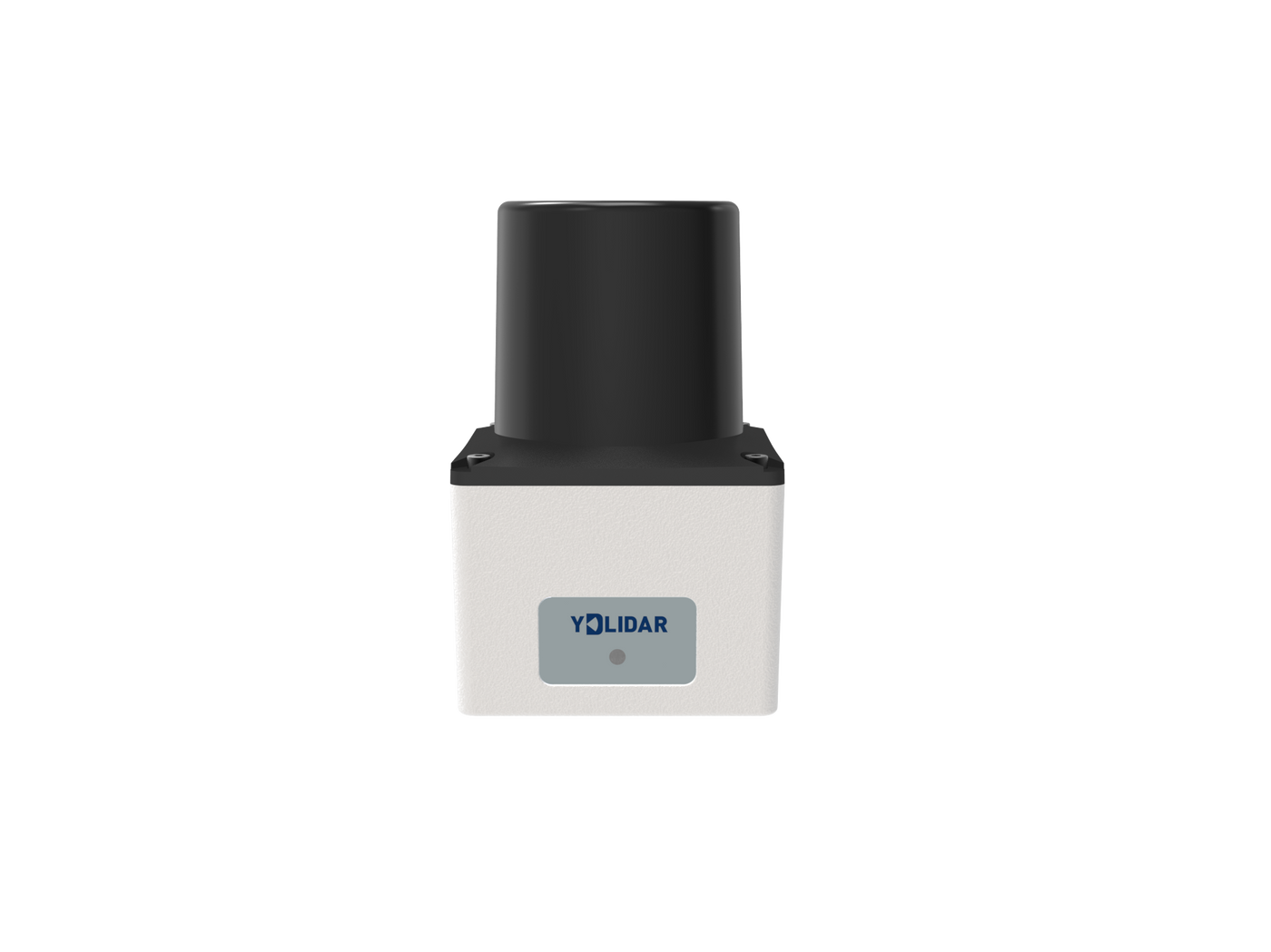

YDLIDAR TIA is a series of 2D LiDAR (hereinafter referred to as TIA) developed by EAI
team. Based on ToF principle, TIA is based on the single-line scanning design and can output 20K (up to 40K) point cloud data per second. It adopts 905nm infrared excitation light, with the self- developed signal processing algorithm, to meet the requirement of outdoor application scenarios.
TIA also adopts industrial interface design to transmit point cloud data through network protocol, and the dustproof and waterproof of the whole device reaches IP67 level. TIA structure design is compact, easy to integrate, and provides a complete integrated development interface, widely used in robot navigation and obstacle avoidance, environmental scanning and mapping, industrial AGV, assisted driving and other fields.
Ā
Thanks to ToF (Time of Flight) telemetry technology, distance is measured based on the round-trip time difference of laser pulses. The precision of the LiDAR telemetry remains consistent regardless of distance, enabling the detection of objects at long distances.
It features an industrial interface and employs a network protocol for point cloud data transmission. With this LIDAR, you can meet the requirements of outdoor application scenarios due to its IP67-rated dust and water resistance. Additionally, it has a strong capability to resist ambient light interference.
The YDLIDAR TIA rangefinder enables the implementation of various industrial solutions, including:
No reviews yet. Be the first to share your experience!
Discover More In:
Category: View all Sensor
Fill out the form below and our team will get back to you with bulk pricing.
YDLIDAR TIA is a series of 2D LiDAR (hereinafter referred to as TIA) developed by EAI
team. Based on ToF principle, TIA is based on the single-line scanning design and can output 20K (up to 40K) point cloud data per second. It adopts 905nm infrared excitation light, with the self- developed signal processing algorithm, to meet the requirement of outdoor application scenarios.
TIA also adopts industrial interface design to transmit point cloud data through network protocol, and the dustproof and waterproof of the whole device reaches IP67 level. TIA structure design is compact, easy to integrate, and provides a complete integrated development interface, widely used in robot navigation and obstacle avoidance, environmental scanning and mapping, industrial AGV, assisted driving and other fields.
Ā
Thanks to ToF (Time of Flight) telemetry technology, distance is measured based on the round-trip time difference of laser pulses. The precision of the LiDAR telemetry remains consistent regardless of distance, enabling the detection of objects at long distances.
It features an industrial interface and employs a network protocol for point cloud data transmission. With this LIDAR, you can meet the requirements of outdoor application scenarios due to its IP67-rated dust and water resistance. Additionally, it has a strong capability to resist ambient light interference.
The YDLIDAR TIA rangefinder enables the implementation of various industrial solutions, including:
