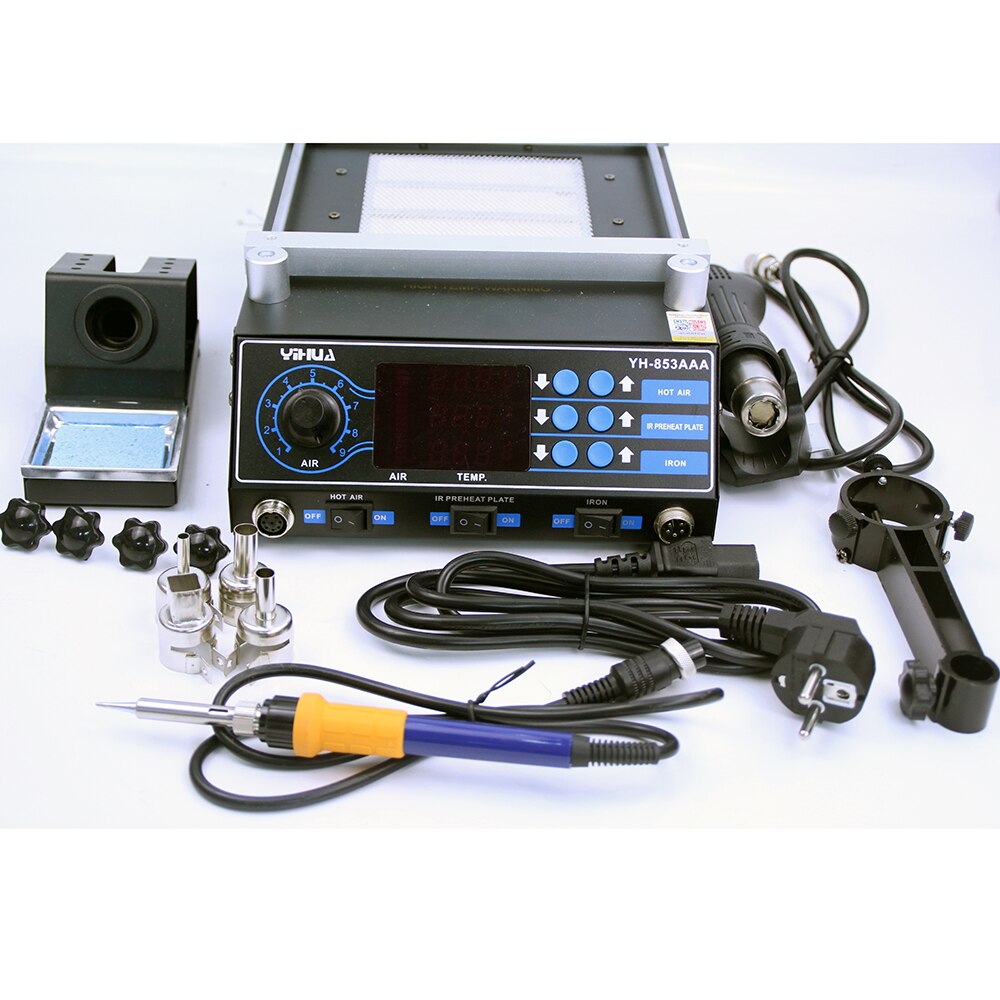

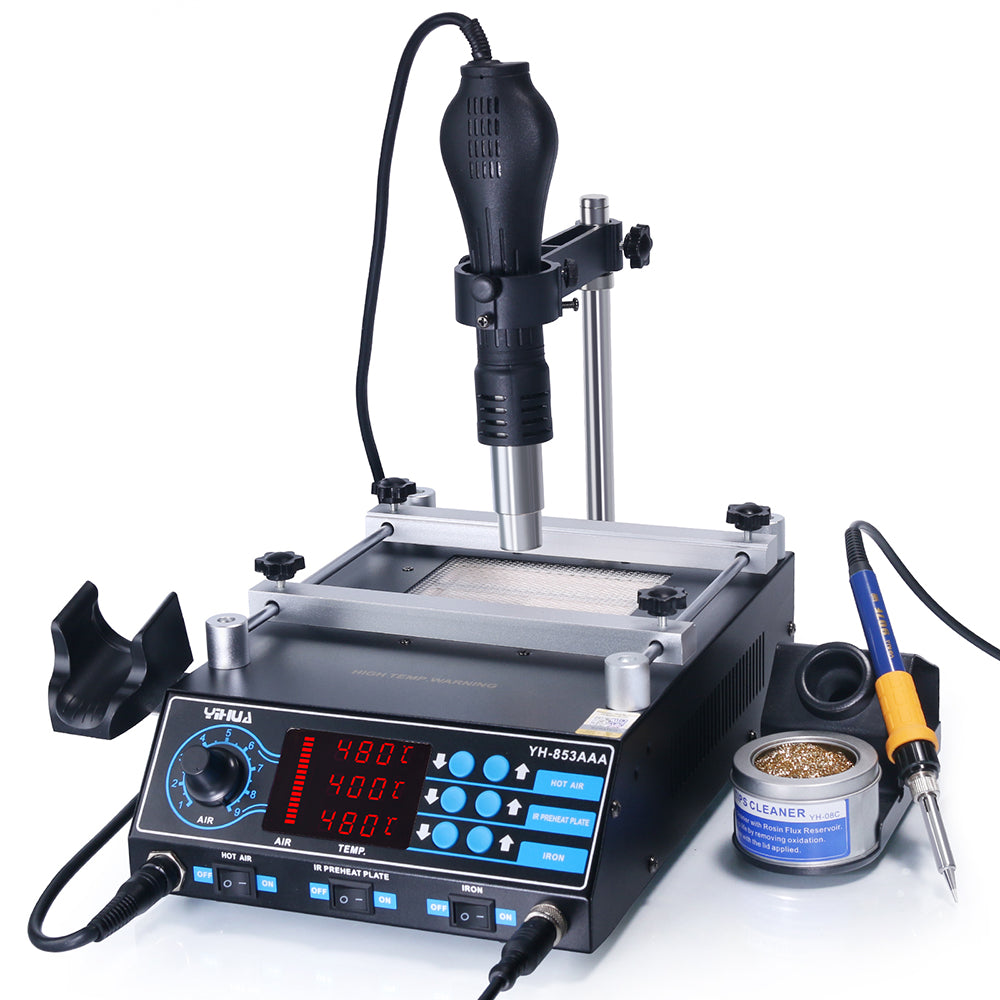

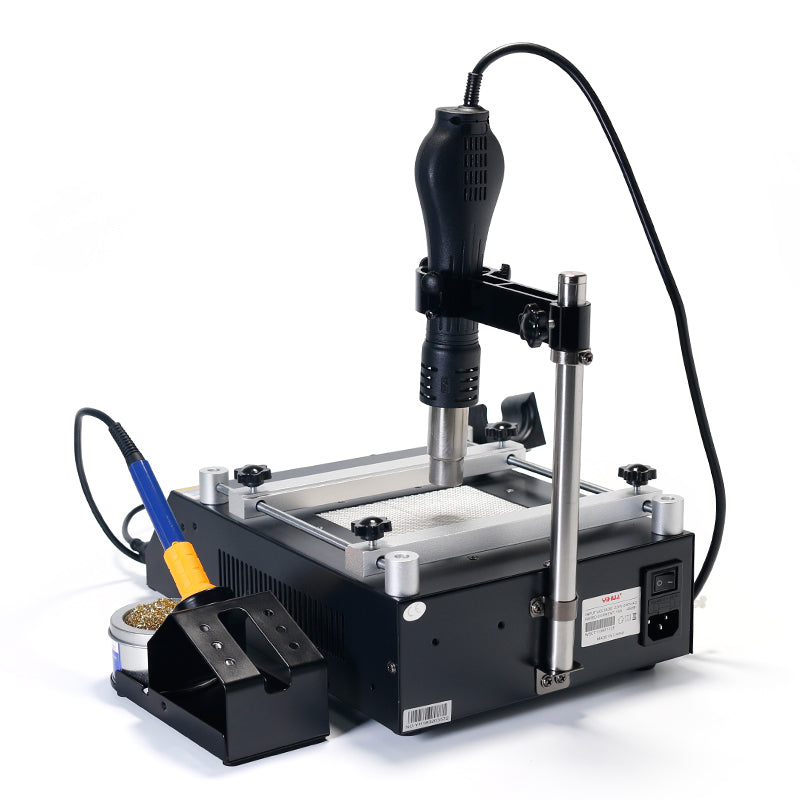

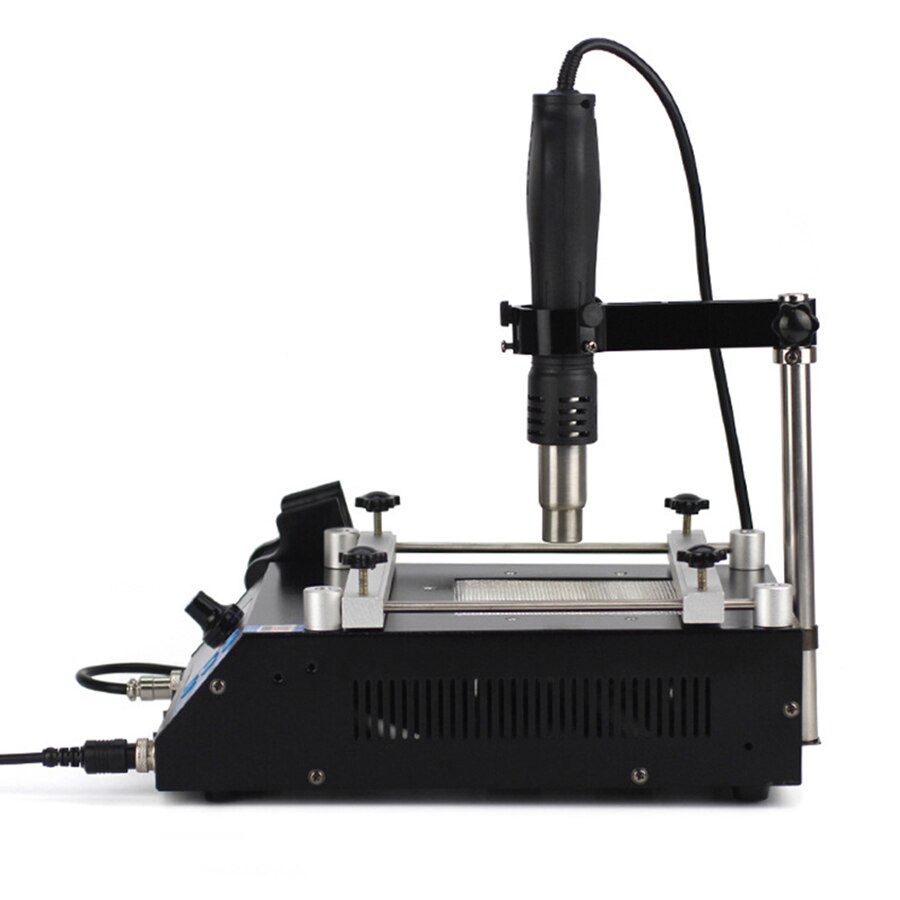

YIHUA 853AAA 3 in 1 SMD BGA Rework Soldering Station

The Yihua 853AAA BGA rework station is equipped with a pre-heating platform in addition to a hot air gun and soldering iron. This soldering equipment is more practical than similar rework stations as the integrated rework station can satisfy almost all applications thanks to its 3-in-1 design, compact structure, and powerful and economical functions.

The pre-heating platform heats up the processed IC components before de-soldering and soldering processes, resulting in higher efficiency and space saving performance.

Features:

• YH-853AAA soldering iron wire adopts thermal resistant silicon material, which displays no obvious damage after 30 seconds contact with a 300℃ soldering iron tip.
• Brand name high-power heater with superfast heating time, is applicable for the soldering and de-soldering of large terminals, welding joints other than regular welded workpieces.
• Pioneer technology in this industry regarding its handle protection function, the air gun and soldering iron handles have to be placed on the holder when powering on the rework station to begin normal functioning. The main reason is for safety to prevent the handles from causing damage if left in an unsafe location.

Technical Parameters:

• Rated voltage: AC 220V±10% 50Hz
• Power Rating: 1200W
• Working environment: 0～40℃ with relative humidity＜80％
• Storage environment: －20～80℃ with relative humidity＜80％
• Body dimension: L320xW220xH100mm±5mm
• Weight: 6.5kg

Hot Air Gun Parameters:

• Output power: 650W

• Temperature range 100℃～480℃
• Airflow type: Brushless Motor with smooth air delivery
• Air Flow: 120L/min
• Temperature Stability: ±1℃ (static)
• Display Type: red LED
• Temperature correction type: PID digital program
• PID Temperature correction cycle: 20ms
• Heating elements: Ceramic skeleton heater

853AAA Soldering Iron Parameters:

• Output power: 75W

• Temperature range 200℃～480℃
• Temperature Stability: ±1℃ (static)

• Display Type: red LED
• Temperature correction type: PID digital program
• PID Temperature correction cycle: 100ms
• Heating elements: Imported Heater
• Tip Ground Impedance: <2 Ω

Pre-heater platform

• Output power: 600W

• Pre-heating platform area: 120X120mm
• Pre-heating platform material: Ceramic heating material
• Temperature sensor Type: K thermocouple
• Temperature range: 50℃ - 400℃
