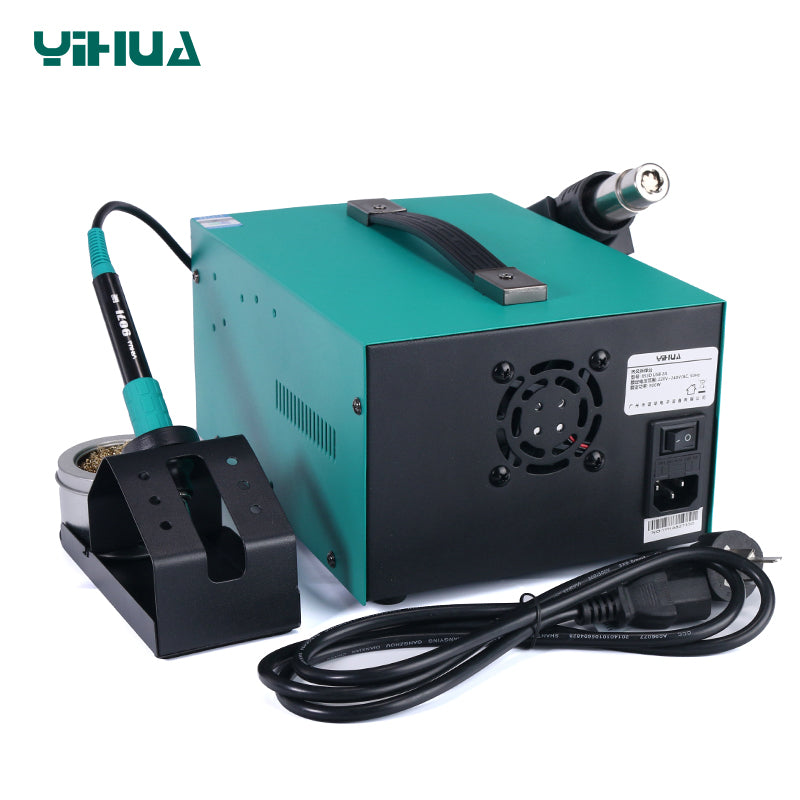

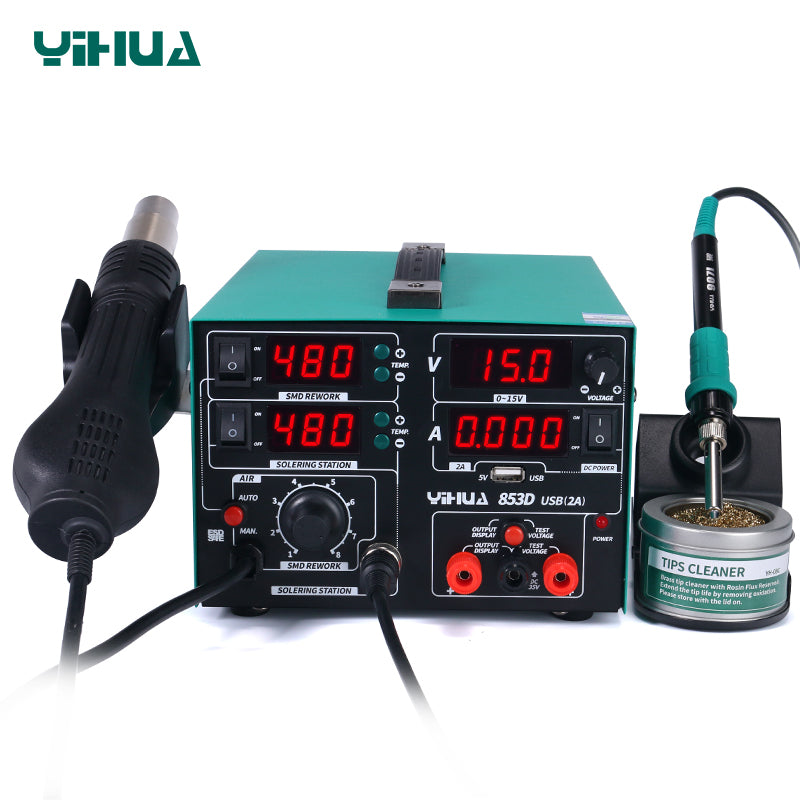

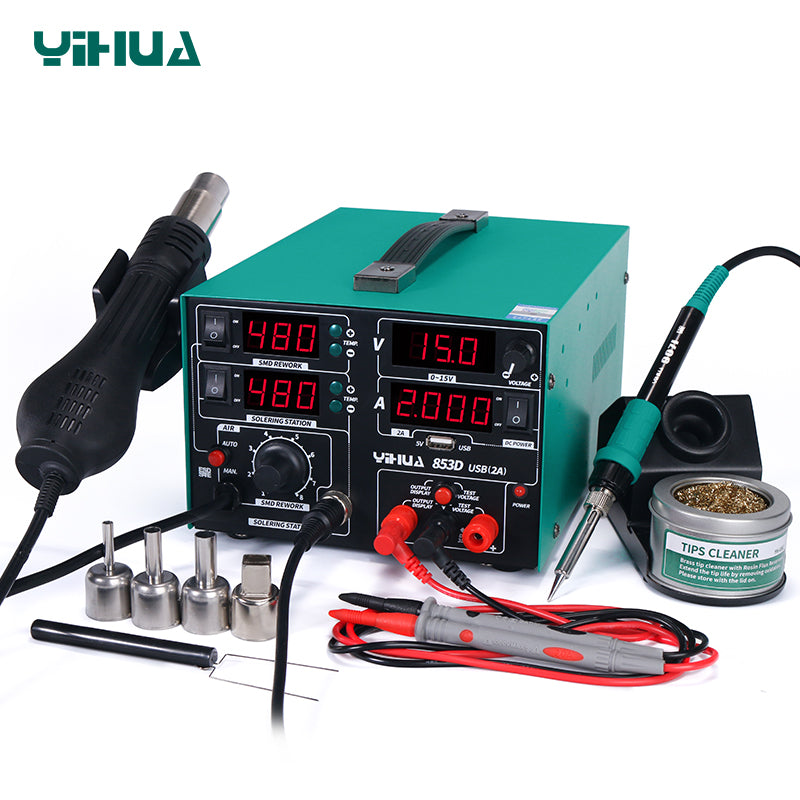

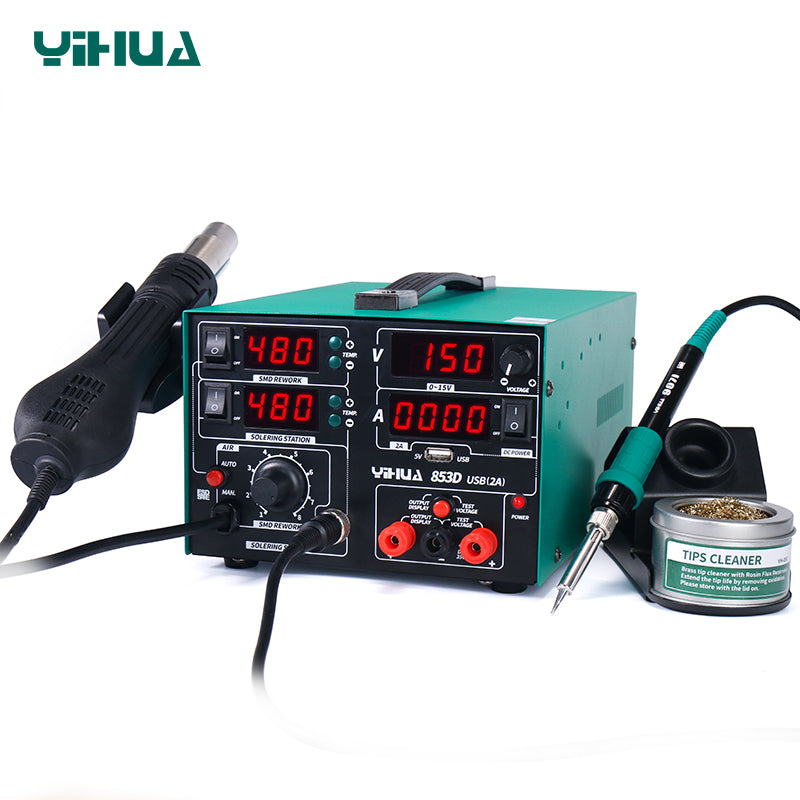

YIHUA 853D 3-in-1 Rework Soldering Station with 30V 2A DC Power Supply

Need Support? Click Here

Free Delivery Above ₹999

Best seller

Yihua

YIHUA 853D 3-in-1 Rework Soldering Station with 30V 2A DC Power Supply

SKU: TOL1032

₹ 12,399.99 ~~₹ 18,999.99~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

YIHUA 853D 3-in-1 Rework Soldering Station with 30V 2A DC Power Supply₹ 12,399.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

By the industry, for the industry

Inspired by popular industry demands, the 853D Series Multi-Station is the complete 3-in-1 workstation for your projects. The 853D 2A USB multi-station empowers you to enjoy a seamless workflow. You can solder, test, and rework in a streamlined process.

Packed full of professional-grade performance and functions to help get your job done. The multi-station integrates a soldering iron, a hot air gun, a voltmeter, and a power supply into a single compact package. You can conduct a complete soldering/rework procedure on your work device with just one station. Why not save a sizable amount of space and time by using this professional multi-station?

Features:

This three-in-one machine integrates a DC power supply, hot air station, and soldering station.
Temperature controls utilize core technology, adopting microprocessor-PID programming for high-speed 100ms real-time tracking of air gun outlet temperatures and soldering iron tip temperatures, with real-time calibration! Outlet temperatures are extremely stable.
With PID high-speed 100ms rapid temperature calibration, conversions are energy-efficient, providing constant temperature power consumption at levels much lower than comparable machines, equating to greater energy savings!
The hot air handle and soldering iron handld wire employs a high-temperature silicone wire (undamaged when 300℃ soldering tip contacts silicone wire for 30 seconds), stainless steel tubing, and a cutting-edge ceramic framed heating core for extremely stable and reliable performance!
The heating element employs a 60 watts power heating element for fast temperature compensation, particularly suitable for desoldering crude terminals, large joints, and difficult to reach spots.
Celsius/Fahrenheit Display Temperature Function: To satisfy market demand in different regions, the Company has designed a temperature display mode.
The soldering iron features a sleep standby function that can be set 10 minutes.
This new type add to 5V output USB interface ,it more convenience repair mobile phone,also can use power supply for mobile.
All parts is LED digital display ,and the current is 4 digital precise display current value,the current value can precise display mA value. It is very directly perceived through the senses.
The soldering iron has an iron tip cleaner and internal rosin. The rosin aids in the soldering of circuit boards by removing oxide films on the iron tip, reproduces oxidation, reduces iron tip surface tension, and rapidly removes oxides.

What you're getting


Multi-Station? Why call it a station, you ask? Unlike conventional plug-n-play soldering iron that connects directly to electricity, our station puts the electricity through a sophisticated transformer and controller IC that intelligently puts out the perfect amount of power to your soldering iron and hot air gun. We integrated these technologies to ensure your safety and allow rapid heating and lightning-fast temperature compensation.	Soldering Station The soldering section pushes 60 watts of (maximum) power to the iron tip, providing a temperature range of 392℉～896℉. The new and improved heating element enables rapid heating and lightning-fast temperature compensation for your operation. You can even solder a broad range of components with this iron.	Rework Station We understand how important an excellent hot air gun means for your work. Hence, we’ve built a hot air gun with a premium quality heating element and a powerful motor. With a maximum airflow volume of 120L/min and a temperature range of 212℉～896℉, you can easily remove SOIC, CHIP, QFP, PLCC, BGA, and SMD components with this hot air gun.	DC Power Supply The DC Power supply comes with output mode and voltmeter mode. In output mode, the power supply can put out adjustable DC power 0-2A / 0-15V DC, and show the load’s power pull in real-time. In the testing mode, the voltmeter can test DC power from 0-35V DC.

User-Centric Features


Multi-Function Solder or desolder, it wouldn’t matter if you’re trying to put a component down or you’re trying to lift one away. Our multi-station is the real “do-it-all”. If you’re looking to get three major functions at the cost of one, this will be the perfect choice to get your hobby, soldering skills, and business on track.	Assistive Functions We built the multi-station with a series of user-centric functions to help you stay safe, work efficiently, and conserve energy. These functions include PID Temperature Control Technology, Sleep Mode, ℃/℉ Temperature Display, Temperature Calibration, and more!	High Performance The station holds a power reserve of 830 watts of pure electrical energy. Thanks to the new and improved internal design upgrade, each handpiece can utilize those power to their maximum potential. The hot air gun and the soldering iron can get up to operating temperature quickly.

Specifications

Model	853D USB 2A
Voltage	220V AC 50Hz
Rated Power	830W
Dimensions	L9.96 inch x W7.32 inch x H4.88 inch ±0.2 inch
Weight	4 Kg
Operating Ambient Temperature	32~104 °F
Storage Temperature	-4~176 °F
Storage Humidity	35%~45%

Hot Air Gun
Motor	Brushless Motor (Smoother Airflow)
Air Volume	≤120L / Min
Temperature Range	212~896 °F
Display	LED Screen
Soldering Iron
Temperature Range	392~896 °F
Tip to Ground Resistance	<2 Ohms

Power Supply

Voltage Output	DC 0~15.0V ±10%
Current Output	0~2.000A ±10%

Test Mode	Measures 0~35V DC (Current reading not available in this mode)
Short-Circuit Protection	Yes

What are the main functions integrated into this 3 in 1 station?

It combines a soldering station, a hot air rework station, and a DC power supply in one unit, allowing soldering, desoldering, and testing in a single workflow.

What are the temperature and airflow capabilities of the hot air gun and soldering iron?

The soldering iron temperature range is 392 to 896 F, and the hot air gun temperature range is 212 to 896 F with up to 120 L/min airflow.

How does the DC power supply mode work and what ranges are available?

In output mode, it provides 0-15 V DC up to 2 A and shows real time load power. In test mode, the voltmeter can test DC power from 0 to 35 V DC.

What input power and safety features does the unit have?

It uses 220 V AC input at 50 Hz and has a rated power of 830 W. Safety features include PID temperature control, temperature calibration, sleep mode, and short circuit protection.

Are warranty, delivery, or return policies available for this product?

Warranty and delivery terms are not provided in the product description; please check the seller policy for details.
