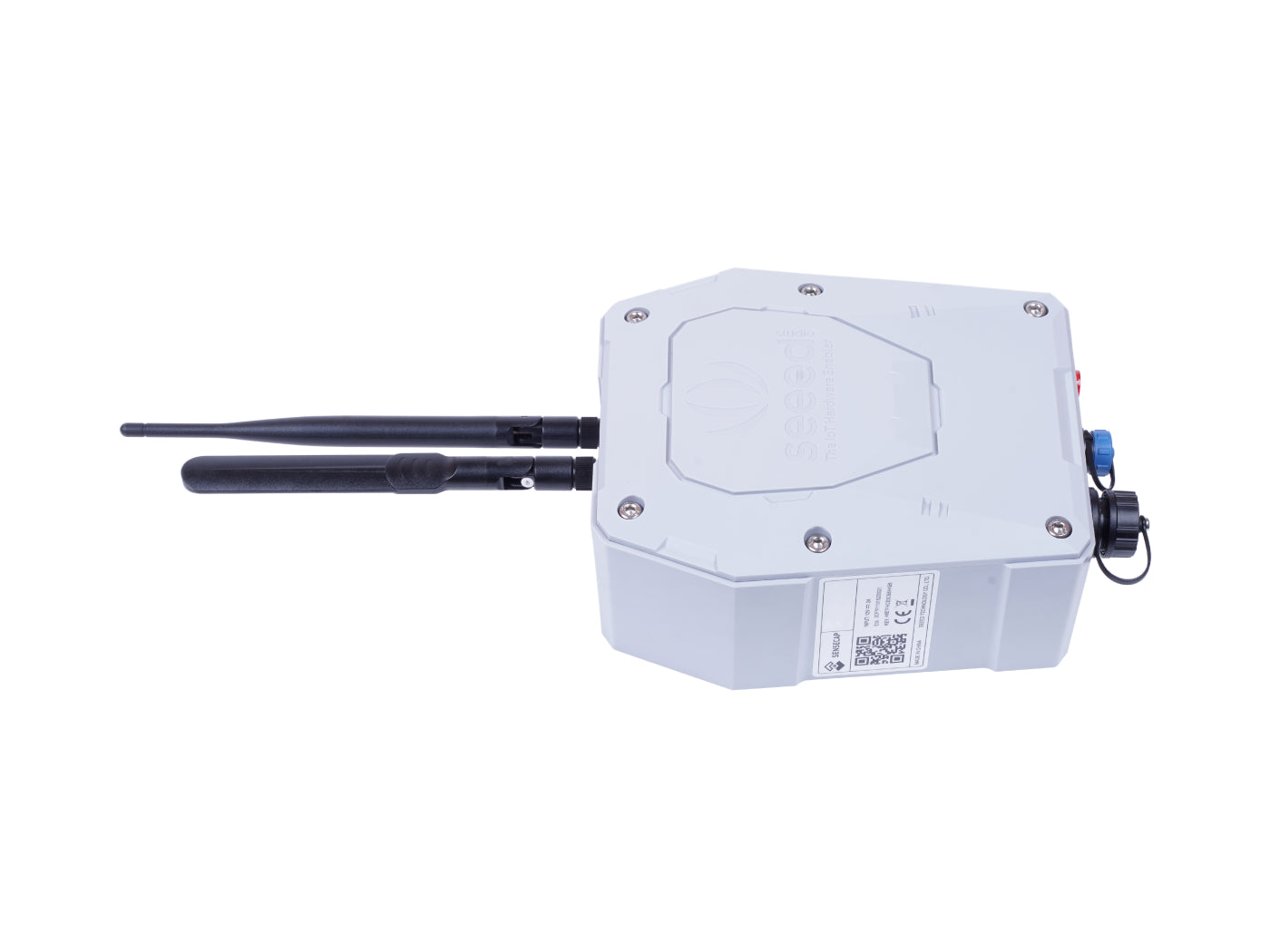

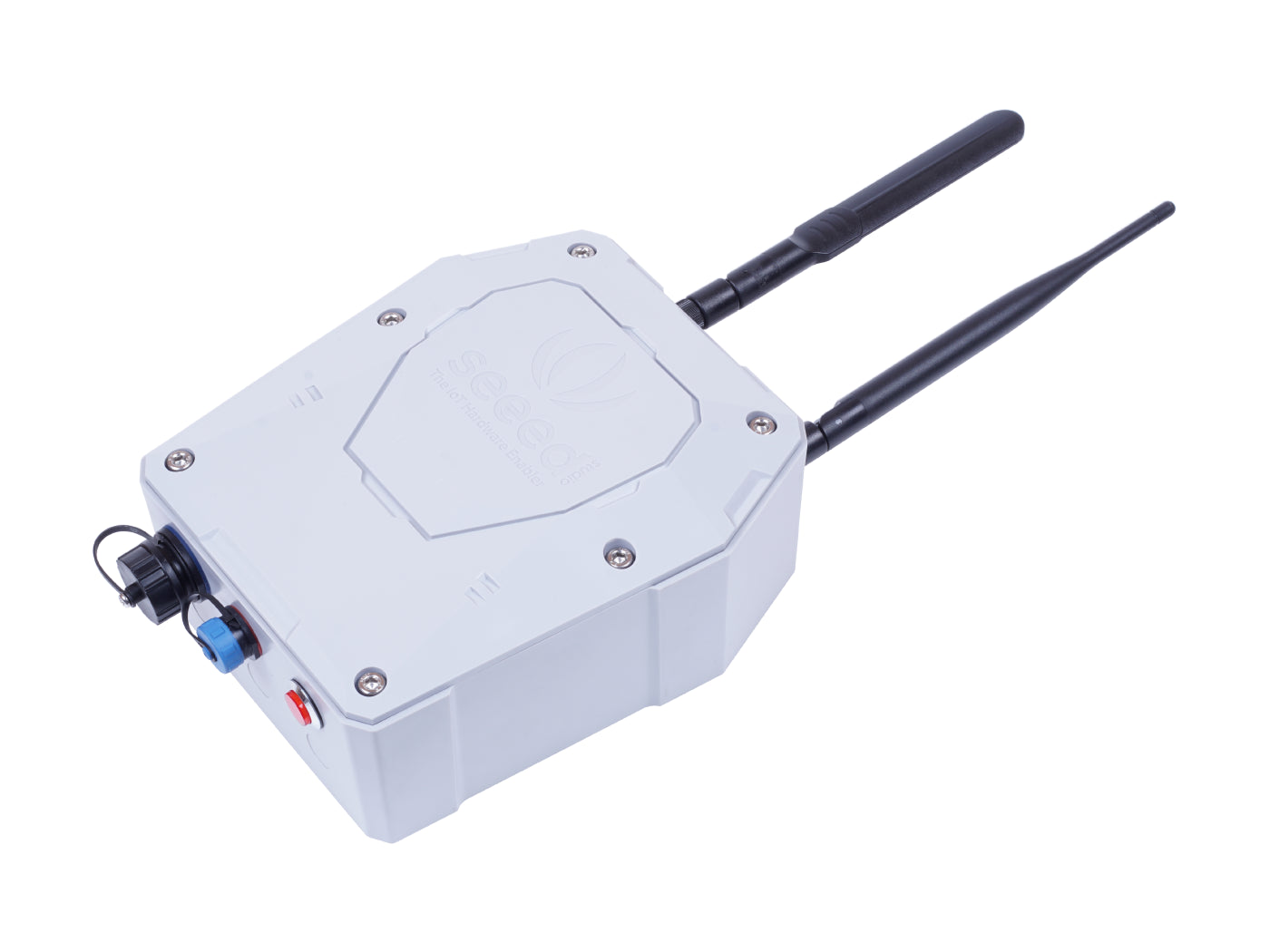

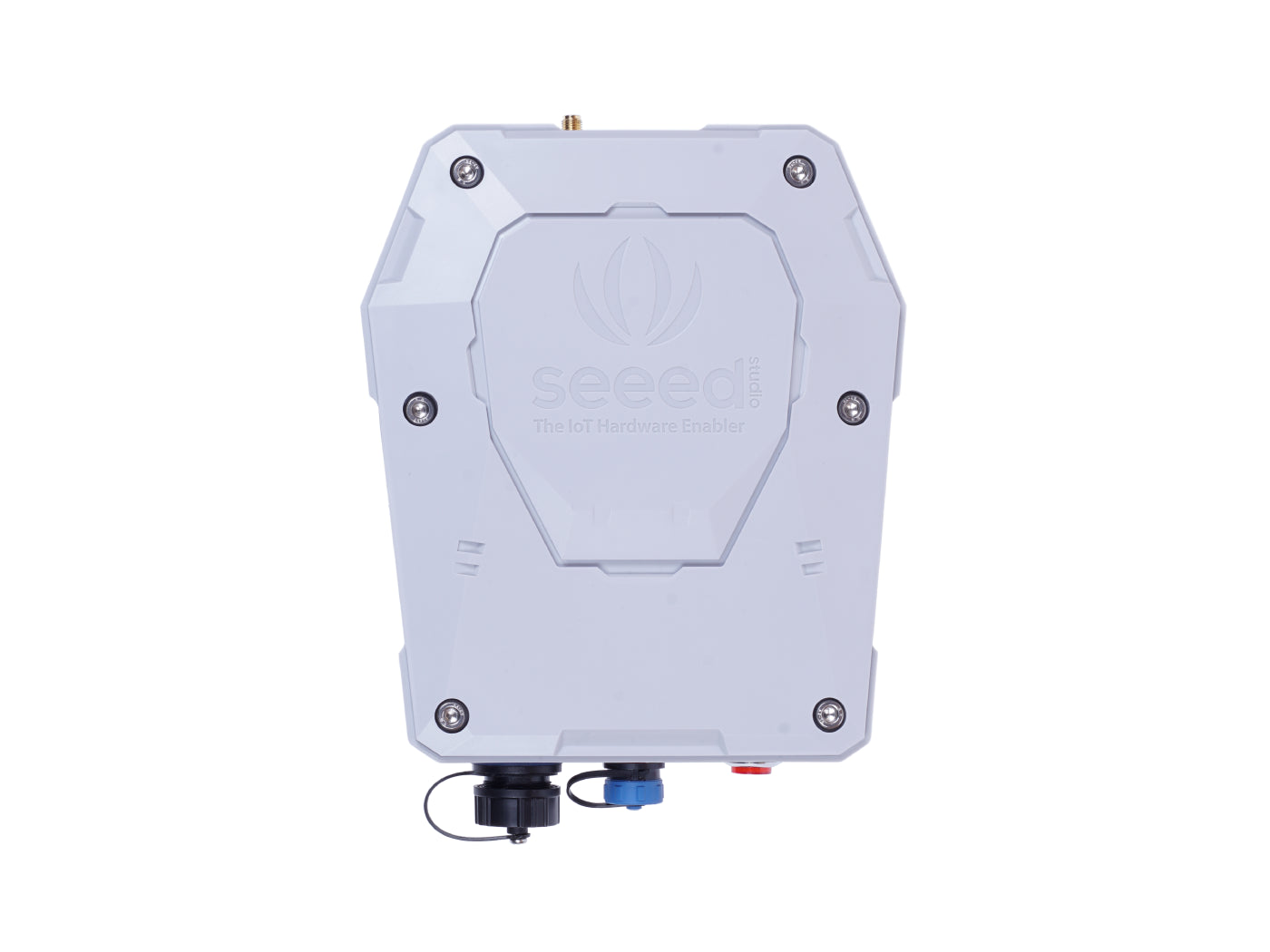

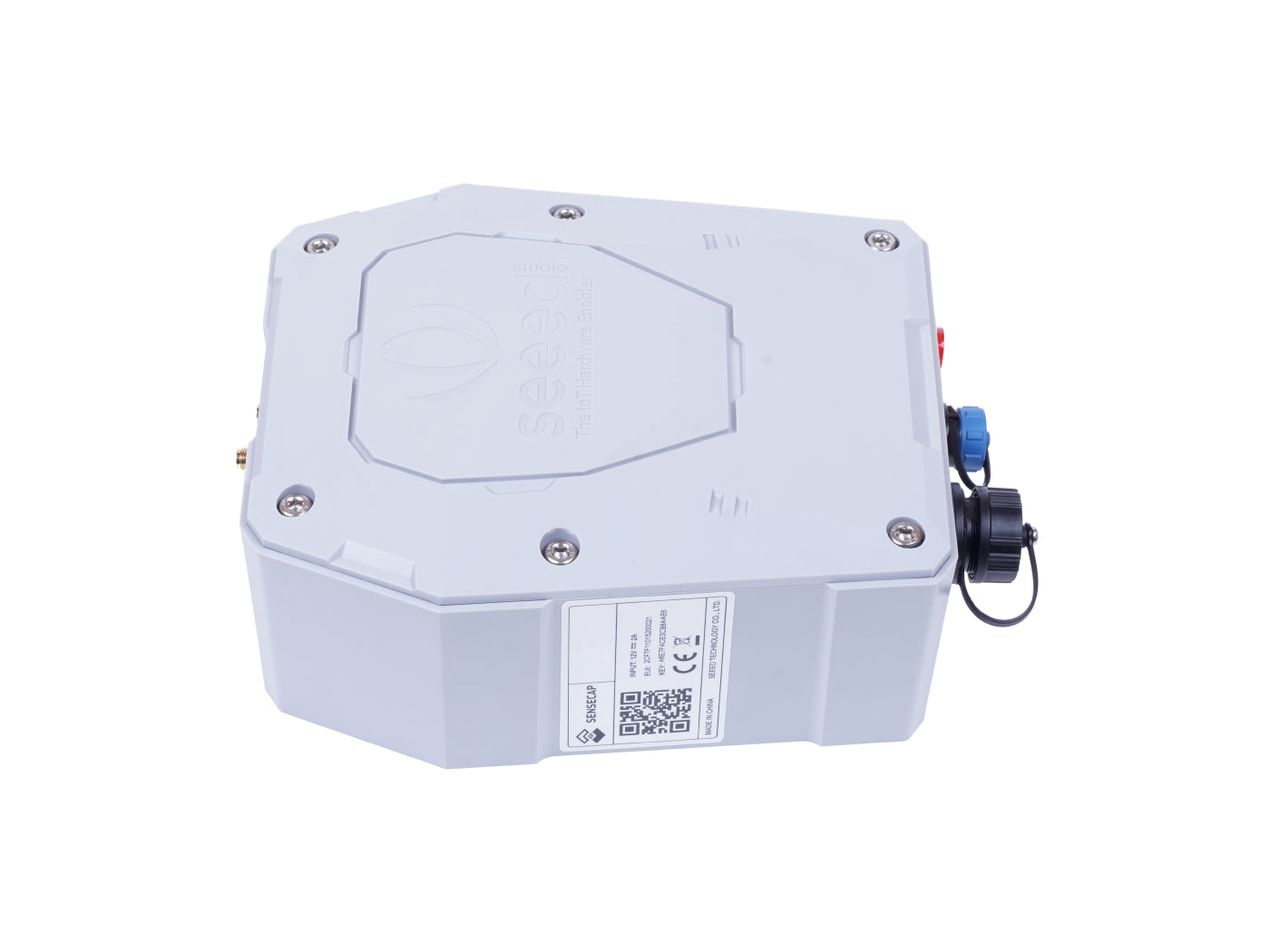

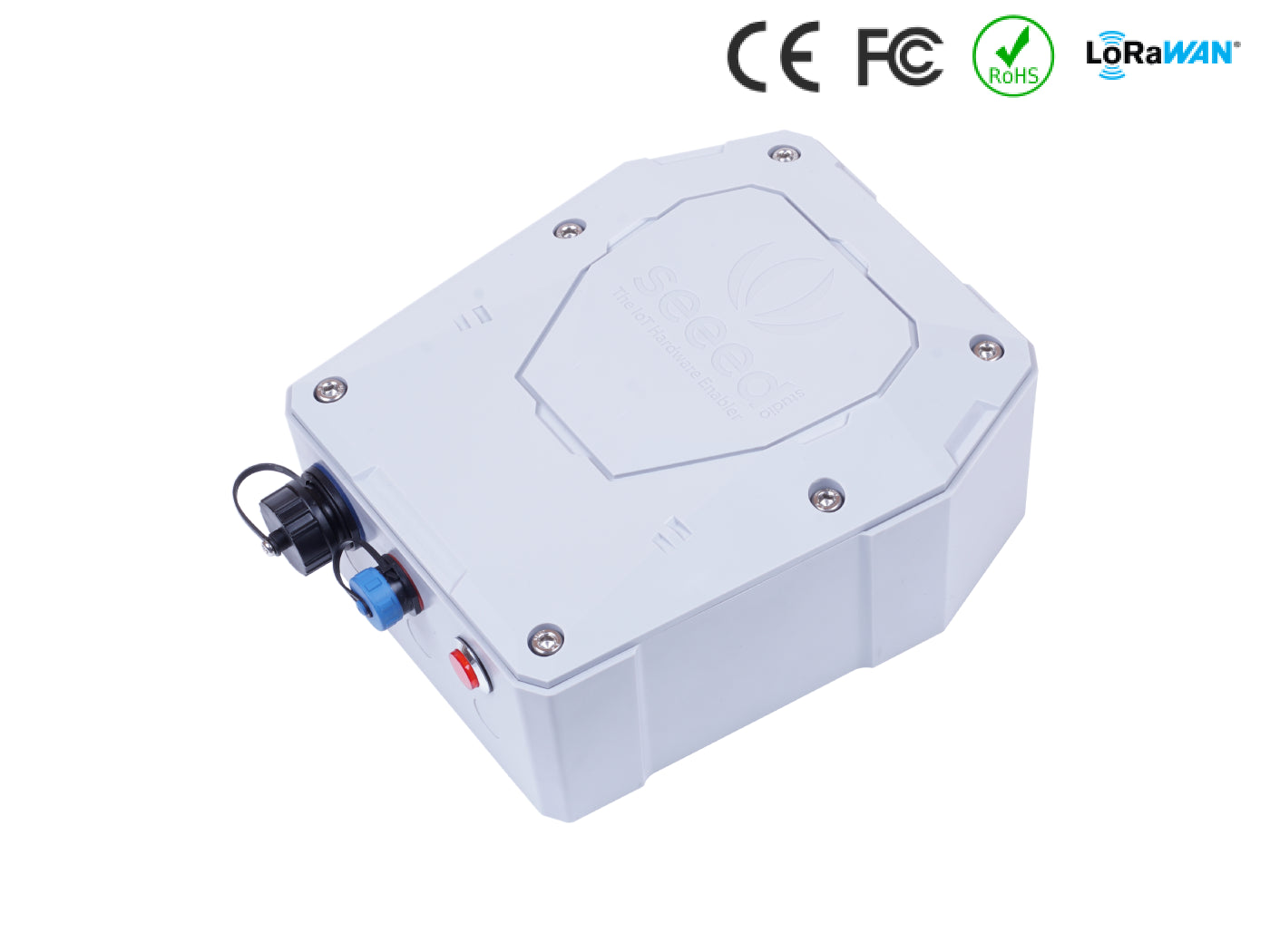

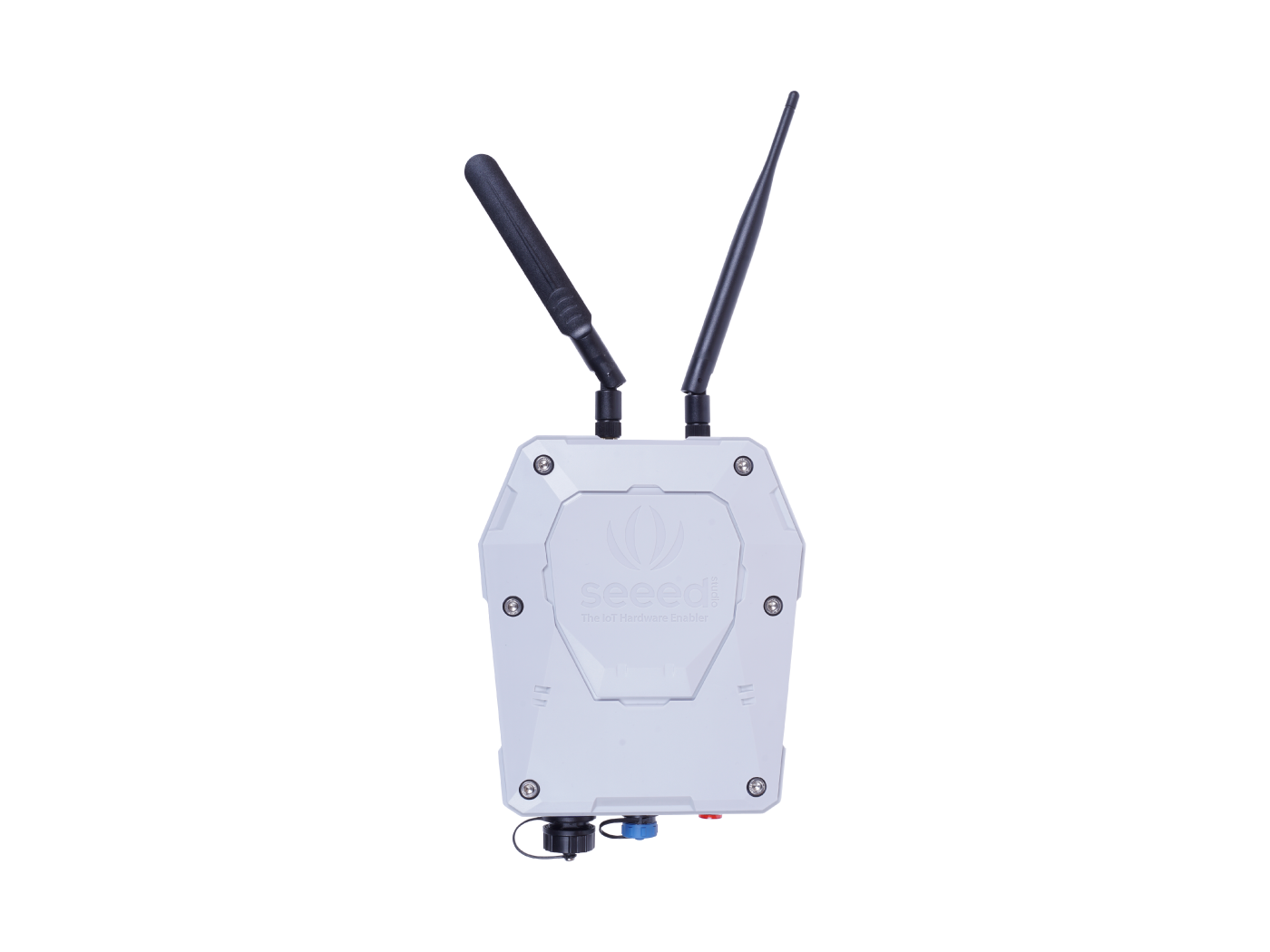

SenseCAP Gateway - LoRaWAN is an IP66 industrial-grade outdoor product, supports an extended operating temperature range, making it applicable for low-power consumption, long-range data collection IoT scenarios like smart farming.
SenseCAP Gateway - LoRaWAN is based on Long Range Application protocol, applicable for low-power consumption, long-range environmental data collection, and remote monitoring scenarios such as smart agriculture and smart city.
Ā
Ā
As the central device of SenseCAP LoRaWAN network, the gateway is used for collecting data from different SenseCAP Sensors and transmit the data to the cloud platform via cellular LTE or Ethernet. Equipped with a high-performance processor AM3358 and telecom-operator-level Long Range chip SX1302, this device ensures robustness and high performance in large-scale networks. Mutual authentication and encryption are established in the whole network to increase security.
Ā
Ā
The gateway is designed with an IP66 enclosure and supports an extended operating temperature range, making it suitable for industrial applications in both indoor and outdoor severe environments.
Ā
SenseCAP Architecture
Ā
| High-performance Cortex A8 1GHz processor, Linux system |
| Support LoRaWAN protocol Class A, support ultra-low-power SenseCAP Sensor |
| Support 8 RX, 1 TX transceiver, maximum transmit power 27dBm |
| Support multiple ISM bands: CN470, EU868, US915, AU915, AS923 |
| Support multiple methods to access the network: 4G, Ethernet |
| Ultra-wide-distance transmission: 10km (line of sight), 2km (urban) |
| Industrial grade protection: IP66 enclosure, temperature -40ā~70ā, suitable for outdoor applications |
| Easy deployment and rapid provisioning |
| Smart Agriculture |
| Smart Building |
| Environmental Monitoring |
| Other Wireless Sensing Applications |
Ā
| Product Model | Long Range -G-868-E/4G |
| CPU | TI AM3358 Cortex-A8 1GHz |
| System | Linux Debian |
| RAM | DDR3 512MB |
| Memory | 8GB eMMC |
| Channel Plan | 863~870MHz |
| Long Range Power Output | 25dBm |
| Long Range Sensitivity | -139.5dBm (SF12BW125) |
| Ethernet | 100Mbps FE (RJ-45) |
| 4G Band | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: 850/900/1800/1900MHz |
| 4G Features | Support non-CA Cat 4 FDD and TDD LTE-FDD: Max 150Mbps (DL), Max 50Mbps (UL) LTE-TDD: Max 130Mbps (DL), Max 30Mbps (UL) |
| UMTS Features | Support 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA DC-HSDPA: Max 42Mbps (DL), HSUPA: Max 5.76Mbps (UL) WCDMA: Max 384Kbps (DL), Max 384Kbps (UL) |
| Long Range Antenna | 2.5dBi gain / Vertical polarization / Omni-directional / SMA-J connector |
| 4G Antenna | 0ā4dBi gain / Linear polarization / Omnidirectional / SMA-J connector |
| LED Indicator | Indicating network condition (online/offline) |
| Grounding | Reserved 1 screw hole for GND |
| Power Consumption | 3.6W |
| Power Supply | DC 12V/2A |
| IP Rating | IP66 |
| UV Resistance | Anti-aging (UL746C F1) |
| Enclosure Material | PC |
| Operating Temperature | -40ā to +70ā |
| Operating Humidity | 0 to 100% RH (non-condensing) |
| Installation Method | Wall or pole mounting |
| Device Weight | 777g |
| Device Dimensions | 256mm Ć 160mm Ć 81mm |
| Certification | CE, FCC, RoHS |
Ā
Ā
| 1 | Long Range Gateway | x1 |
| 2 | Long Range Antenna | x1 |
| 3 | 4G Antenna | x1 |
| 4 | Allen Hex Key | x1 |
| 5 | Mounts | x4 |
| 6 | Power Adapter | x1 |
| 7 | Power Extension Cable (5M) | x1 |
| 8 | Ferrules / Aluminum piece | x2 / x2 |
| 9 | M5 Self-drilling Screws | x8 |
Ā
|
SenseCAP LoRaWAN Gateway Datasheet |
Download |
| SenseCAP LoRaWAN Gateway User Manual | Download |
| LoRaWAN Gateway and Wireless Sensor Catalog V1.7 | Download |
| SenseCAP LoRaWAN Sensor User Manual V1.1 | Download |
| SenseCAP Product User Guide(LoRaWAN Series) V1.3 | Download |
| SenseCAP Document Center | Download |
| FCC Certificate | Download |
