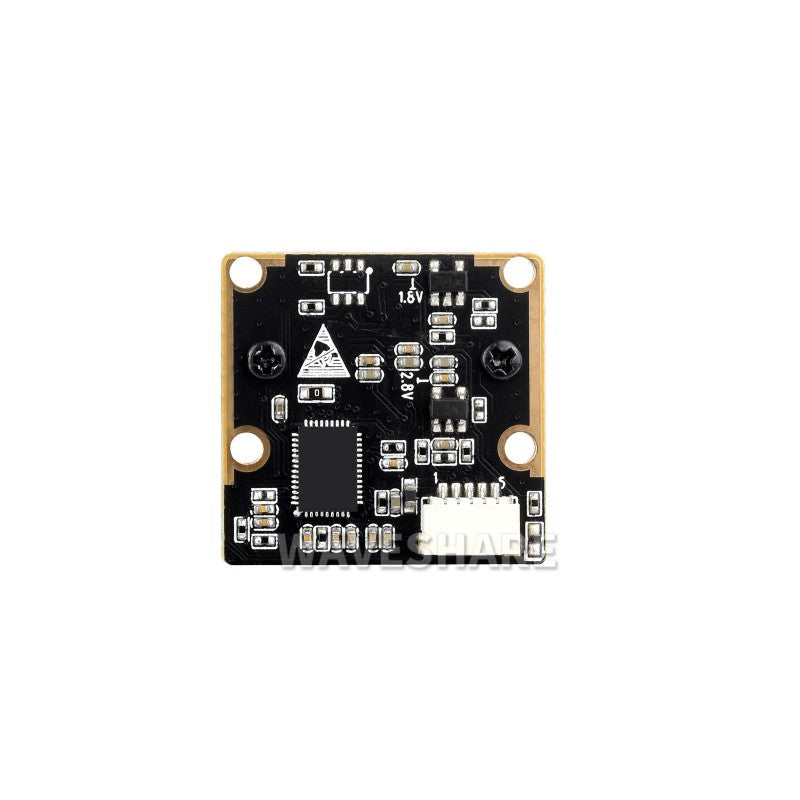

5MP USB CAMERA MODULE
IMX335 Sensor | USB2.0 Port | 175° Wide Angle
Better Sensitivity In Low-Light Condition | Wide Dynamic Range
Specifications
| PIXELS | 5MP | |
|---|---|---|
| SENSOR | IMX335 | |
| INTERFACE | USB 2.0 | |
| CAMERA | Sensor size | 1/2.8 inch |
| Aperture (F) | 2.0 | |
| Focal length (EFL) | 3.65mm | |
| Field of view (FOV) | 175° | |
| Distortion | <-36% | |
| Focusing | Fixed-focus | |
| LENS MOUNT | M12 | |
| CONSTRUCTION | 5G3P + IR Filter | |
| IMAGE | Format support | MJPG, YVY2 |
| Static image resolution | 2592 × 1944 | |
| Video recording | 30 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720 |
|
| Dynamic range | 71.6dB@8xgain | |
| SNR | 36dB | |
| OPERATING VOLTAGE | 5V ± 5% | |
| OPERATING TEMPERATURE | -10°C~60°C | |
| MODULE SIZE | 25 × 24mm | |
Connecting With USB Cable
Connecting with Raspberry Pi 5 |
Connecting with Jetson Orin kit |
* for reference only, the Raspberry Pi 5 and Jetson Orin kit are not included
5MP High Resolution
Supports 30 FPS Output, Suitable For Capturing Details
Better Low-Light Sensitivity
Provides A Better Imaging Effect In Low Light Condition
Wide Dynamic Range
Supports Wide Dynamic Range (WDR) Technology For Maintaining Image Details And Quality In High Contrast Scenes
* The above pictures are the simulated effect for demonstrating the expected performance of IMX335 camera under various conditions, for reference only, please refer to actual effect.
Pinout Definition
Outline Dimensions
Resources
Wiki: www.waveshare.com/wiki/IMX335_5MP_USB_Camera_(B)
Package Contains:
Weight: 0.02 kg
IMX335 5MP USB Camera (B) x1
Selection Guide
| PART NUMBER | PIXELS | SENSOR | BEST RESOLUTION | DIMENSION | FIELD OF VIEW | FEATURE |
|---|---|---|---|---|---|---|
| OV2710 2MP USB Camera (A) | 2MP | OV2710 | 1920x1080 | 38x38mm | 145° | Low-light sensitivity |
| OV5693 5MP USB Camera (A) | 5MP | OV5693 | 2592x1944 | 18×40mm | 135° | Auto focus |
| OV5693 5MP USB Camera (B) | 5MP | OV5693 | 2592x1944 | 8.5×60.2mm | 75° | Small size, auto focus |
| OV5640 5MP USB Camera (B) | 5MP | OV5640 | 2592x1944 | 9×62mm | 68° | Small size, auto focus |
| OV5640 5MP USB Camera (C) | Small size | |||||
| IMX335 5MP USB Camera (A) | 5MP | IMX335 | 2592x1944 | 38×38mm | 106° | Manual focus, low-light sensitivity, wide dynamic range |
| IMX335 5MP USB Camera (B) | 5MP | IMX335 | 2592x1944 | 25×24mm | 175° | Fixed-focus, wide angle, low-light sensitivity, wide dynamic range |
| IMX179 8MP USB Camera (A) | 8MP | IMX179 | 3288x2512 | 38x38mm | 145° | HD, embedded digital mic |
| IMX179 8MP USB Camera (B) | 8MP | IMX179 | 3264×2448 | 9×62mm | 75° | HD, small size, auto focus |
| IMX258 13MP OIS USB Camera (A) | 13MP | IMX258 | 4208×3120 | 38×38mm | 127° | HD, OIS |
