ReSpeaker Lite 2-Mic Array Voice Assistant Kit

SKU: SBC2272

₹ 3,549.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ReSpeaker Lite 2-Mic Array Voice Assistant Kit₹ 3,549.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

ReSpeaker Lite Voice Assistant Kit

USB Dual Microphone Array with XIAO ESP32S3

Powered by XMOS XU316 AI Sound and Audio chipset, it is a high-performance open source voice assistant development kit. The kit integrates the reSpeaker Lite dual-microphone array and a powerful XIAO ESP32S3 processor, offering exceptional voice recognition, noise reduction, and voice processing capabilities thanks to its onboard AI NLU algorithms. This kit provides firmware integration with Home Assistant via ESPHome, making it ideal for smart voice assistants and home automation applications.



Features

Pre-Soldered ESP32 Controller A powerful XIAO ESP32S3 is pre-soldered via the I2S pins, offering a solderless experience for further development and integration.
Dual Microphone Array for Far-Field Voice Capture The 2 high-performance digital microphones capture and extract far-field speech and voice (up to 3 meters), even in noisy environments, cancelling point noise using two-microphone input.
Onboard Audio Front-End Algorithms Powered by the XMOS XU-316 AI sound and audio chip, featuring Natural Language Understanding algorithms for Interference Cancellation (IC), Acoustic Echo Cancellation (AEC), Noise Suppression, and Automatic Gain Control (AGC) for high-quality voice capture.
Embracing Open Source Compatible with Arduino, PlatformIO, MicroPython, and CircuitPython for further development.
Compatible with Popular Voice Assistants Enables building a natural language processor and connecting it to Home Assistant via ESPHome, Amazon Alexa Voice Service, Google Assistant, or Cloud Speech-to-Text, allowing voice interaction and commands.
Onboard RGB LED Features a programmable WS2812 RGB LED supporting custom effects and providing a visual interface for applications.



Specifications

General
Core Chip XMOS XU316
Digital Microphones High-Performance Digital Microphones × 2
Sensitivity -26 dBFS
Acoustic Overload Point 120 dBL
SNR 64 dBA
Power Supply USB 5V, External 5V

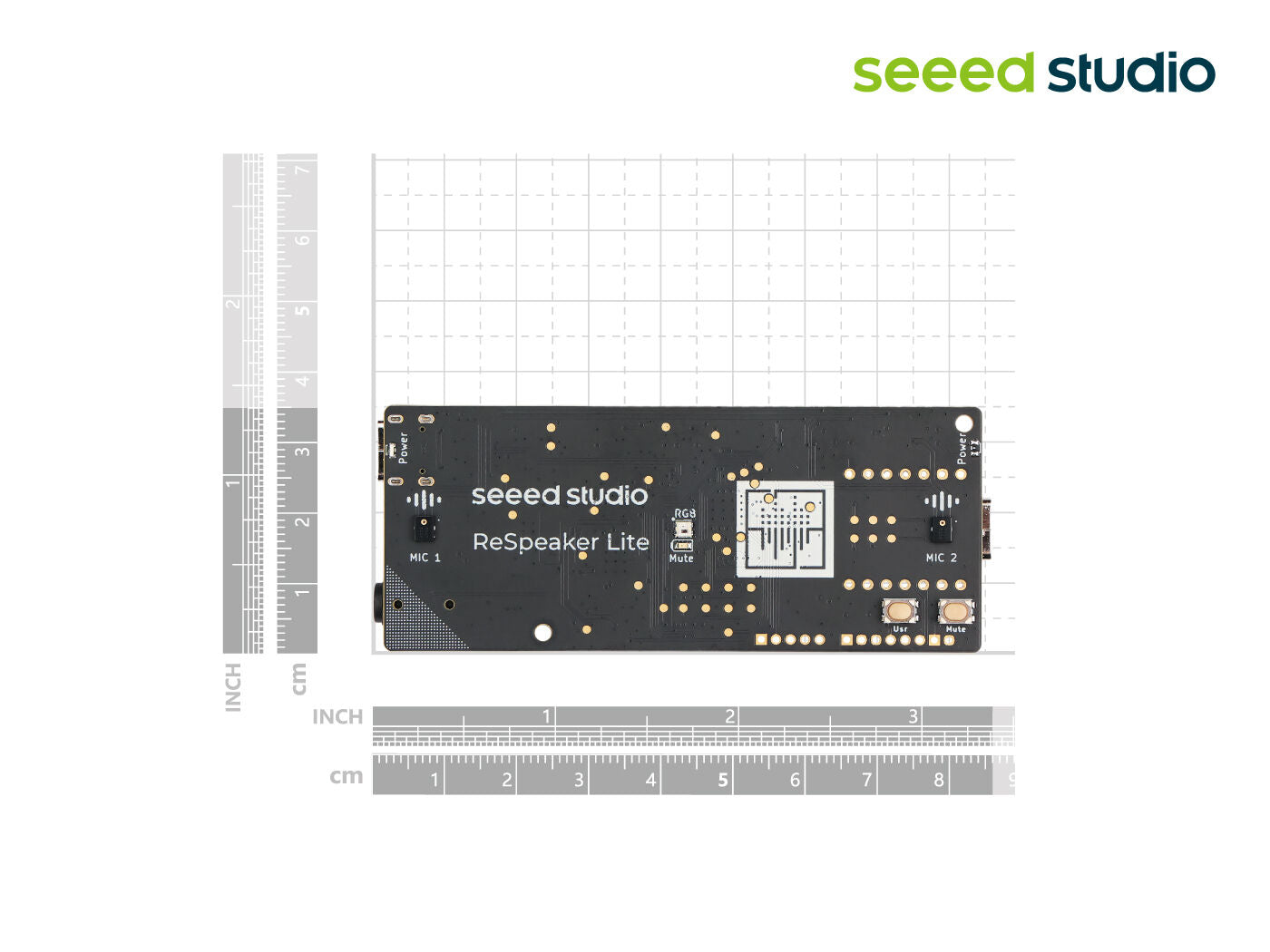

Dimensions 35 × 86 mm
Audio Output Speaker Connector / 3.5mm Headphone Jack
Maximum Sampling Rate 16 kHz
Speaker Supports 5W Amplifier Speakers
XIAO ESP32S3
Processor ESP32-S3R8, Xtensa LX7 dual-core, 32-bit @ 240 MHz
Wireless 2.4GHz WiFi, Bluetooth 5.0, BLE Mesh
On-chip Memory 8MB PSRAM & 8MB Flash
Interface 1× UART, 1× IIC, 1× IIS, 1× SPI, 11× GPIO(PWM), 9× ADC, User LED, Charge LED, Reset Button, Boot Button
Dimensions 21 × 17.5 mm
Power Type-C Input: 5V
BAT Input: 4.2V
Operating Current:
• Type-C: 5V @ 19mA
• Battery: 3.8V @ 22mA
Charging Current: 100mA
Low Power Consumption (Supply: 3.8V)
• Modem-sleep: ~25 mA
• Light-sleep: ~2 mA
• Deep-sleep: ~14 µA
WiFi Enabled Power Active Mode: ~100 mA
BLE Enabled Power Active Mode: ~85 mA
Working Temperature -40°C ~ 65°C



Hardware Flowchart



Hardware Diagram





Pinout Diagram of XIAO ESP32S3



Application

Smart Speakers and Virtual Assistants: Work with Amazon Alexa and Google Assistant to improve voice command recognition.
Audio Processing Development: Suitable for projects involving audio signal processing and analysis.
Conference Systems: Ensures clear communication during video and audio conferences.
Voice-Based Remote Control Cars
Keyword Spotting and Wake-Up



Documents

 Product-Brief of XMOS XU316
 reSpeaker Lite Voice Assistant Kit with XIAO ESP32S3 - CE certifications
 reSpeaker Lite Voice Assistant Kit with XIAO ESP32S3 - FCC certifications
 Schematic diagram of reSpeaker Lite

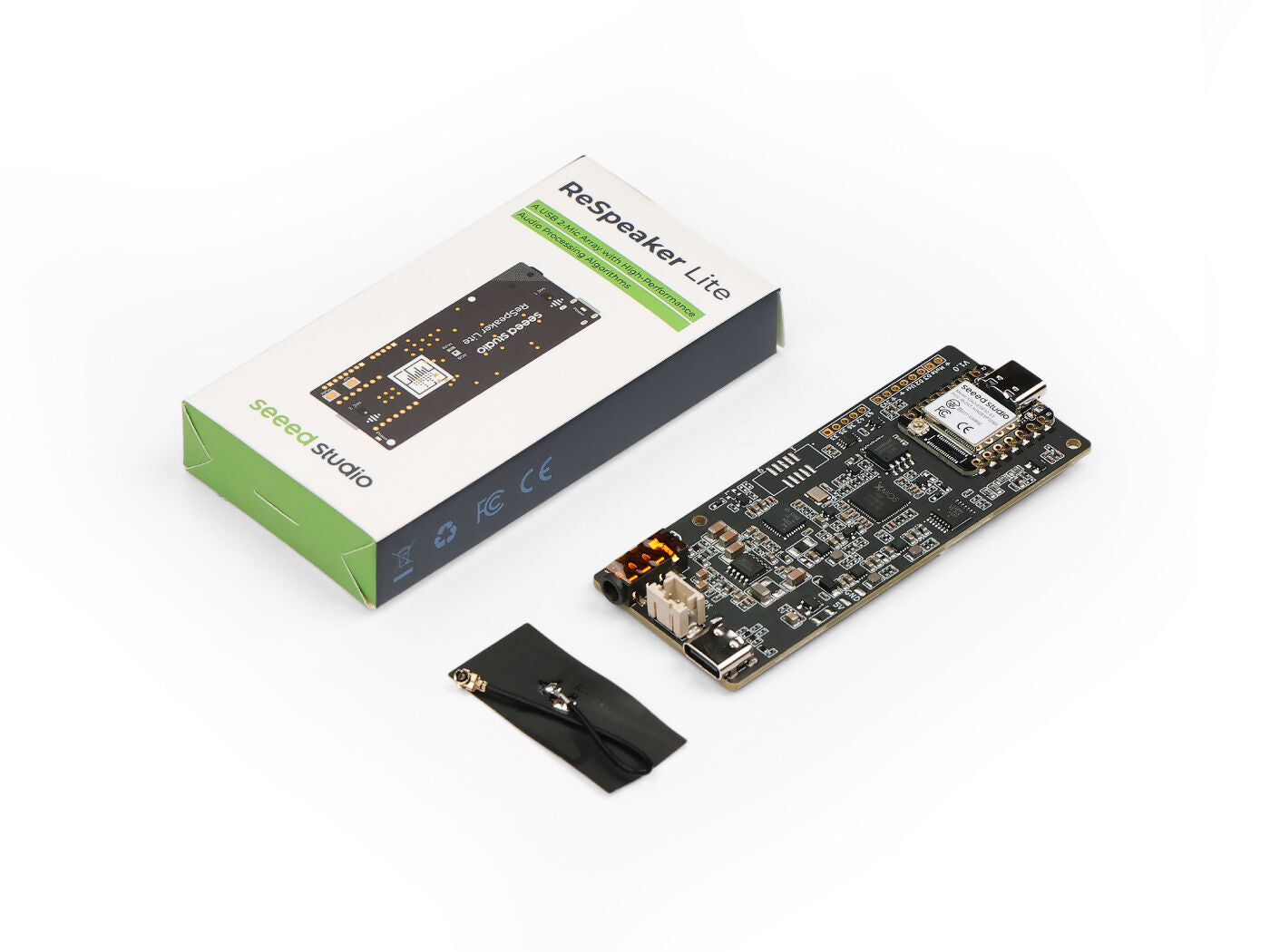

Part List

ReSpeaker Lite Voice Assistant Kit x1

What components are included in the ReSpeaker Lite kit?
The kit includes the ReSpeaker Lite dual microphone array and a pre-soldered XIAO ESP32S3 controller via I2S pins, an onboard WS2812 RGB LED, and a 3.5 mm audio connector. It can be powered via USB Type-C input.
Can this kit work with Home Assistant and voice assistants?
Yes, it supports firmware integration with Home Assistant via ESPHome and can connect to Amazon Alexa Voice Service, Google Assistant, or Cloud Speech-to-Text.
How does the microphone setup handle far field and noise?
It uses two high performance digital microphones that capture far field speech up to 3 meters and reduces noise using two microphone input and onboard audio front end algorithms powered by XMOS XU316.
What are the processor and memory specifications?
The processor is XIAO ESP32S3 with Xtensa LX7 dual core 32 bit at 240 MHz. On chip memory includes 8MB PSRAM and 8MB Flash.
What are the power options and typical current draw?
Power is provided by USB Type-C input or external 5V supply. The operating currents listed are Type-C: 5V at 19 mA and Battery: 3.8V at 22 mA, charging current 100 mA. Low power modes: modem sleep about 25 mA, light sleep about 2 mA, deep sleep about 14 uA.
